Product Description
Industrial High Precision
Dye Sublimation Printer
The linear motor improves precision and service life. Paired with precise components, the drying process is accurate and energy - efficient.
Technical Specifications

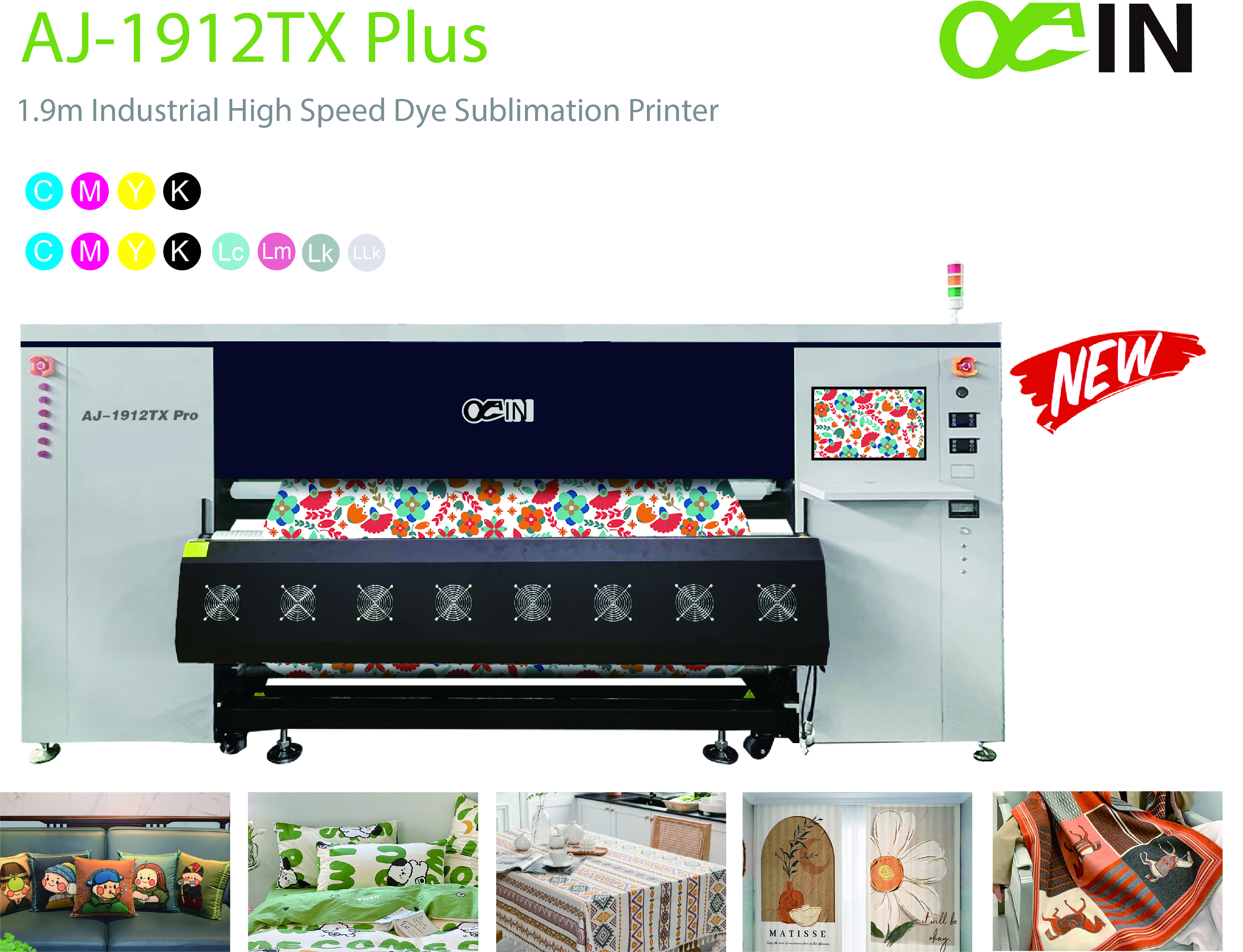

| AJ-1912TX Plus Industrial High Speed Dye Sublimation Printer | ||
| Model | AJ-1912TX Pro | |
| Print Head | Twelve 13200-A1 Print Heads | |
| Droplet Size | 3.5pl | |
Printing Width | 74.8 in.(1900 mm) | |
Printing Speed | 1pass(720x600dpl):5704 sqft(530 sqm/h) 2pass(720x1200dpl:3207 sqt (298 sqmdh) | |
| Ink Cartidges | Type | Dye SublimationInk |
| Supply | Negative pressure ink supply system | |
Colar | CMYK / CMYKLCLMLKLLK | |
| Print Media | Heat Transter Paper | |
| Print media control | Air expansion shaft Take-up System | |
| Dryer | External Automatic Air Heat Integrated Dryer | |
| Moisturizing unit | Automatic Cleaning and Moisturizing Integrated Captop | |
| RIP Software | RllN Beidou Textile Version,Maintop6.0、photoprint、ONYX、NeoStampa、PrintFactory etc | |
| Fle Format Supported | JPG/TIFF/PDF,etc | |
Computer Confguraton | Operating System | win7 64 bit / win10 64 bit |
Hardware Requirements | CPU: i7 Processor (9th generation or higher) Hard Disk 500g+ (solid state disk) Operating Memory 16g Graphics Card: ATl display 4G memory, Motherboard: ASUS, Gigabyte | |
Data transmission | USB3.0 | |
| Power requirement | Input Voltage | AC 220 V+5%.16A.50 HZ+ 1 |
| Printer | 2500W | |
| Drying unit power | Maximum 8kw | |

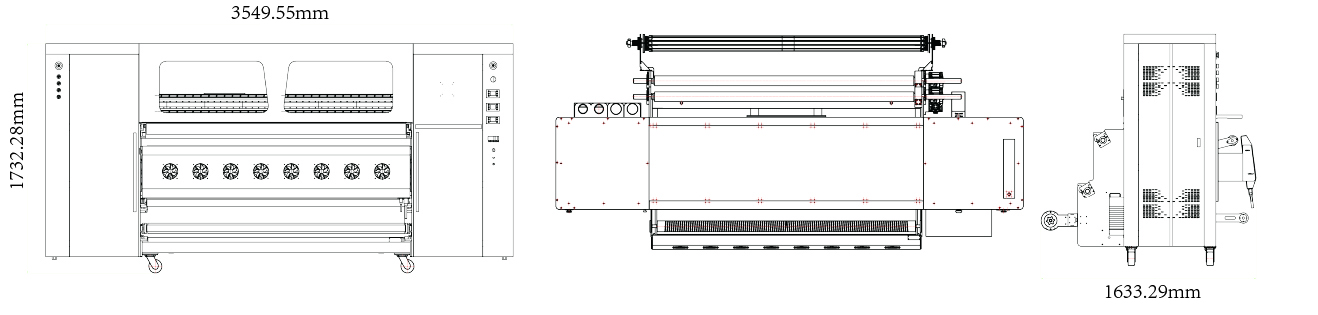

| Dimensions(with stand) | 142(V)x64(D)x68(H) in. (3595(W)x1633(D)x1732(H) mm | |
| Package Dimensions | 137.7(W)x29.5(D)x84.6(H)in. 3500(W)x750(D)x2150(H)mm | |
| Working Environment | Temperature 15-32 degrees C, Humidity: relative humidity: 40-70 (non condensing) | |
| Standard Components | External Automatic Air Heat Integrated Dryer, Low Ink Alarm System, Air Shat Media Loading and Take-up, and Automatic Moisturizing and Cleaning Init | |
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features

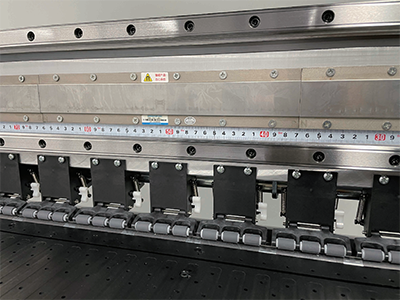

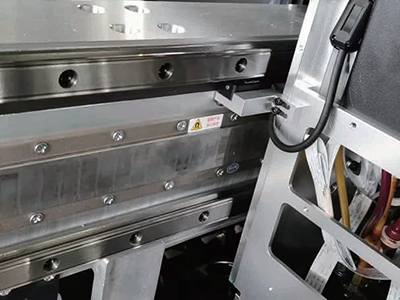

 | Mute Linear Motor System,no belt,no pvc encoder strip; Incresse the Carriage moving precision and Span life; |  | Magnetic grid, the Carriage drop point more precision |

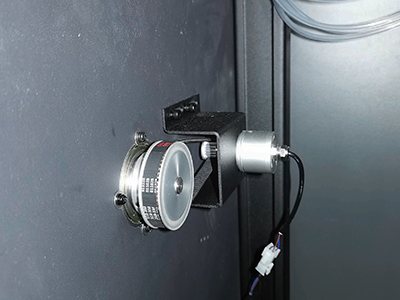

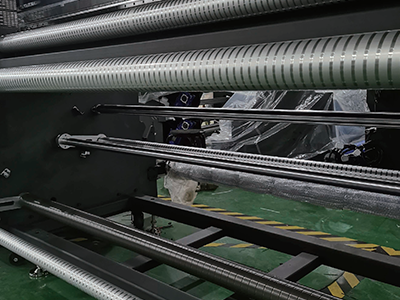

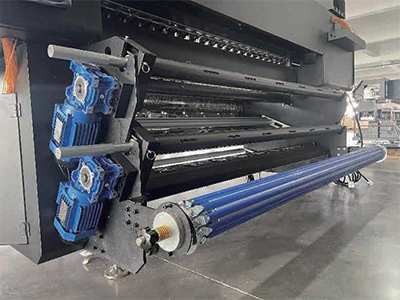

 | Air expansion shaft rubber strip rolls collection and release,to ensure that the collection of material more stable and flush |  | High precision angle sensor |

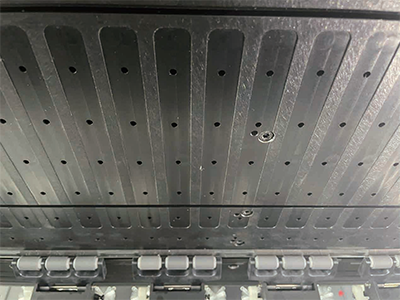

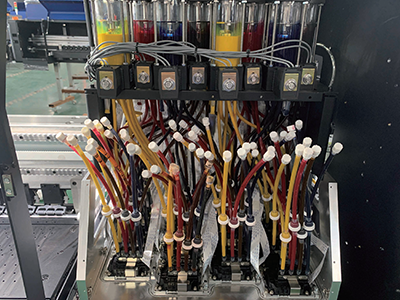

 | Negative pressure ink supply system: good forlong time printing and cleaning |  | Vertical slotted air guide platform, making the paper surface more flat |

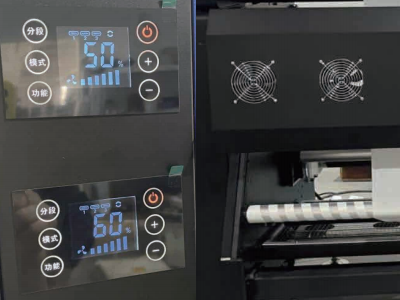

 | Pendulum rod tension structure |  | 2 external infrared drying units,Precise control of drying temperature, reduce energy consumption |
Application
Applications of Industrial
Dye Sublimation Printer
Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant，reliable and precise. With Ainkjet series printer , you can maximize production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
