Product Description
| High Speed Digital Industrial Sublimation Printer High performance sublimation dye ink Sublimation ink has bright colors, wide compatibility, high color fastness, and long-lasting bright patterns, suitable for fabrics and papers with high color requirements. Stable and reliable operation Upgrade and optimize the dual rail and servo system to achieve the advantages of stable operation, convenient maintenance, accurate paper feeding, precise printing, flat paper surface, and easy loading and unloading. High printing accuracy Configure 8 Epson I3200 print heads, supporting multi-color and spot colors, with different accuracies corresponding to efficient speeds (up to 500 ㎡/h), and multi precision modes to meet diverse need. Widely used Covering clothing, home textile fabrics, proofing, shirts, canvas bags, pillows, scooters, flags, textile small items and other scenes. |
New Feature of Sublimation Printer We have an excellent technical team, which can be designed according to customers requirements. |
| ■ Dual rail and supporting AC servo motor, upgraded Synchronous belt wheel structure, the Trolley runs more smoothly and mute ■ The fully sealed suction chamber structure is equipped with silent turbine fan to reduce the working noise of the machine ■ Equipped with a constant temperature heating system, the nozzle is not affected by the ambient temperature during the printing process ■ The three pressure wheel can be lifted independently, the pressure control is accurate, the paper is smooth, and the continuous and stable printing is realized ■ The servo motor is used for collecting and discharging materials, and the vertical channel air guiding platform is used,High quality AC servo motor, good stability, long service life. Vertical groove guide gas platform, make paper surface more smooth. |
Technical Specifications

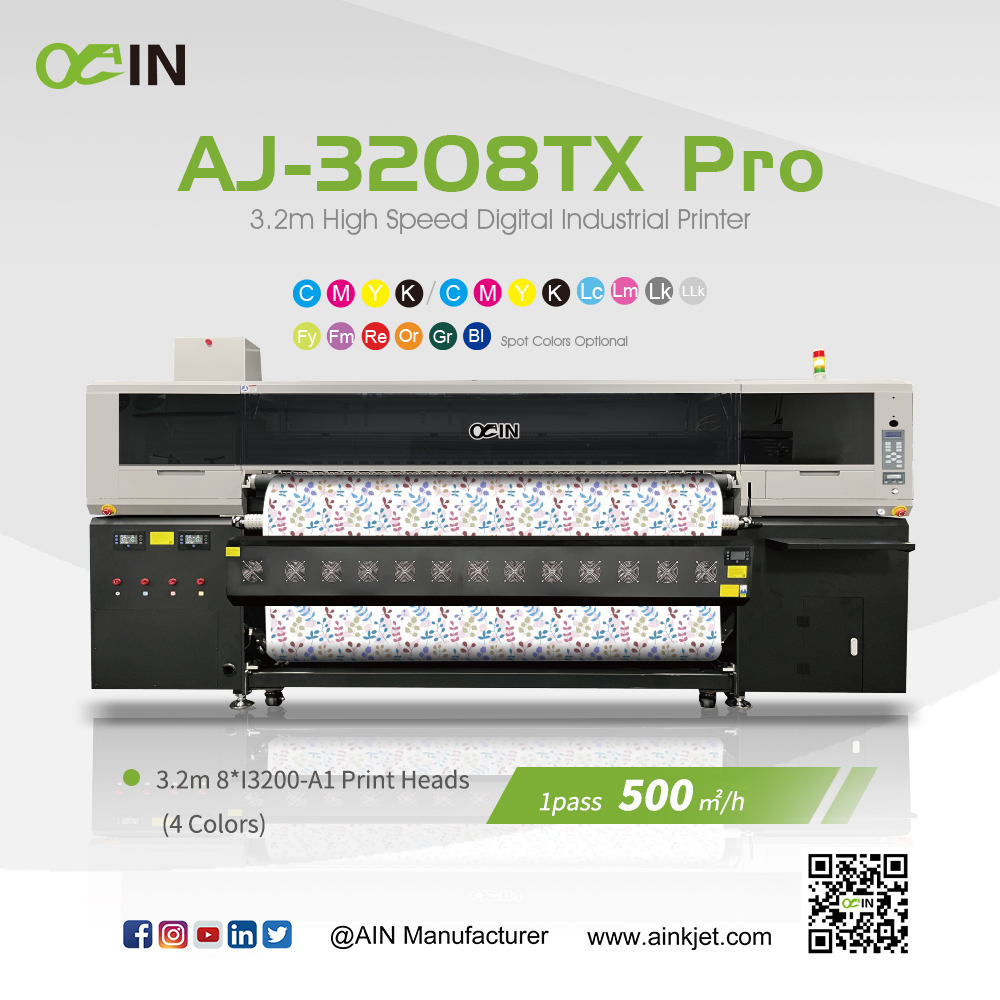

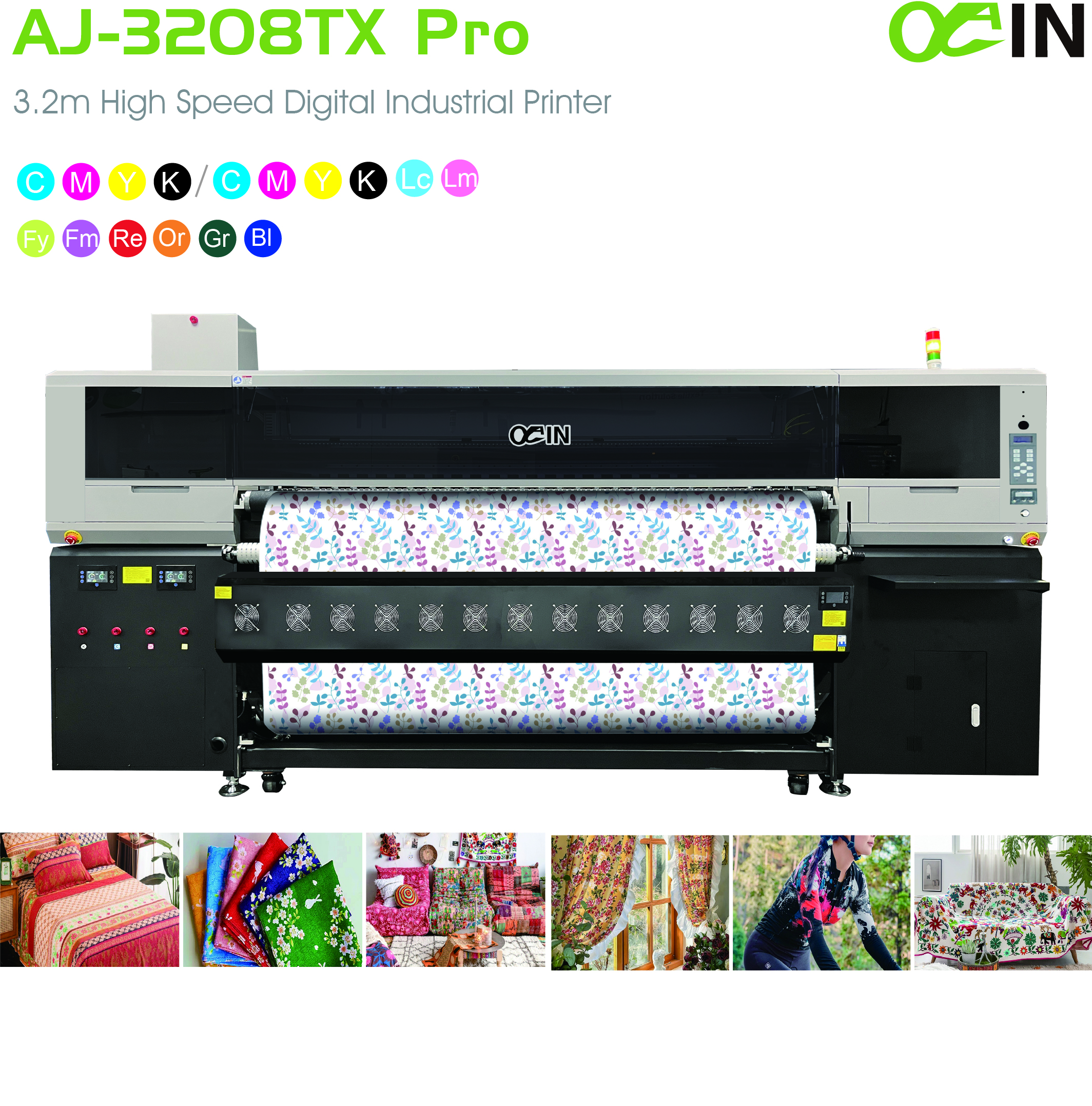

| AJ-3208TX Pro 3.2m High Speed Digital Industrial Printer | ||
| M0DEL | AJ-3208TX Pro | |
| Print Head | Eight i3200 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 3200(mm) |
| Thickness | ≥30g | |
| Outer Diameter | 210mm（8.3in） | |
| Bearing Meter | 3000m | |
| Ink Cartridges | Type | 220ml secondary ink tank + 5L ink bottle |
| Color | CMYK/CMYK+LCLMLKLLK/FM、FY、RED、GR、ORG | |
| Supply | Siphon ink path system + automatic refill ink system | |
| Print Media | Heat Transfer Paper | |
| Printing Resolution | Maximum 1200 dpi | |
| Printing Speed | 1Pass(360x1200dpi):4090sqft(500 sqm/h) 2Pass(360x2400dpi)2734 sqft (254 sqm/h) 3Pass(360x3600dpi):1830 sqft(170 sqm/h) | |
| Media Loading and Take-up | Automatic Air Expansion Shaft System | |
| Dryer | External Automatic Air/ Heat Integrated Dryer | |
| Moisturizing | Automatic Cleaning and Moisturizing Integrated Unit | |
| RIP Software | Maintop6.0、 Photoprint、 Onyx, NeoStampa、 PrintFactory (Ultraprint as standard and other softwares optional) | |
| File Format Supported | JPG/TIFF/PDF, etc | |
| Interface | USB 3.0 | |
| Power | Printing system :2000W Drying system :Maximum 12.6KV | |
| Power Supply | AC 220V ± 5%,16A, 50HZ+1 | |
| Dimensions(with stand) | 187(W)x62.6(D)x77.5(H) in. 4750(W)x1590(D)x1970(H) mm | |
| Environment | Power on | Temperature: 59℉to 90℉[15℃to 32℃] / Humidity: 35 to 80% (no condensation) |
| Power off | Temperature: 41℉to 104℉[5℃to 40℃] / Humidity: 20 to 80% (no condensation) | |
| Accessories | External Automatic Control Air And Heat Integrated Dryer, Low-ink Alarm System, Double air-shaftMedia Loading And ta-up System, Automatic Moisturizing Cleaning System. | |
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features
|

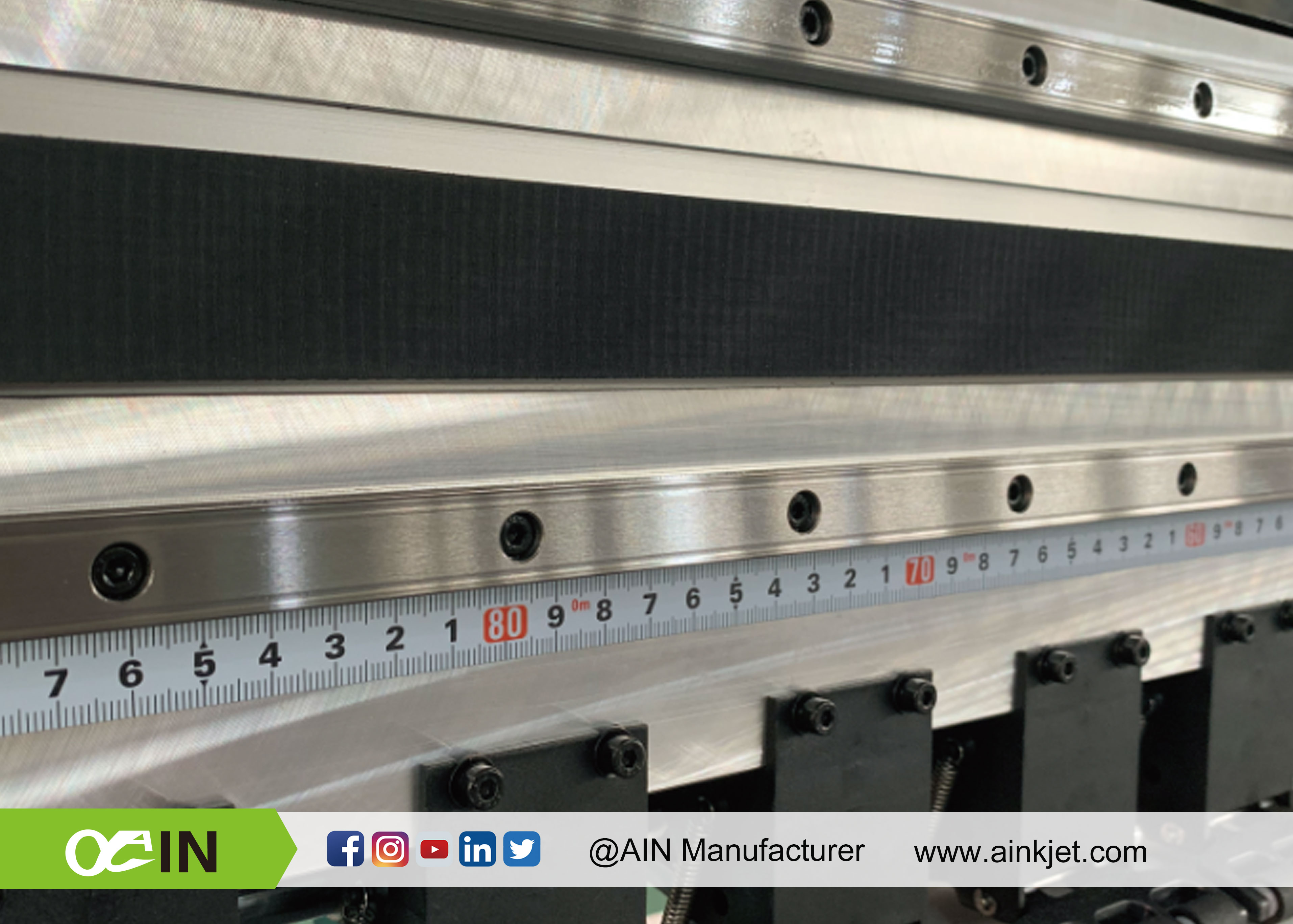

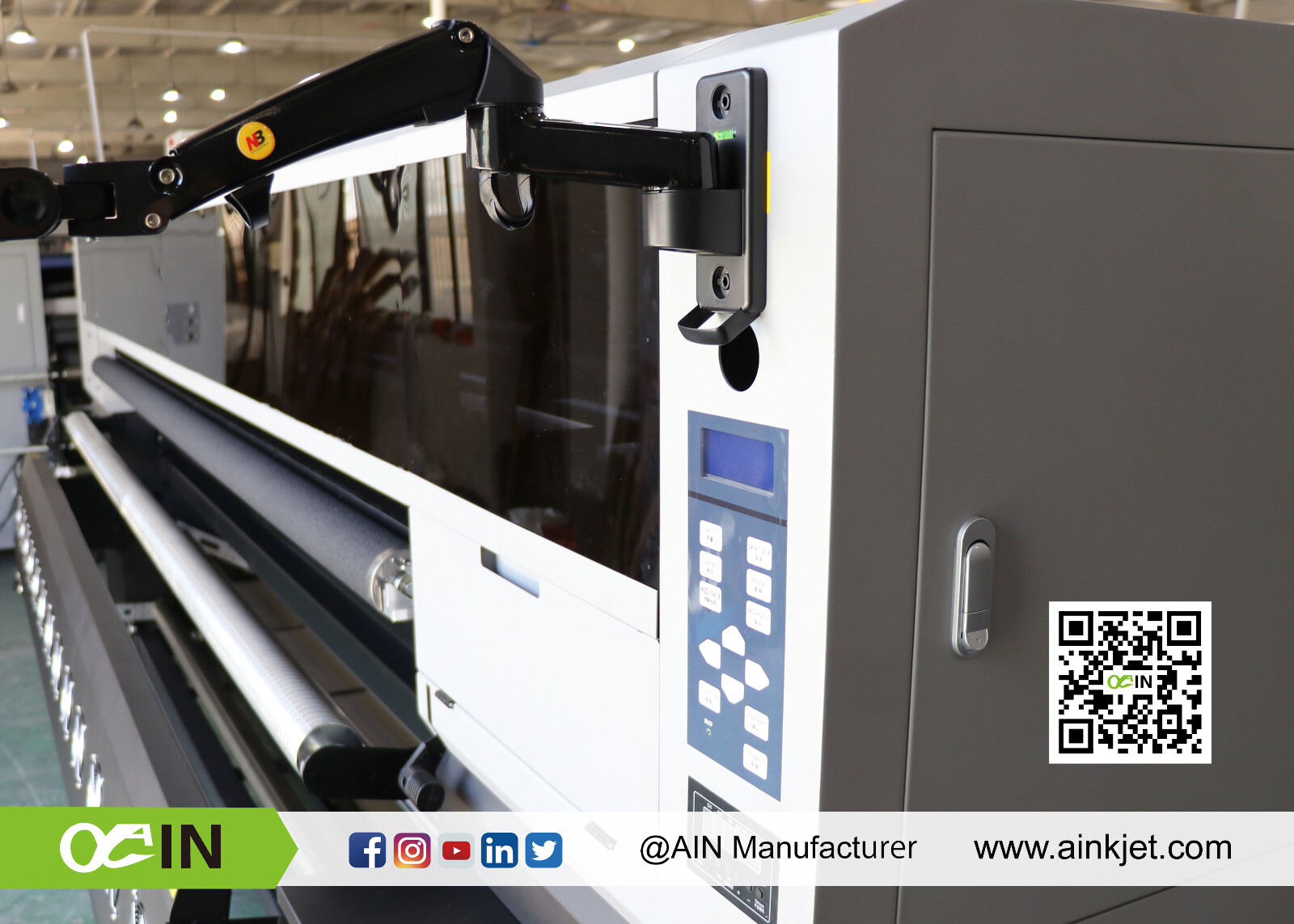

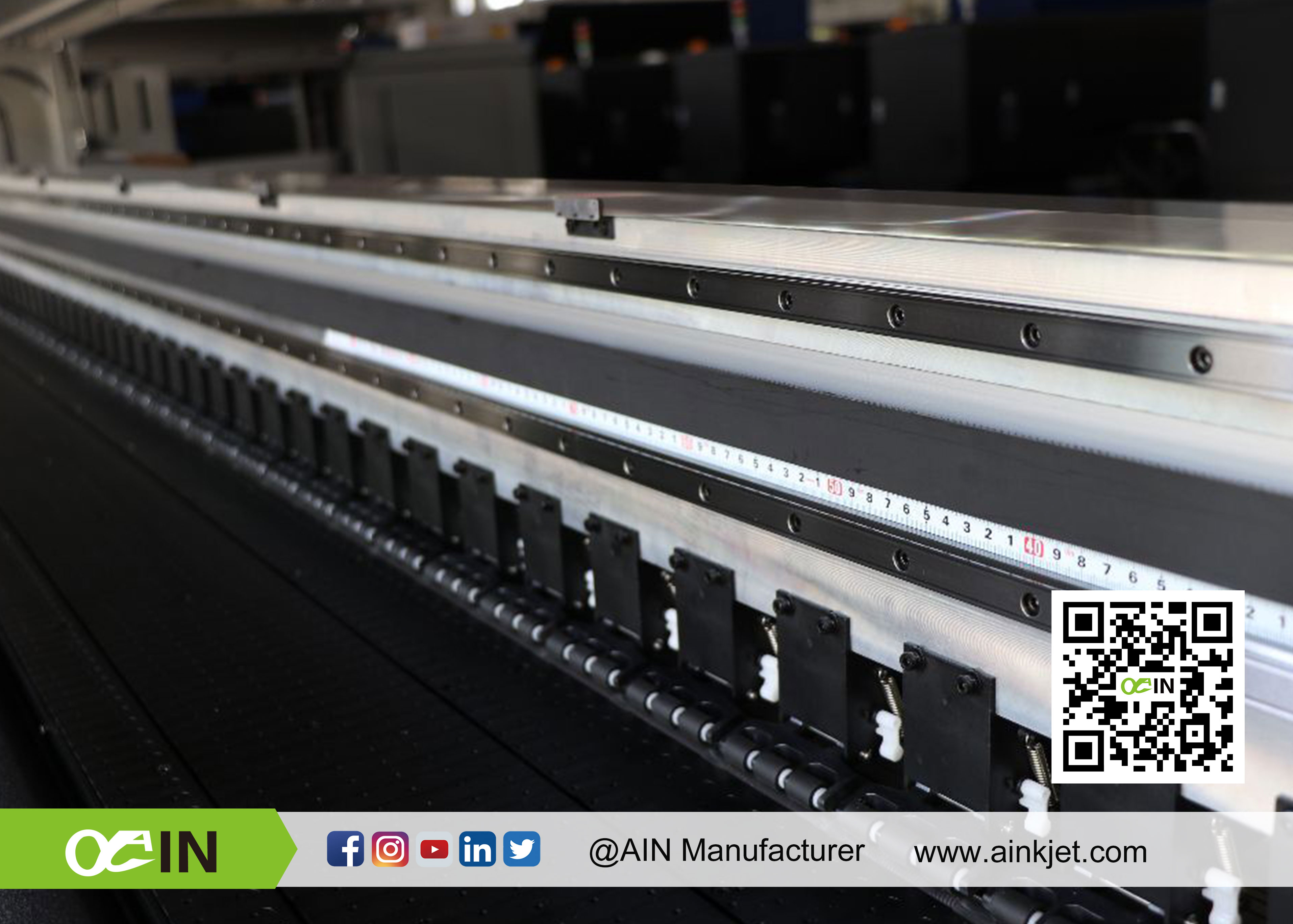

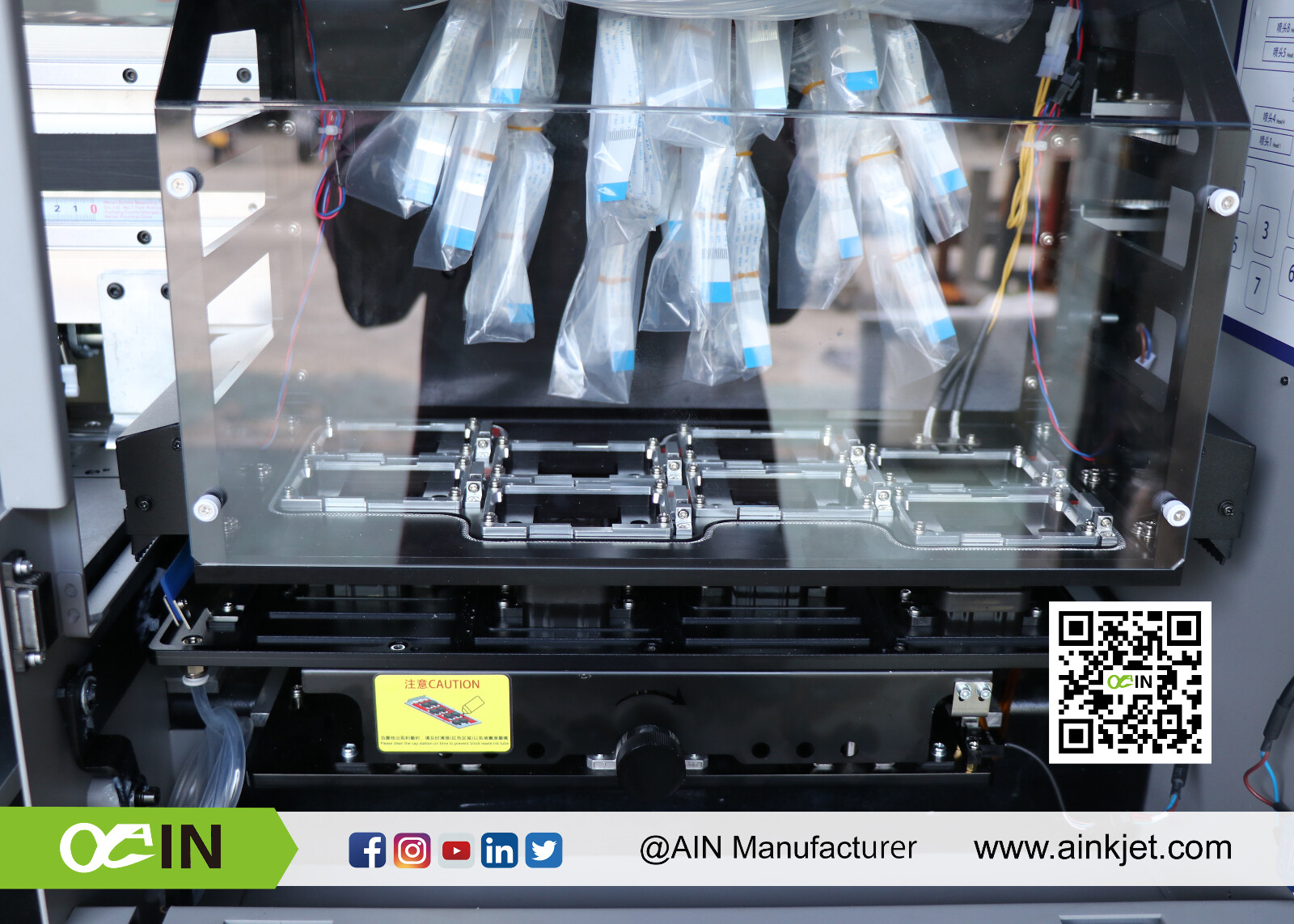

Wider and thicker girder with THK silent double guide rails. |  | Mirror baffle, easy to observe the nozzle condition and maintenance. |

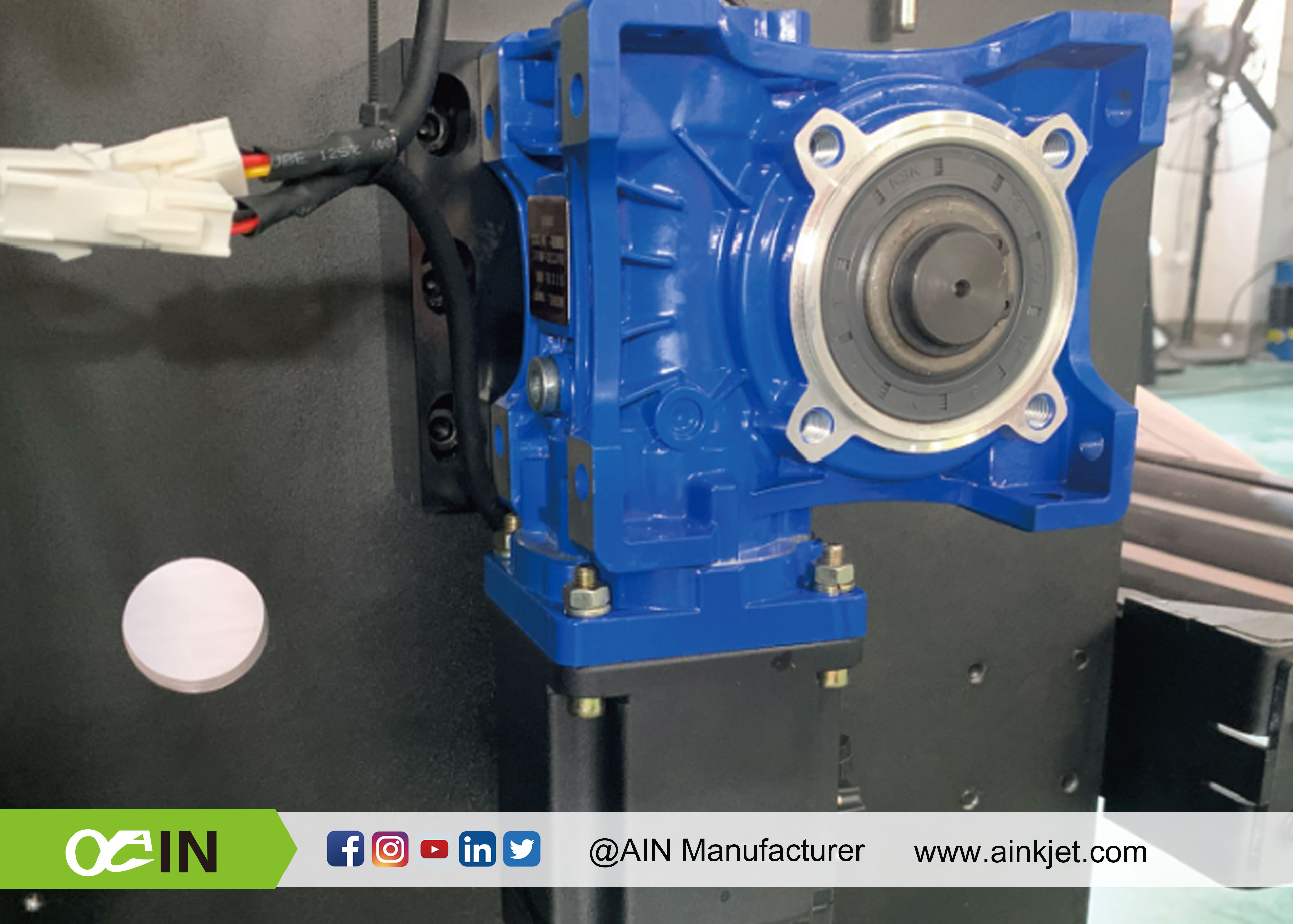

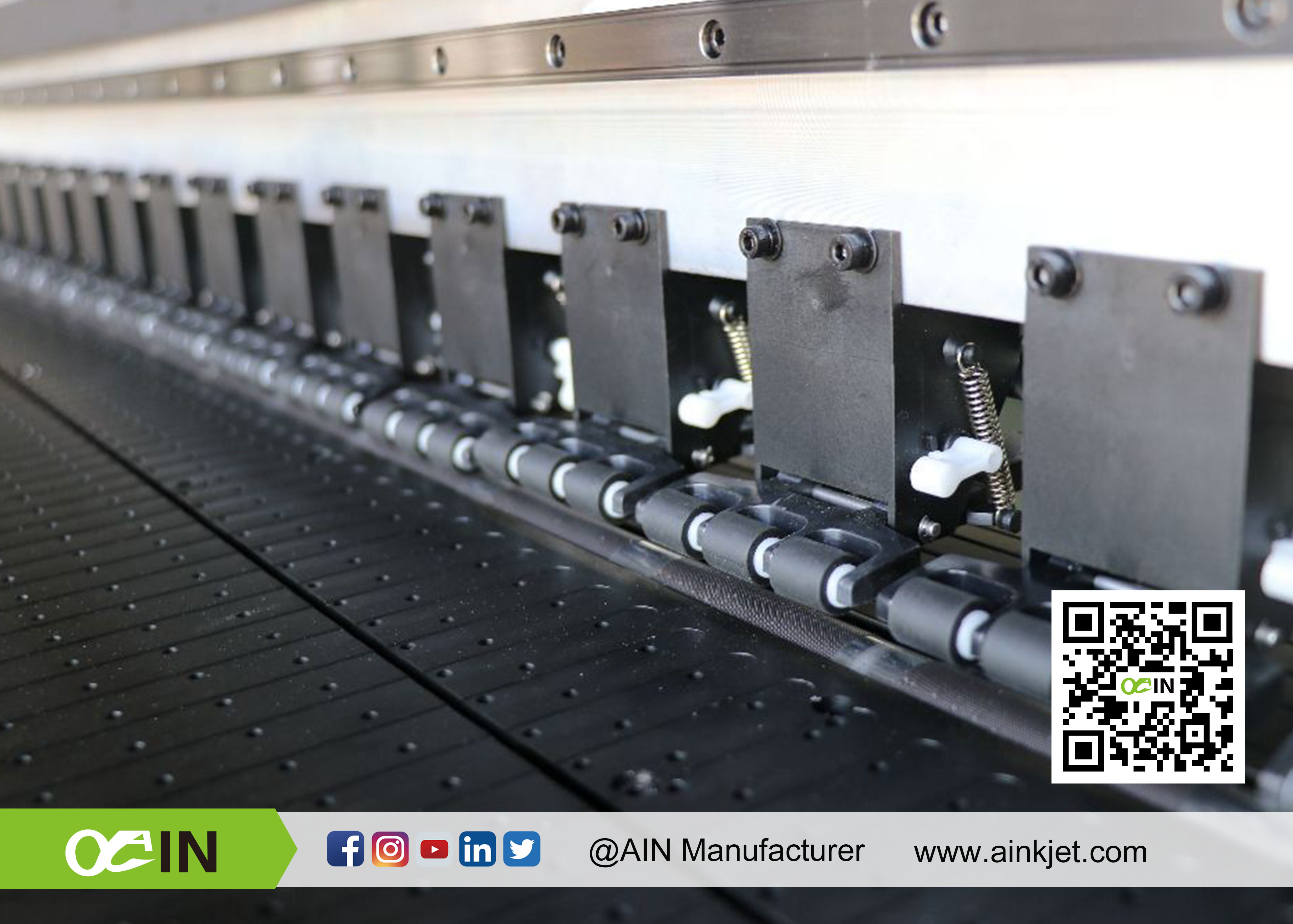

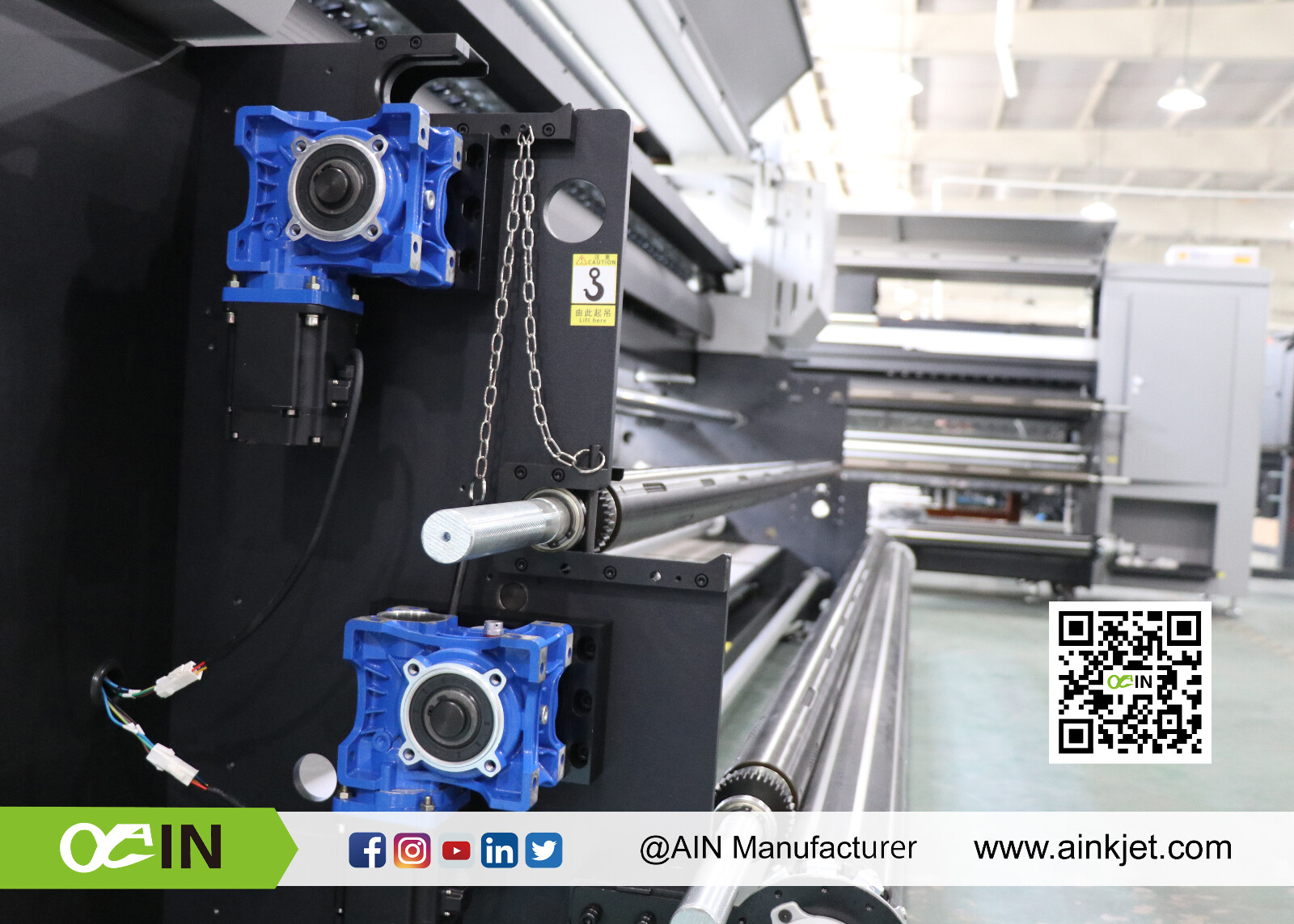

 | Feeding adopt servo motor, make the paper more stable and more accurate. |  | Pressure wheel material upgrade pressure wheel density increase, make paper feed more uniform stability. |

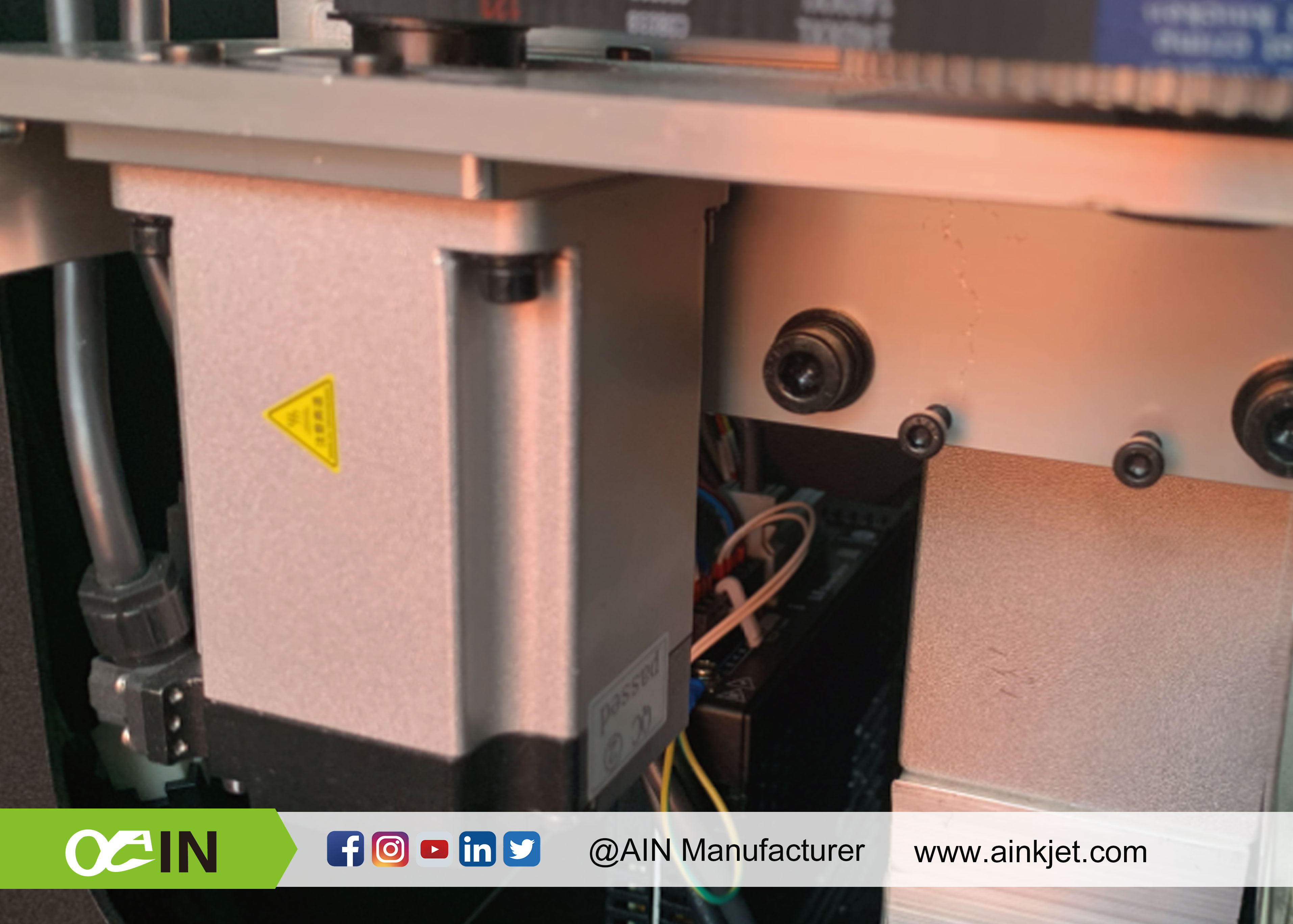

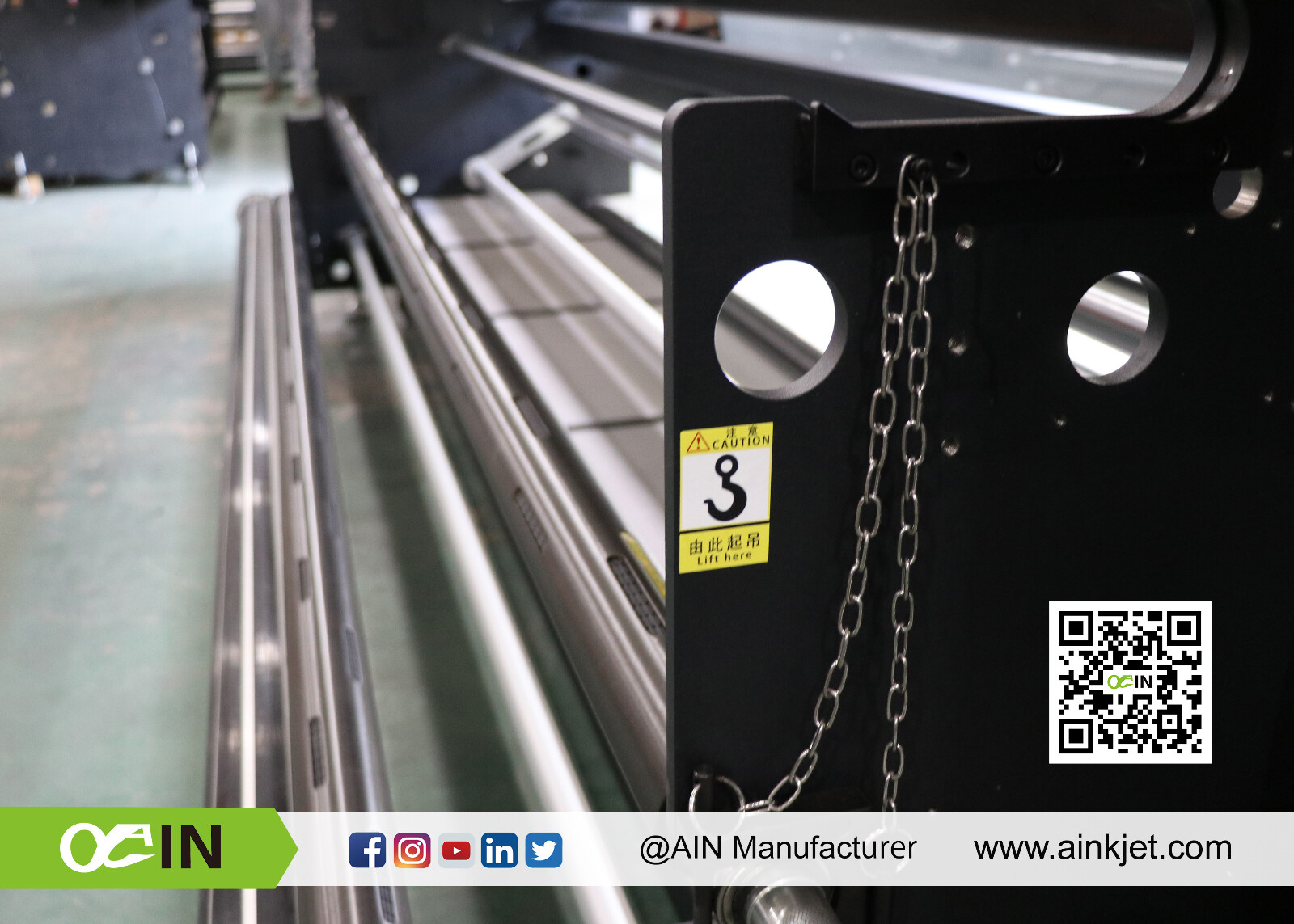

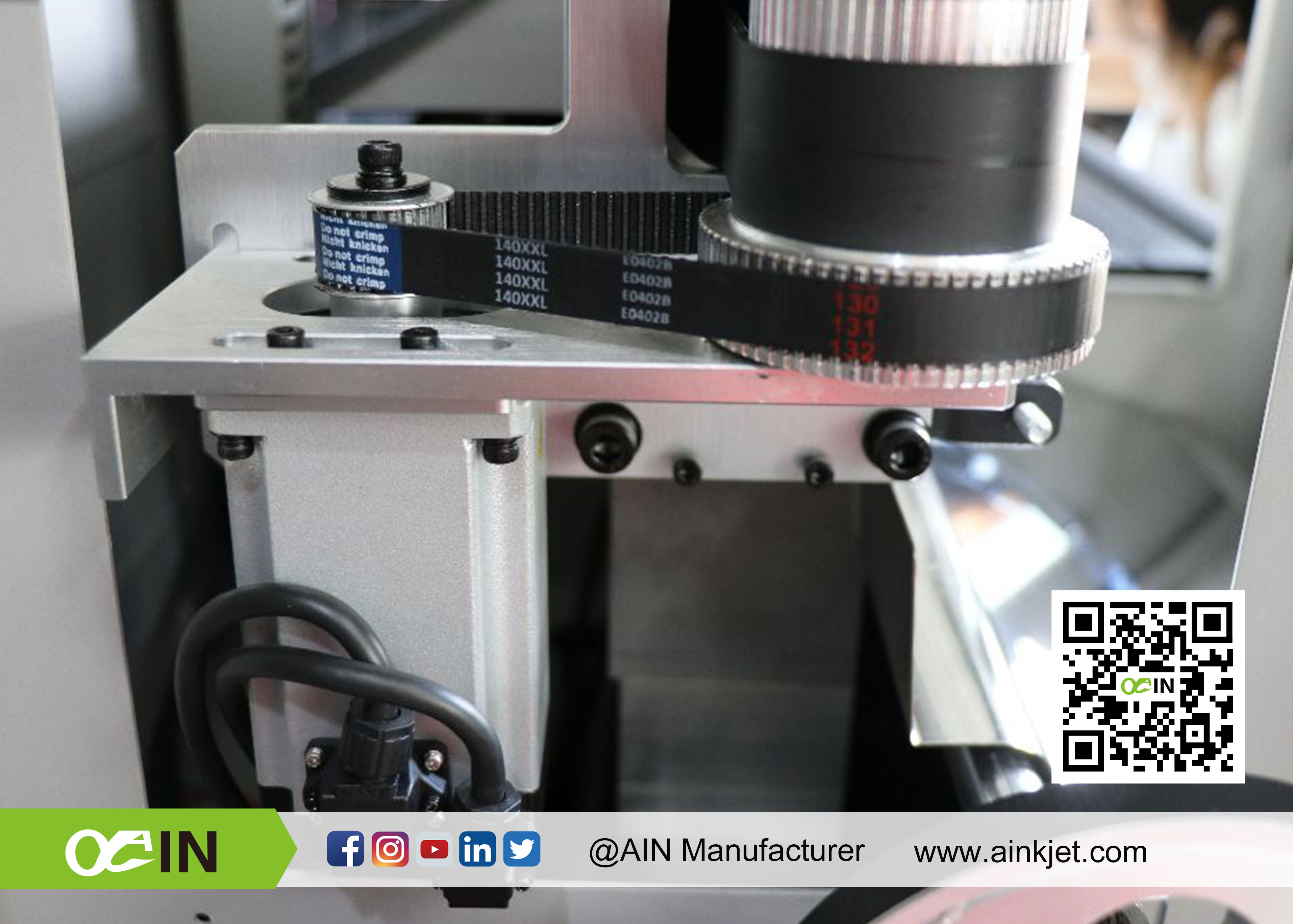

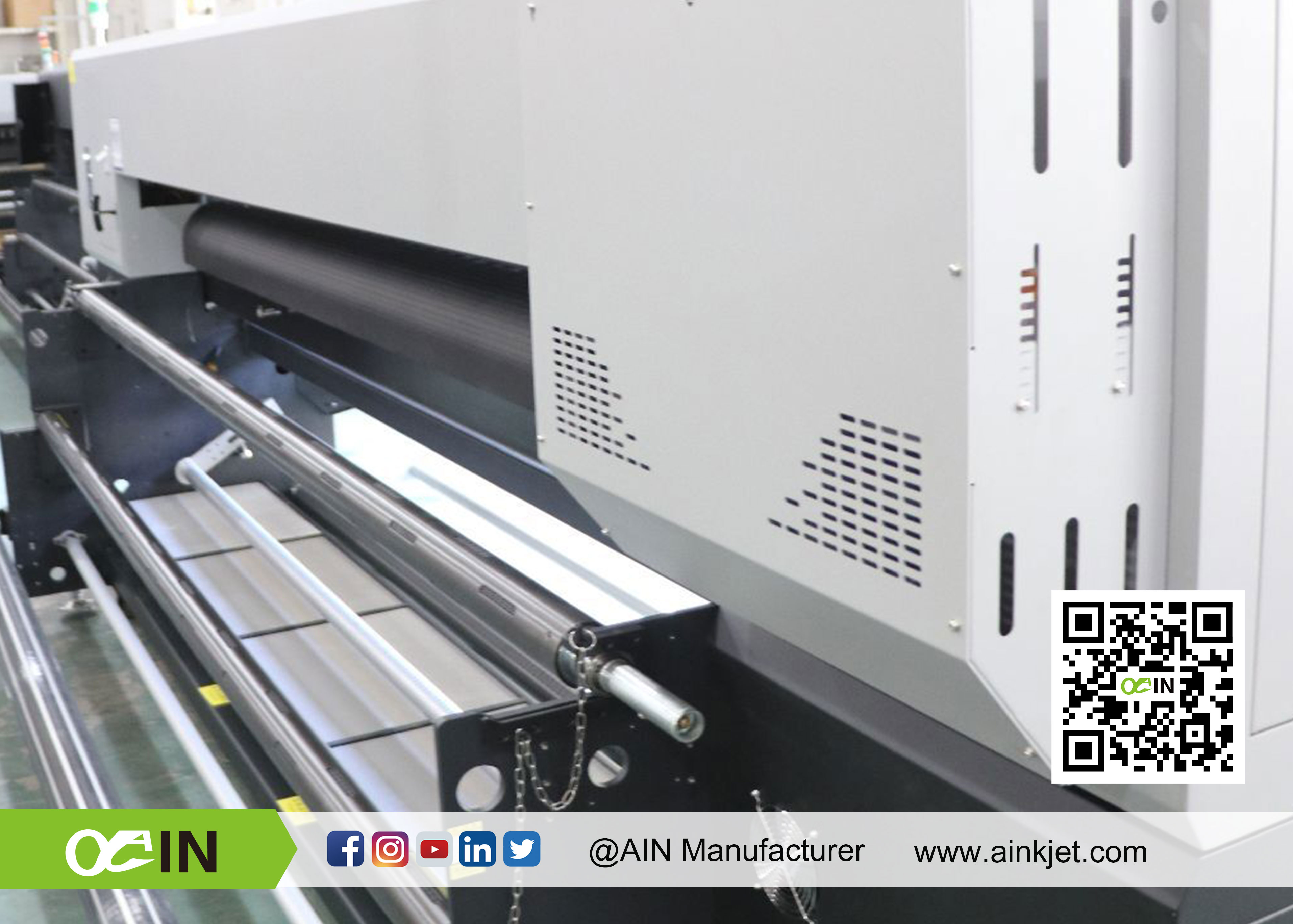

| motor uses AC servo motor to make the trolley movement smoother and the printing point more accurate. |  | Swing rod upgrade optimization for increased strength and stability. |

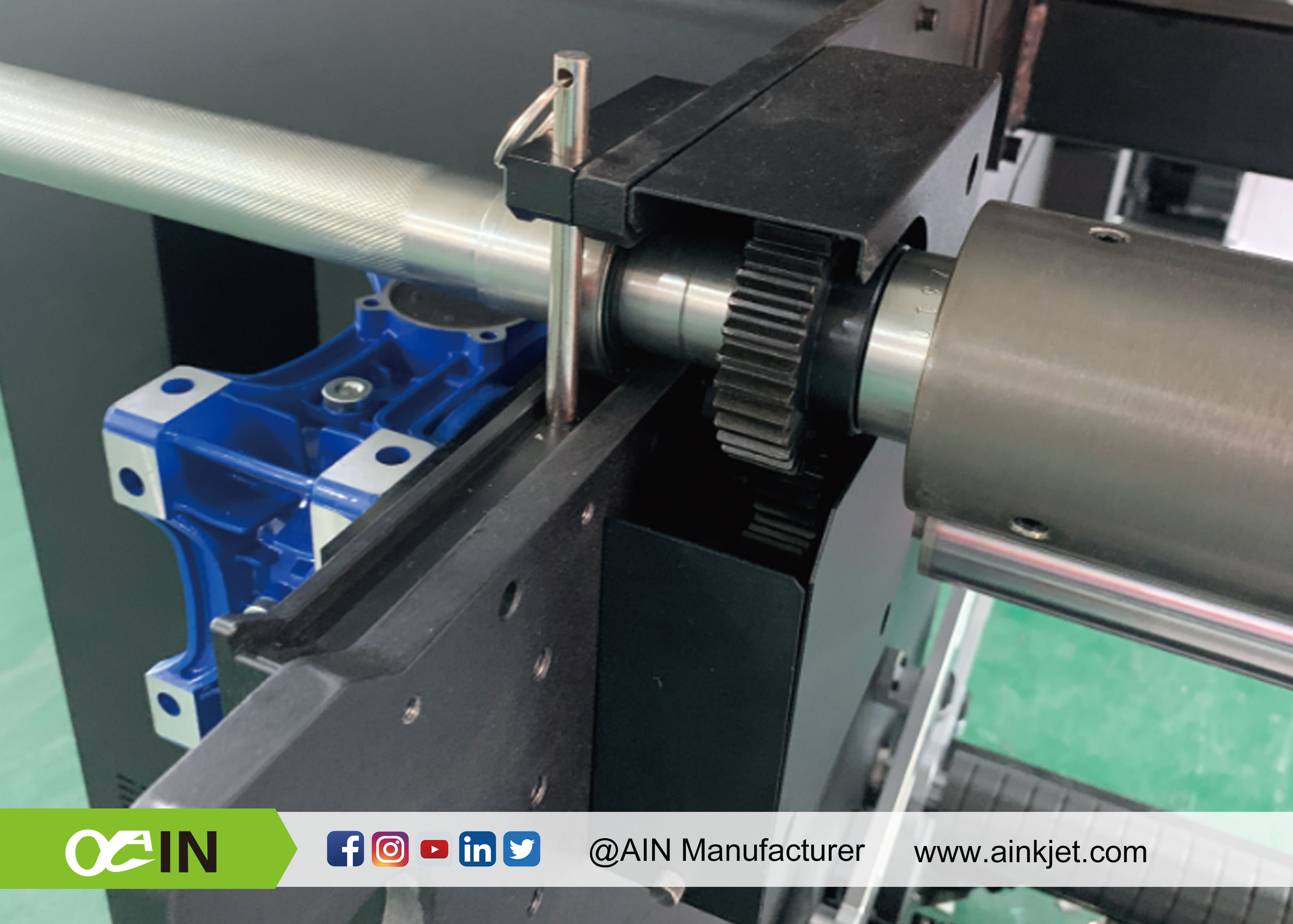

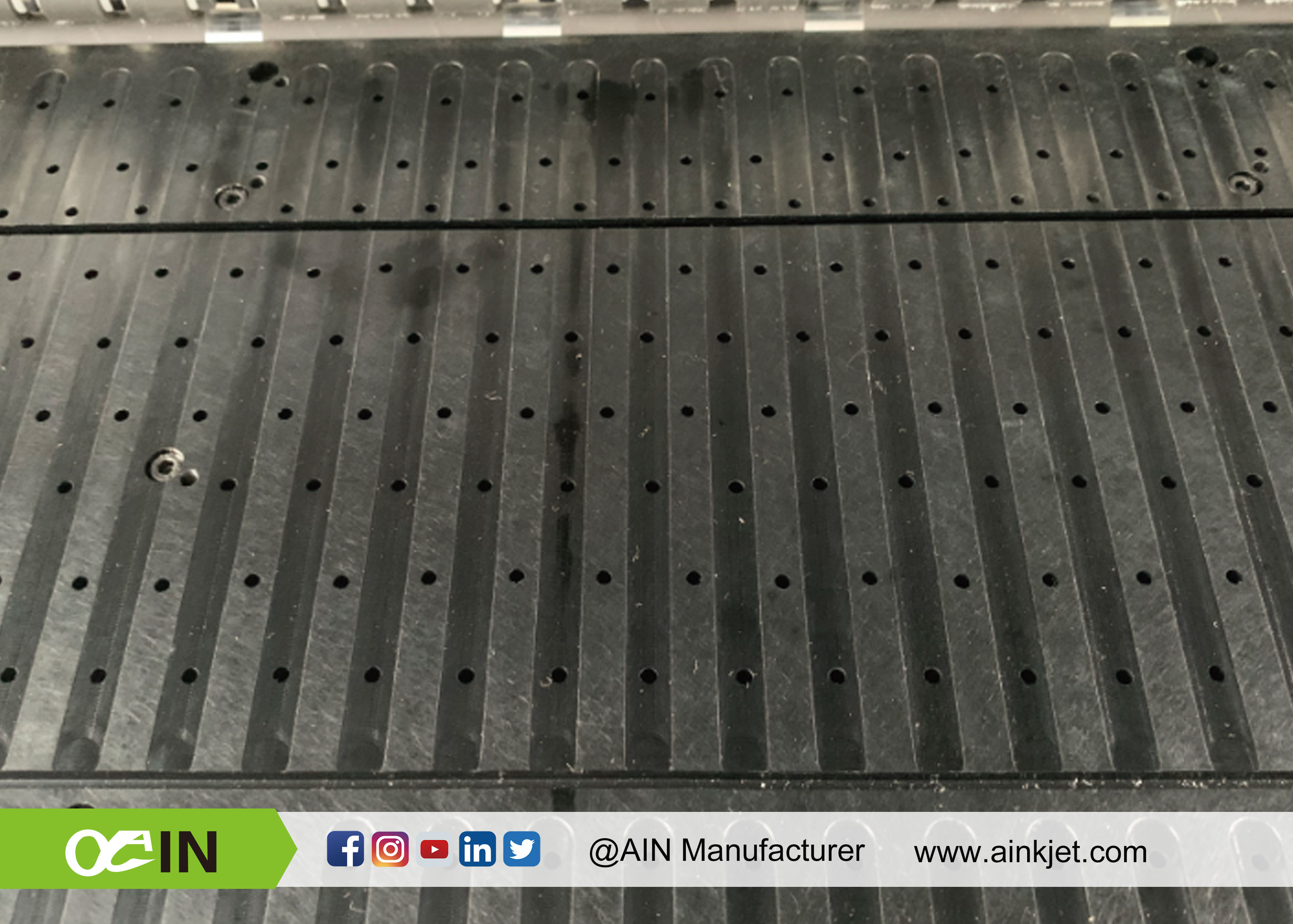

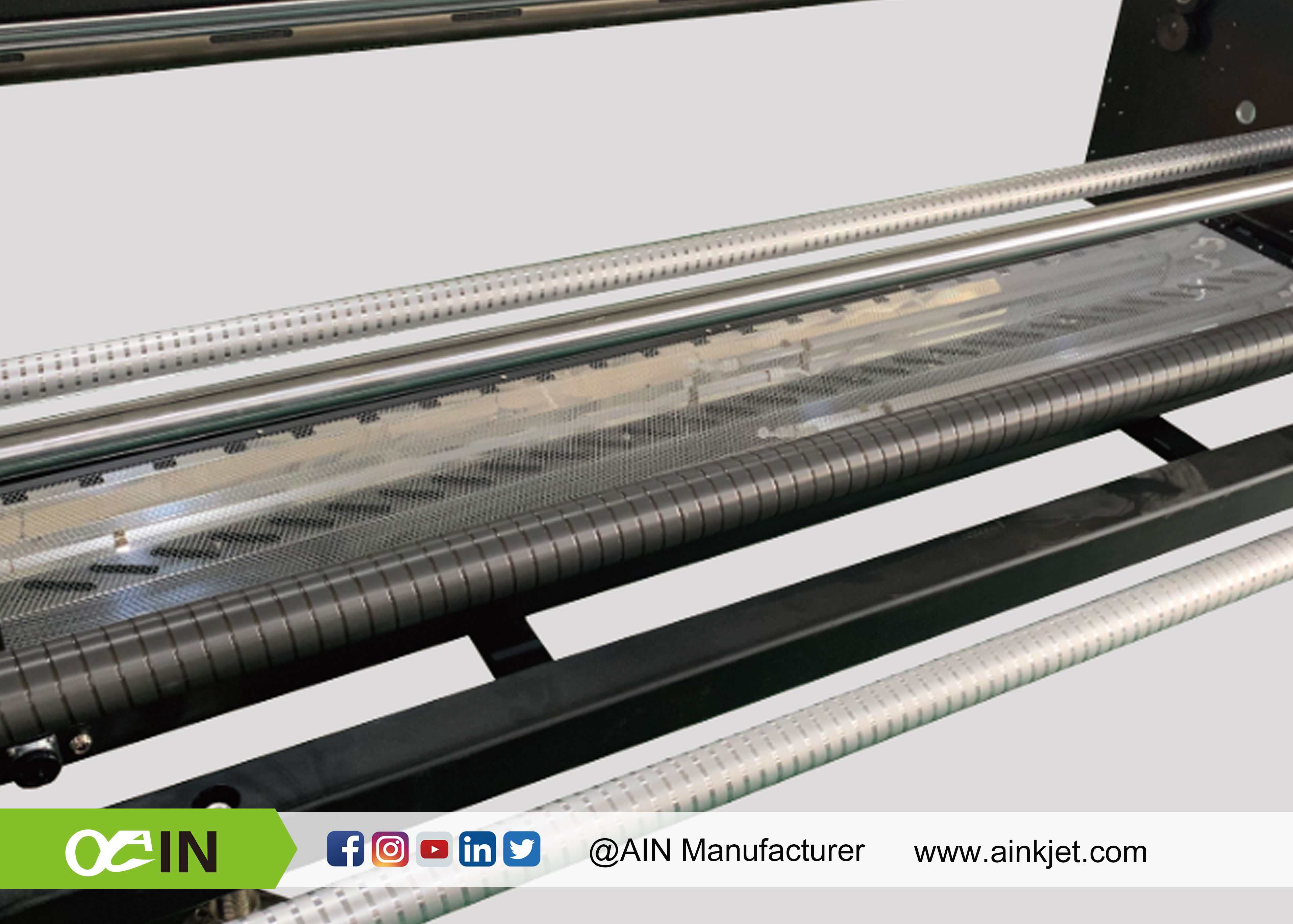

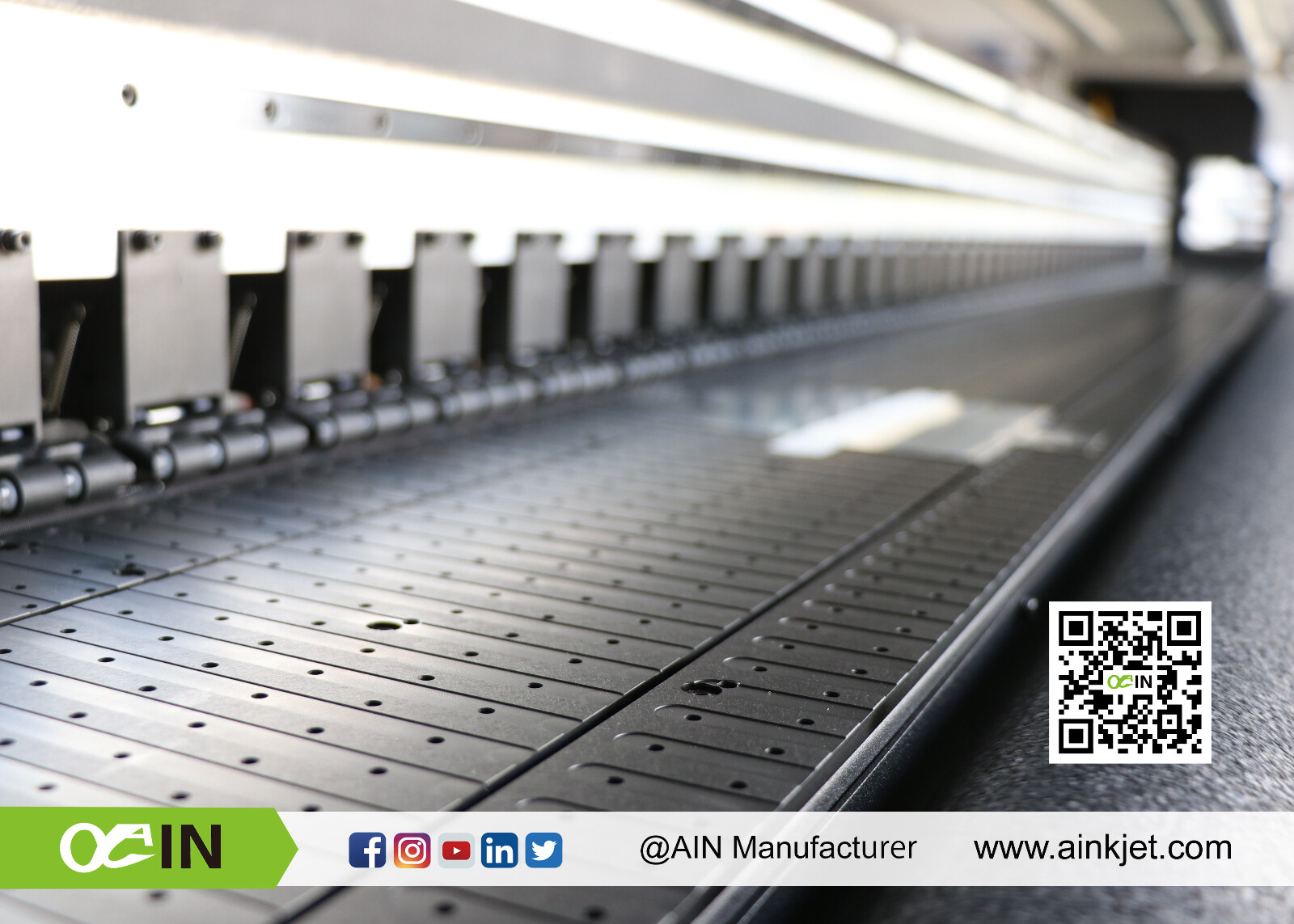

 | Vertical groove guide gas platform, make paper surface more smooth. |  | Inflatable shaft upgrade is sliding type, convenient materials up and down. |
Application
Applications of Sublimation Printer
Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant，reliable and precise. With AIN series printer , you can maximize production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
