Product Description

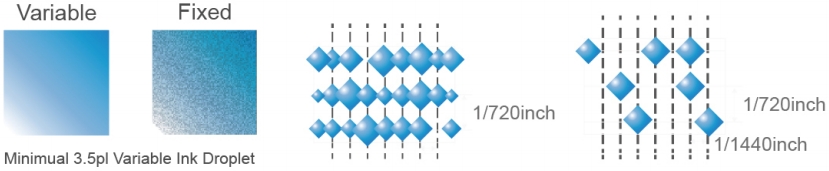

| Sublimation Printer Enter-level Compact and Energy-Saving The 60cm-class mini transfer proofing dedicated printer features a compact mini design, specifically engineered for small-size transfer proofing. It eliminates the need to start large equipment, saving space and energy consumption. Efficient Adaptability Equipped with 2-4 13200-A1 print heads, it offers easy operation and strong adaptability. Adopting high-speed micro-piezo technology and a stable ink supply system, it ensures quality while saving space and energy. High-Efficiency Printing With a speed of 15㎡/h in 4pass mode, 2400dpi resolution, and 3.5pl variable ink droplets, it achieves high-precision printing, meeting the dual demands of speed and accuracy for proofing. Wide Application Widely used for transfer proofing of textiles and soft materials, covering sample production of clothing, home fabrics, canvas bags, etc., as well as proofing and production of related fabrics and soft signs. |
New Feature of Sublimation Printer We have an excellent technical team, which can be designed according to customers requirements. |
| High-speed micro-piezo inkjet printing technology AJ-6202/6203/6204TXis equipped with 2/3/4 Epson i3200-A1 printing head withfour colors, Using advanced board control technology andindustrial gradedesign to ensure durable print head.
|
|
Technical Specifications

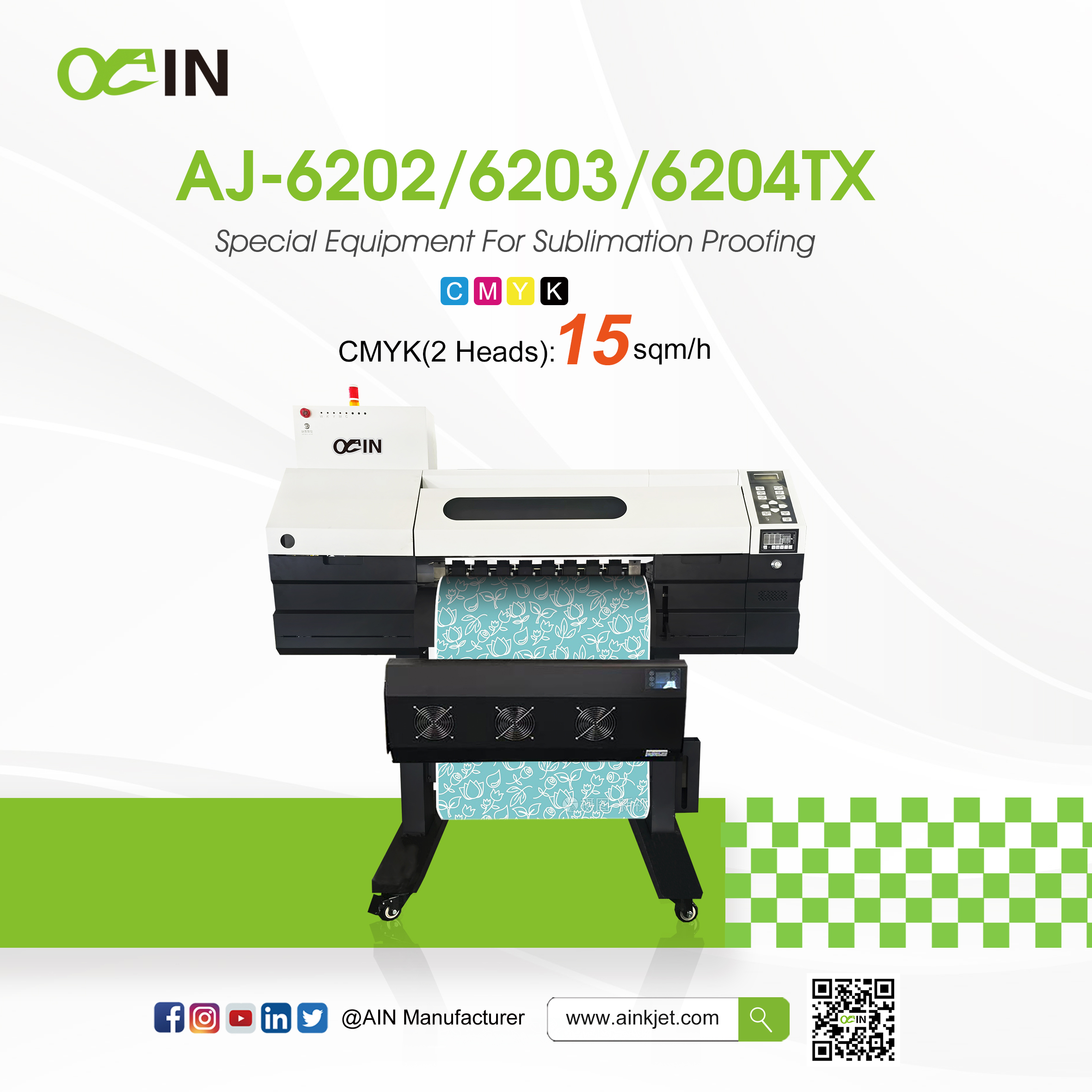

AJ-6202/6203/6204TX Enter-level Sublimation Printer | ||
| Model | AJ-6202/6203/6204TX | |
| Printig Technology | 2/3/4 i3200-A1 Print Heads | |
| Print Head | Piezoelectric Inkjet | |
| Printig Width | 620mm | |
| Acceptable Media | Width | 620mm |
| Thickness | 1mm | |
| Weight | 50kg | |
| Ink Cartridges | Capactity | Color Siphon(Secondary cartridge+large ink barrel) |
| Color | C MYK | |
| Power Consumption | 2500w | |
| Printing Resolution | Maximum 2400 dpi | |
| Speed | 4pass:15sqm/h | |
| Interface | Gigabit Ethernet | |
| Power Supply | ACC220V±5%,16A,50/60 HZ | |
| Dielectric heating system | Three-stage heating system | |
| Packing Weight | 193kg | |
| Dimensions (with stand) | 1730(W)*760(D)*760(H)mm | |
| Environment | Power on | Temperature:59 ℉ to 90 ℉ [15℃ to 32℃]/Humiditity:35 to 80%(no condenstation) |
| Power off | Temperature:41 ℉ to 104 ℉ [5℃ to 40℃]/Humiditity:20 to 80%(no condenstation) | |
| Accessories | USB cable,media clamp,manual,drain bottle,ink cartridges,RIP software,etc. | |
Printer Heads

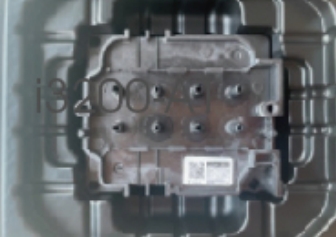

| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features
 | Tension take-up, ensuremore stable film feeding |  | Stable bulk system ensures amazing printing speed |
 | Automatic moisturizing function to extend thelife of the heads |  | THK high-precision mute rail |
Application
Applications of Sublimation Printer
Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant，reliable and precise. With Ain series printer , you can maximize production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
