Product Description
| Industrial High Speed Dye Sublimation Printer High Performance Dye Sublimation Ink Dye sublimation ink offers vibrant colors, wide compatibility, high color fastness, and long-lasting vibrant images. It supports CMYK, LCLMLKLLK, and other color schemes, making it suitable for fabrics and papers with high color requirements. Stable and Reliable Operation The industrial-grade frame structure (including H-shaped lower support beams and heavy-duty wall panels) ensures rigidity. Equipped with a 10,000-meter paper take-up and unloading system, the printer delivers precise paper control, stable operation, fine print quality, flat paper surfaces, and easy loading and unloading. High Printing Precision Equipped with 16 13200-A1 printheads and a minimum droplet size of 3.5 pl, it supports multi-color and spot color printing, and is suitable for formats up to 3200mm. Different precision levels correspond to high speeds, and multiple precision modes meet diverse needs. Wide Applications It covers T-shirts, apparel fabrics, accessories, home textiles, flags, decorations, canvas bags, pillows, and small textile items. |
New Feature of Sublimation Printer We have an excellent technical team, which can be designed according to customers requirements. |
| ■ Receiving and discharging system supporting 10000 meters transfer paper. ■ Adopts H-shaped lower support beam structure with heavy-dut y wall panels for industrial rack structure. ■ Configuration of micro-negative pressure ink supply system, more stableink supply for long time printing. ■Linear motor + magnetic grid, printing work more stable, higher precision,environmental silence. ■high-strength rigid structure and more reasonable take-up and payoffsystem to provide stable printing effect. |
Advanced electrical board system.Standard 16pcs Epsoni3200-A1 print heads, has 3.5pl ink droplet and up to 1200dpiresolution. Industrial printer design extends long life of theprint head.
|
Technical Specifications

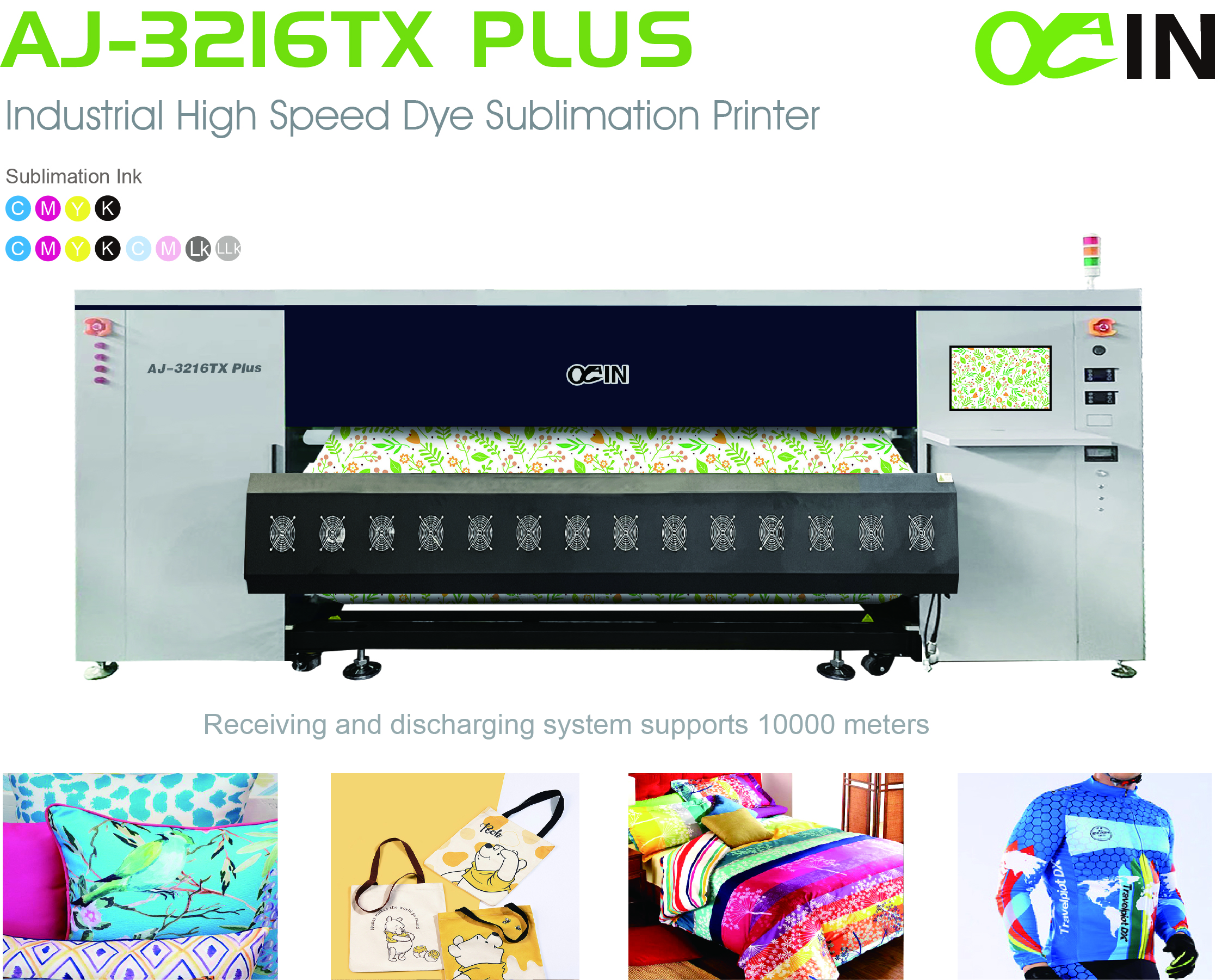

| AJ-3216 TX PLUS Industrial High Speed Dye Sublimation Printer | ||
| Model | AJ-3216TX PLUS | |
| Print Head | Sixteen 13200-A1 Print Heads | |
| Droplet Size | 3.5pl | |
| Printing Width | 125.9 in.(3200 mm) | |
| Printing Speed | 1pass(600x600dpi):8934 sqft (830 sqm/h) 2pass(600x1200dpi):4843.7 sqft(450 sqm/h) | |
| Ink Cartridges | Type | Dye Sublimation Ink |
| Supply | Negative pressure ink supply system | |
| Color | CMYK /CMYKLCLMLKLLK | |
| Print Media | Heat Transfer Paper | |
| Print media control | Air expansion shaft Take-up System | |
| Dryer | External Automatic Air Heat Integrated Dryer | |
| Moisturizing unit | Automatic Cleaning and Moisturizing Integrated components | |
| RlP Software | RllN Beidou Textile Version,Maintop6.0、photoprint、ONYX、NeoStampa、Print Factory etc. | |
| File Format Supported | JPG /TIFF /PDF, etc | |
| Computer | Operating System | win7 64 bit/ win10 64 bit |
| Configuration | Hardware Requirements Data transmission | CPU: i7 Processor (9th generation or higher) Hard Disk 500g+ (solid state disk) Operating Memory 16g. Graphics Card: ATl display 4G memory, Motherboard: ASUS, Gigabyte |
| Data transmission | USB3.0 | |
| Power requirement | Input Voltage | AC 220 V+5%,16A.50 HZ+1 |
| Printer | 2500W | |
| Drying unit power | Maximum 18kw | |
| Weight | Weight(with stand) | 2425 lb.)1100 kg (2645 lb.)1200 kg |
| Package Weight | ||
| Dimensions(with stand) | 197.5(W)x106.2(D)x68.9(H) in. | |
| 5016(W)x2700(D)x1750(H)mm | ||
| Package Dimensions | 208.6(W)x45.2(D)x79.2(H) | |
| Standard Components | 5300(W)x1150(D)x2012(H)mm | |
Working Environment | Temperature 15-32 degrees C, Humidity: relative humidity: 40-70 (non condensing) | |
| Standard Components | Exteral Automatic Air Heat integrated Dryer, Low Ink Alarm System, Air Shaft Media Loading and Take-up, and Automatic Moisturizing and Cleaning Init | |
Printer Heads

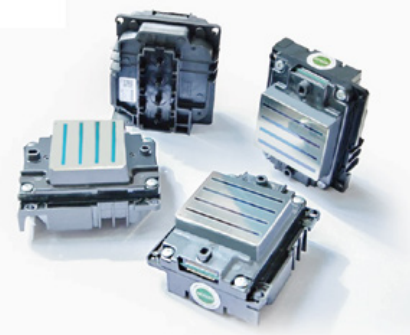

| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features
 |

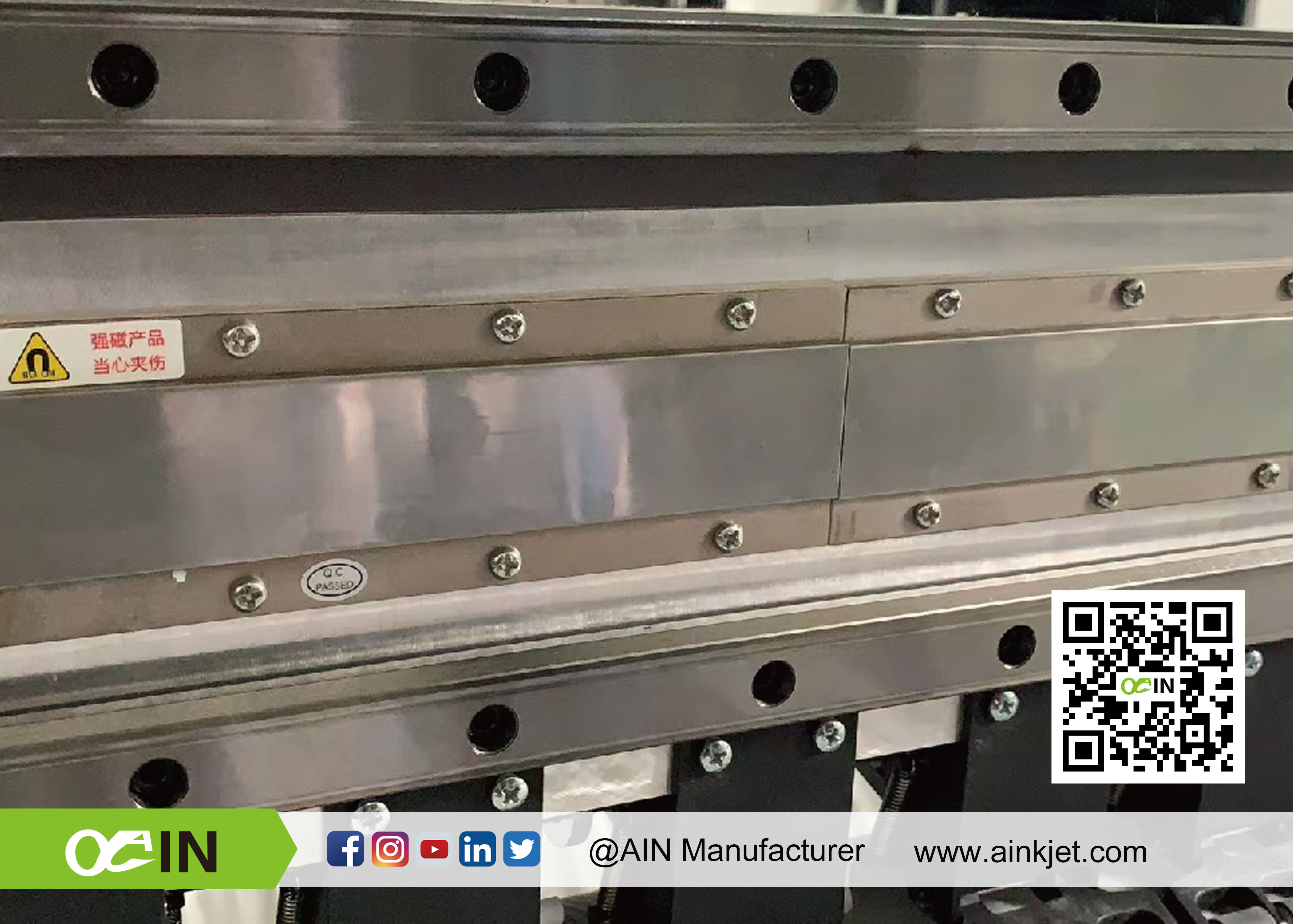

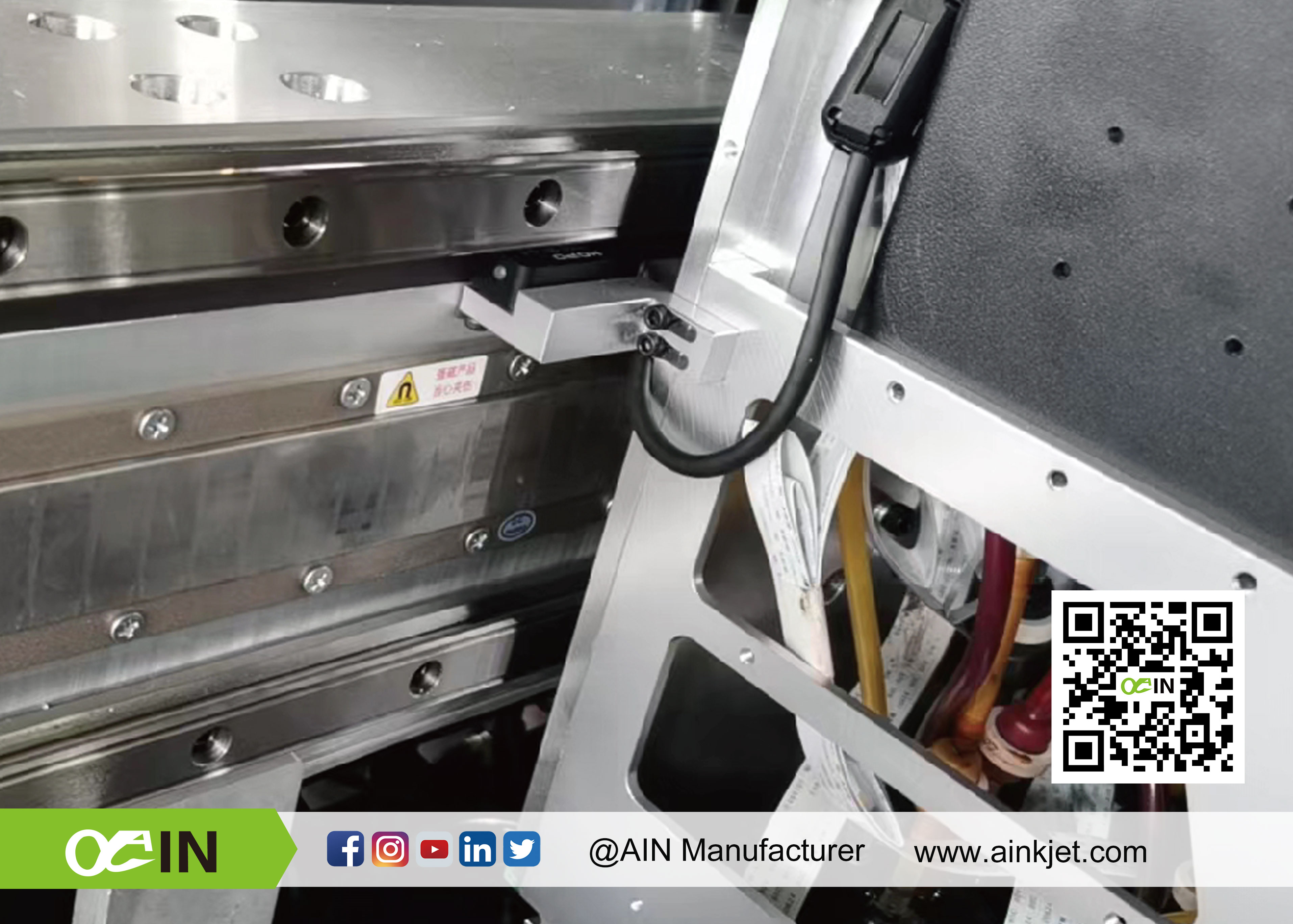

Mute Linear MotorSystem,no belt,nopvc encoder stripIncresse the Carriagemoving precision andSpan life; |  | Magnetic grid ,the Carriage drop point more precision. |
 |

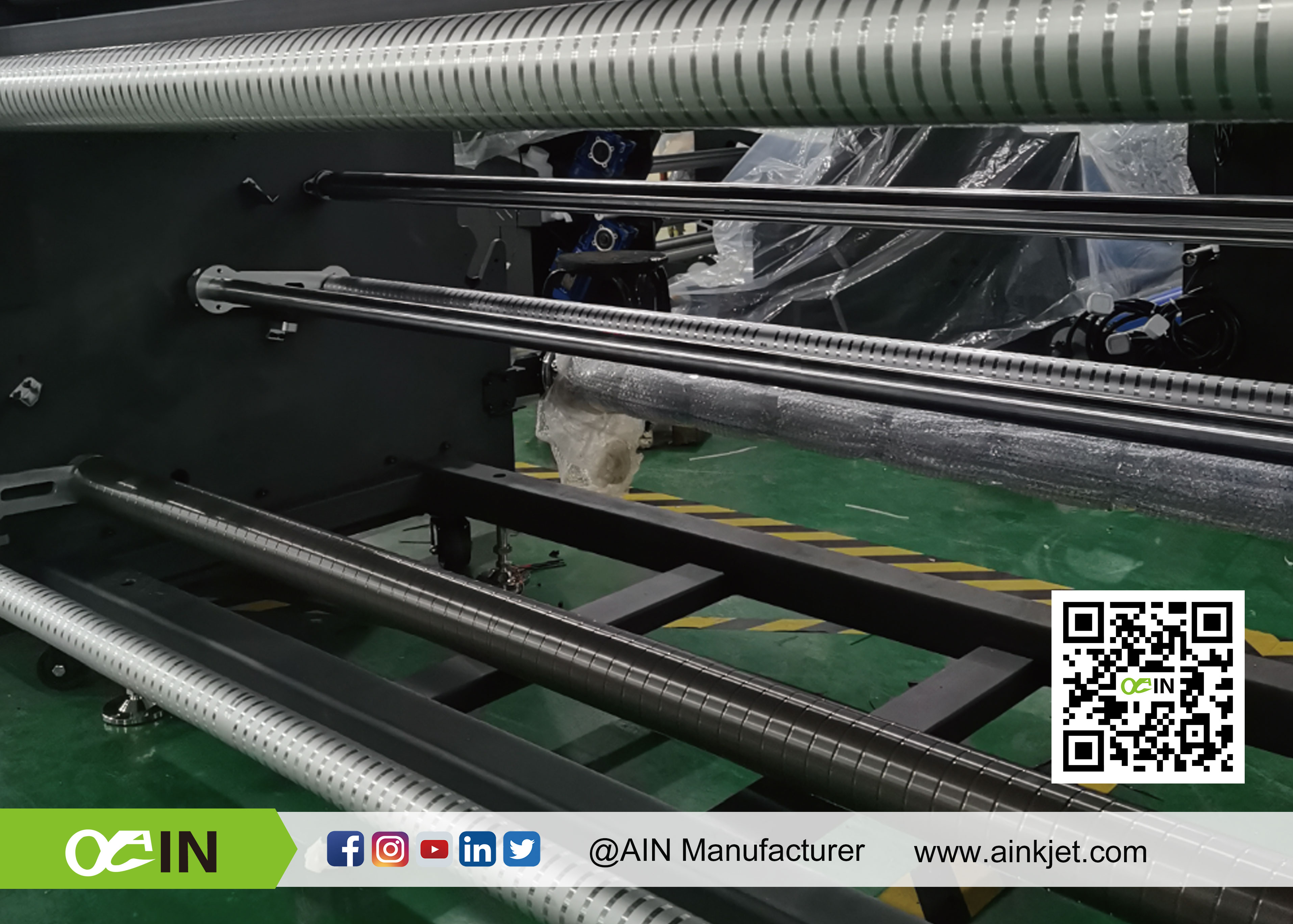

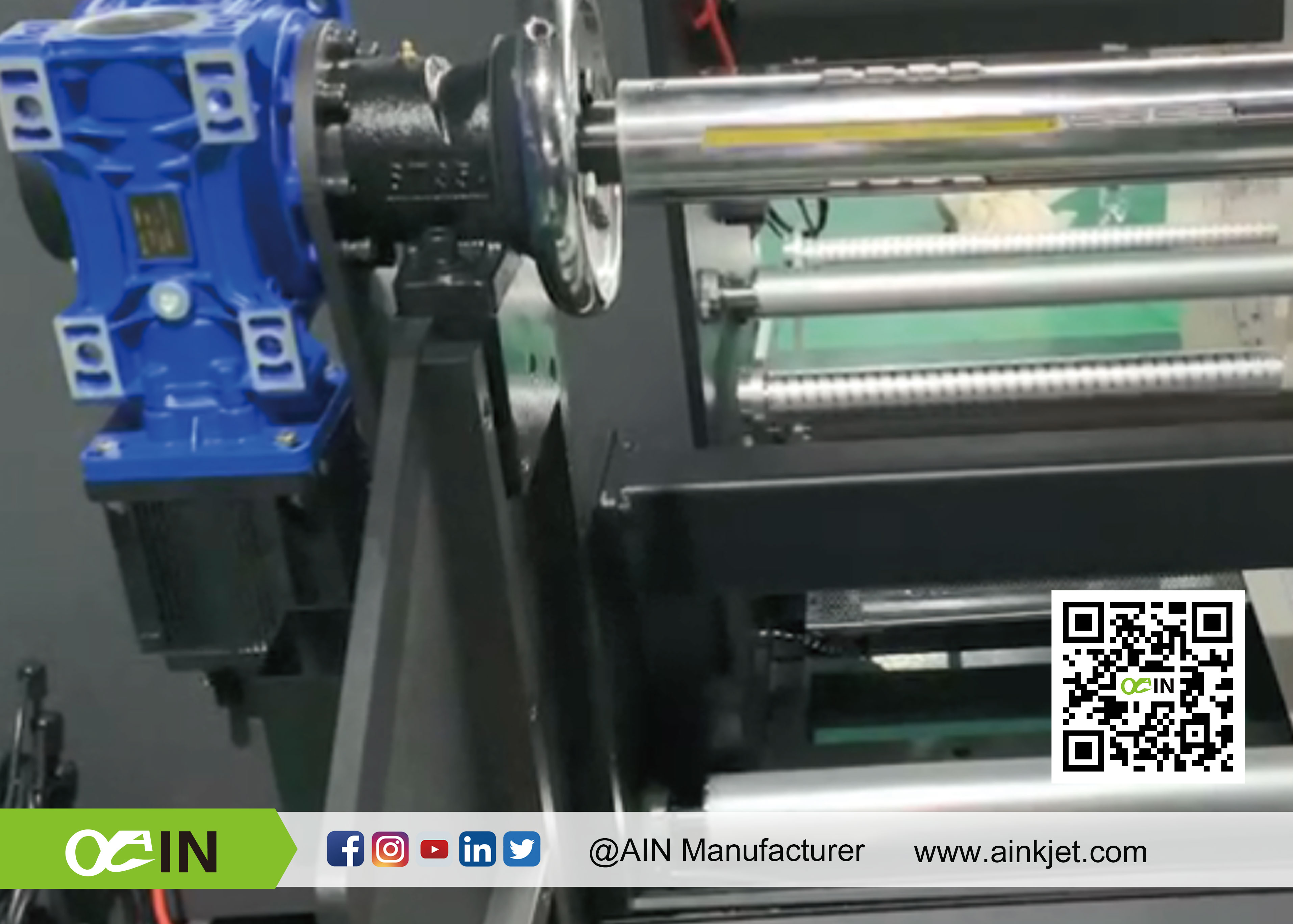

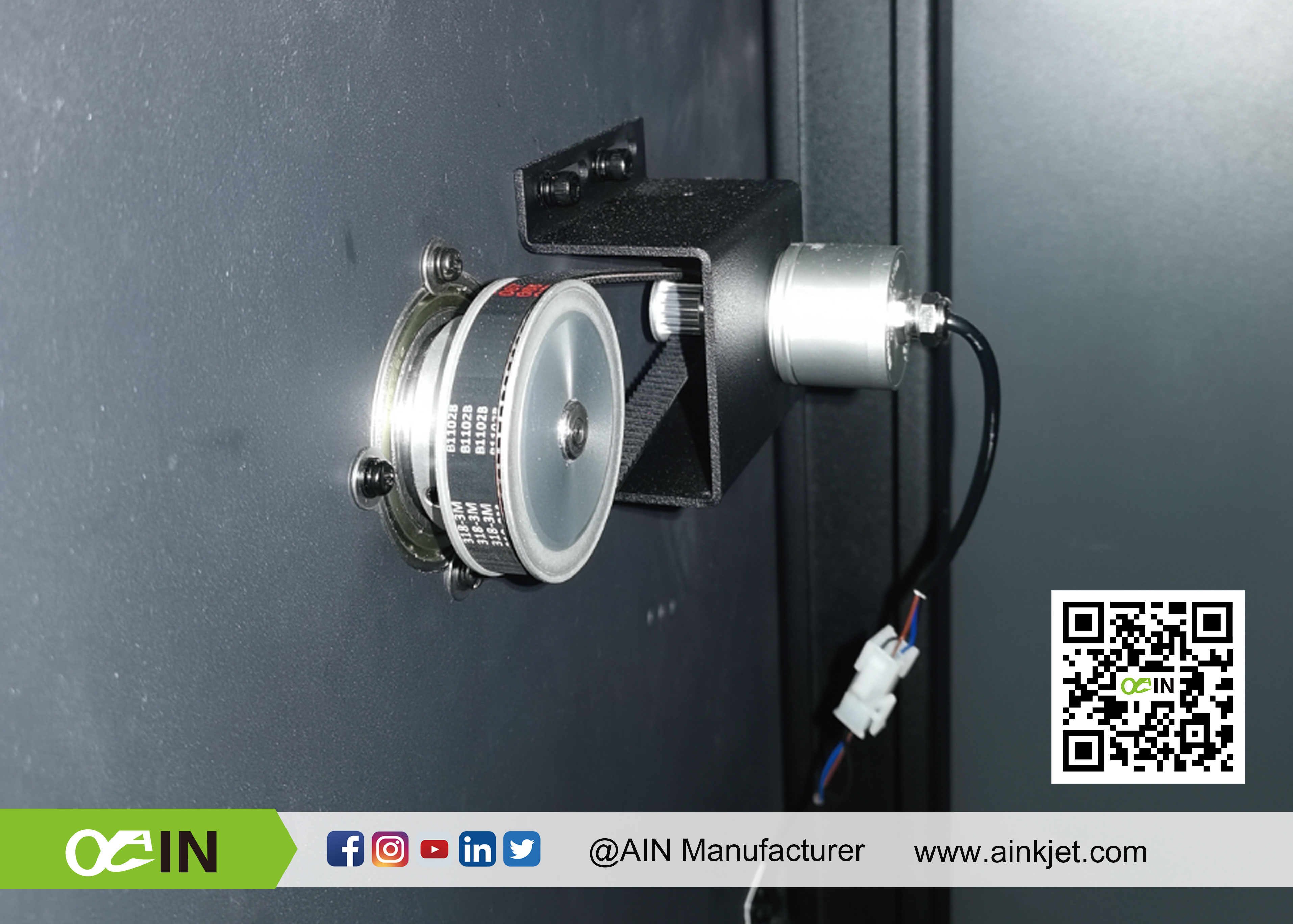

Air expansion shaft rubber strip rolls collection and release, to ensure that the collection of material more stable and flush. |  | High precision angle sensor. |

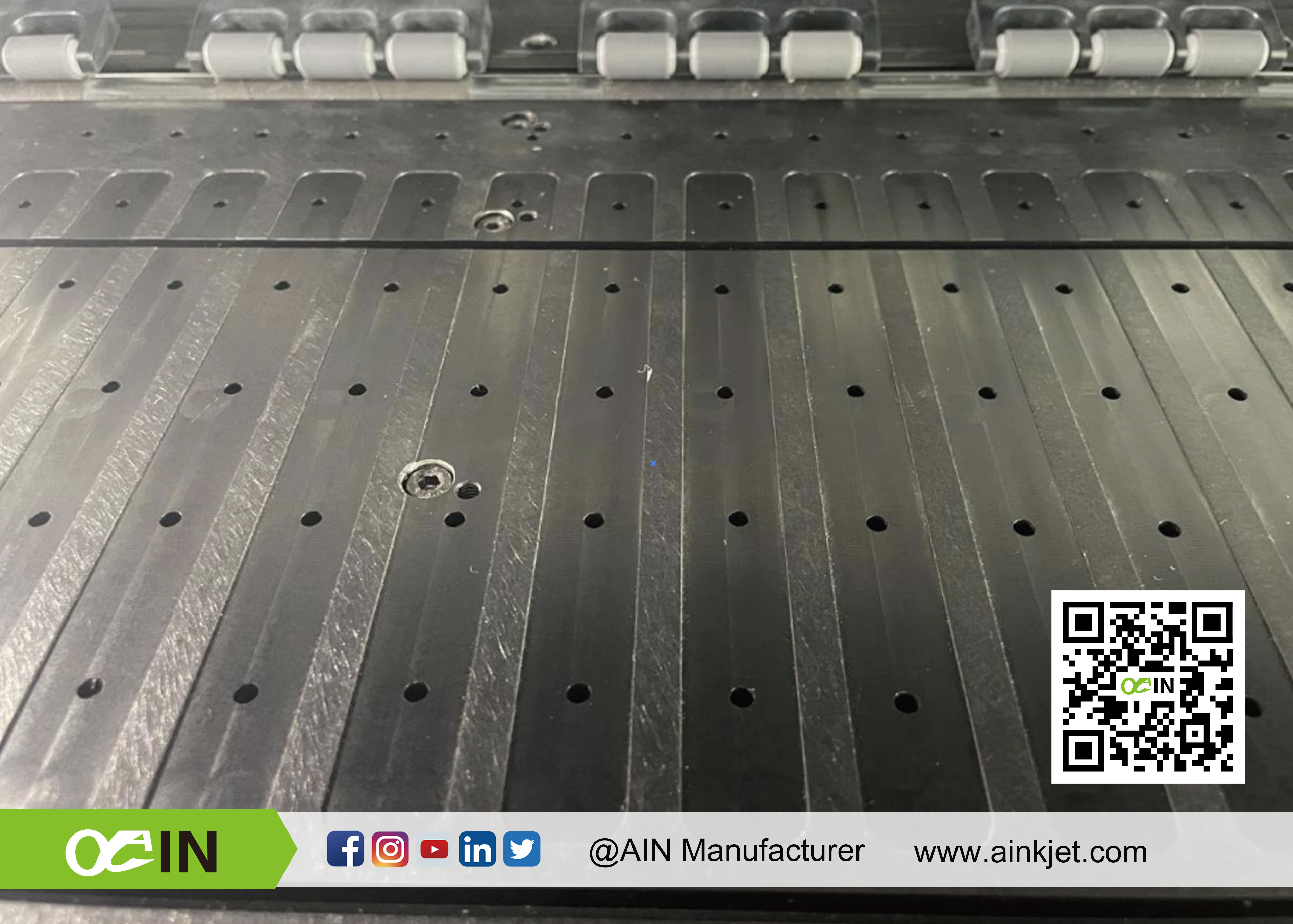

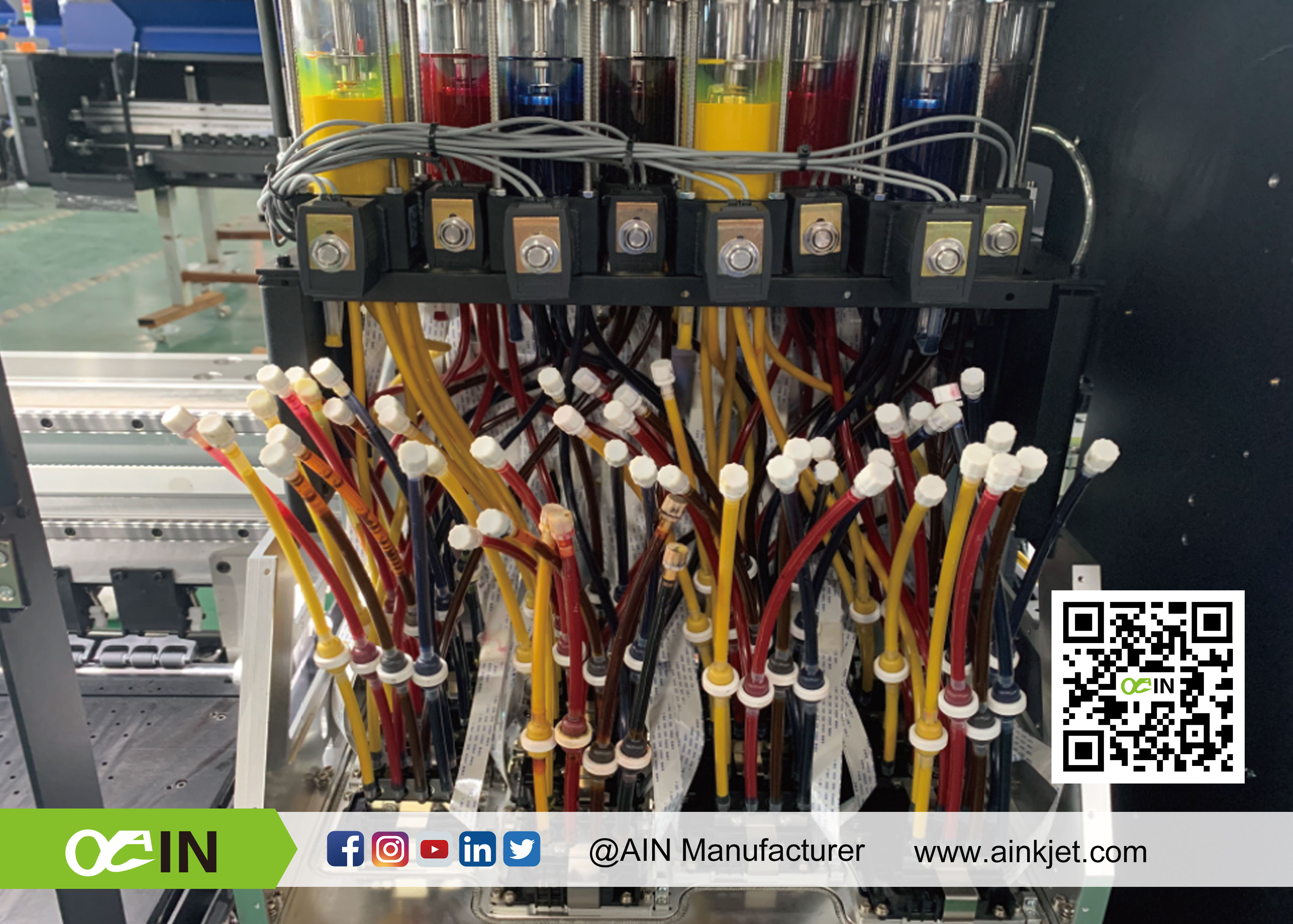

 | Negative pressure ink supply system: good for long time printing and cleaning. |  | Vertical slotted air guide platform, making the paper surface more flat. |

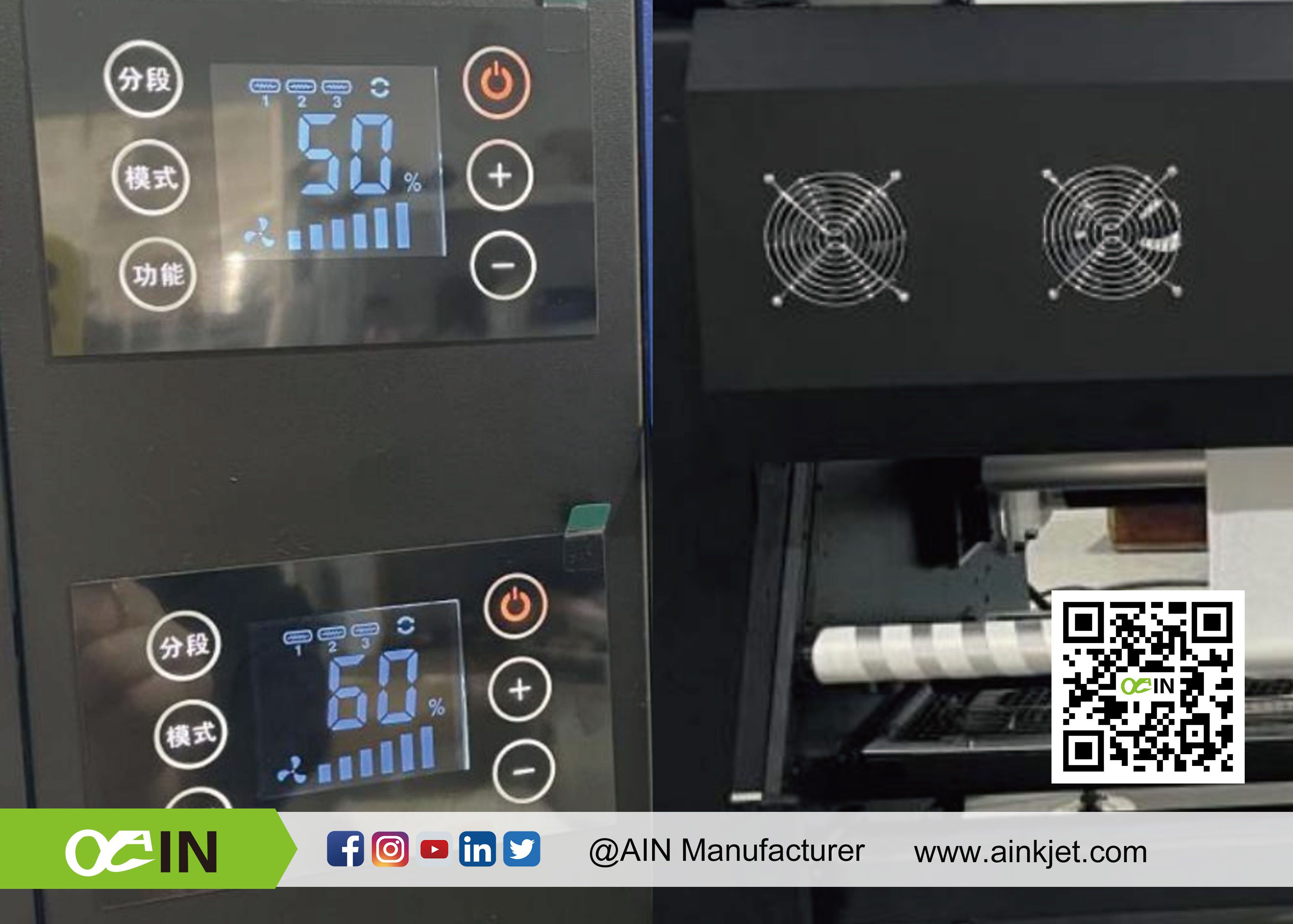

 | Pendulum rod tension structure. |  | 2 external infrared drying units,Precise control of drying temperature, reduce energy consumption. |
Application
Applications of Sublimation Printer
Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant，reliable and precise. With AIN series printer , you can maximize production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
