Product Description
| Sublimation Printer High performance sublimation dye ink Sublimation ink has bright colors, wide compatibility, high color fastness, and is suitable for fabric and paper with high color requirements. The patterns are long-lasting and bright. Stable and reliable operation Advanced board control optimization process, durable and maintenance saving industrial grade nozzles, equipped with a winding system, new dust reduction, and waste ink alarm, can achieve efficient production. High printing accuracy Intelligent inkjet and variable dot technology collaborate to achieve high-precision printing, significantly improving printing speed while balancing quality and efficiency Broad applications Widely applicable in various fields, including clothing, home textiles, sample production, various clothing accessories, flags, and other types of textiles. Reduce costs and ensure quality, help enterprises create high-quality soft labels, clothing, and interior decorations, and enhance competitiveness. |
New Feature of Sublimation Printer We have an excellent technical team, which can be designed according to customers requirements. |

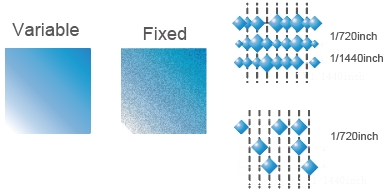

| Intelligent inkjet printing technology and variable dot ensure the perfect printing output, greatly improve the printing speed, and meet the user's requirements for printing quality and speed.
| High speed micro piezoelectric inkjet printing technology AJ-1902TX is equipped with 2*3200-A1 print heads. It adopts advanced board control technology and industrial level design to ensure the durability of the print head .
|
Technical Specifications

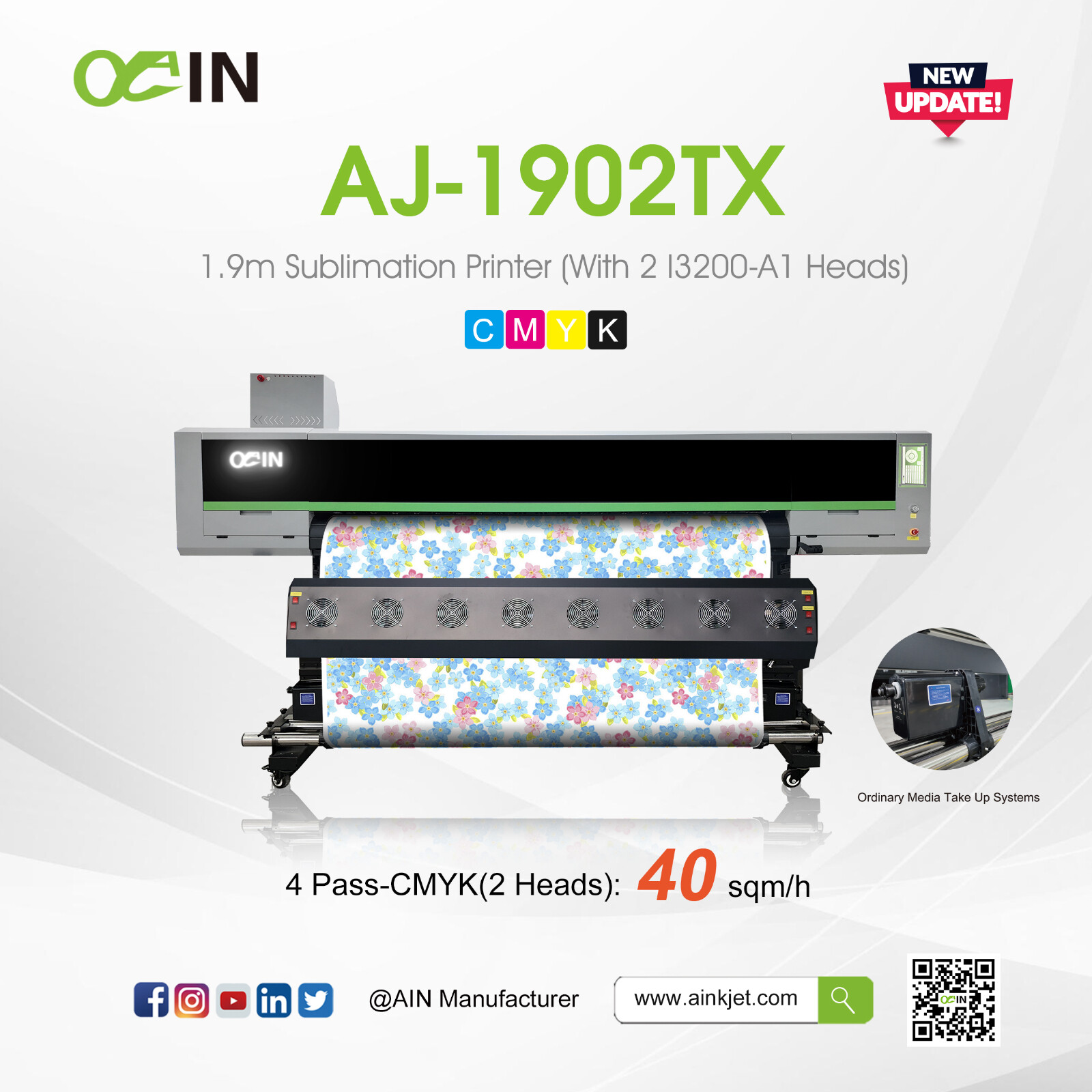

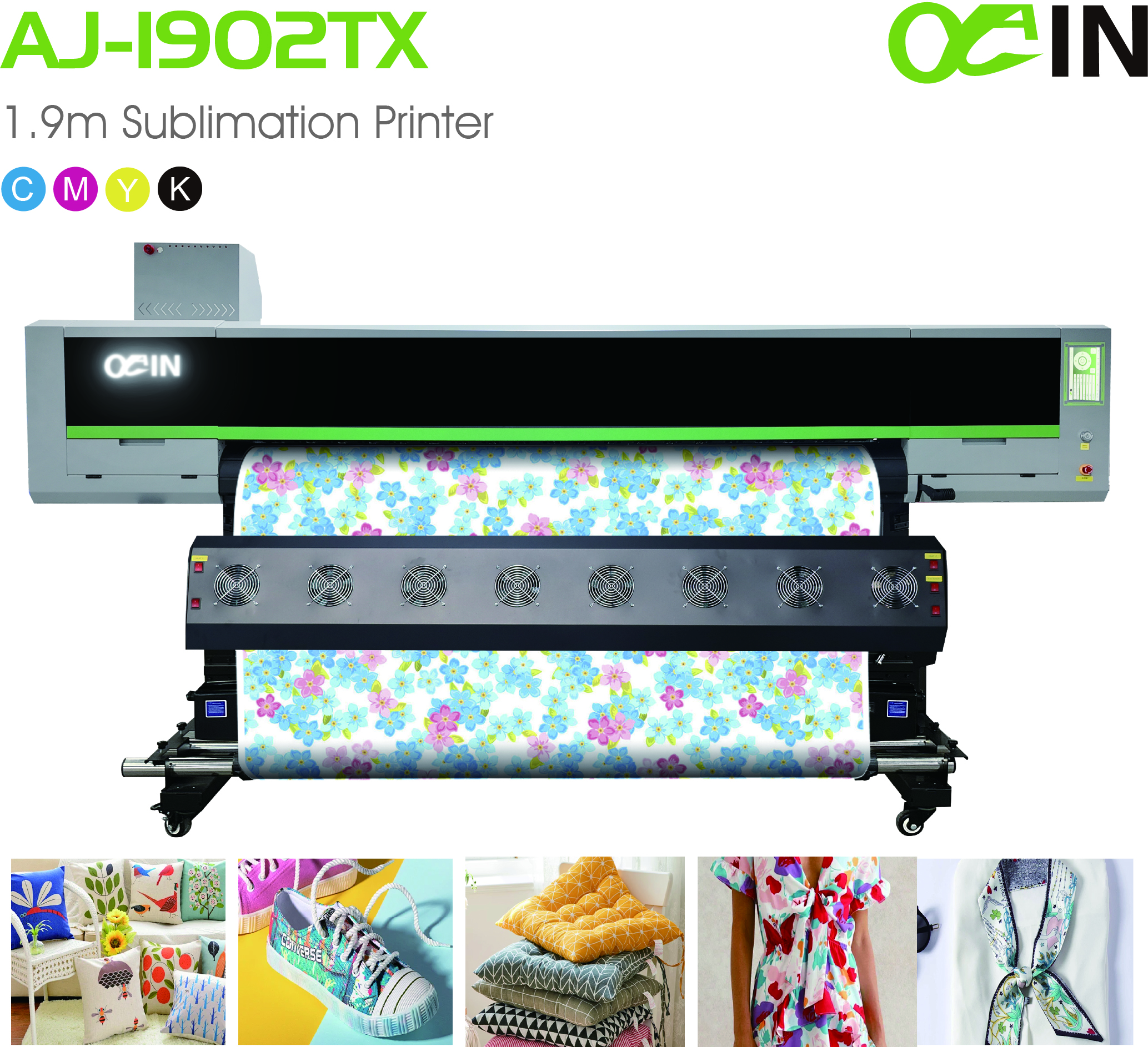

| AJ-1902TX 1.9m Sublimation Printer | ||
| M0DEL | AJ-1902TX | |
| Print Head | 2* i3200 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 75.9 in.(1930 mm) |
| Thickness | Maximum 39 mil(1 mm) | |
| Weight | 176 Ib.(80 kg) | |
| Printing Width | 70.8 in.(1900 mm) | |
| Ink Cartridges | Type | Dye Sublimation Ink |
| Capacity | 4*4 CISS (220ml ink cartridge with 1.5L ink tank) | |
| Color | 4 colors | |
| Printing Resolution | Maximum 3600 dpi | |
| PrintingSpeed | 4pass(720x1200dpi):40sqm/h 6pass(720x1800dpi):27 sqm/h | |
| Media Heating System | Intergrated post heater &Infrared Dryer &Fan system | |
| Interface | LAN | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| Dimensions(with stand) | 114(W)x29.5(D)x61(H) in. (2900(W)x750(D)x1550(H)mm) | |
| Weight(with stand) | 617.2Ib.(280 kg) | |
| Packing Size | 118(W)x29.9(D)x29.9H) in. (3000(W)x760(D)x760(H)mm) | |
| Package Weight | 661.3Ib.(300 kg) | |
| Environment | Power on | Temperature: 59℉to 90℉[15℃to 32℃] / Humidity: 35 to 80% (no condensation) |
| Power off | Temperature: 41℉to 104℉[5℃to 40℃] / Humidity: 20 to 80% (no condensation) | |
| Accessories | USB cable,media clamp,manual,drain bottle,ink cartridges,RIP sofaware,etc. | |
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features
|

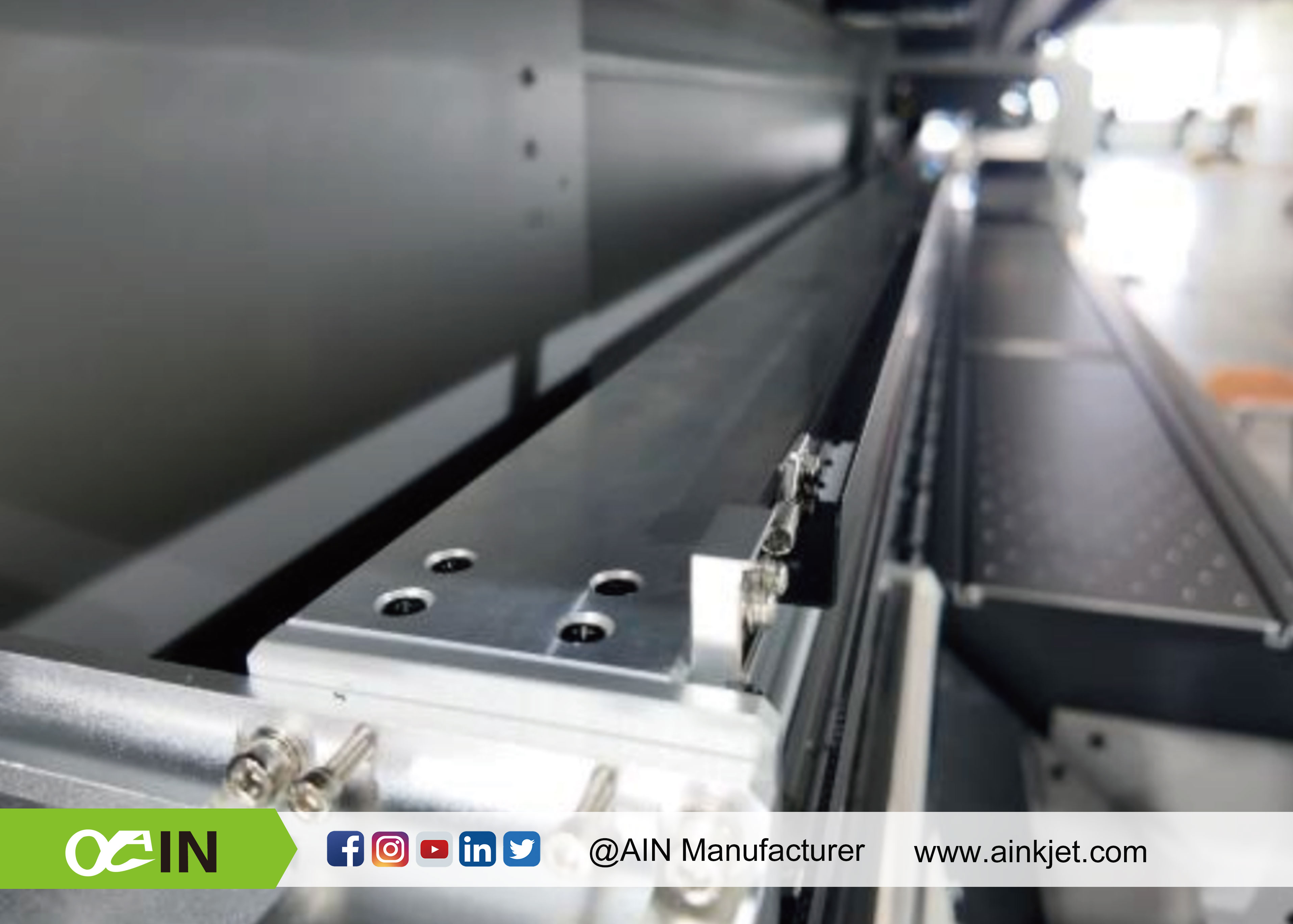

The aluminum profile main beam is used to replace the original steel structure, providing better mechanical strength and mechanical precision. | |

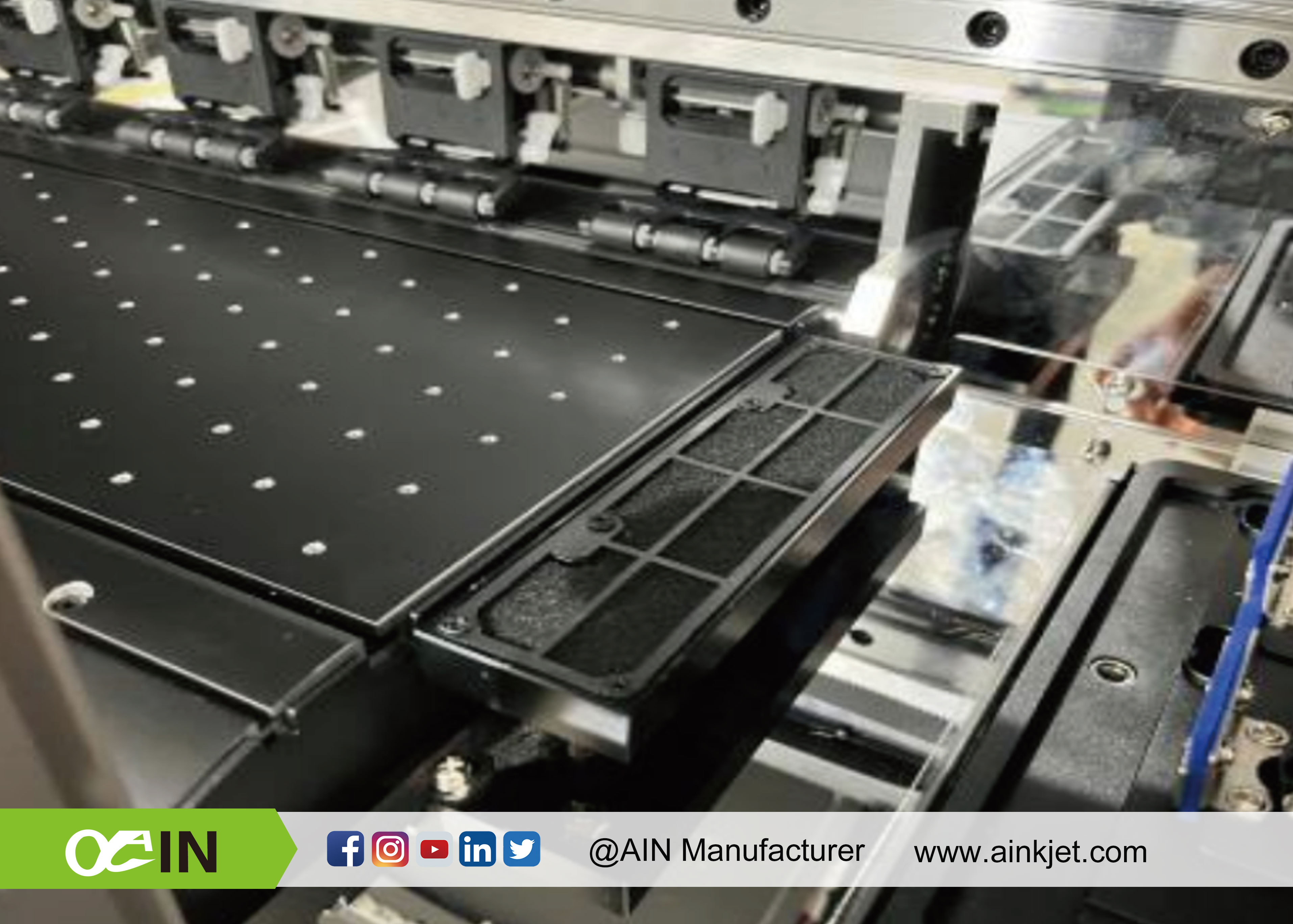

Added flash spray slot structure to better improve printing speed and accuracy. |
|

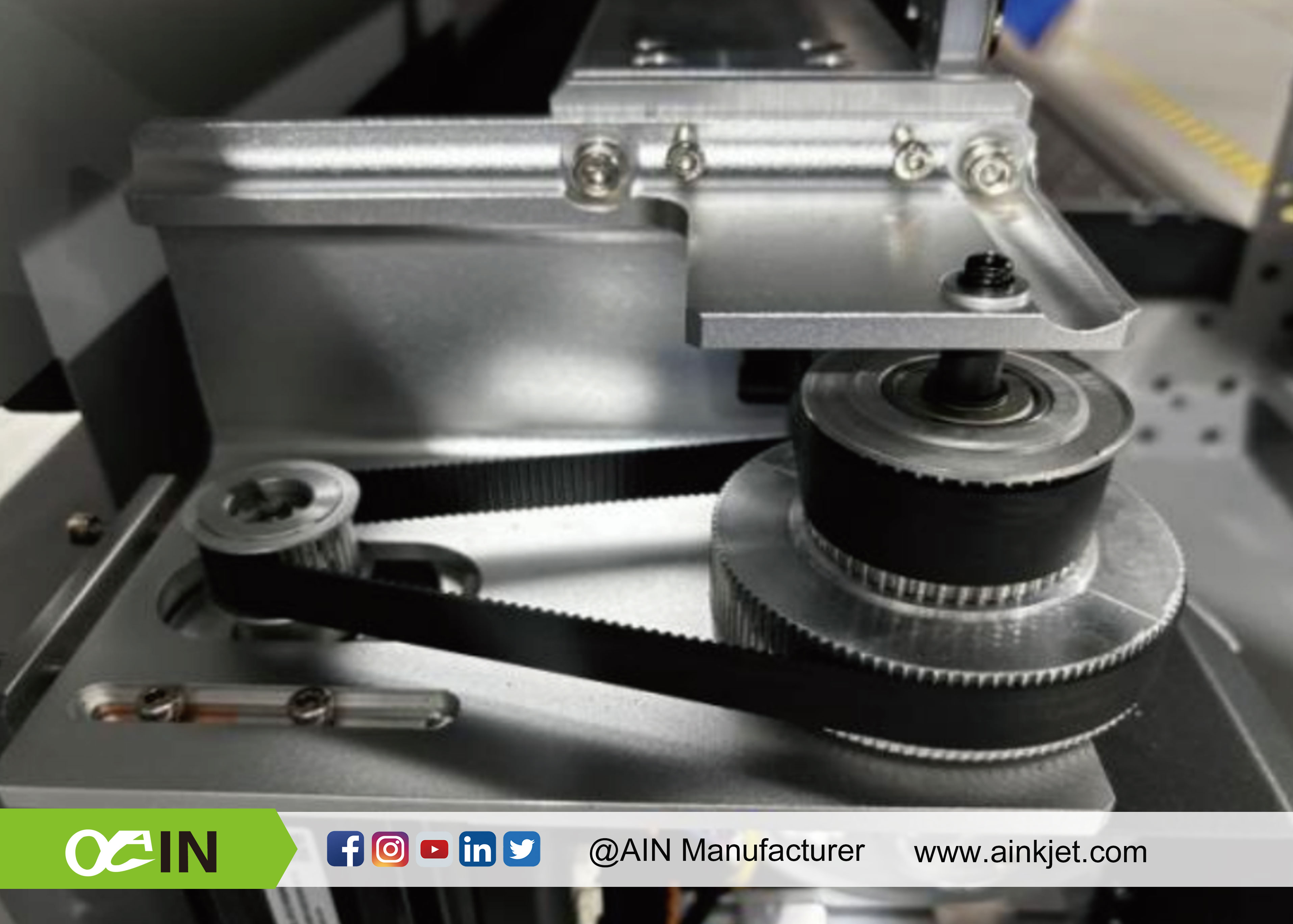

X, Y axis motion transmission structure upgraded to provide more stable movement to ensure printing quality. |  |

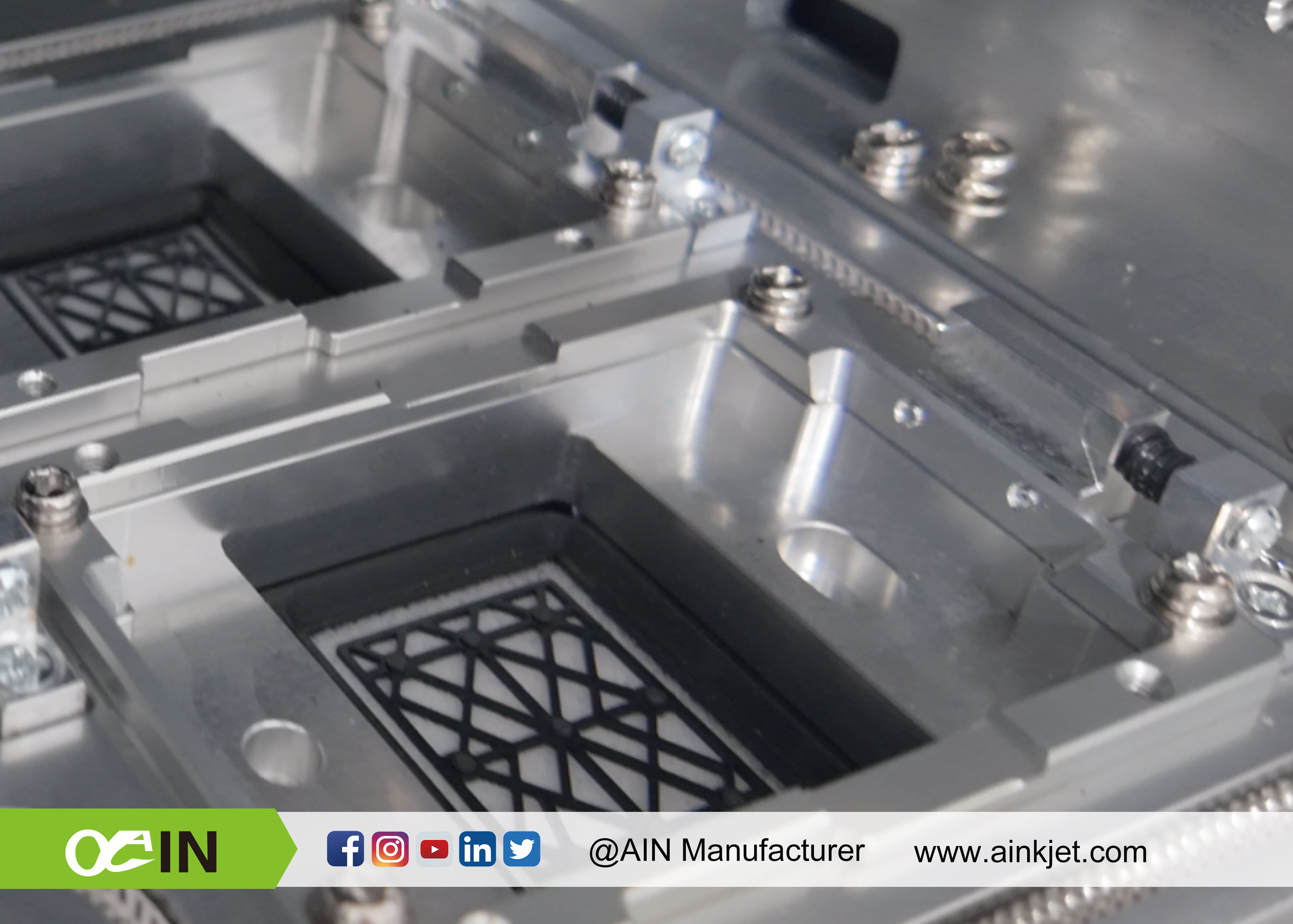

The printheads base is embedded in the structure, so the heads does not protrude from the bottom plate of the trolley, which better protects the print heads . |

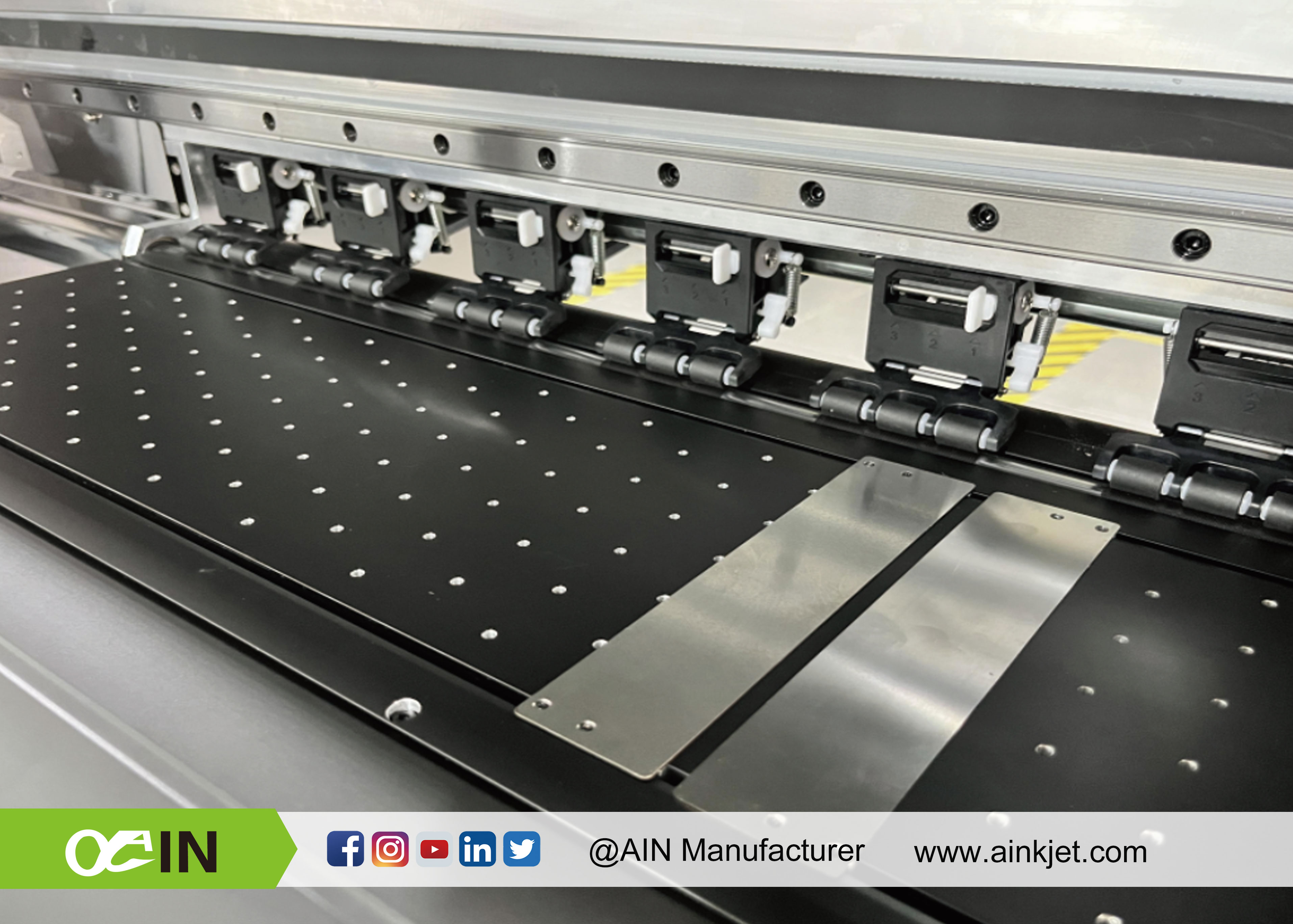

 | The printing platform is widened to ensure that the printing area is between the paper pressing slots to provide a stable printing effect. | | Added a waste ink barrel alarm system for a more user-friendly experience. |

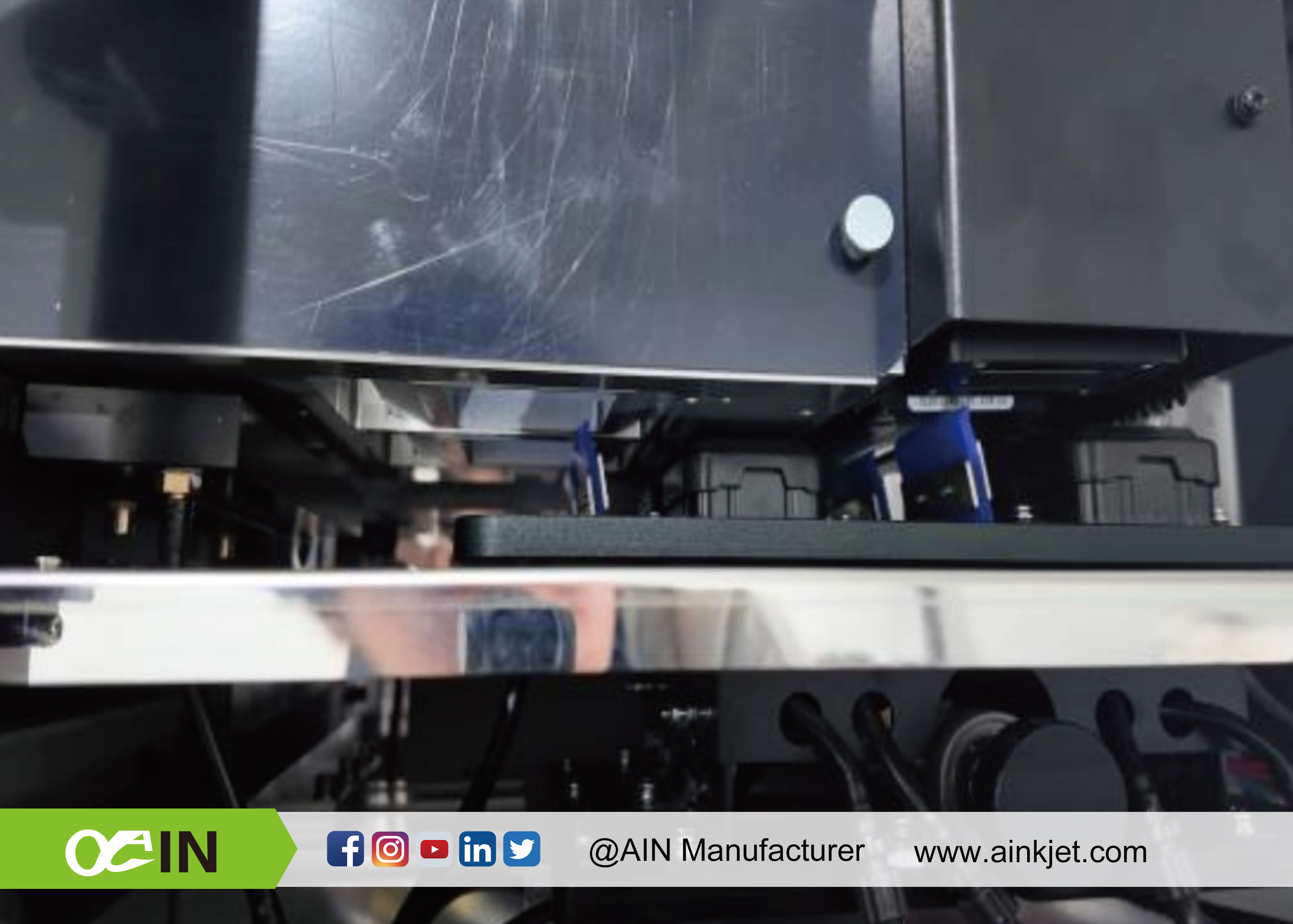

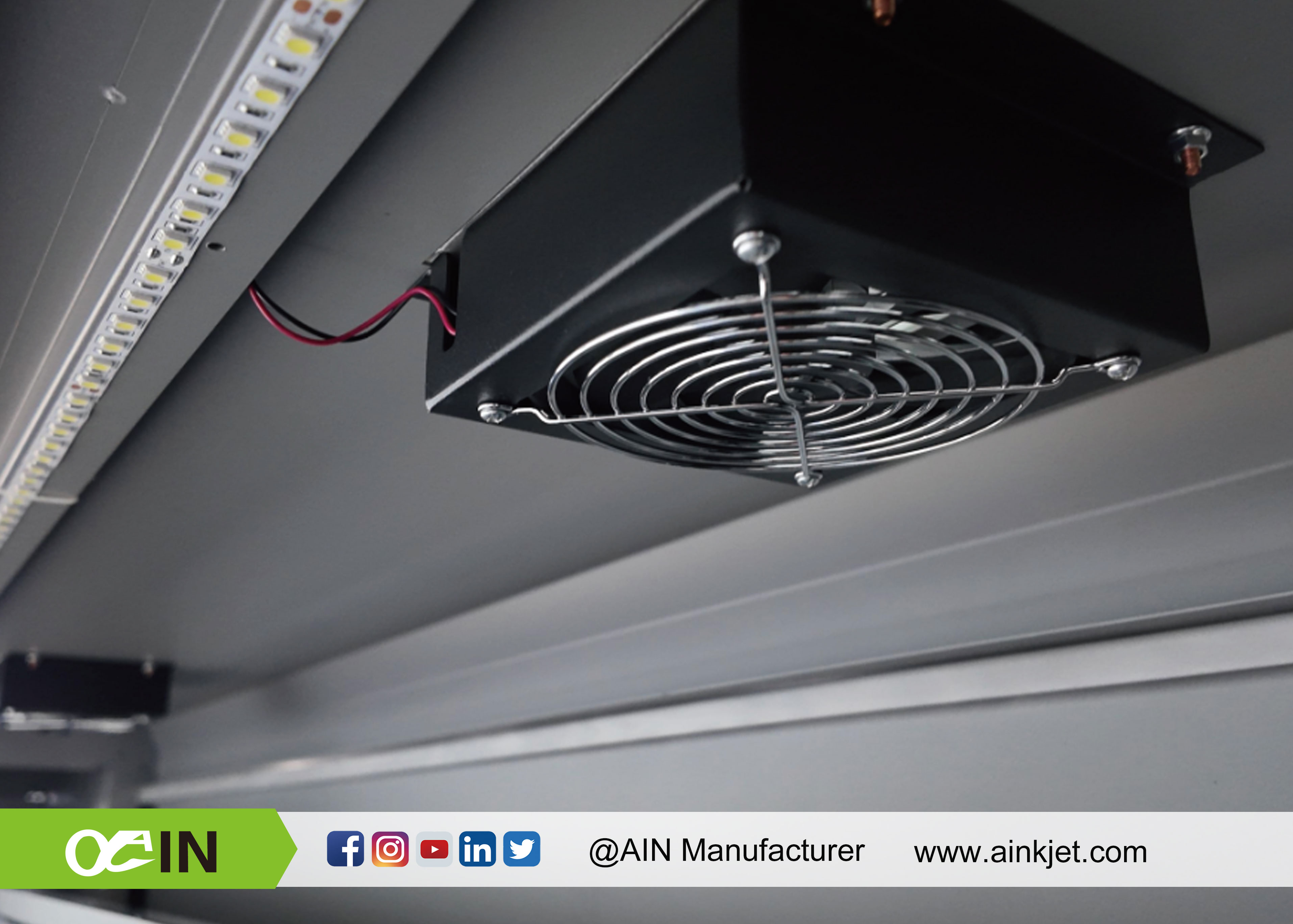

| Standard fresh air system to reduce dust in the printing chamber and ink mist caused by inkjet. |  | The trolley lifting structure is upgraded, and the height of the trolley bottom plate does not need to be re-verified to adjust the height consistency of the left and right front and back. |
Application
Applications of Sublimation Printer
Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant，reliable and precise. With AIN series printer , you can maximize production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
