Printer Informations

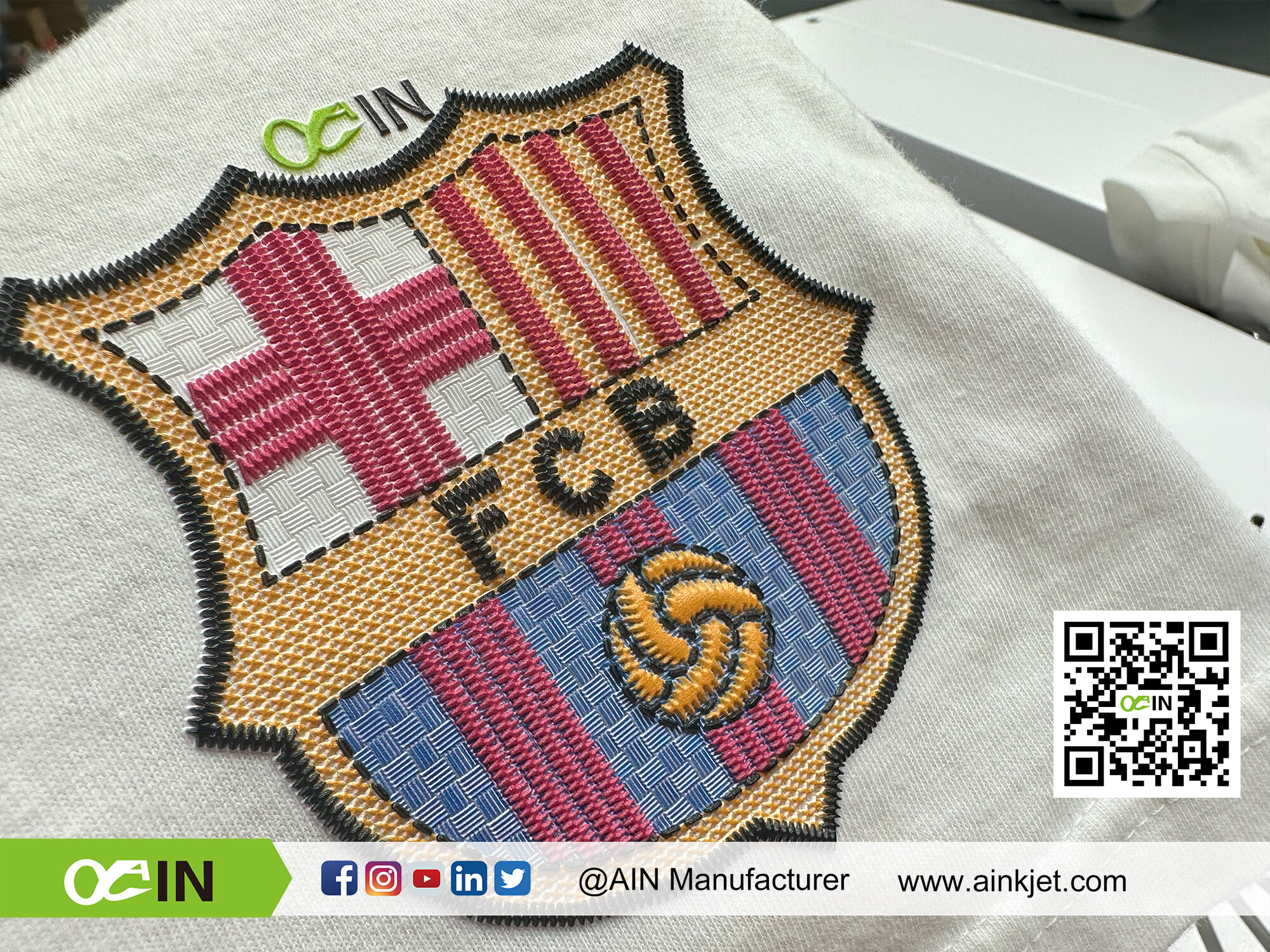

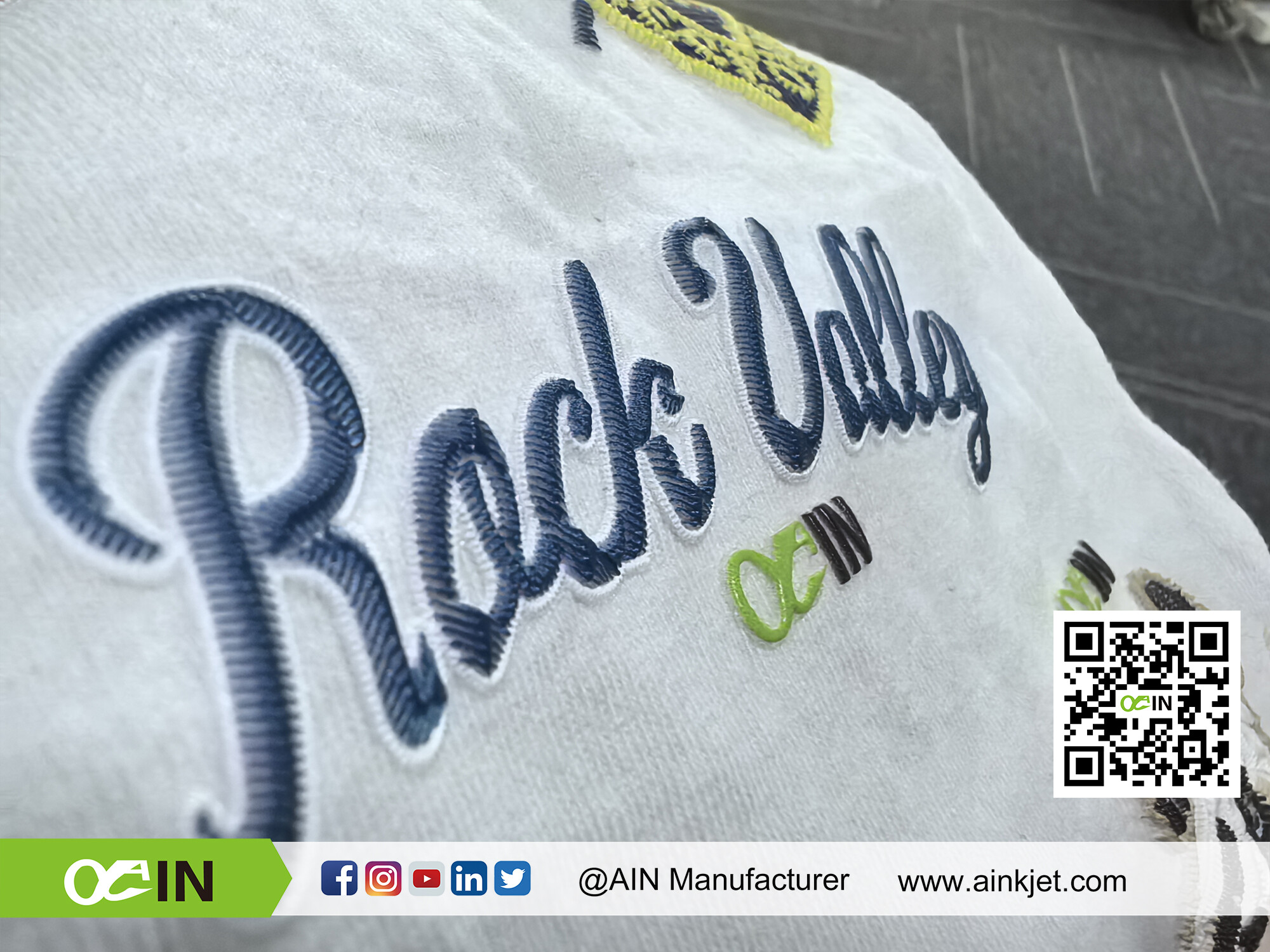

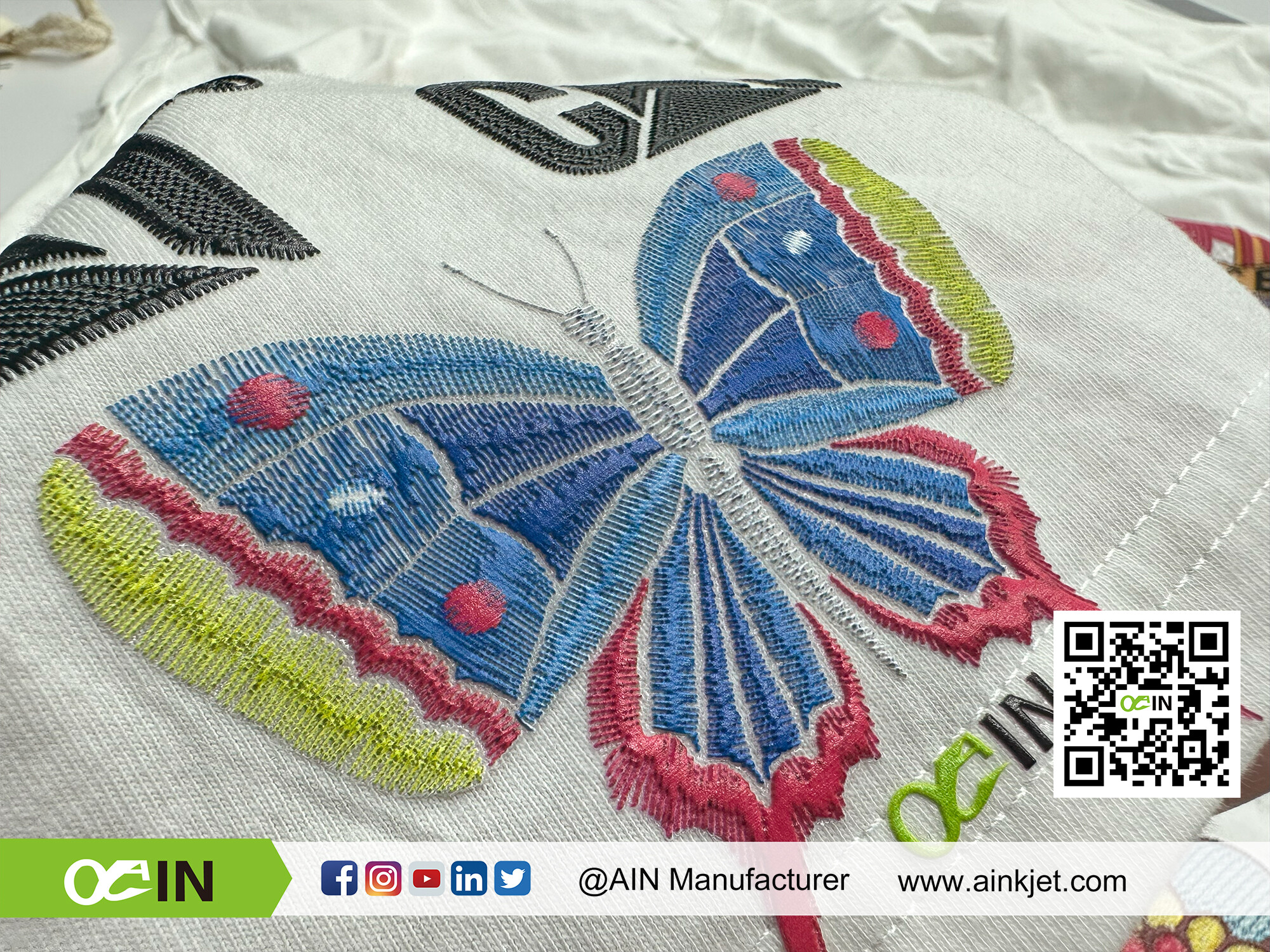

3D Embroidery UV DTF Stickers uv roll to roll Silicone Heat Transfer Printer AIN UV Soft Ink Using UV soft ink technology, this printer creates stickers with a 3D embroidery-like effect, delivering a strong three-dimensional visual experience and exceptional color. High Printing Precision Equipped with the Epson-authorized i1600-U1/i3200-U1 printhead, it delivers high printing precision and stability, guaranteeing print quality. 3D Embroidery Effect Enables high-quality UV DTF sticker printing with a 3D embroidery effect, meeting the highest demands for visual quality and quality. Applications Suitable for personalized clothing stickers, creative product stickers, decorative stickers, commercial signage, and brand promotional materials, adding unique and exquisite visual embellishments to a variety of items. |
New Feature of UV DTF Printer We have an excellent technical team, which can be designed according to customers requirements. |

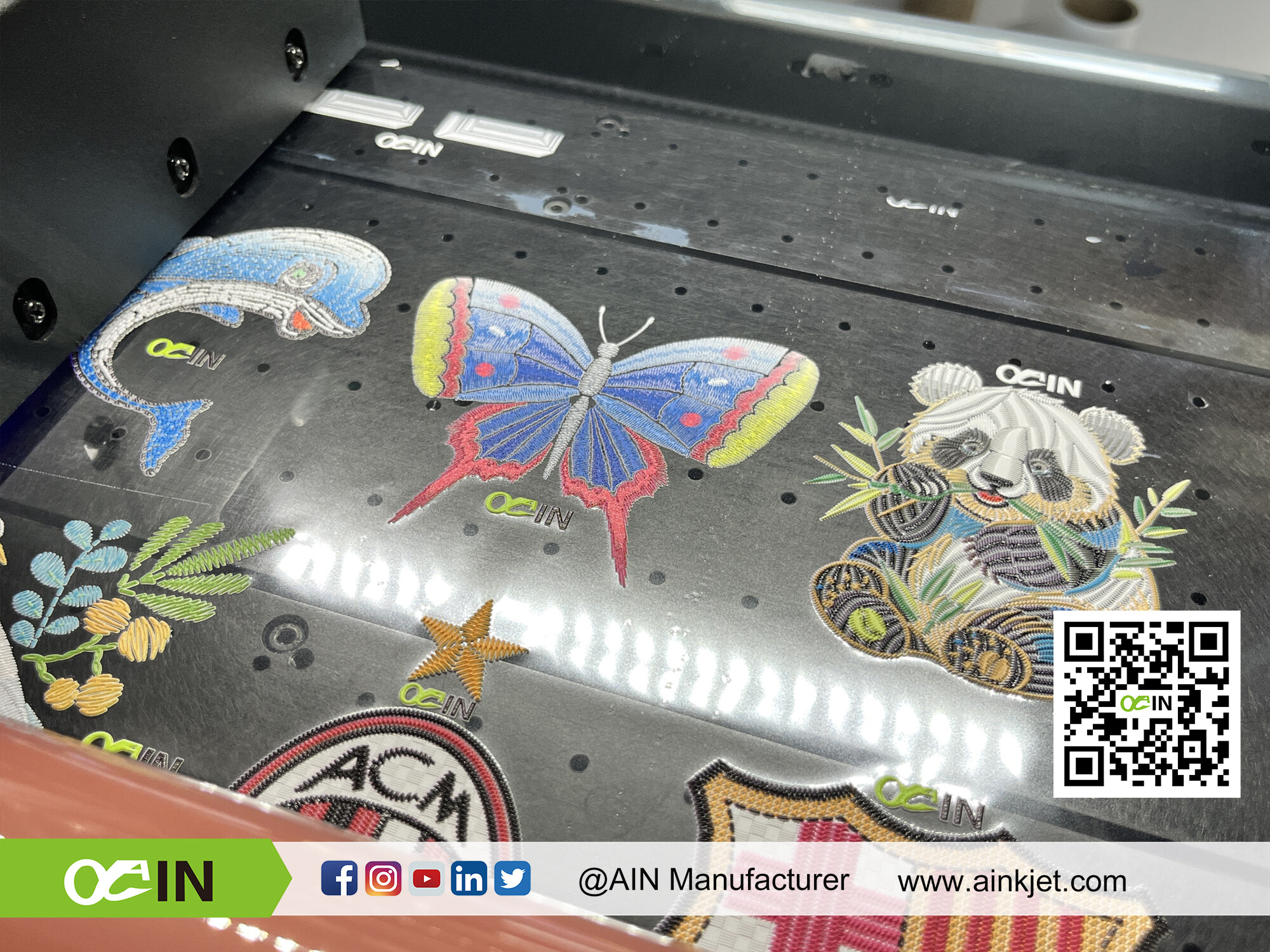

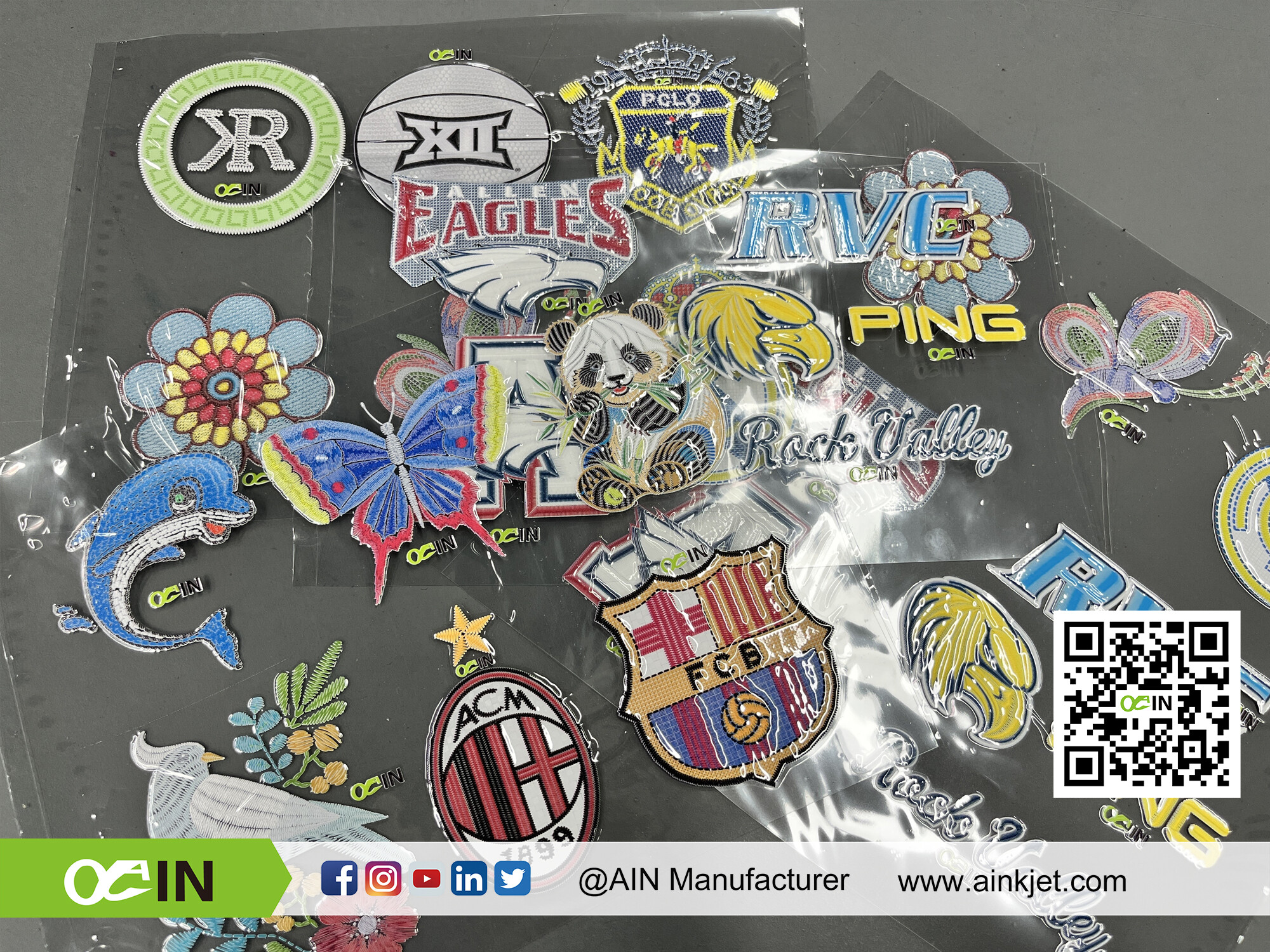

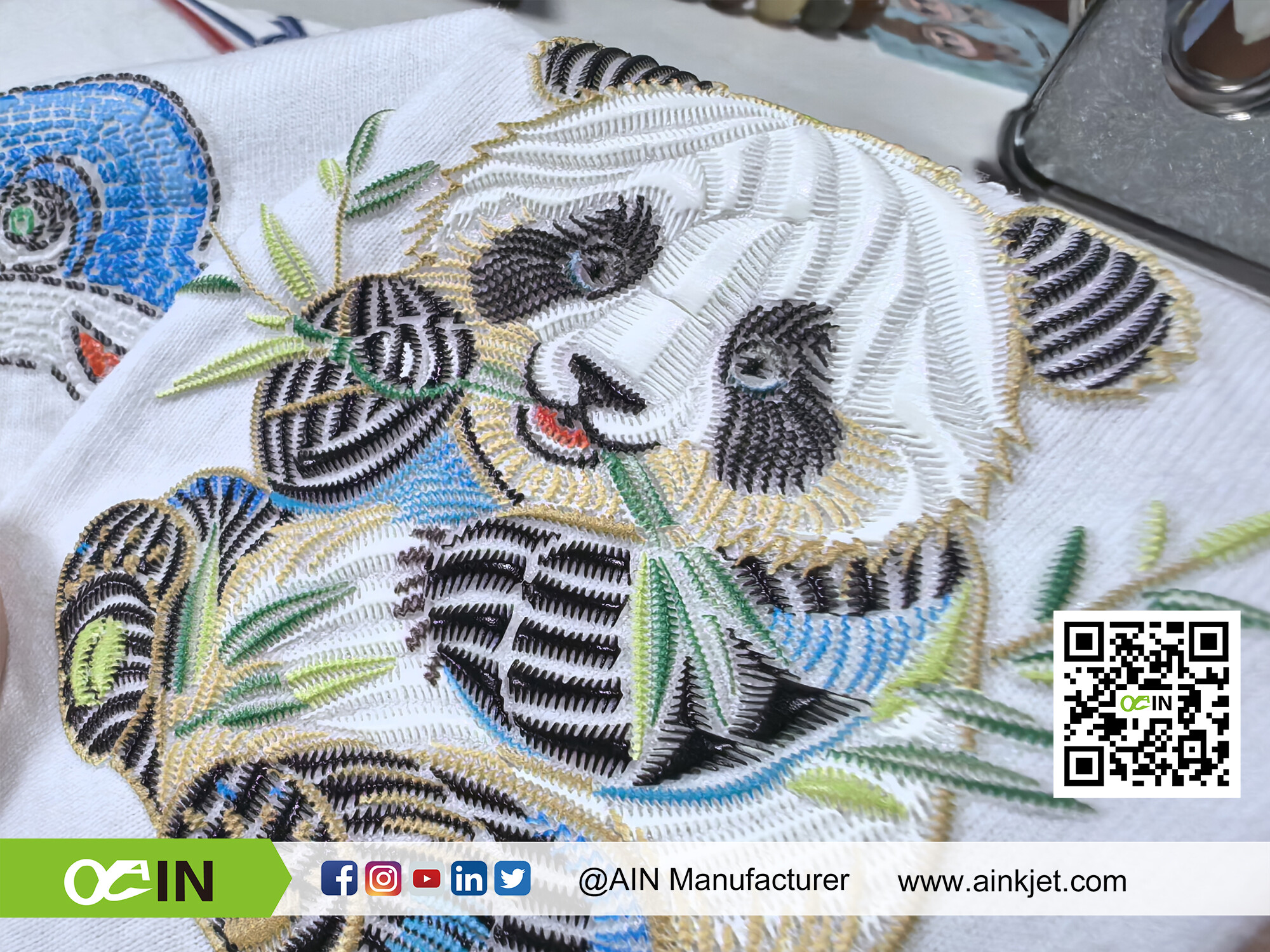

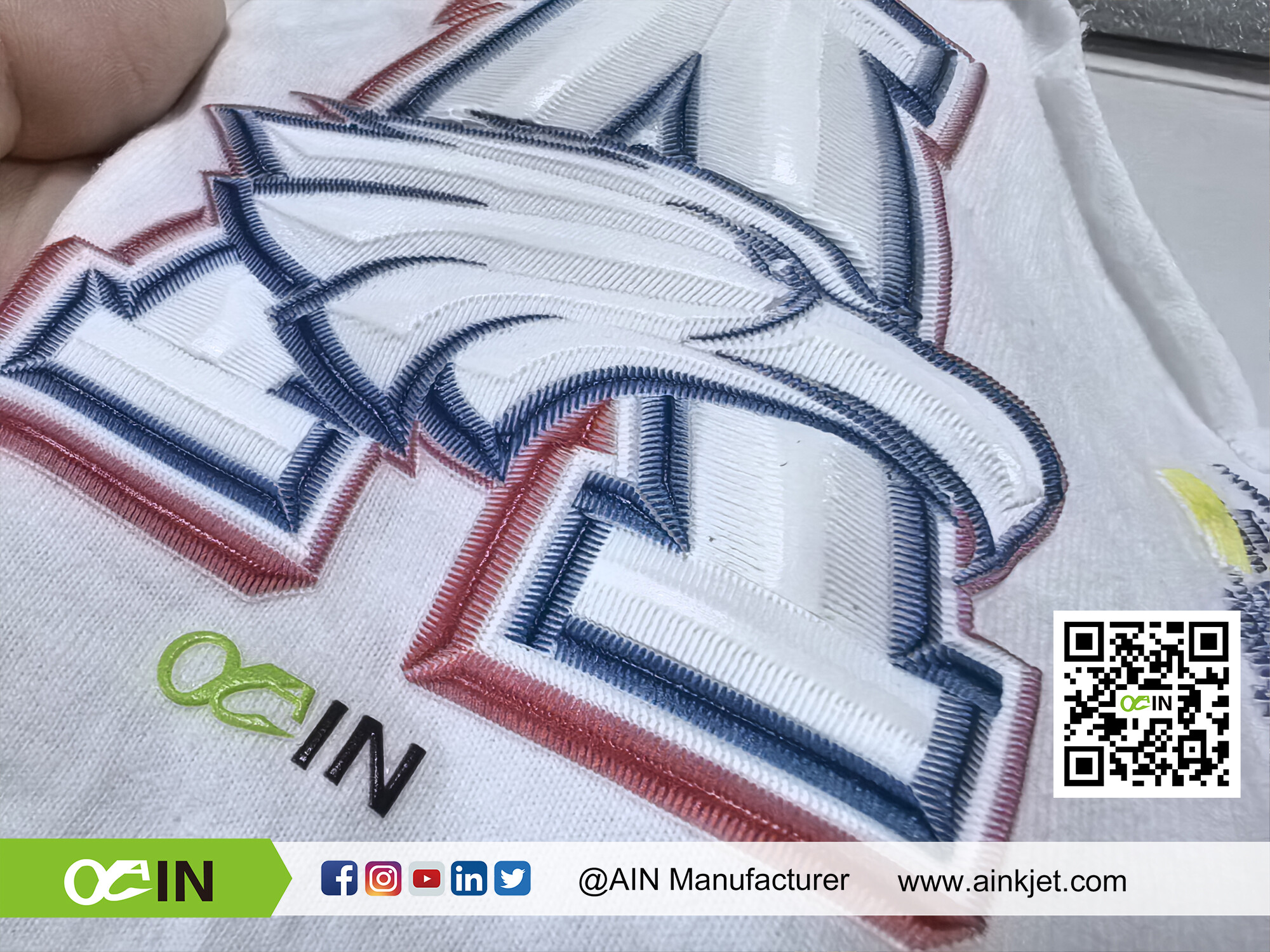

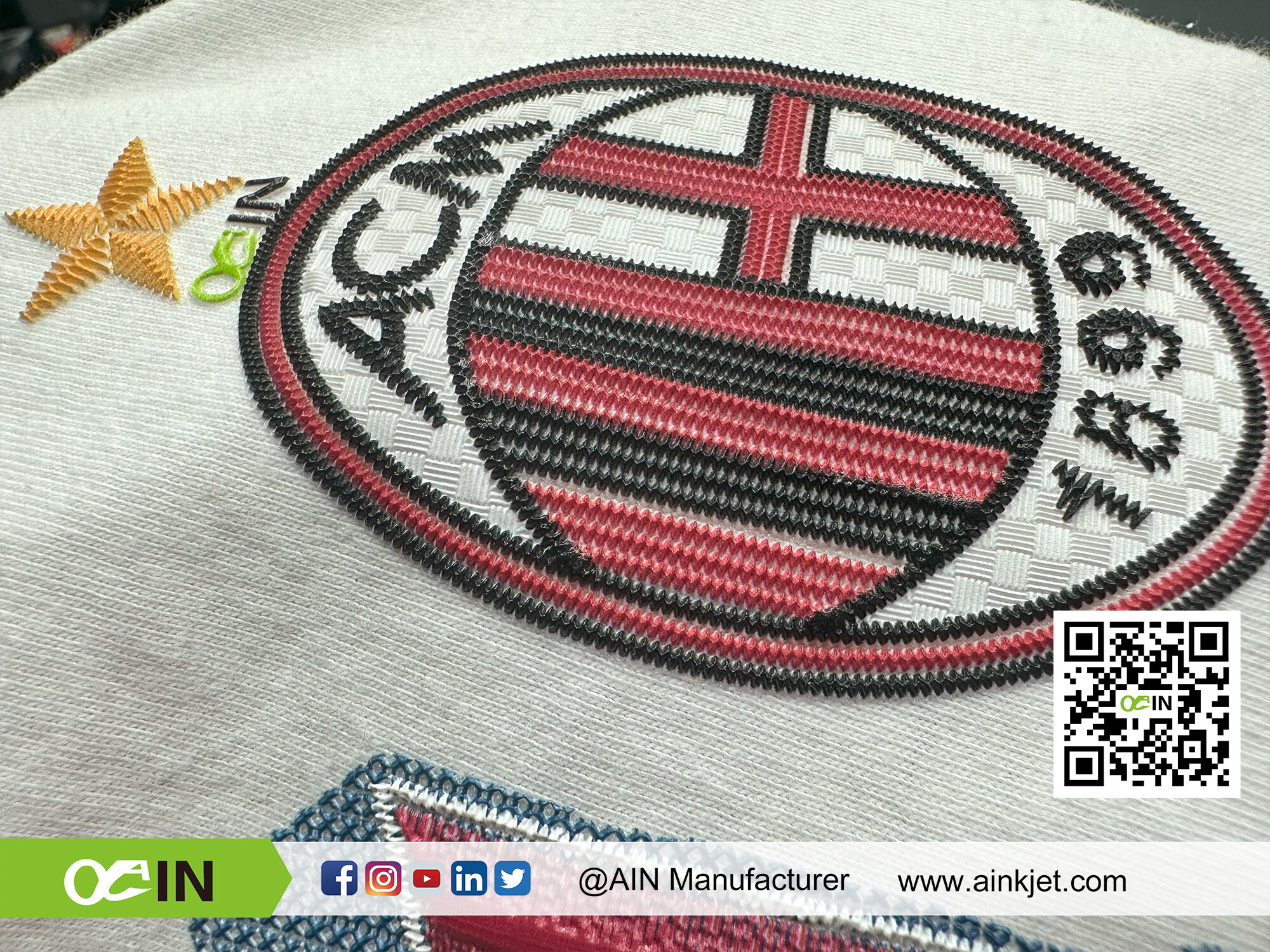

Achieving 3D embroidery UV DTF stickers requires just three simple steps: 1.Print the design: Using a UV DTF printer, print embroidery-like patterns onto Film A with specialized UV ultra-soft ink. During printing, the device automatically applies Film B as a transfer layer. 2.Low-Temperature Bottom Transfer: After printing, peel off Film A. Place the fabric to be pressed and Film B (with the design) onto the bottom heating unit. Heat at 150°C for 15-20 seconds until the adhesive bonds to the fabric, then peel off Film B. 3.Secondary Heat Pressing: Place the transferred product back into the heat press for secondary bonding at 150°C for 10 seconds. This ensures the adhesive layer bonds firmly, achieving the final 3D effect. The entire process is simple to operate with controllable costs, making it ideal for personalized, small-batch production needs. Benefits of 3D Embroidery UV DTF Stickers Innovation in application Traditional UV DTF printing is for rigid items, but 3D embroidery UV DTF stickers break through to garments like hats and T-shirts, expanding UV DTF's use and business scope. Versatile customization They support large - volume and personalized orders, fitting T-shirts, hats, sportswear, and team uniforms. Top - notch quality With UV printing, they boast vivid colors, resist fading, scratches, and wear. Washing tests show they can endure at least 20 washes.
|
Printer Heads
Technical Specifications

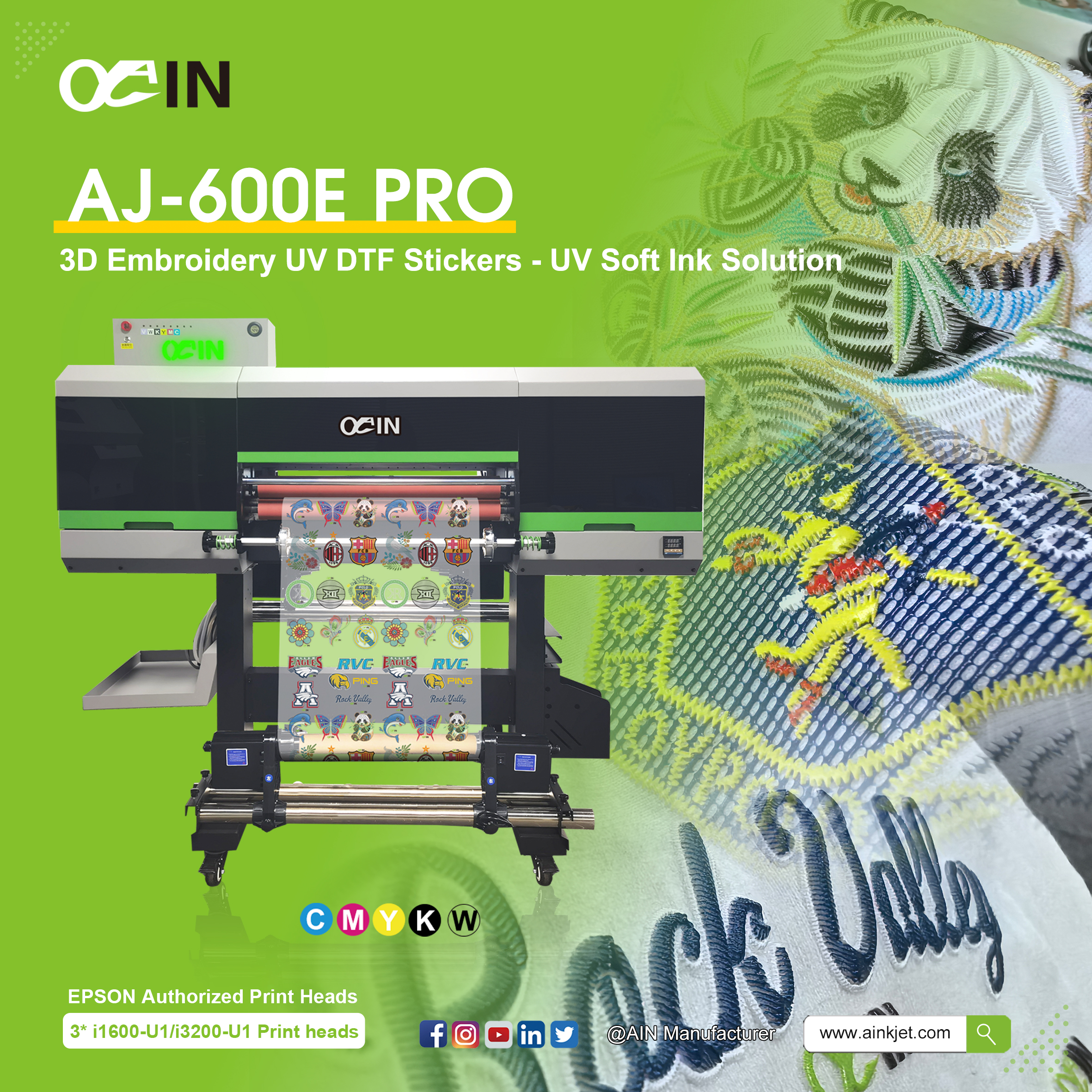

| AJ-600E Pro 3D Embroidery UV DTF Stickers Roll to Roll Printer | ||
|---|---|---|
| Print Head | 3/4*i1600 Print Heads (4*i3200 Heads Optional) | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | ≤600(mm) |
| Thickness | ≤1.5(mm) | |
| Ink Cartridges | Capacity | Color Siphon + Regular Mixing of White Ink |
| Color | W+CMYK+Varnish | |
| Printing Resolution | Maximum 2400 dpi | |
| Speed | 8pass (720x1200dpi) 7m²/h | |
| Ink Curing Method | Dual UV LED Lights | |
| Power | 3500W | |
| Interface | Gigabit Ethernet | |
| Power Supply | AC 220V ± 10%, 50/60 HZ | |
| Dimensions(with stand) | 1650(W)x960(D)x1570(H)mm | |
| 2360(W)x880(D)x760(H)mm | ||
| Weight(with stand) | 441 lb. (200 kg) | |
| Environment | Power on | Temperature: 59℉to 90℉[15℃to 32℃] / Humidity: 35 to 80% (no condensation) |
| Power off | Temperature: 41℉to 104℉[5℃to 40℃] / Humidity: 20 to 80% (no condensation) | |
Features
 | Safety structure design The overall printer cover can improve the operation safety, reduce the adhesion of dust in the printing process and ensure the printing quality. |  | Laminating device Comes with a laminating system, realizes the function of laminating while printing, easily reduces manual operations, and can print a whole roll of A film with glue . |
 | Smart operation High quality output, simple and efficient operation A-600 Pro contains many advanced functions to complete high-quality printing jobs with simple operations. |  | Ink supply system Using white ink and clear varnish, it has rich expressive power and fulfills various needs. An additional spray print head can be added to realize the application of bronzing varnish and direct glue. |
 |  |  |
|
Application
Applications of 3D Embroidery UV DTF Stickers Printer
Custom Apparel and Fashion Design

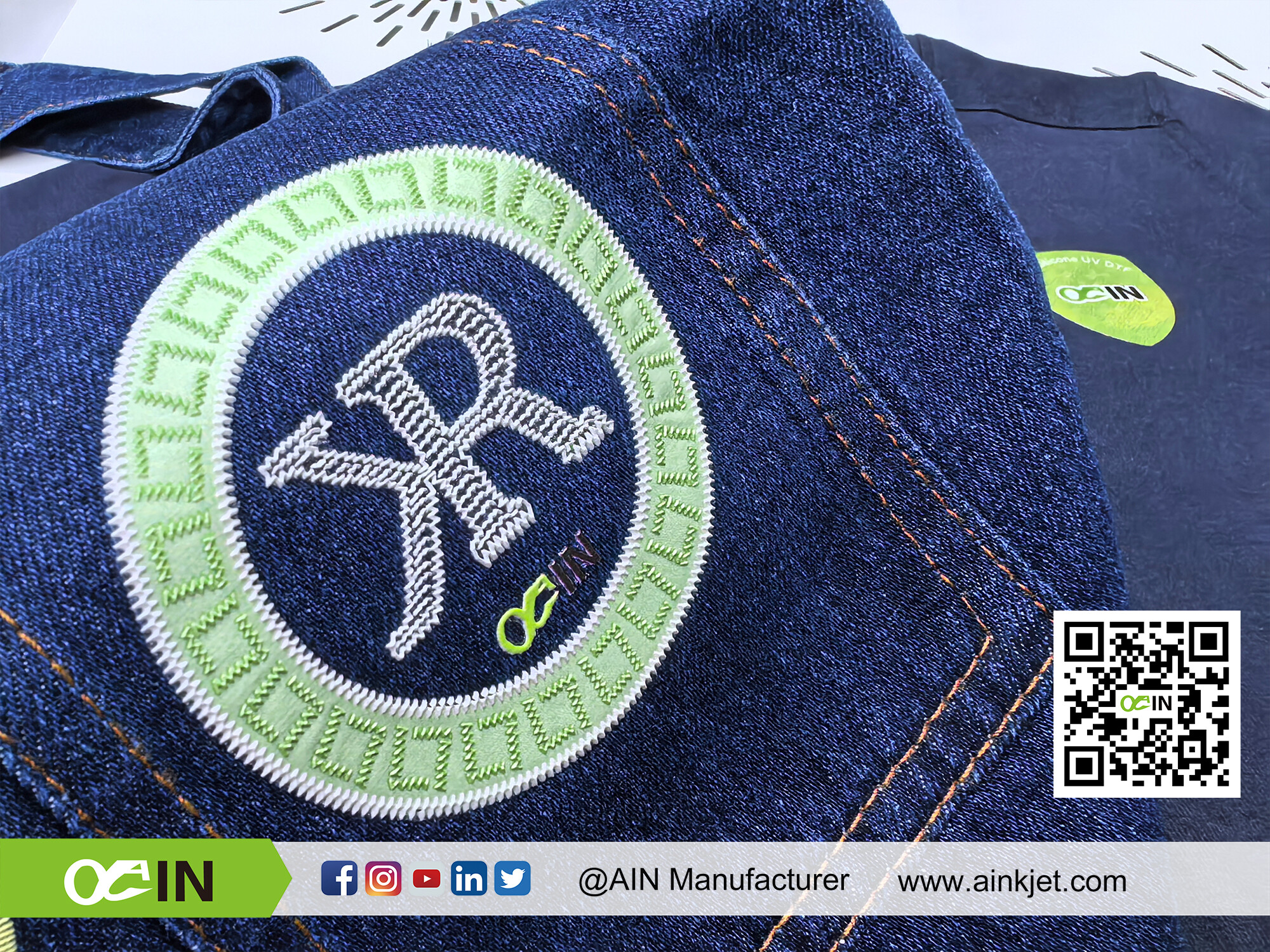

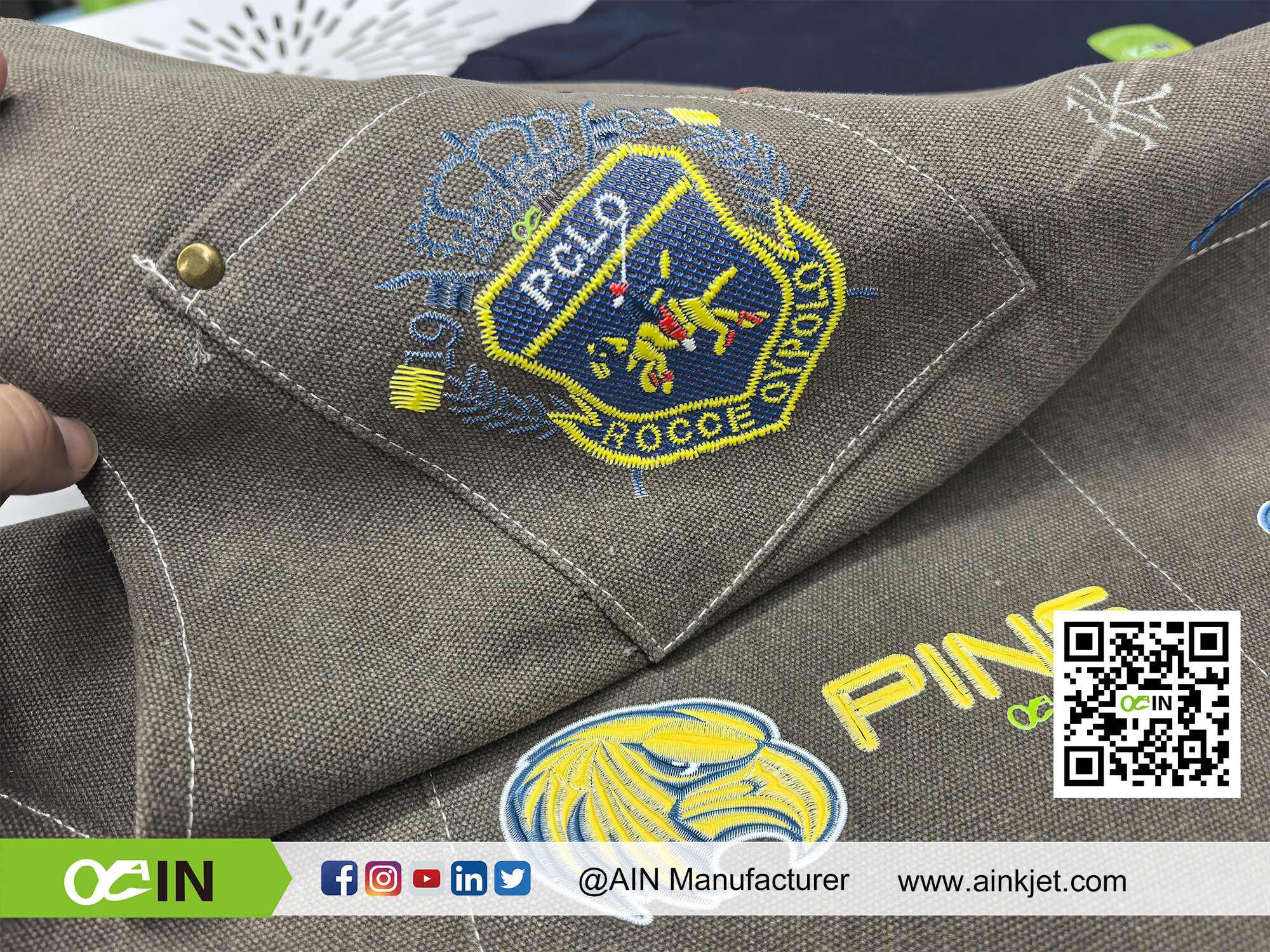

With 3D embroidery UV DTF stickers, business owners and apparel brands can create attractive and personalized patterns. From ordinary t-shirts to custom vests, these stickers enable business owners to offer one-of-a-kind patterns that meet consumers’ individual requirements.
Brand Marketing and Promotional Products

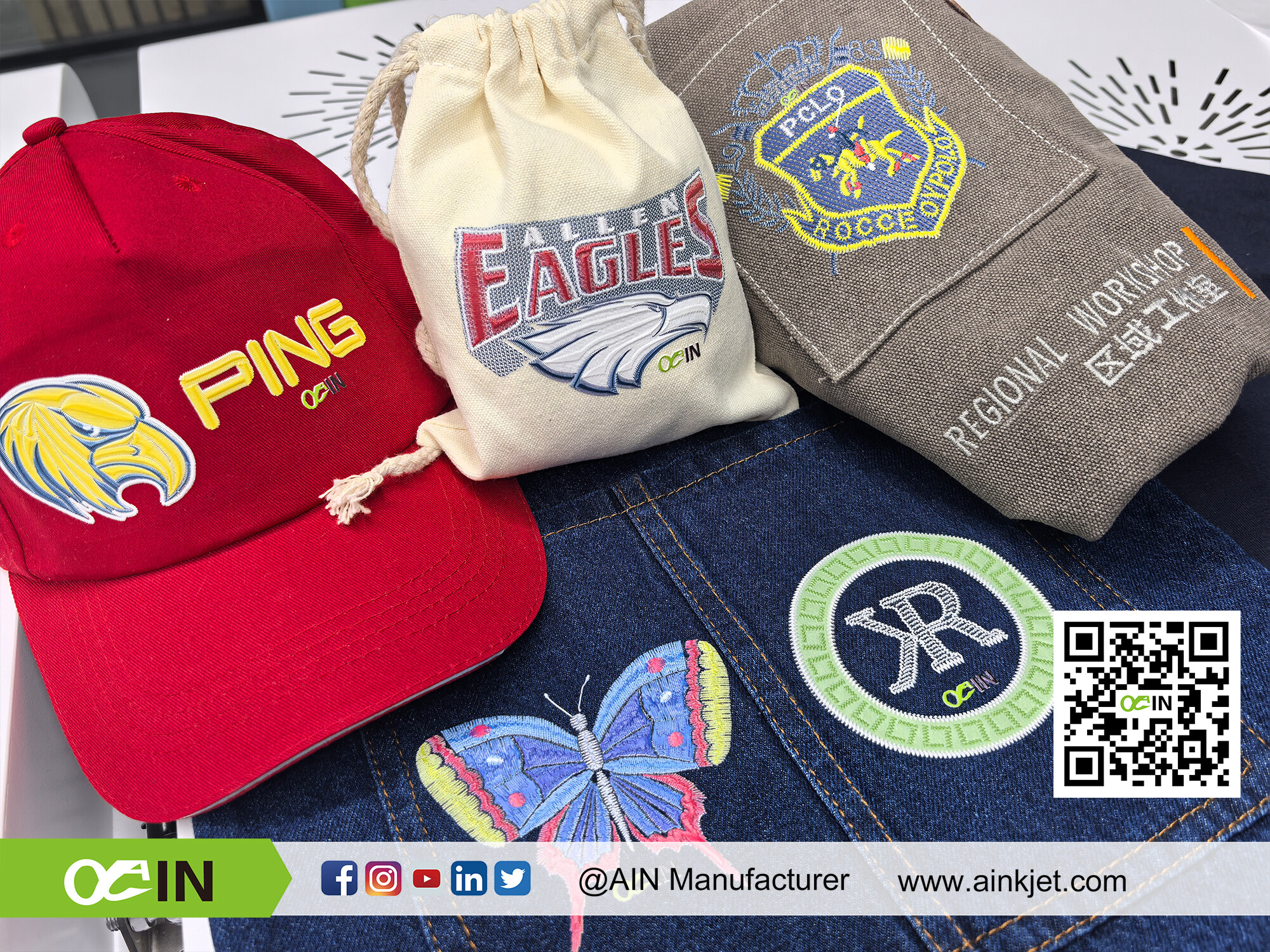

3D embroidery UV DTF stickers can also be used for promotional purposes. Products like custom hats, shirts, and bags with brand logos or slogans can make companies stand out and leave a deep impression on customers.

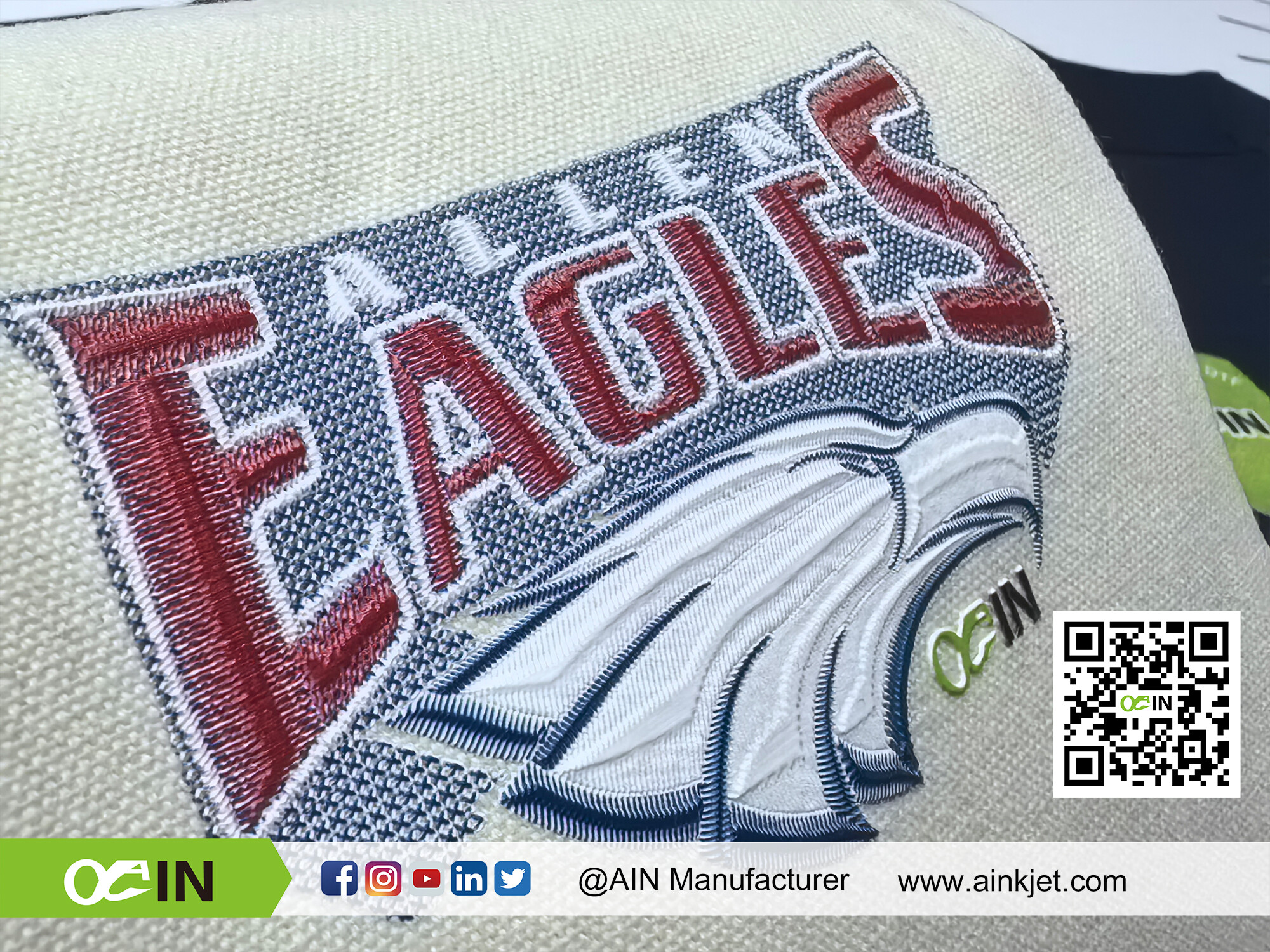

Sportswear and Uniforms
Sports teams and businesses are able to apply these 3D embroidery UV DTF stickers onto the uniforms. Due to the UV printing technology, these stickers can last for a long time and are resistant to washing, making them ideal for sportswear, which will undergo frequent use and washing.
  |   |   |   |  |
