Product Description
| Sublimation Printer High performance sublimation ink The sublimation ink features vivid colors and high color fastness. It is suitable for printing on fabrics, papers and other materials with high color requirements, and the printed patterns are long-lasting and bright. Control & Durability Advanced board control optimizes processes, with industrial-grade design ensuring nozzle durability, reducing maintenance costs, and extending service life. Wide applicability Covers clothing, home textiles, samples, shirts, canvas bags, pillows, scooter decorations, flags, and various textile items. Ink Supply & Drying Stable large-capacity ink supply ensures speed, with infrared heating and cooling coordination; automatic cleaning components maintain nozzles for efficient and stable printing. |
New Feature of Sublimation Printer We have an excellent technical team, which can be designed according to customers requirements. |
| Intelligent inkjet printing technology and variable dot ensure the perfect printing output, greatly improve the printing speed, and meet the user's requirements for printing quality and speed.

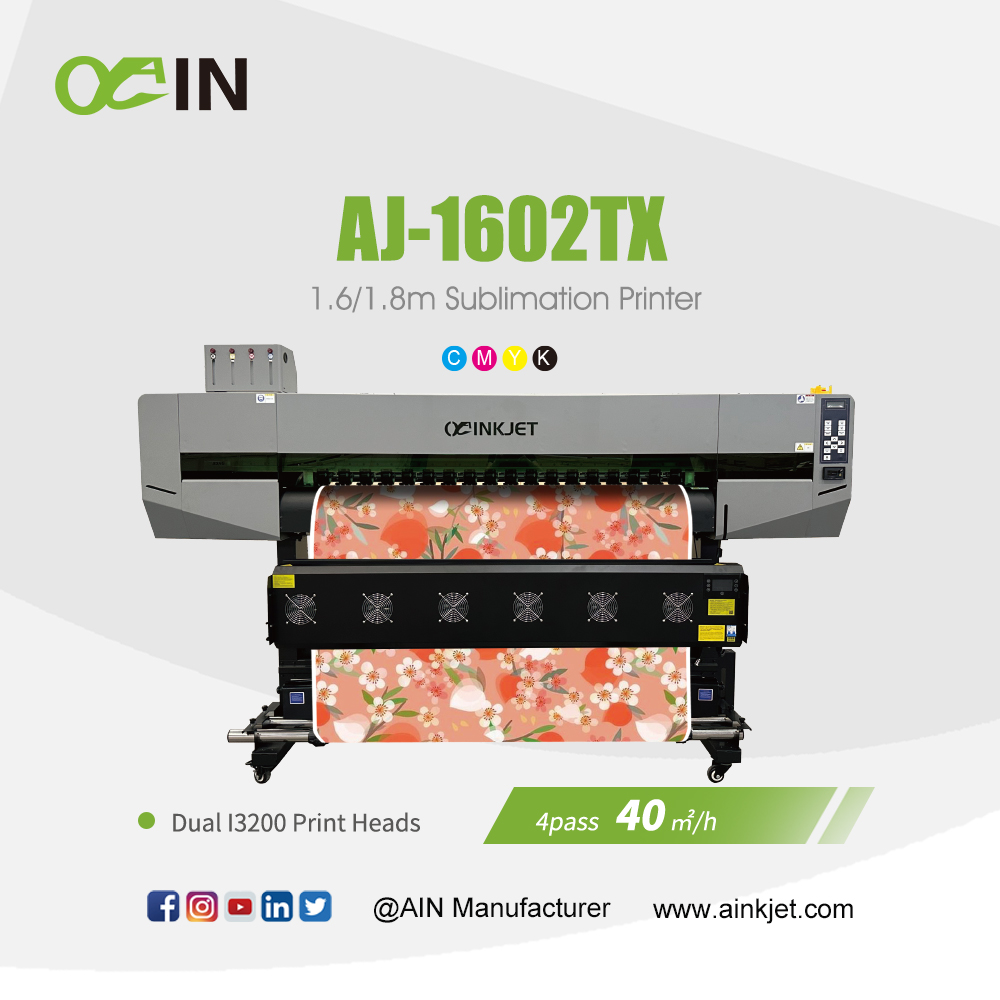

| High speed micro piezoelectric inkjet printing technology AJ-1602TX is equipped with 2*i3200-A1 print heads. It adopts advanced board control technology and industrial level design to ensure the durability of the print head .
|
Technical Specifications

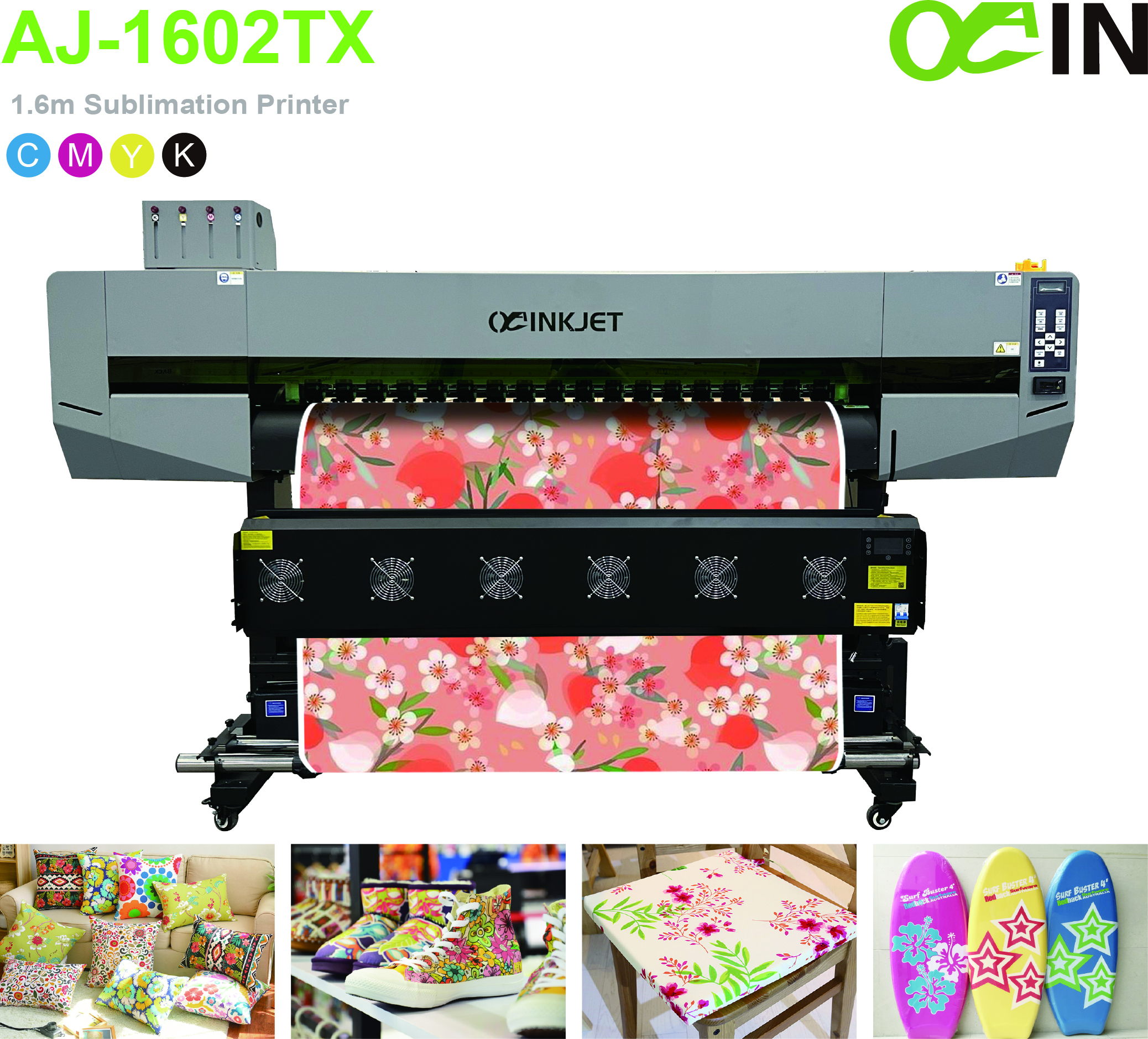

| AJ-1602TX 1.6m Sublimation Printer | ||
| M0DEL | AJ-1602TX | |
| Print Head | 2* i3200 Print Heads | |
| Printing Technology | PiezoelectricInkjet | |
| Acceptable Media | Width | 63.8 in.(1620 mm) |
| Thickness | Maximum 59 mil(1.5 mm) | |
| Weight | 176 lb.(80 kg) | |
| Printing Width | 63 in.(1600 mm) | |
| Ink Cartridges | Type | Sublimation Ink |
| Capacity | 4*4 CISS (220ml ink cartridge with 1.5L ink tank) | |
| Color | 4 colors (Cyan,Magenta,Yellow,Black) | |
| Printing Resolution | Maximum 3600 dpi | |
| PrintingSpeed | 4pass(720x1200dpi):40sqm/h 6pass(720x1800dpi):27 sqm/h | |
| Media Heating System | Intergrated post heater &Infrared Dryer &Fan system | |
| Interface | LAN | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| Dimensions(with stand) | 2600(W)x750(D)x1550(H) mm | |
| Weight(with stand) | 240 kg | |
| Package Dimensions | 2800(W)x760(D)x760(H) mm | |
| PackageWeight | 260 kg | |
| Environment | Power on | Temperature:59℉ to 90℉ [15℃ to 32℃](68℉ [20℃]/Humidity:35 to 80%(no condensation) |
| Power off | Temperature:41℉ to 104℉ [5℃ to 40℃]/Humidity:20 to 80%(no condensation) | |
| Accessories | Print Heads,USBcable,media clamp,manual,drain bottle,ink cartridges,RIP software,eto. | |
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features
 | THK high-precisionmute rail. | | New pinch roller structureof three in group bringsmore stable feeding precision. |
 | High-precision andhigh-stability tensioningpulley system. | | High quality DC servomotor with good stabilityand long life. |
| Stable Bulk System EnsuresAmazing Printing Speed. | | Infrered heater andcooling fan. |
 | Automatic moisturizing cleaning assembly ensures the stability of head cleaning and improves working stability. | | External power supply,intelligent rolling system. |
Application
Applications of Sublimation Printer
Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant，reliable and precise. With Ain series printer , you can maximize production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
