Product Description
Industrial High Precision
Dye Sublimation Printer
Technical Specifications

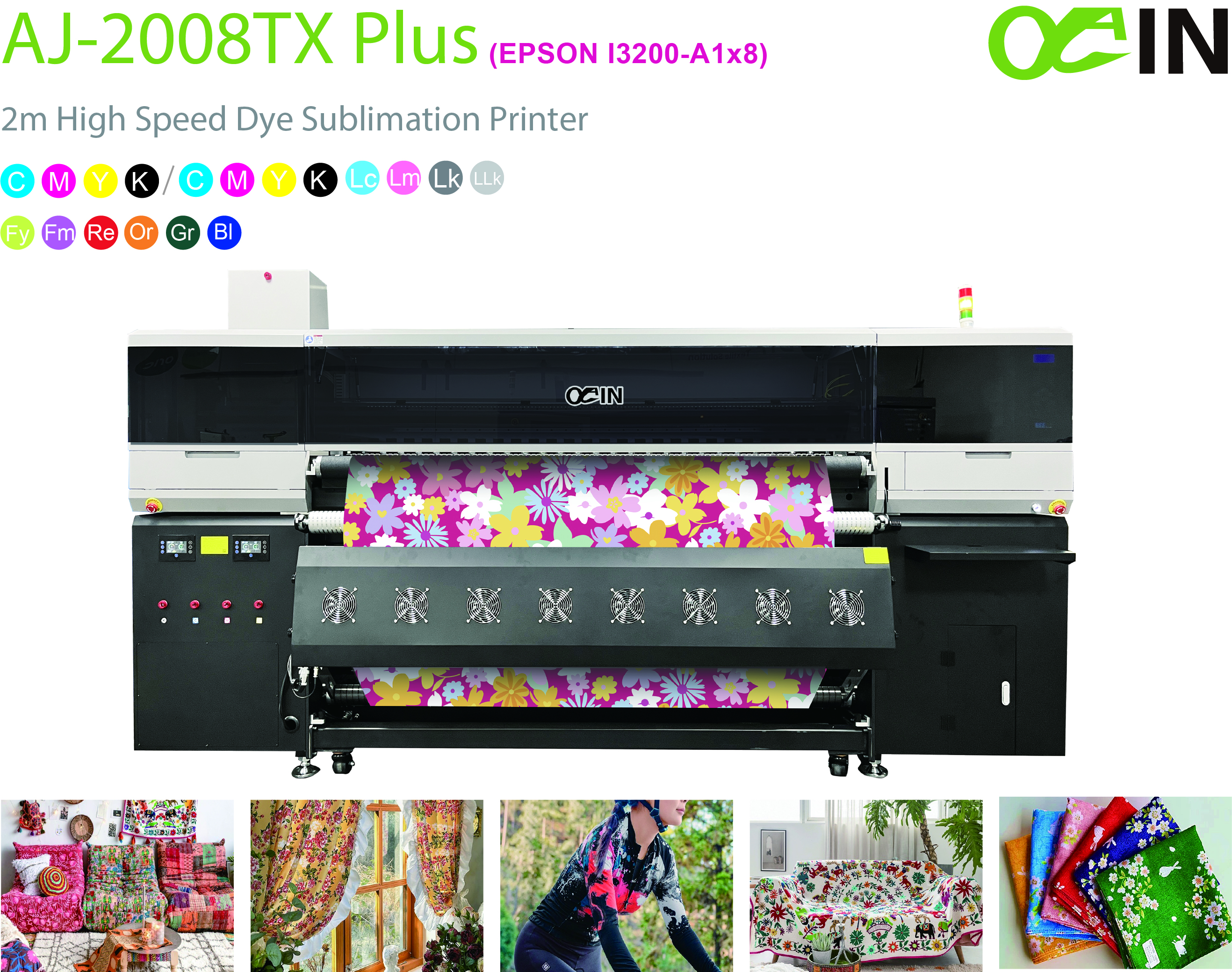

| AJ-2008TX Plus 2m High Speed Dye Sublimation Printer | ||
| Mode | AJ-2008TX Plus | |
| Print Head | Eight l3200 Print Heads | |
| Droplet Size | 3.5pl | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 2000(mm) |
| Thickness | ≥30g | |
| Outer Diameter | 210 mm(8.3in) | |
| Bearing Meter | 3000m | |
| Ink Cartridges | Type | 220ml secondary ink tank + 5L ink bottle |
| Color | CMYK/CMYK+LCLMLKLLK/FM、FY、RE、GR、OR、BL | |
| Supply | Siphon ink path system + automatic refill ink system | |
| Print Media | Heat Transfer Paper | |
| Printing Resolution | Maximum 1200 dpi | |
| Printing Speed | 1pass(720x600dpi):4090sqft(380sqm/h) 2pass(720x600dpi):2421sqft(225 sqm/h | |
| Media Loading and Take-up | Automatic Air Expansion Shaft System | |
| Dryer | External Automatic Air/ Heat Integrated Dryer | |
| Moisturizing | Automatic Cleaning and Moisturizing Integrated Unit | |
| RIP Software | Maintop6.0、Photoprint、Onyx，NeoStampa、PrintFactory (Ultraprint as standard and other softwares optional) | |
| File Format Supported | JPG /TIFF/PDF, etc | |
| Interface | USB 3.0 | |
| Power | printing system :2000W Drying system :Maximum 8000W | |
| Power Supply | AC 220V+5%,16A,50HZ+1 | |
| Dimensions(with stand) | 139.7(W)x62.6(D)x77.5(H)in.3550(W)x1590(D)x1970(H) mm | |
| Weight(with stand) | 2645 lb. (1200 kg) | |
| Environment | Power off | Temperature: 59℉ to 90℉ [15℃ to 32℃] (68℉[20℃] / Humidity: 35 to 80% (No Condensation) |
| Power on | Temperature: 41℉ to 104℉ [5℃ to 40℃] / Humidity: 20 to 80% (No Condensation) | |
| Accessories | External Automatic Control Air And Heat Integrated Dryer, Low-ink Alarm System, Double air-shaft Media Loading And ta-up System, Automatic Moisturizing Cleaning Syste | |
Printer Heads
| Epson Inkjet Head - i3200-A1
The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features
 | Wider and thicker girder with THK silent double guide rails |  | Mirror baffle, easy to observe the nozzle condition and maintenance |

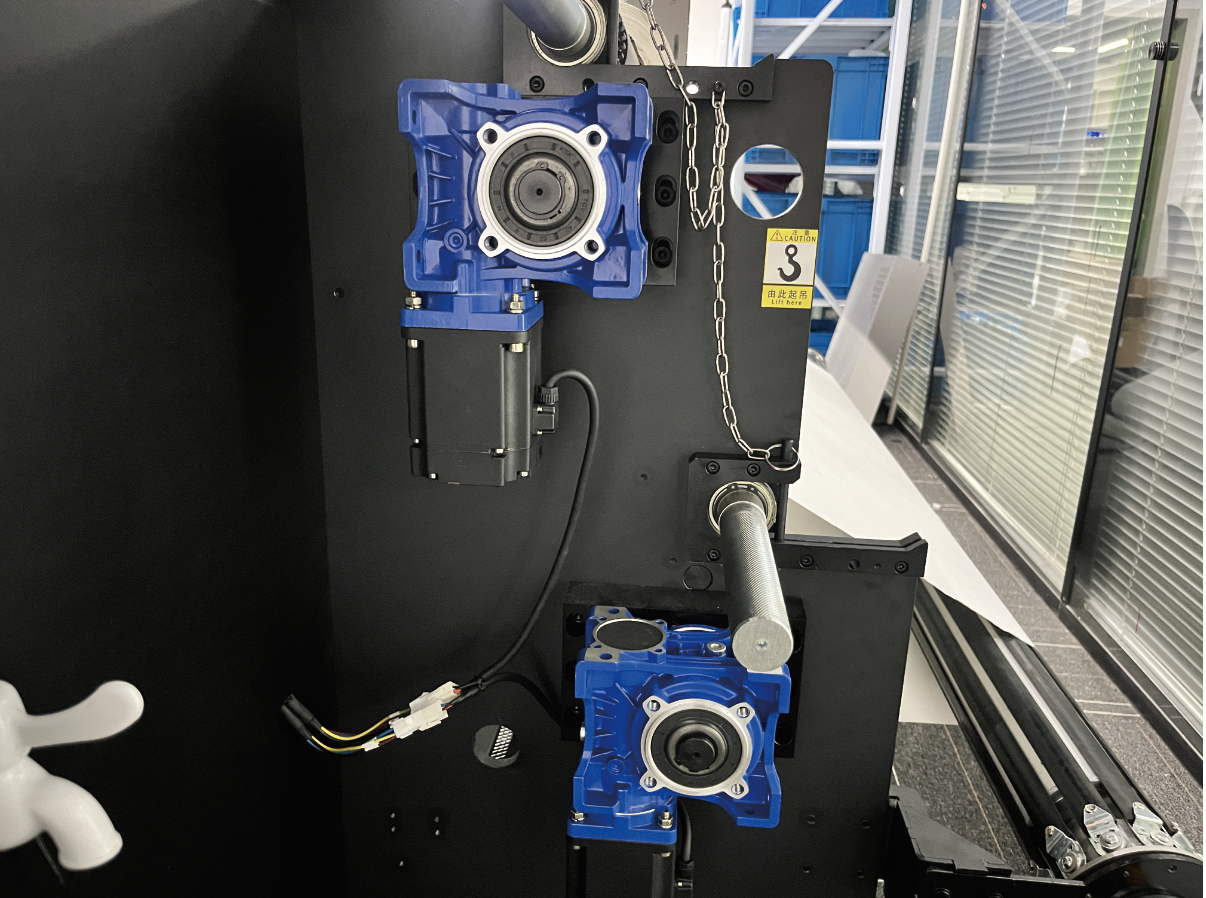

 | Feeding adopt servo motor, make the paper more stable and more accurate |  | Pressure wheel material upgrade pressure wheel density increase, make paper feed more uniform stability |
 | Vertical groove guide gas platform, make paper surface more smooth |  | Swing rod upgrade optimization for increased strength and stability |
 | Motor uses AC servo motor to make the trolley movement smoother and the printing point more accurate |  | Inflatable shaft upgrade is sliding type, convenient materials up and down |
Application
Applications of Dye Sublimation Printer
Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant，reliable and precise. With Ainkjet series printer , you can maximize production while
controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing,
home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
