Product Description
| Sublimation Printer High performance sublimation dye ink Sublimation ink has bright colors and is compatible with CMYK, CMYK+LC+LM modes. It has high color fastness and is suitable for fabrics and papers with high color requirements. The patterns are long-lasting and bright Stable and reliable operation Adopting THK silent guide rails, paired with three sets of pressure wheels for stable feeding and high-precision tension control, equipped with automatic nozzle cleaning components, and dual/triple nozzle feeding and unloading systems to ensure efficient and stable equipment operation. High printing accuracy Intelligent inkjet and variable dot technology collaborate to achieve high-precision printing, significantly improving printing speed while balancing quality and efficiency. Widely used Covering clothing, home decoration fabrics, sampling, shirts, canvas bags, pillows, scooter decorations, flags, textile small items and other fields. |
New Feature of Sublimation Printer We have an excellent technical team, which can be designed according to customers requirements. |

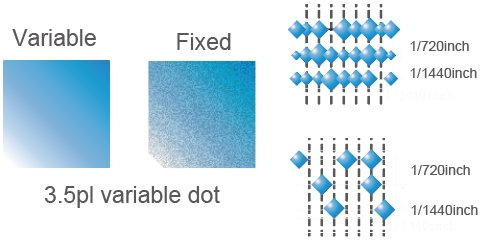

| Intelligent inkjet printing technology and variable dot ensure the perfect printing output, greatly improve the printing speed, and meet the user's requirements for printing quality and speed.
| High speed micro piezoelectric inkjet printing technology AJ-3202TX/AJ-3203TX is equipped with 2/3*3200-A1 print heads. It adopts advanced board control technology and industrial level design to ensure the durability of the print head .
|
Technical Specifications

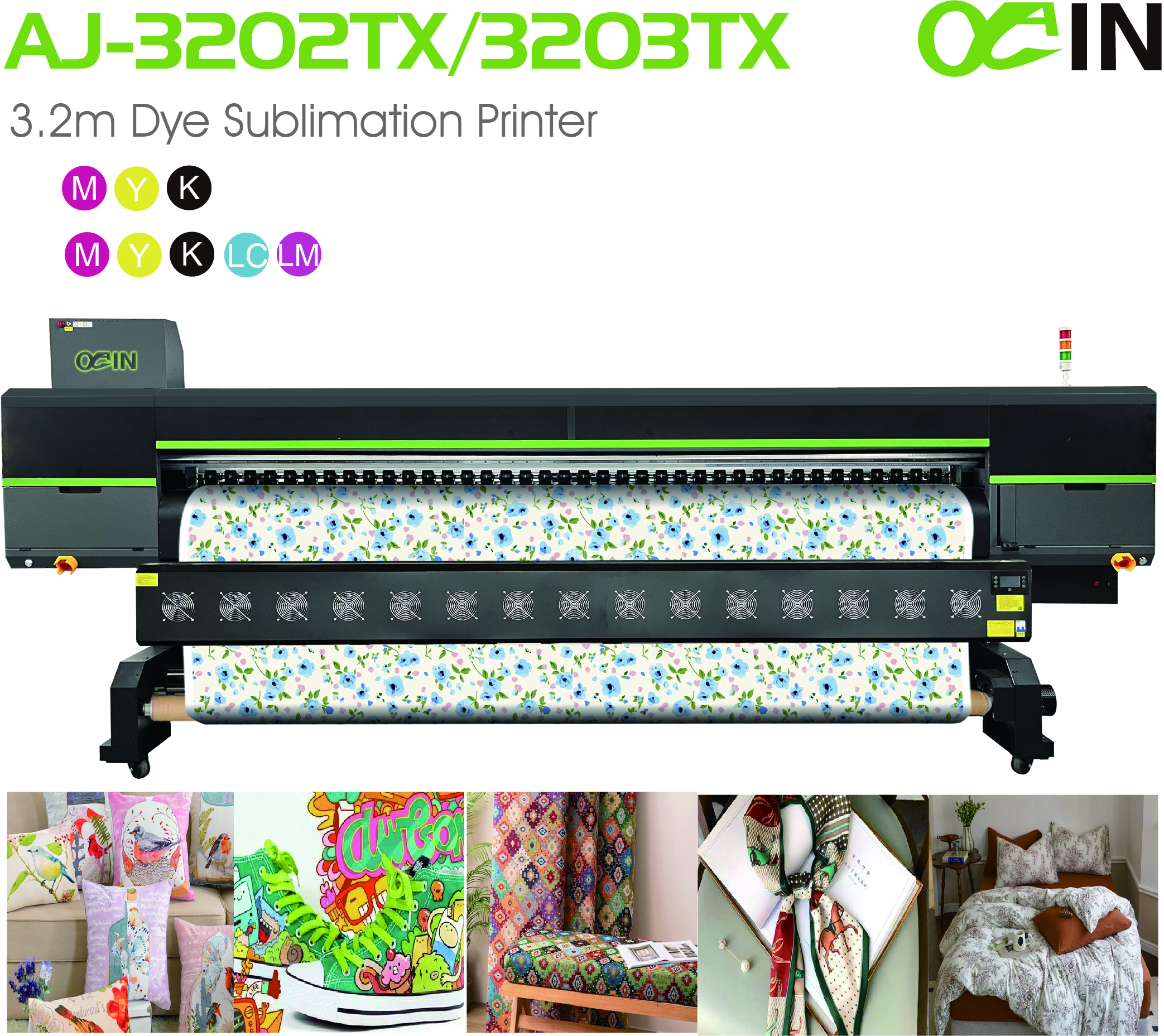

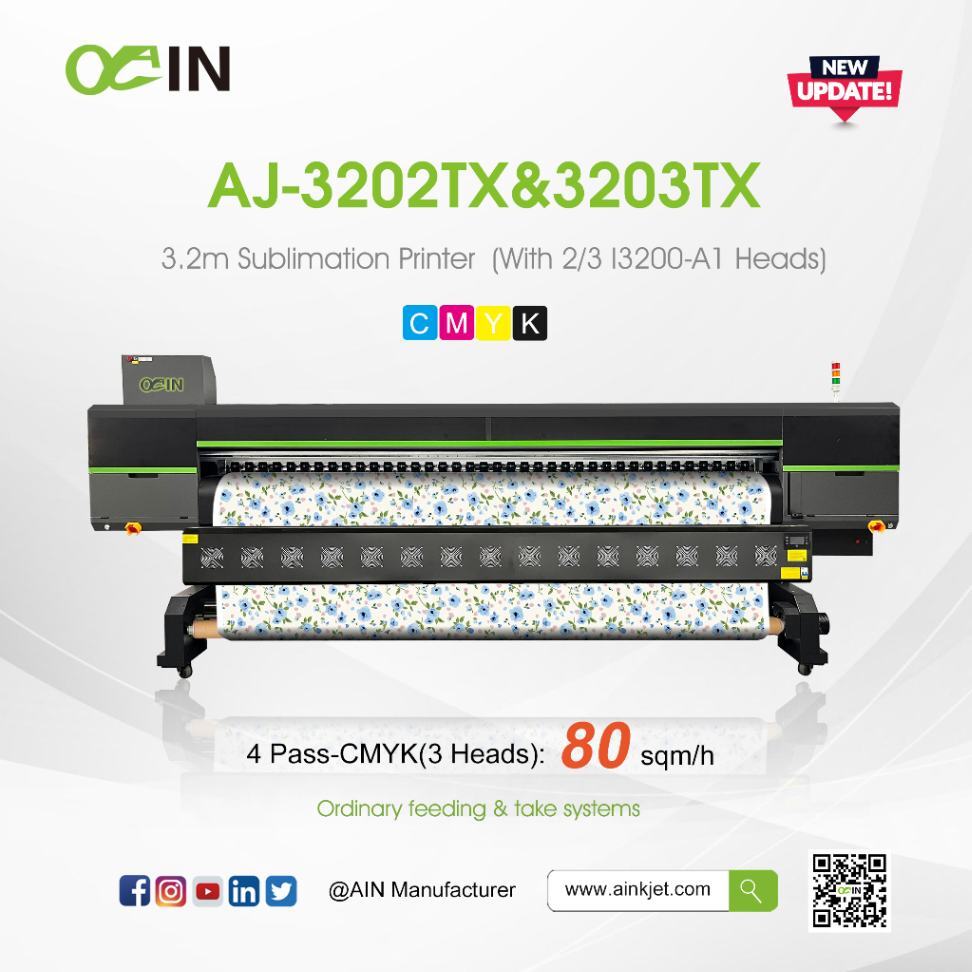

| AJ-3202TX/3203TX 3.2m Sublimation Printer | ||
| M0DEL | AJ-3202TX | AJ-3203TX |
| Print Head | Dual i3200 Print Heads | Three i3200 Print Heads |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 128 in.(3250 mm) |
| Thickness | Maximum 69 mil(1.5 mm) | |
| Weight | 176 Ib.(80 kg) | |
| Printing Width | 126 in.(3200 mm) | |
| Ink Cartridges | Type | Dye Sublimation Ink |
| Capacity | 4*4 CISS (220ml ink cartridge with 1.5L ink tank) 6*6 CISS (6 Color) ,8*8 CISS(8 Color) Optional | |
| Color | 4 Colors/6 Colors/8 Colors Optional | |
| Printing Resolution | Maximum 2400 dpi | |
| PrintingSpeed | 4pass(720x1200dpi):40sqm/h 6pass(720x1800dpi):27 sqm/h | 4pass(720*1200dpi):80 sqm/h 6pass(720*1800dpi):58 sqm/ |
| Media Heating System | Intergrated post heater &Infrared Dryer &Fan system | |
| Interface | LAN | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| Dimensions(with stand) | 180(W)x38(D)x62(H) in. ( 4580(W)x970(D)x1580(H) mm ) | |
| Weight(with stand) | 2204 lb. (1000 kg) | |
| Packing Size | 194(W)x44(D)x71(H) in. ( 4940(W)x1130(D)x1810(H) mm ) | |
| Package Weight | 2535 lb. (1150 kg) | |
| Environment | Power on | Temperature: 59℉to 90℉[15℃to 32℃] / Humidity: 35 to 80% (no condensation) |
| Power off | Temperature: 41℉to 104℉[5℃to 40℃] / Humidity: 20 to 80% (no condensation) | |
| Accessories | USB cable,media clamp,manual,drain bottle,ink cartridges,RIP sofaware,etc. | |
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features
|

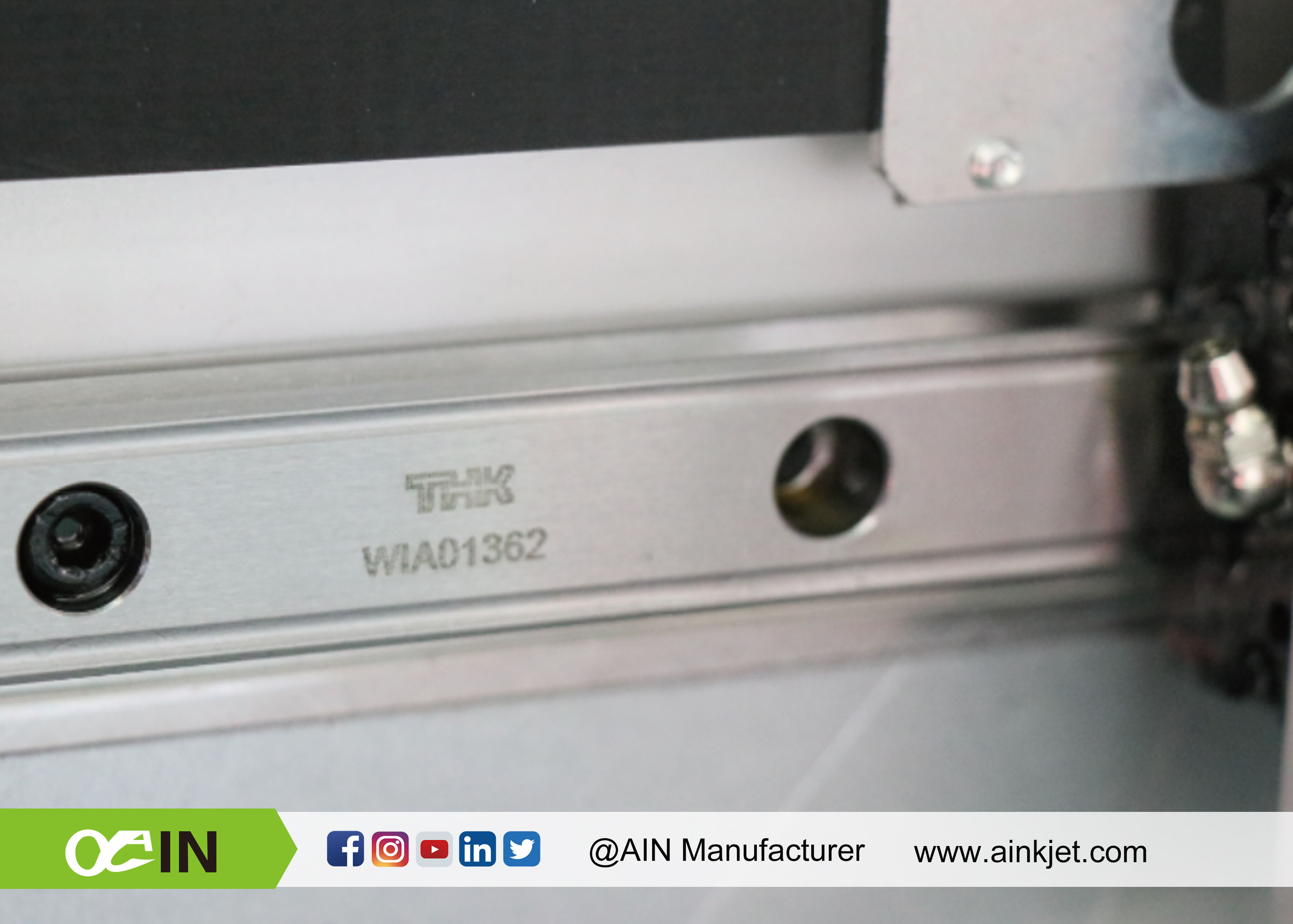

THK high-precision mute rail | |

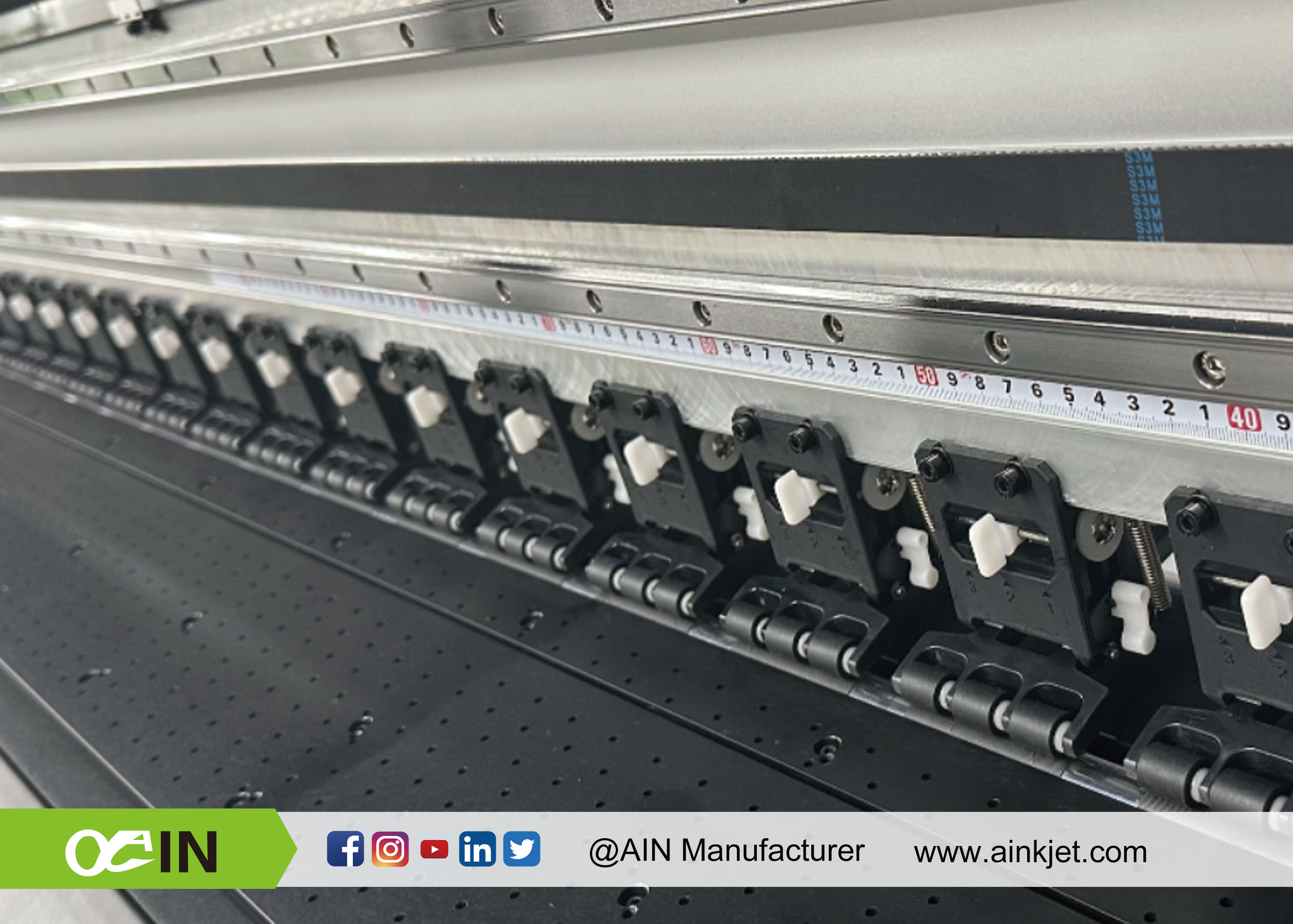

New pinch roller structure of three in group brings more stable feeding precision. |
|

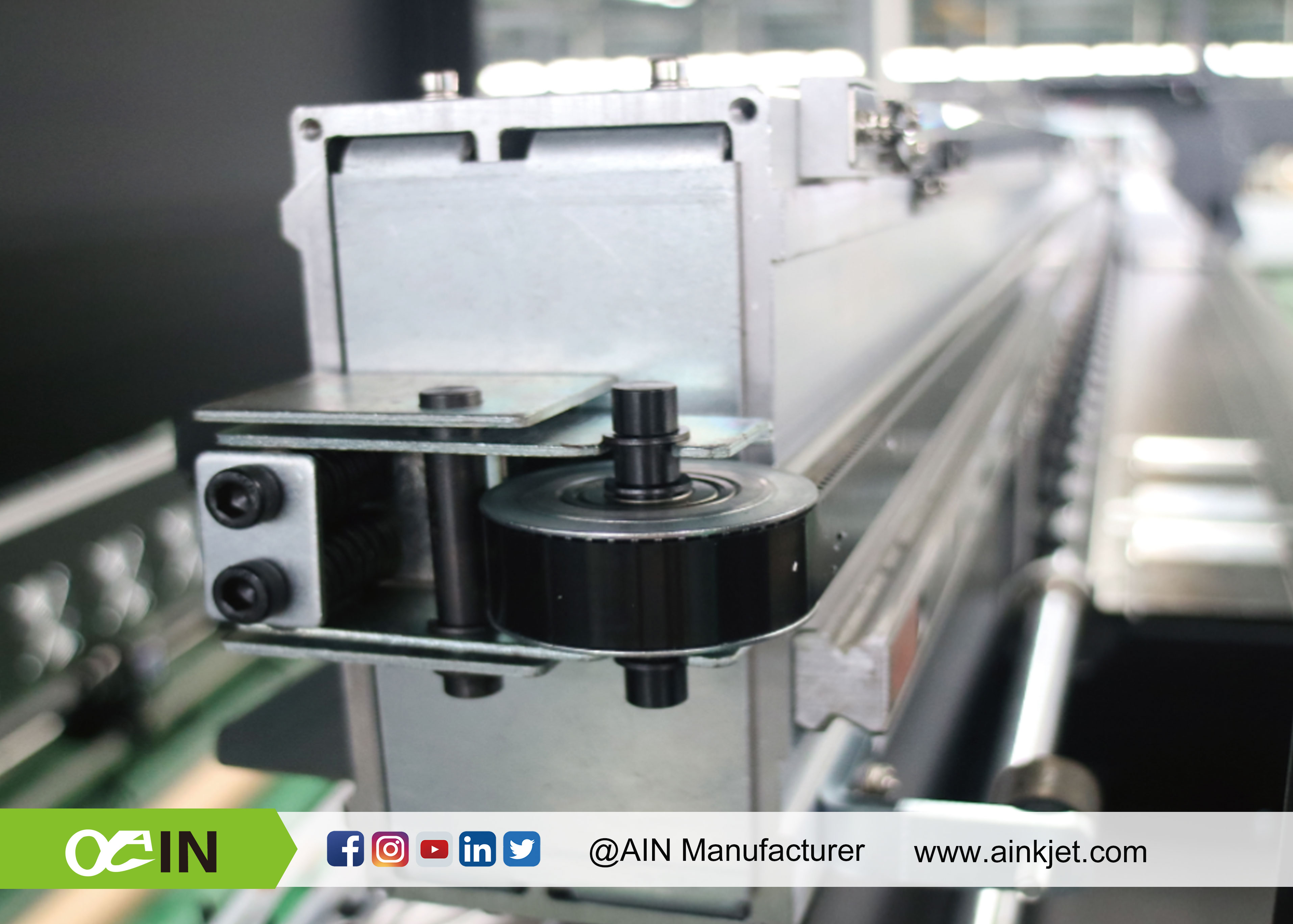

High-precision and high-stability tensioning pulley system. | |

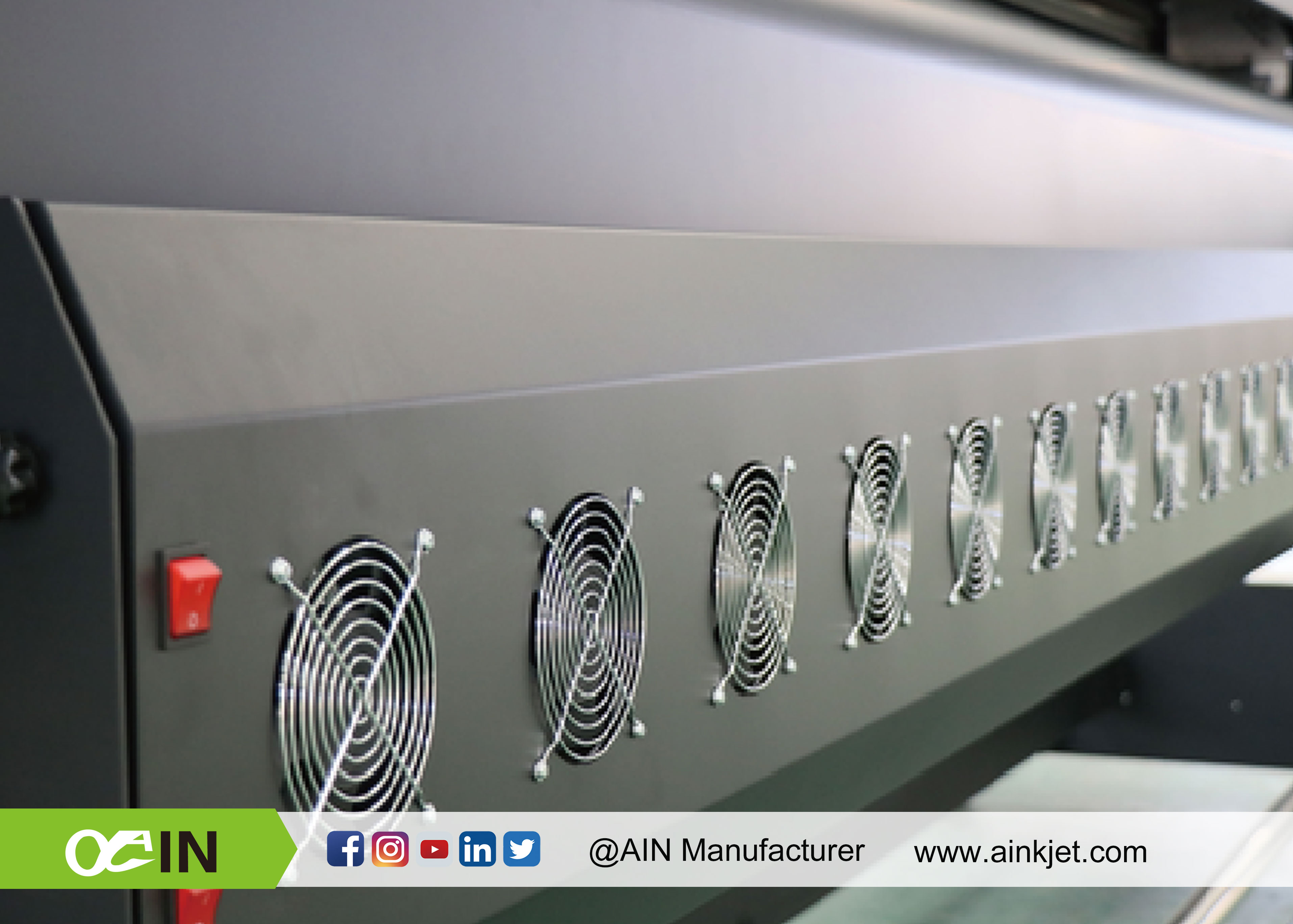

Three stage heating system including pre-heater, print heater, and rear heater and platform vacuum system with adjustable power. |

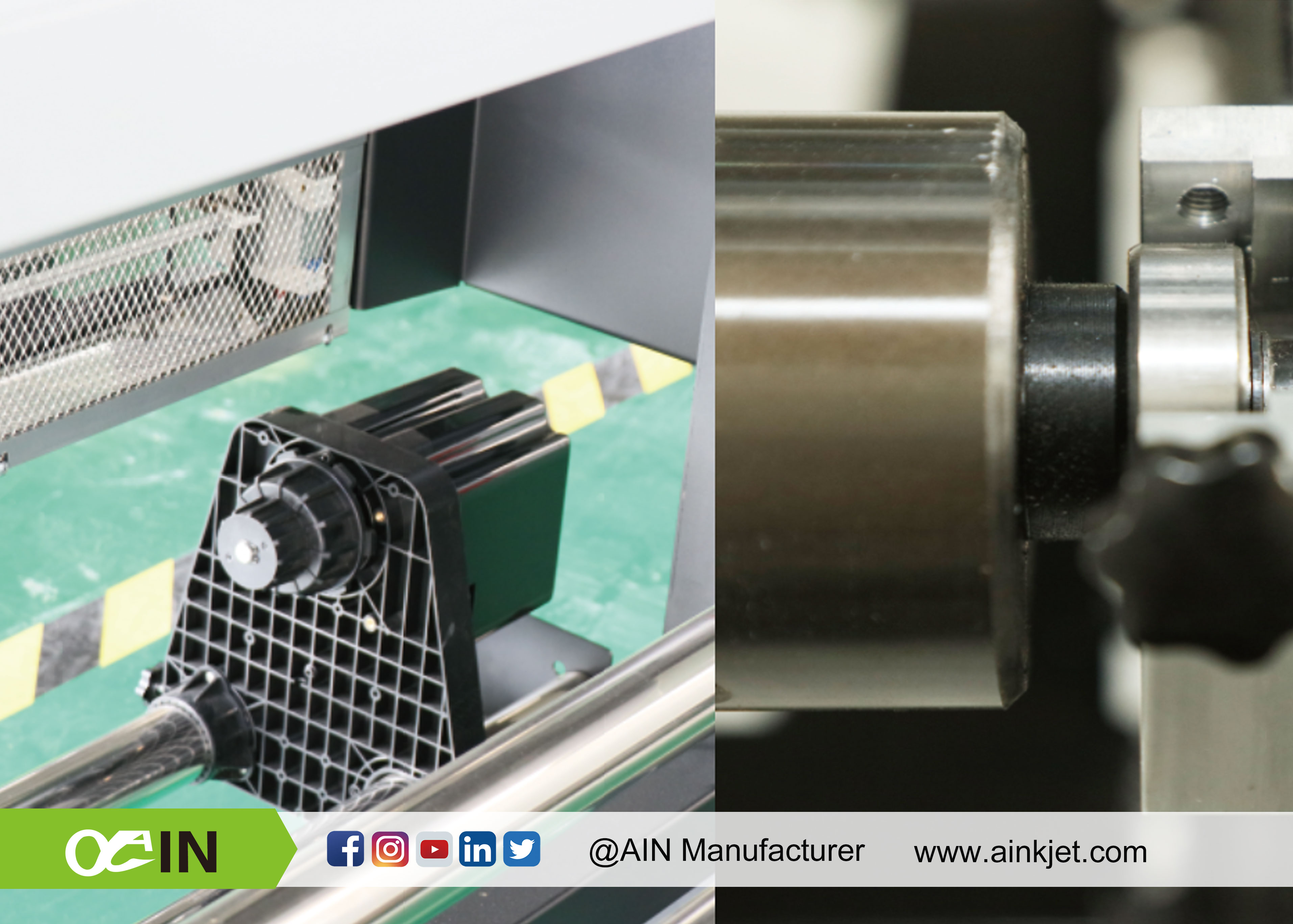

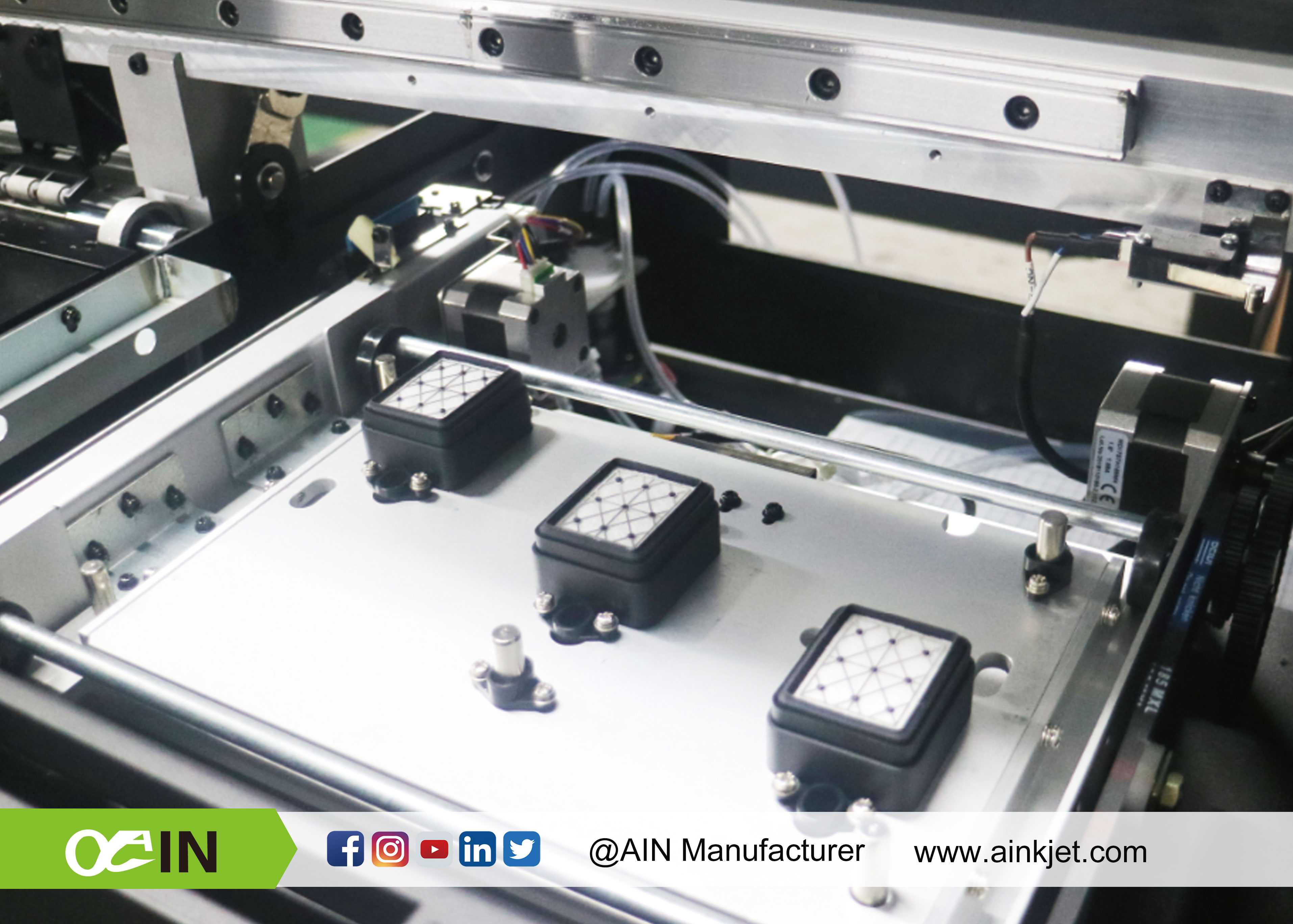

| Automatic moisturizing cleaning assembly ensures the stability of head cleaning and improves working stability. |  | Dual head configuration with tension take up system, intelligent rolling system.Three head configuration with Inflatable take up and feed media shaft . |
Application
Applications of Sublimation Printer
Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant，reliable and precise. With AIN series printer , you can maximize production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
