Product Description
| High Speed Dye Sublimation Printer High Performance Printing Robust Mechanical Build Wider, thicker main beam with THK silent double guide rails, mirror baffle for nozzle checks, and upgraded swing rods and inflatable shafts for smooth, stable operation. Precise Feeding & Movement Servo motors for paper feeding, AC servo motor for trolley, vertical groove air - guide platform, and high density pressure wheel ensure accurate paper handling and printing. |
Technical Specifications

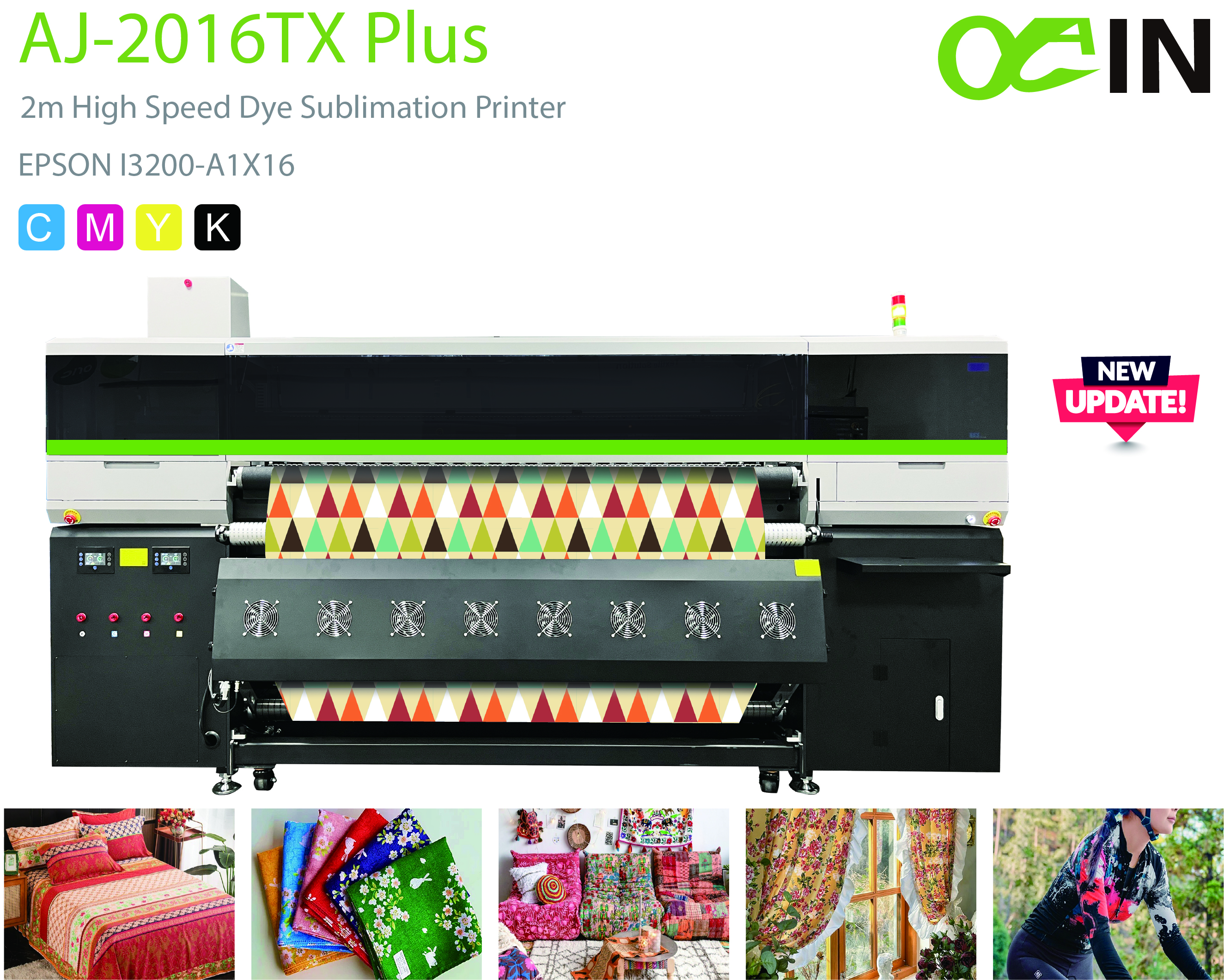

| AJ-2016TX Plus 2m High Speed Dye Sublimation Printer | ||
| Mode | AJ-2016TX Plus | |
| Print Head | 16 I3200 Print Heads | |
| Droplet Size | 3.5pl | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 2000(mm) |
| Thickness | ≥30g | |
| Outer Diameter | 210 mm(8.3in) | |
| Bearing Meter | 3000m | |
| Ink Cartridges | Type | 220mlsecondary ink tank + 5L ink bottle |
| Color | CMYK | |
| Supply | Siphon ink path system + automatic refill ink system | |
| Print Media | Heat Transfer Paper | |
| Printing Resolution | Maximum 1200 dpi | |
| Printing Speed | 1pass(720x600dpi):600sqm/h 2pass(720x1200dpi):320sqm/h | |
| Print Media Control | Air Expansion Shaft Take-up System | |
| Dryer | External Automatic Air/ Heat Integrated Dryer | |
| Moisturizing | Automatic Cleaning and Moisturizing Integrated Unit | |
| RIP Software | Maintop6.0、Photoprint、Onyx，NeoStampa、PrintFactory (Ultraprint as stand | |
| File Format Supported | JPG/TIFF/PDF, etc | |
| Interface | USB 3.0 | |
| Power | printing system :3200W | |
| Power Supply | AC 220V ± 5%,16A, 50HZ+1 | |
| Dimensions(with stand) | 3670(W)x1650(D)x1800(H)mm | |
| Weight(with stand) | 2645 lb.(1200 kg) | |
| Environment | Power on | Temperature: 59℉to 90 F [15℃ to 32℃](68 ℉[20 ℃] / Humidity: 35 to 80% (No Condensation) |
| Power off | Condensation)Temperature:41℉ to 104℉ [5℃ to 40℃1/ Humidity: 20 to 80% (No Condensation) | |
| Accessories | External Automatic Control Air And Heat Integrated Dryer, Low-ink Alarm System, Double air-shaft Media Loading And ta-up System, Automatic Moisturizing Cleaning System | |
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features

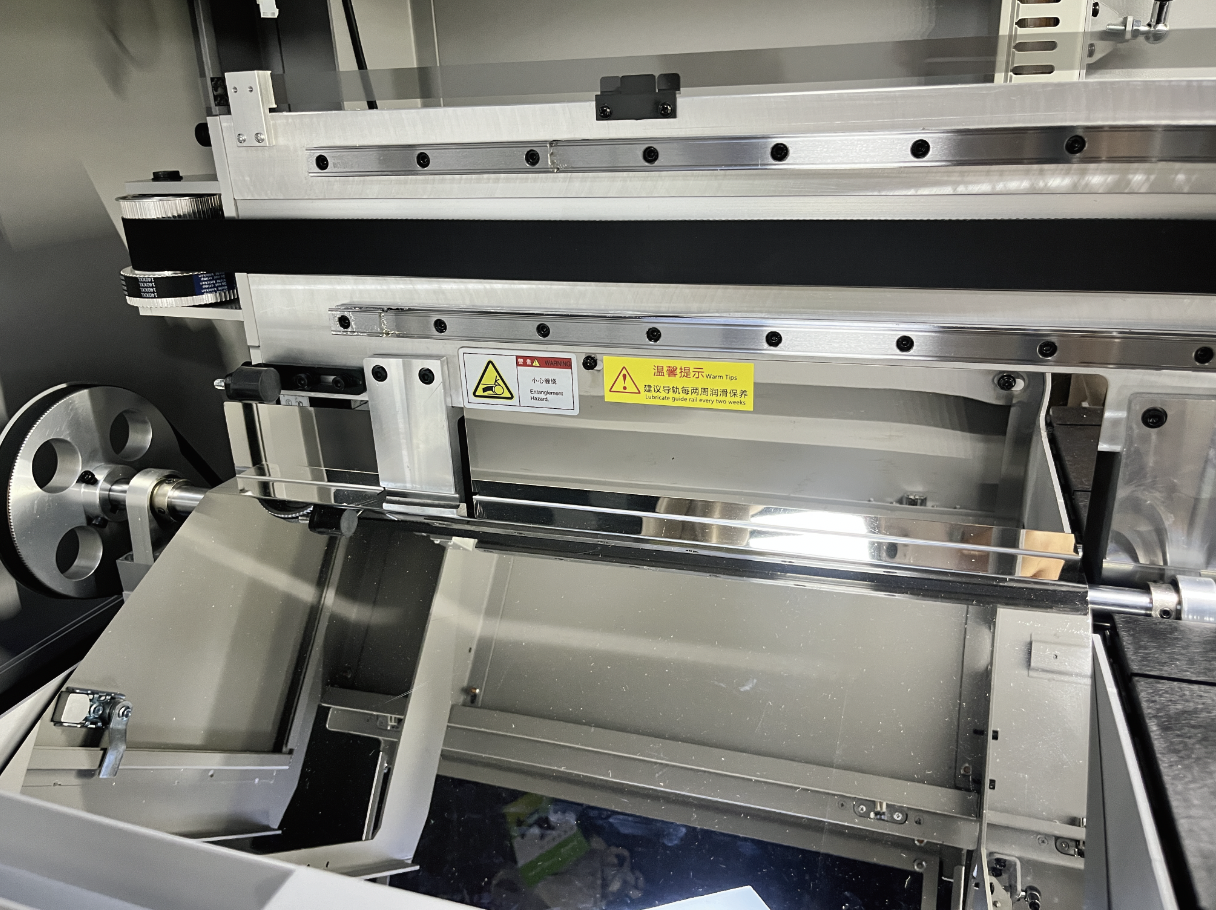

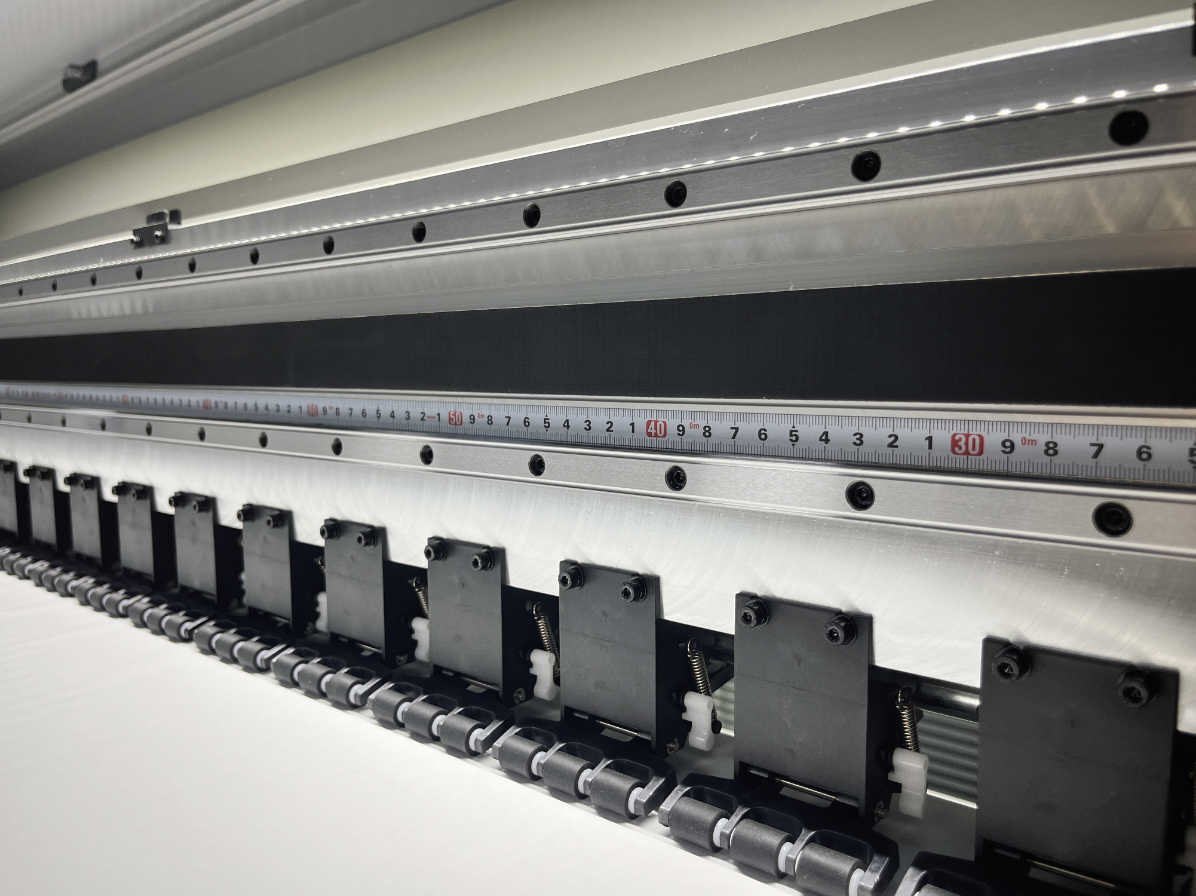

 | Wider and thicker girder with THK silent double guide rails |  | Mirror baffle, easy to observe the nozzle condition and maintenance |

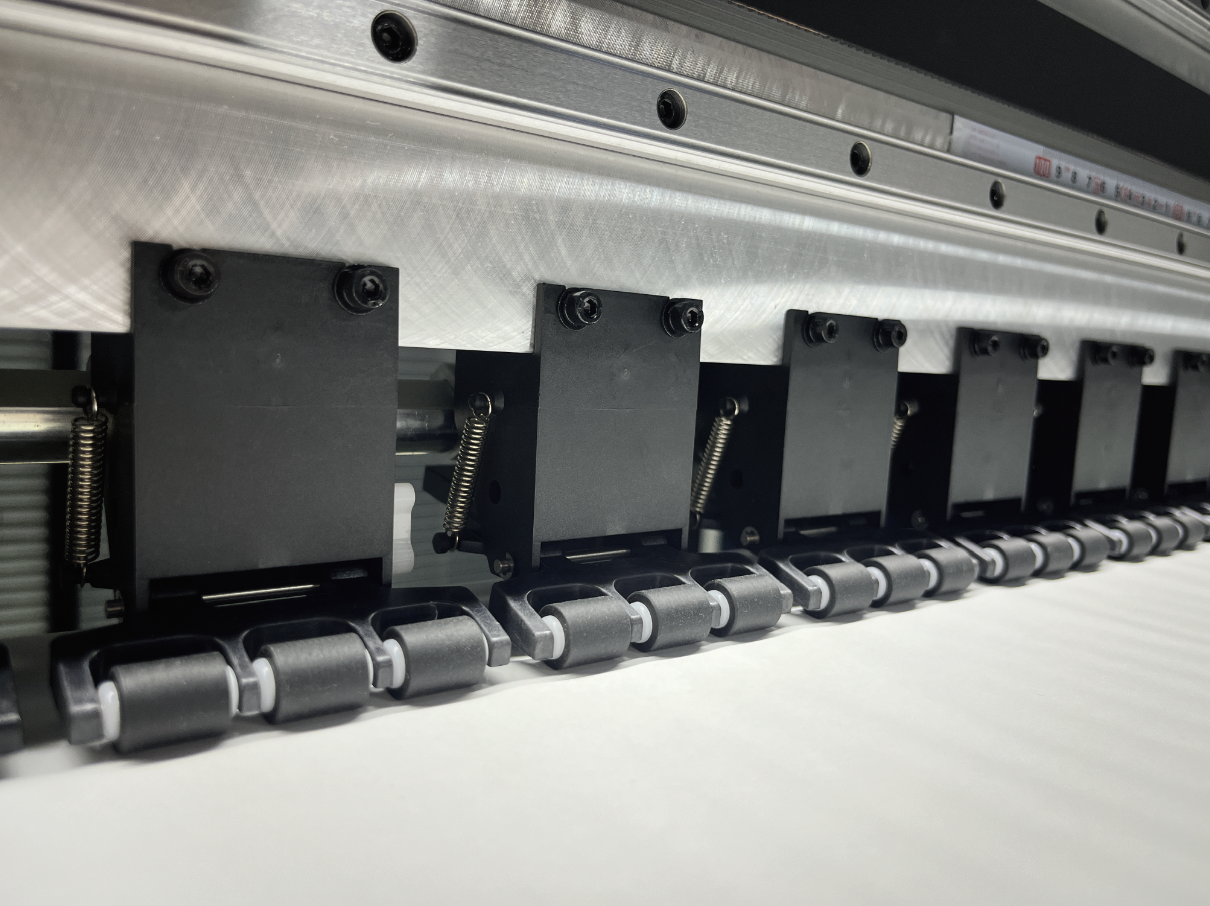

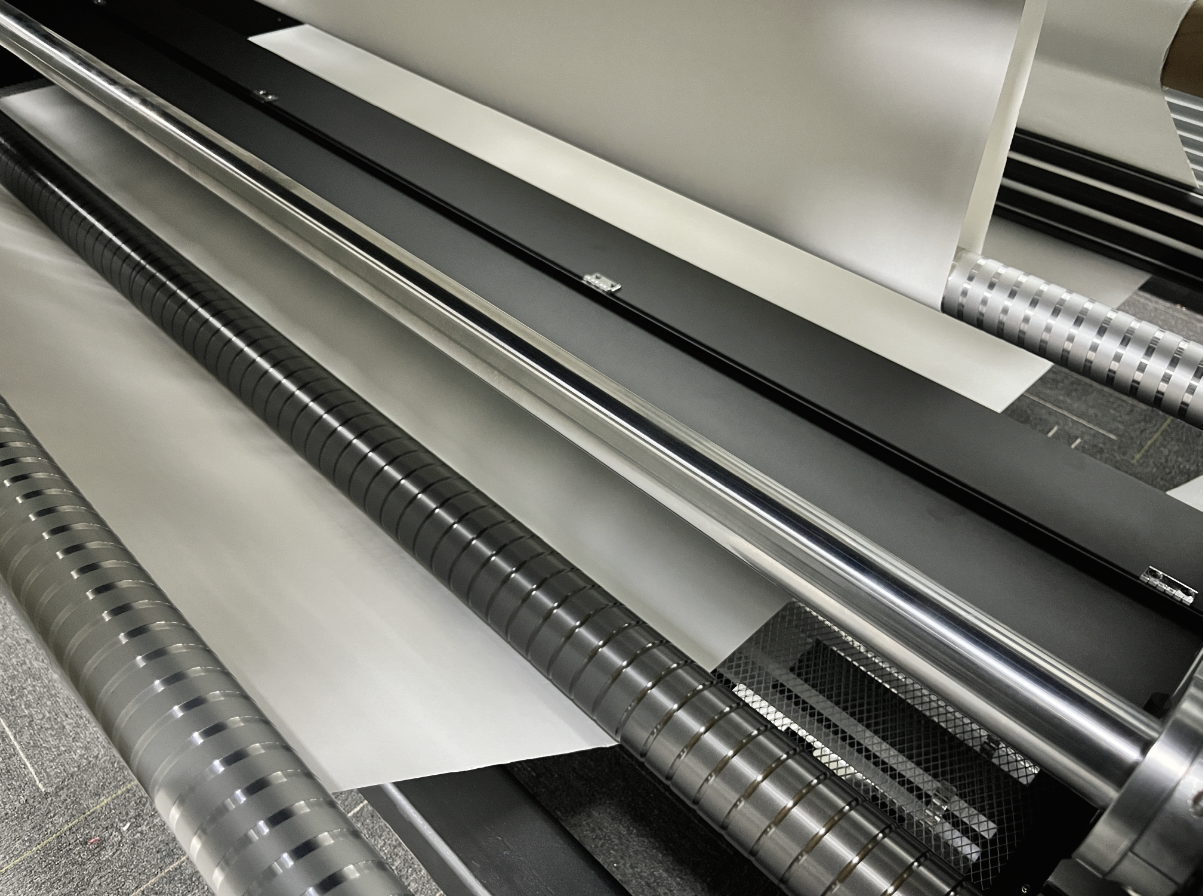

 | Feeding adopt servo motor, make the paper more stable and more accurate |  | Pressure wheel material upgrade pressure wheel density increase, make paper feed more uniform stability |

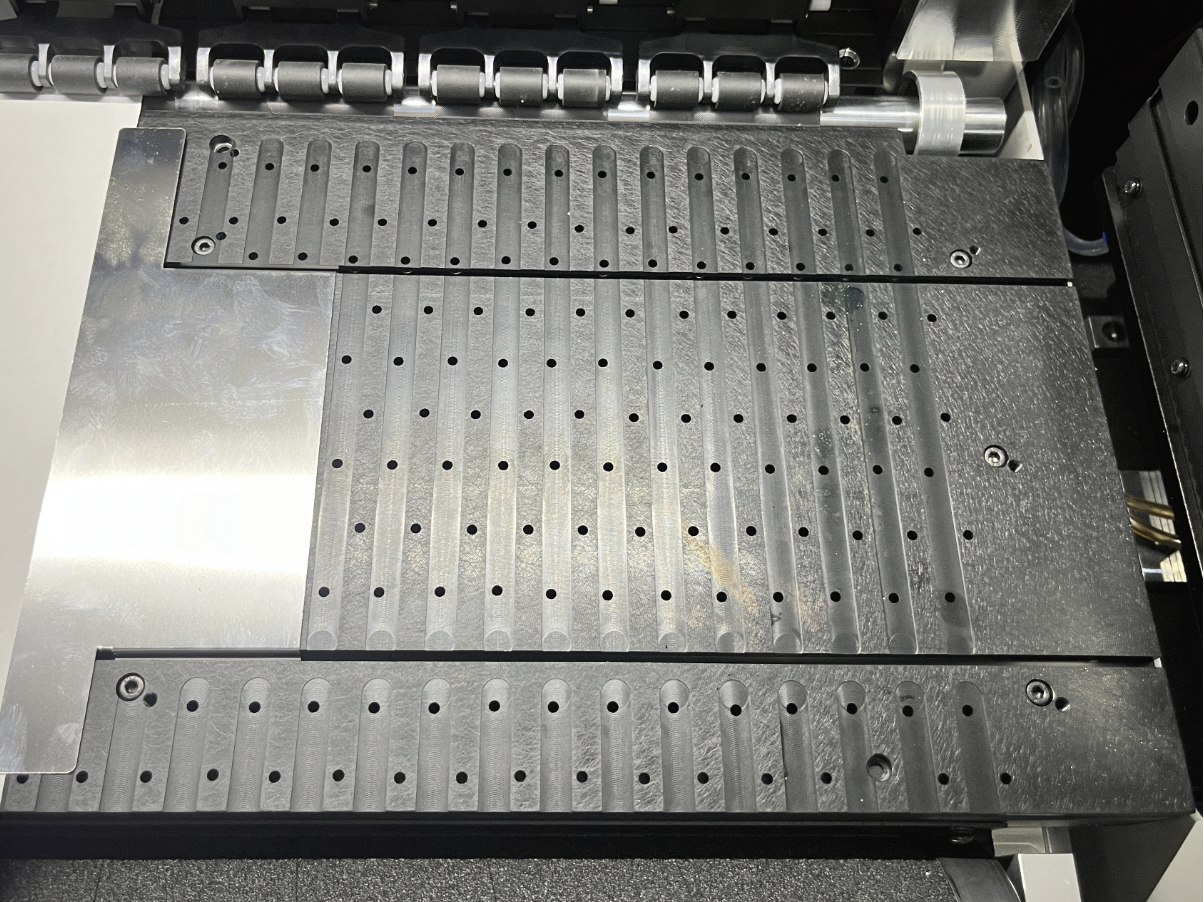

 | Vertical groove guide gas platform, make paper surface more smooth |  | Swing rod upgrade optimization for increased strength and stability |

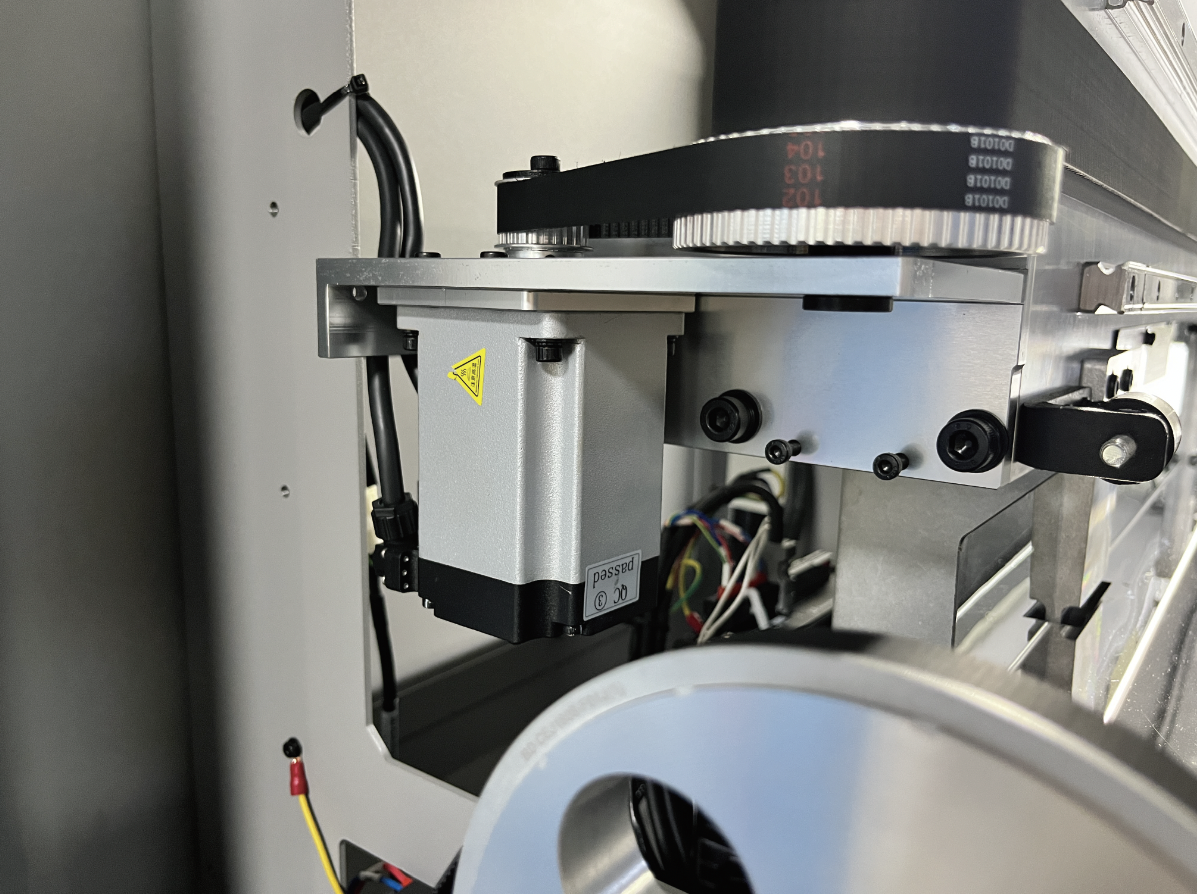

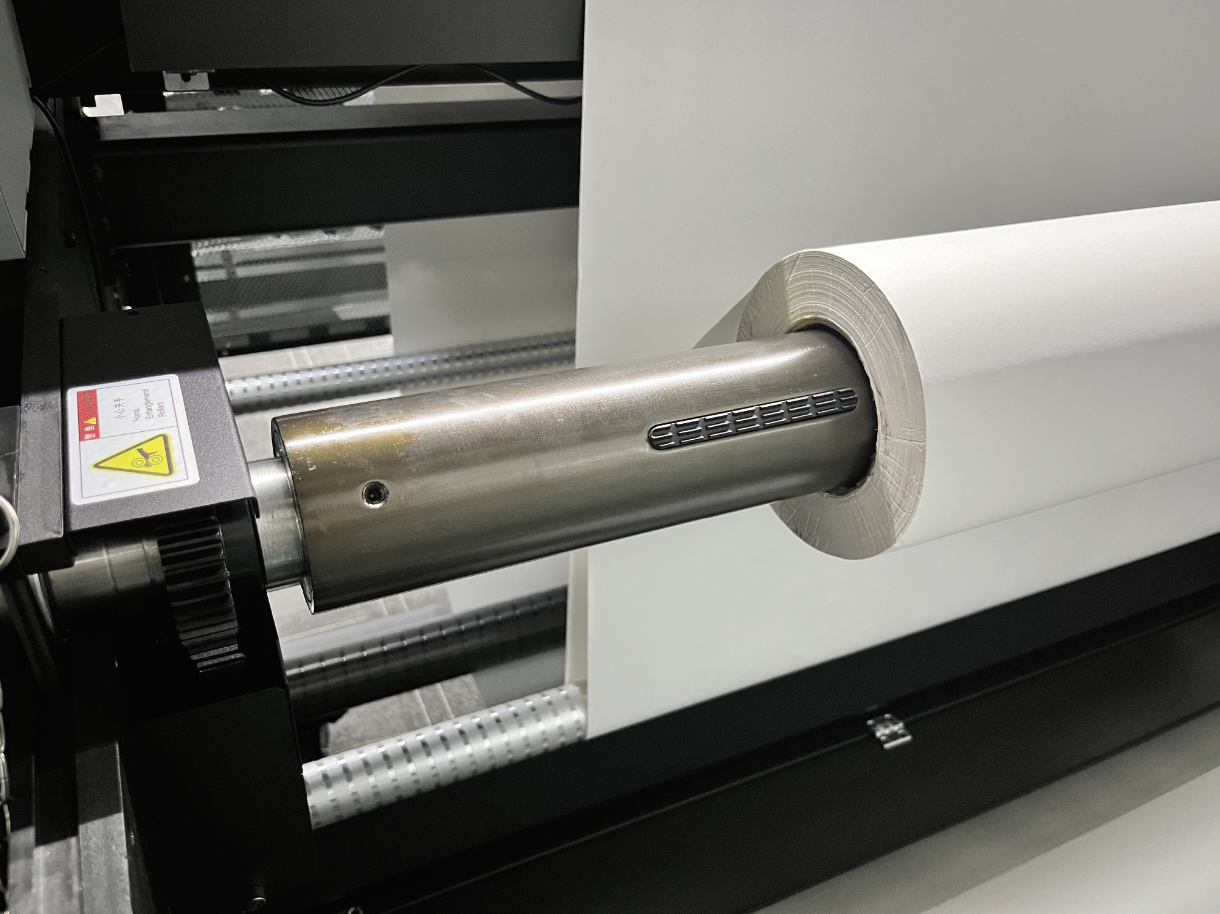

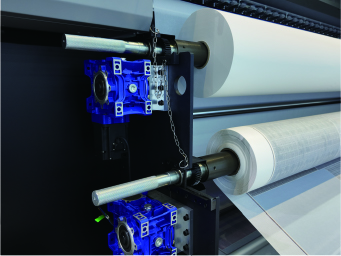

 | Motor uses AC servo motor to make the trolley movement smoother and the printing point more accurate |  | Inflatable shaft upgrade is sliding type, convenient materials up and down |
1000m Jumbo media load
Printing 35g thin paper can achieve 3000m roll media feeding
Application
Applications of Dye Sublimation Printer
Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant，reliable and precise. With Ainkjet series printer , you can maximize production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
