Product Description
| Sublimation Printer Advantages of Direct Sublimation Printer Under direct sublimation printing technology, dyes can be directly sublimated from solid to gas, firmly attached to the material, and achieve excellent color reproduction. And it has the advantages of wide compatibility, high color fastness, and long-lasting bright patterns. Stable and reliable operation Adopting silent guide rails, automatic cleaning, and optimized pressure wheels to achieve precise and efficient printing stability; Equipped with an automatic material retrieval system, ensuring continuous printing, improving automation, and reducing costs. High printing accuracy Intelligent inkjet and variable dot technology collaborate to achieve high-precision printing, significantly improving printing speed while balancing quality and efficiency. Widely used Suitable for producing various flags, advertising fabrics, sports event peripheral products,as well as home decoration fabrics such as curtains and sofa covers, to meet personalized customization needs. |
Technical Specifications

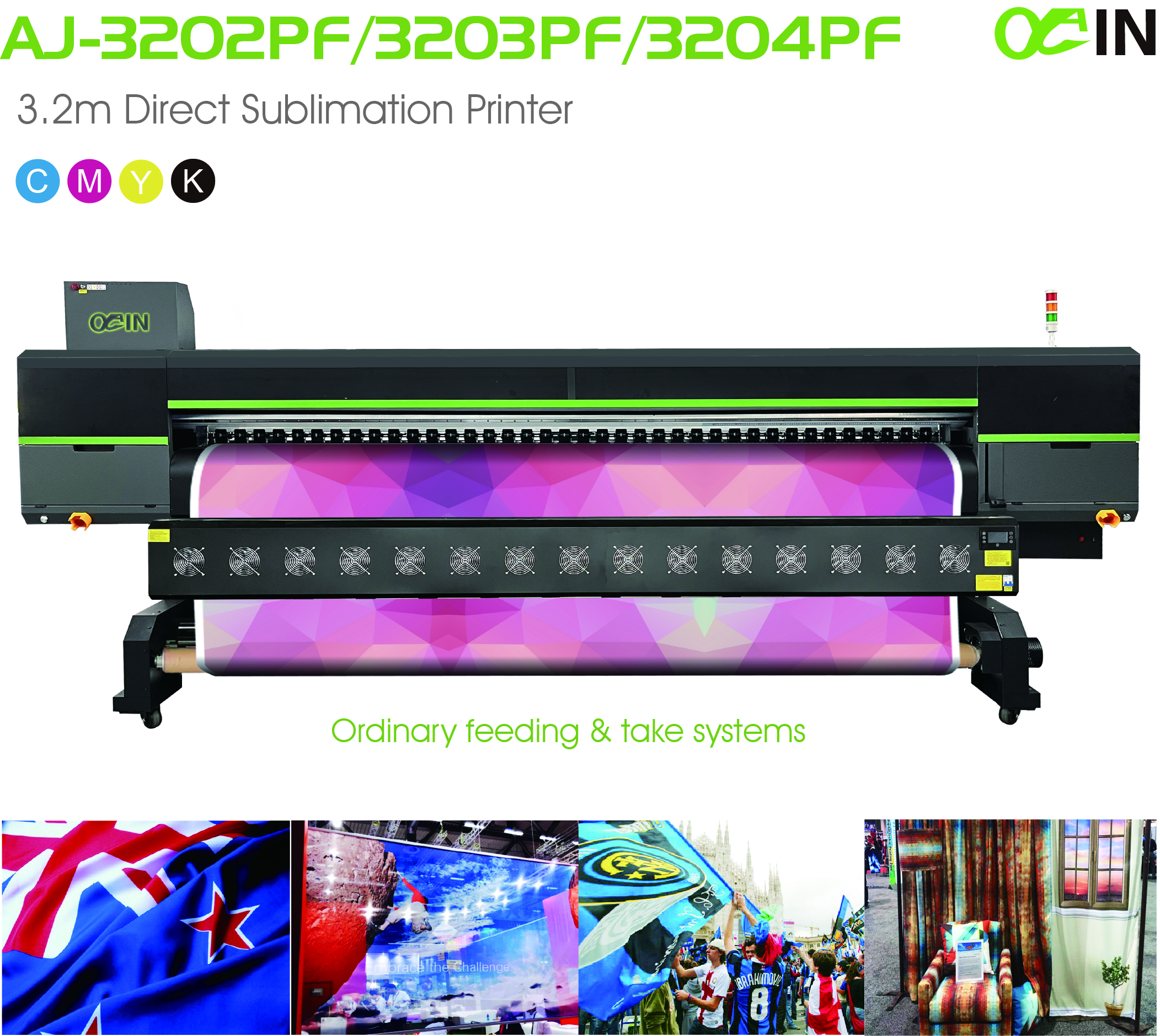

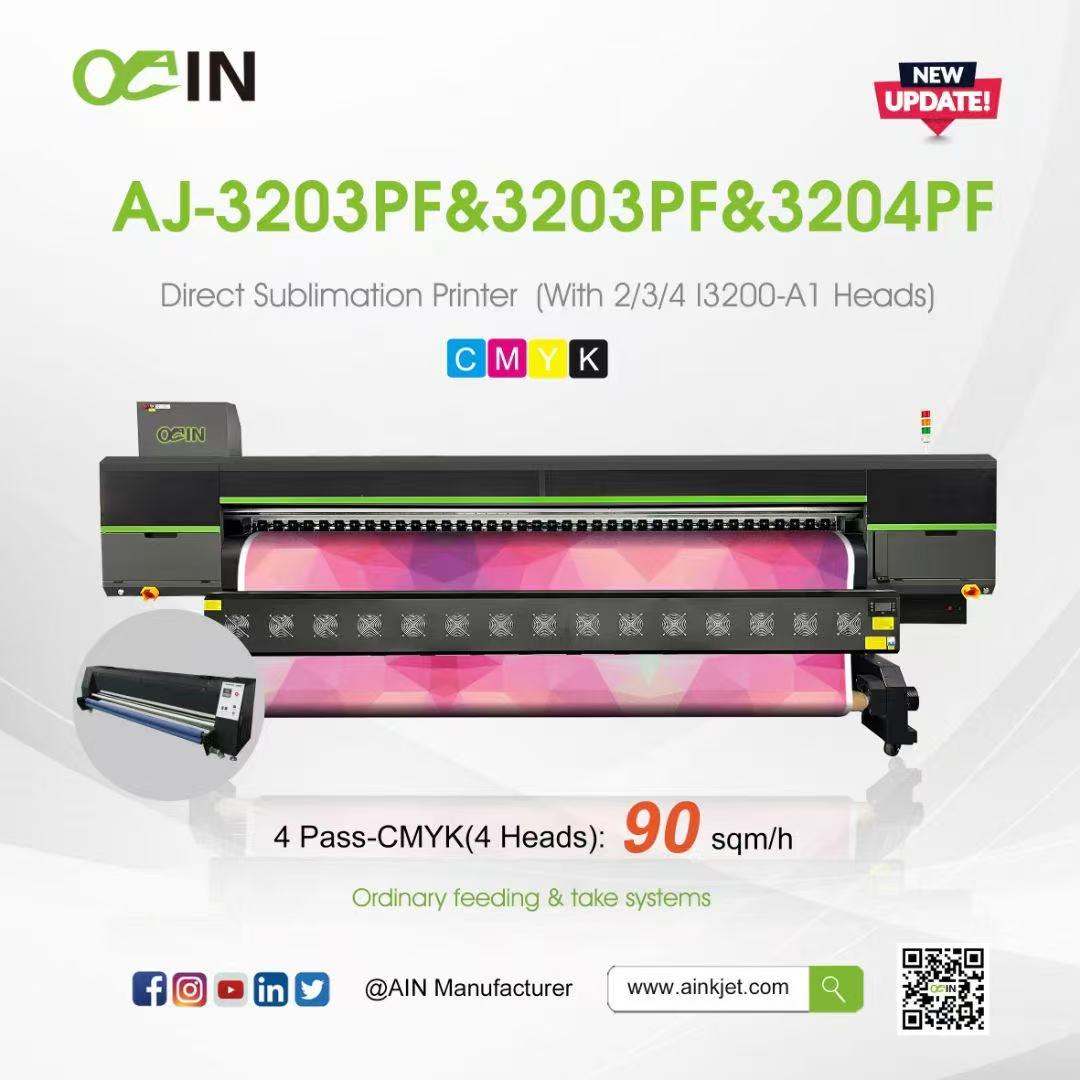

| AJ-3202PF/3203PF/3204PF 3.2m Direct Sublimation Printer | |||
| M0DEL | AJ-3202PF | AJ-3203PF | AJ-3204PF |
| Print Head | Dual i3200 Print Heads | Three i3200 Print Heads | Four i3200 Print Heads |
| Printing Technology | Piezoelectric Inkjet | ||
| Acceptable Media | Width | 128 in.(3250 mm) | |
| Thickness | Maximum 69 mil(1.5 mm) | ||
| Weight | 176 Ib.(80 kg) | ||
| Printing Width | 126 in.(3200 mm) | ||
| Ink Cartridges | Type | Dye Sublimation Ink | |
| Capacity | 4*4 CISS (220ml ink cartridge with 1.5L ink tank) 6*6 CISS (6 Color) ,8*8 CISS(8 Color) Optional | ||
| Color | 4 Colors/6 Colors/8 Colors Optional | ||
| Printing Resolution | Maximum 2400 dpi | ||
| Printing Speed | 4pass(720x1200dpi):47 sqm/h 6pass(720x1800dpi):31 sqm/h | 4pass(720*1200dpi):80 sqm/h 6pass(720*1800dpi):58 sqm/ | 4pass(720*1200dpi):90 sqm/h6pass(720*1800dpi):70 sqm/h |
| Media Heating System | Intergrated post heater &Infrared Dryer &Fan system | ||
| Interface | LAN | ||
| Power Supply | AC 220V±10%,50/60 HZ | ||
| Dimensions(with stand) | 180(W)x38(D)x62(H) in. ( 4580(W)x970(D)x1580(H) mm ) | ||
| Weight(with stand) | 2204 Ib. (1000 kg) | ||
| Packing Size | 194(W)x44(D)x71(H) in. ( 4940(W)x1130(D)x1810(H) mm ) | ||
| Package Weight | 2535 lb. (1150 kg) | ||
| Environment | Power on | Temperature: 59℉to 90℉[15℃to 32℃] / Humidity: 35 to 80% (no condensation) | |
| Power off | Temperature: 41℉to 104℉[5℃to 40℃] / Humidity: 20 to 80% (no condensation) | ||
| Accessories | USB cable,media clamp,manual,drain bottle,ink cartridges,RIP sofaware,etc. | ||
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features
|

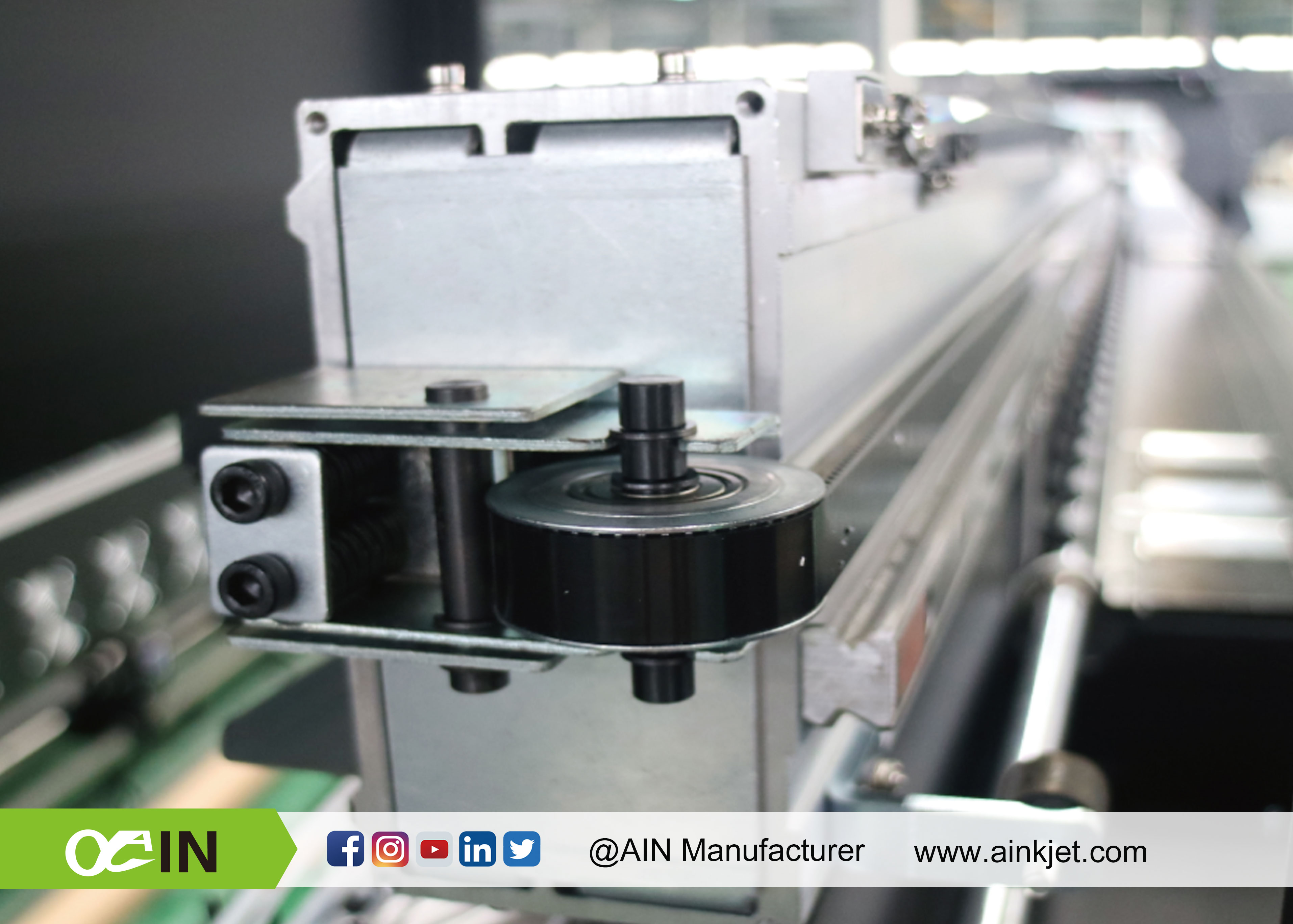

High-precision and high-stability tensioning pulley system. | |
High-precision and high-stability tensioning pulley system. |
|

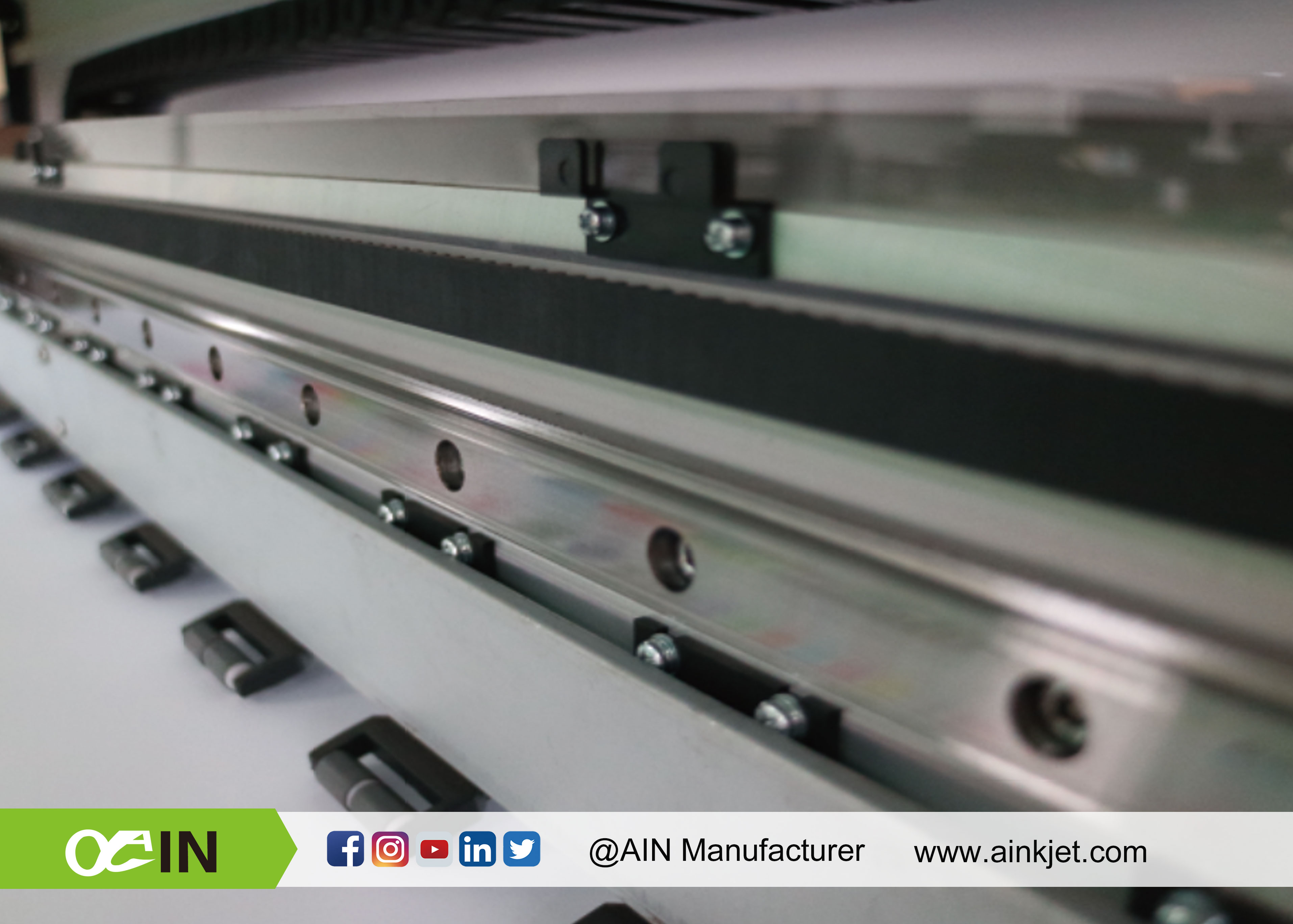

THK high-precision mute rail. | |

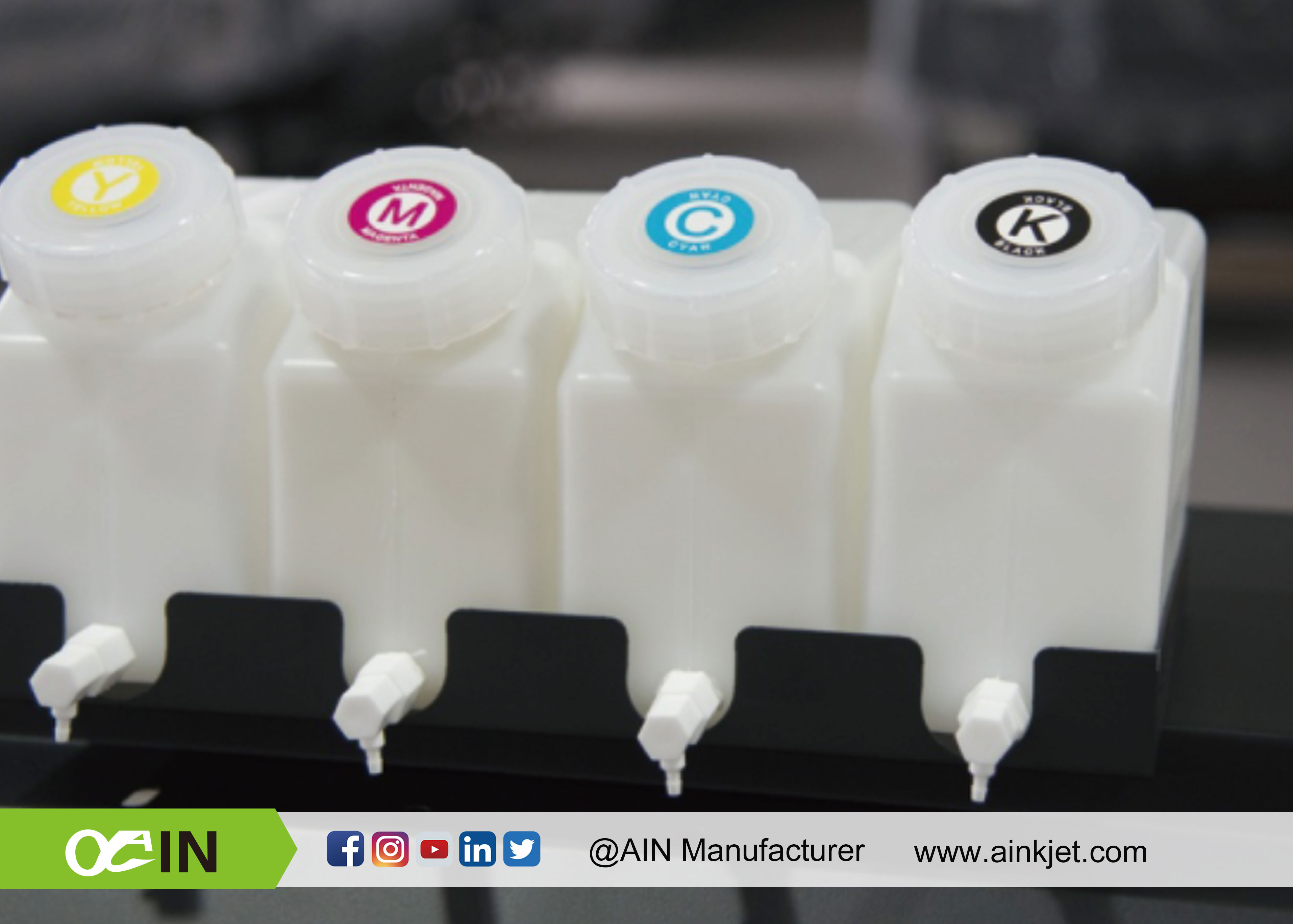

Stable Bulk System Ensures Amazing Printing Speed |

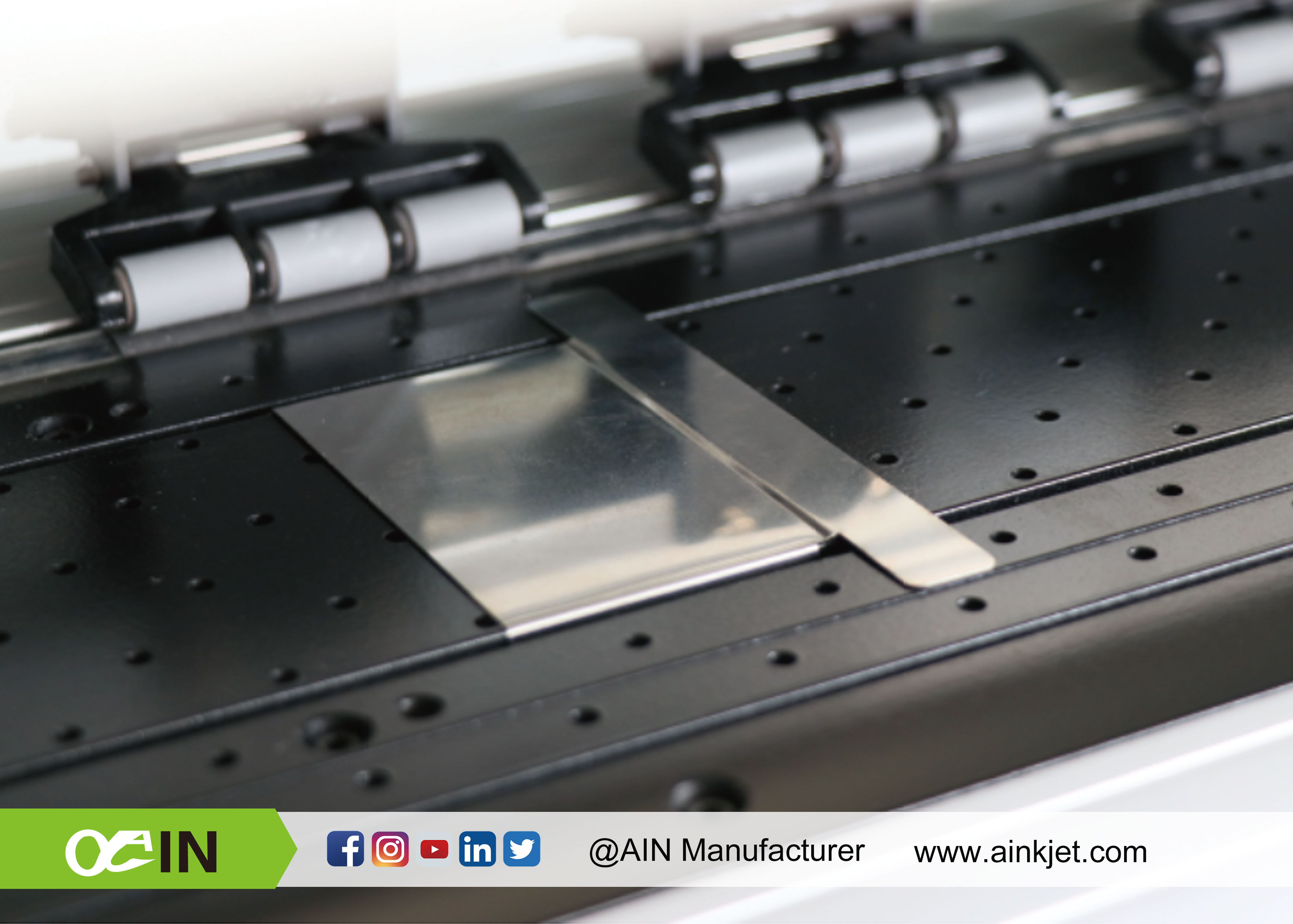

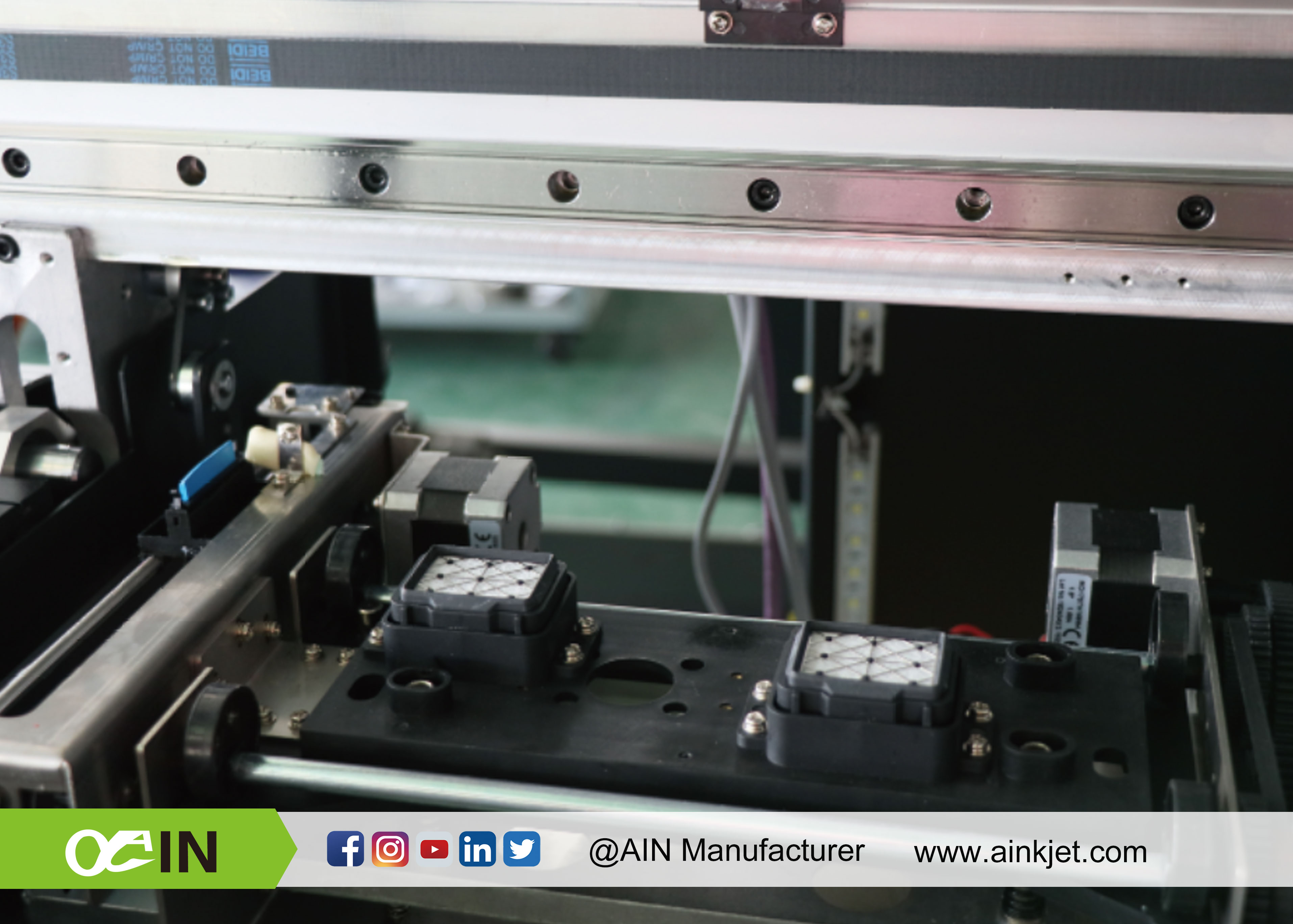

 | Automatic moisturizing cleaning assembly ensures the stability of head cleaning and improves working stability. |  | New pinch roller structure of three in group brings more stable feeding precision. |
Application
Applications of Sublimation Printer
Direct spray sublimation printers are widely used in the production of flags, advertising materials, sports peripherals, and home decoration fabrics due to their characteristics of direct fabric printing, high color fastness, vivid colors, paperless transfer printing, and environmental protection.
