Product Description
| Sublimation Printer High performance sublimation dye ink Sublimation ink has bright colors, wide compatibility, high color fastness, and long-lasting bright patterns, suitable for fabrics and papers with high color requirements. Stable and reliable operation Adopting THK silent guide rail, equipped with high-precision tension pulley, dual infrared integrated cooling to ensure drying, stable printing by heating at the bottom of the bracket, and independently adjustable three-stage pressure wheel to ensure feeding accuracy. High printing accuracy Intelligent inkjet and variable dot technology collaborate to achieve high-precision printing, significantly improving printing speed while balancing quality and efficiency. Widely used Covering clothing, home decor fabrics, samples, shirts, canvas bags, pillows, scooter decorations, flags, textile small items, and other fields. |
New Feature of Sublimation Printer We have an excellent technical team, which can be designed according to customers requirements. |
| Intelligent inkjet printing technology and variable dot ensure the perfect printing output, greatly improve the printing speed, and meet the user's requirements for printing quality and speed.
| High speed micro piezoelectric inkjet printing technology AJ-3203TX/AJ-3204TX is equipped with 3/4*3200-A1 print heads. It adopts advanced board control technology and industrial level design to ensure the durability of the print head .
|
Technical Specifications

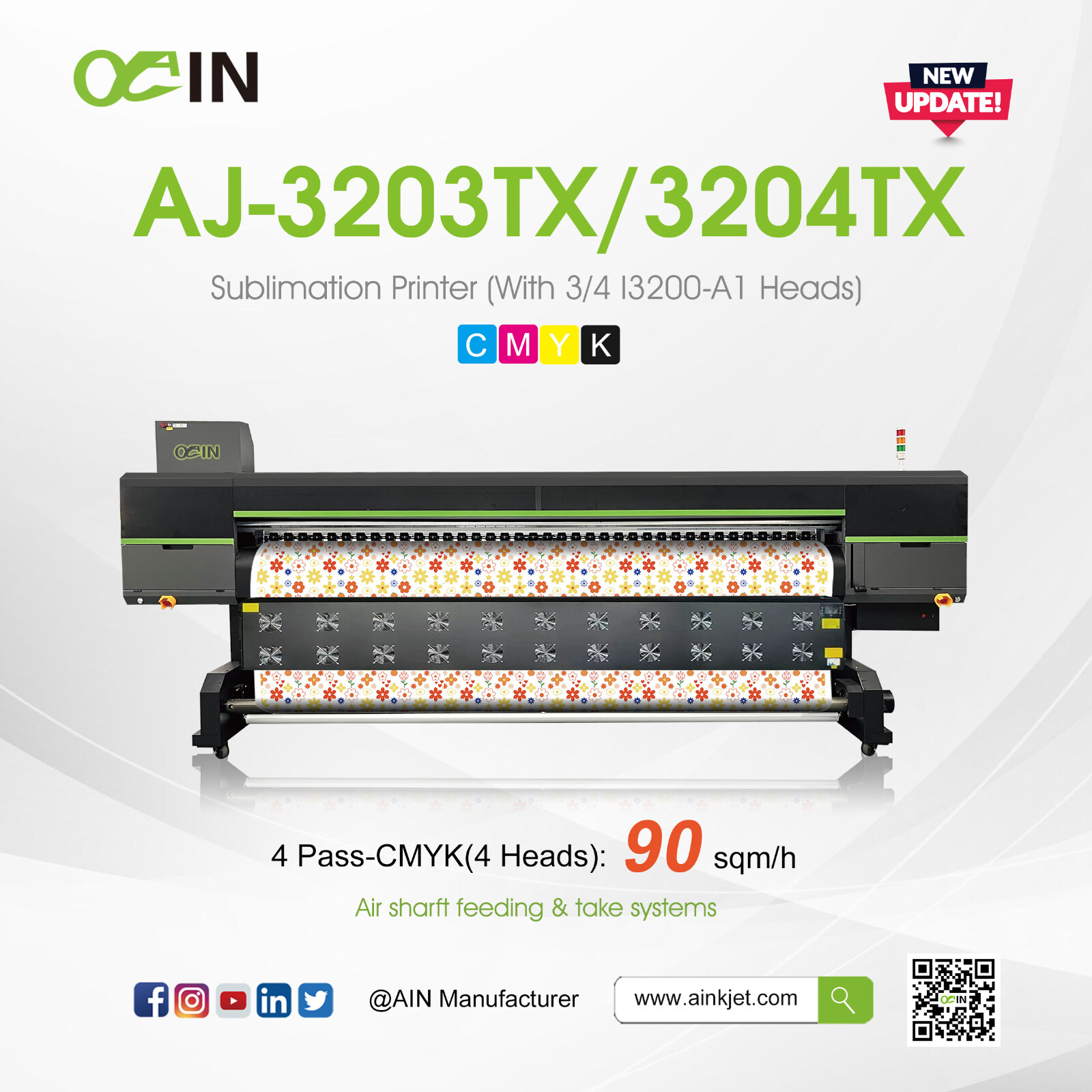

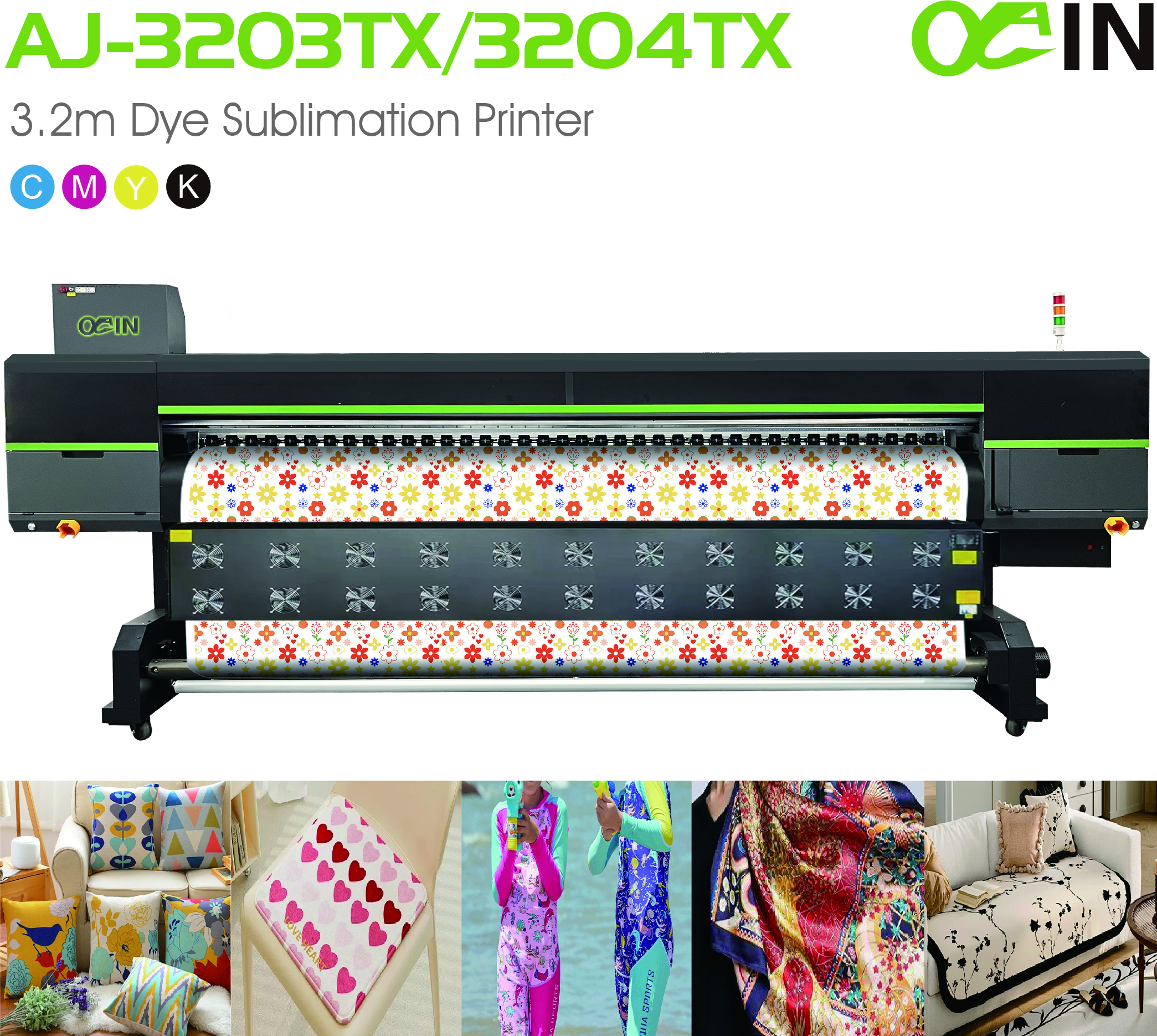

| AJ-3203TX/3204TX 3.2m Sublimation Printer | ||
| M0DEL | AJ-3204TX | AJ-3203TX |
| Print Head | Four i3200 Print Heads | Three i3200 Print Heads |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 128 in.(3250 mm) |
| Thickness | Maximum 69 mil(1.5 mm) | |
| Weight | 176 Ib.(80 kg) | |
| Printing Width | 126 in.(3200 mm) | |
| Ink Cartridges | Type | Dye Sublimation Ink |
| Capacity | 4*4 CISS (220ml ink cartridge with 1.5L ink tank) 6*6 CISS (6 Color) ,8*8 CISS(8 Color) Optional | |
| Color | 4 Colors | |
| Printing Resolution | Maximum 3600 dpi | |
| PrintingSpeed | 4pass(720x1200dpi):90 sqm/h 6pass(720x1800dpi):70 sqm/h | 4pass(720*1200dpi):80 sqm/h 6pass(720*1800dpi):58 sqm/ |
| Media Heating System | Intergrated post heater &Infrared Dryer &Fan system | |
| Interface | LAN | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| Dimensions(with stand) | 180(W)x38(D)x62(H) in. ( 4580(W)x970(D)x1580(H) mm ) | |
| Weight(with stand) | 2204 lb. (1000 kg) | |
| Packing Size | 194(W)x44(D)x71(H) in. ( 4940(W)x1130(D)x1810(H) mm ) | |
| Package Weight | 2535 lb. (1150 kg) | |
| Environment | Power on | Temperature: 59℉to 90℉[15℃to 32℃] / Humidity: 35 to 80% (no condensation) |
| Power off | Temperature: 41℉to 104℉[5℃to 40℃] / Humidity: 20 to 80% (no condensation) | |
| Accessories | USB cable,media clamp,manual,drain bottle,ink cartridges,RIP sofaware,etc. | |
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features
 |

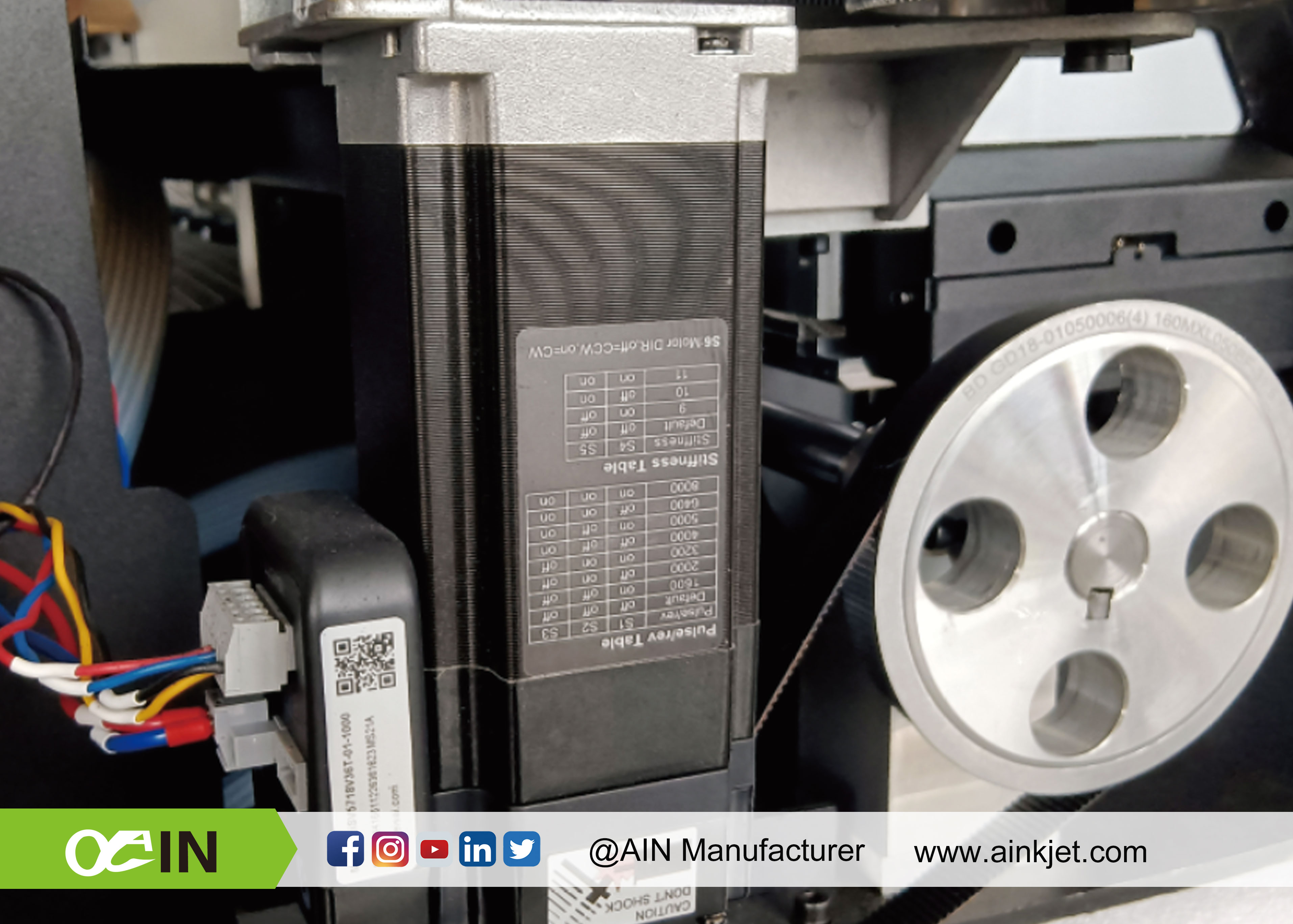

THK high-precision mute rail | | New high quality DC servo motor with good stability and long life. |
|

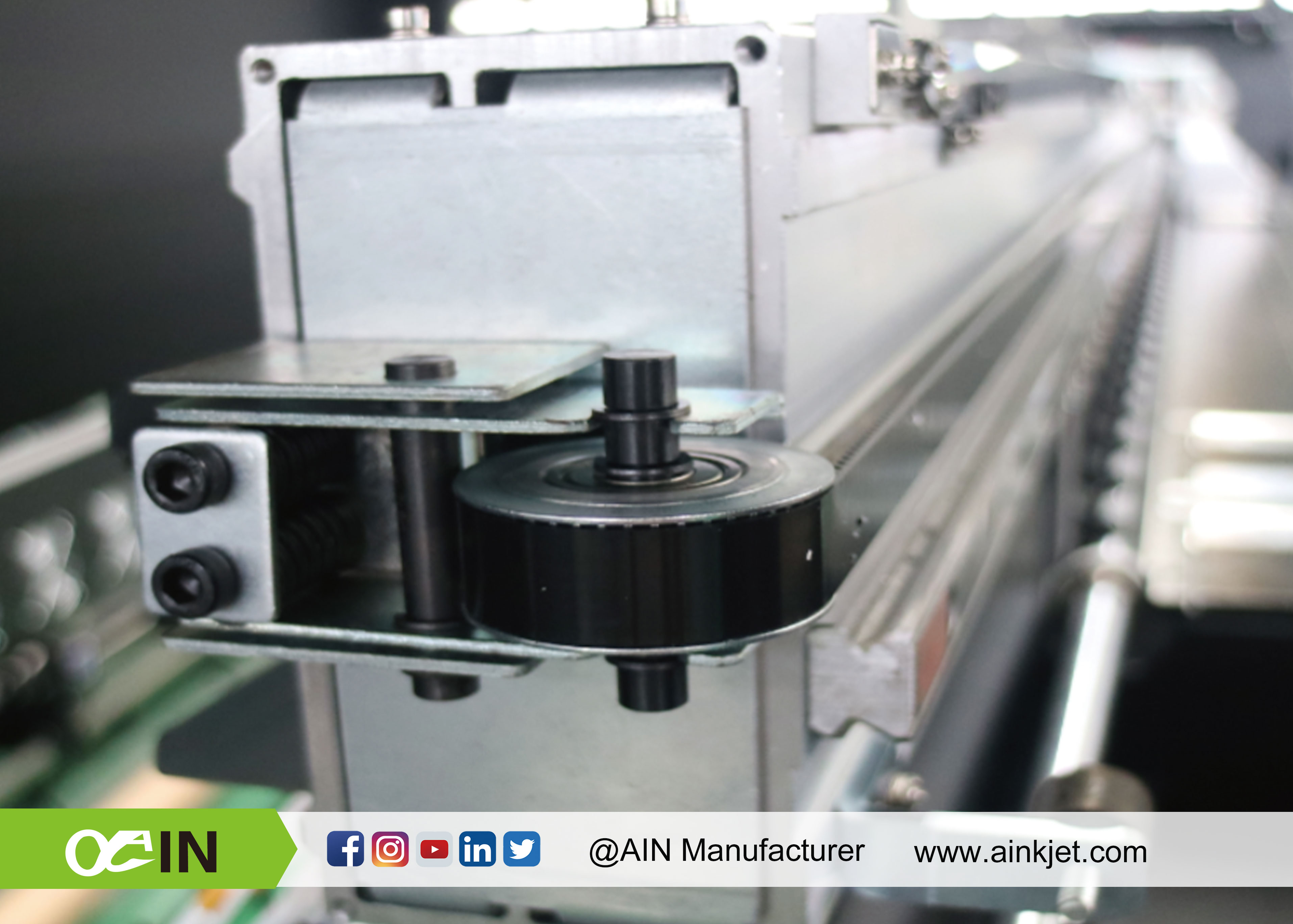

High-precision and high-stability tensioning pulley system. | |

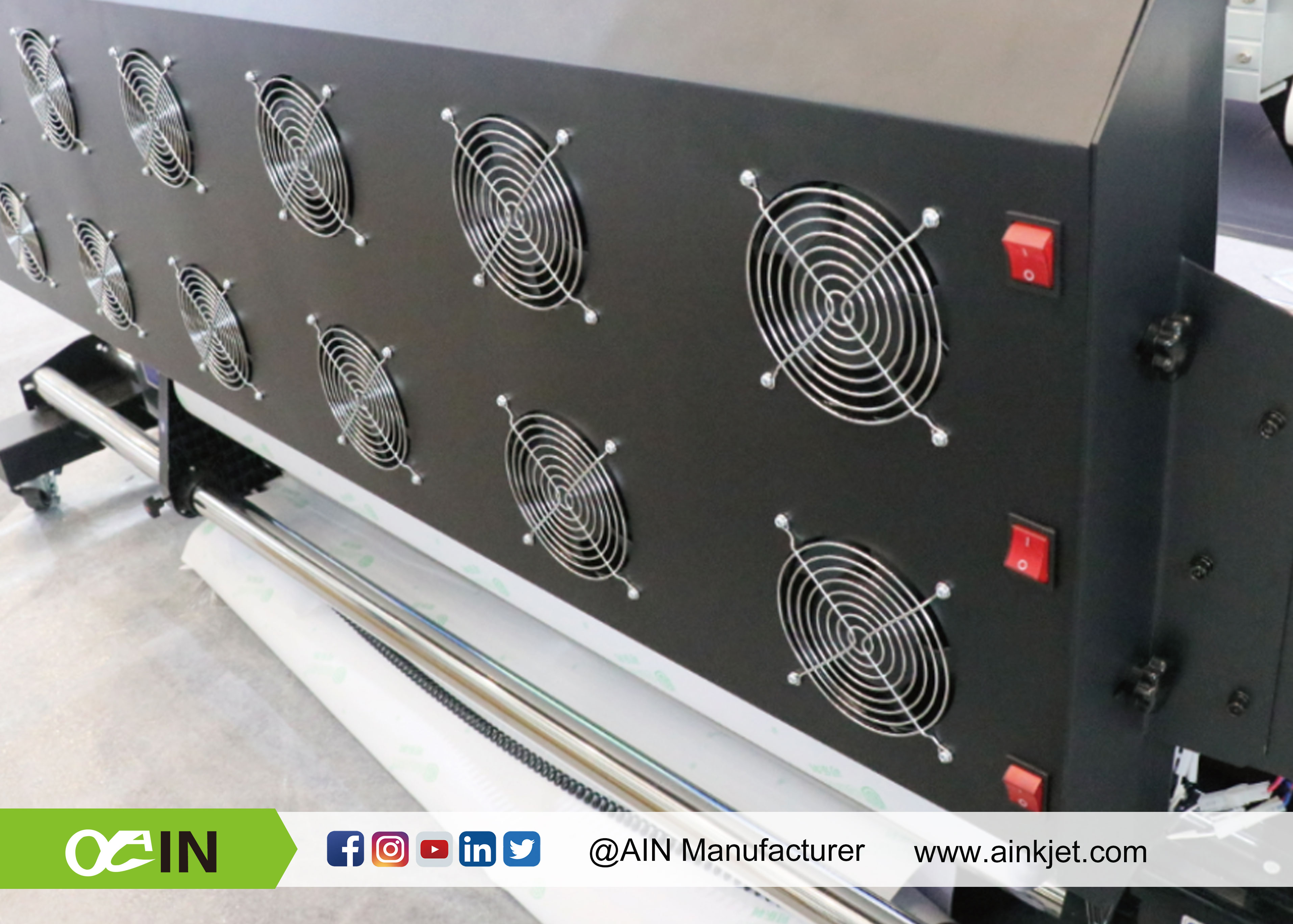

Dual integrated IR & cooling fan system,meet the drying needs of high-speed printing. |

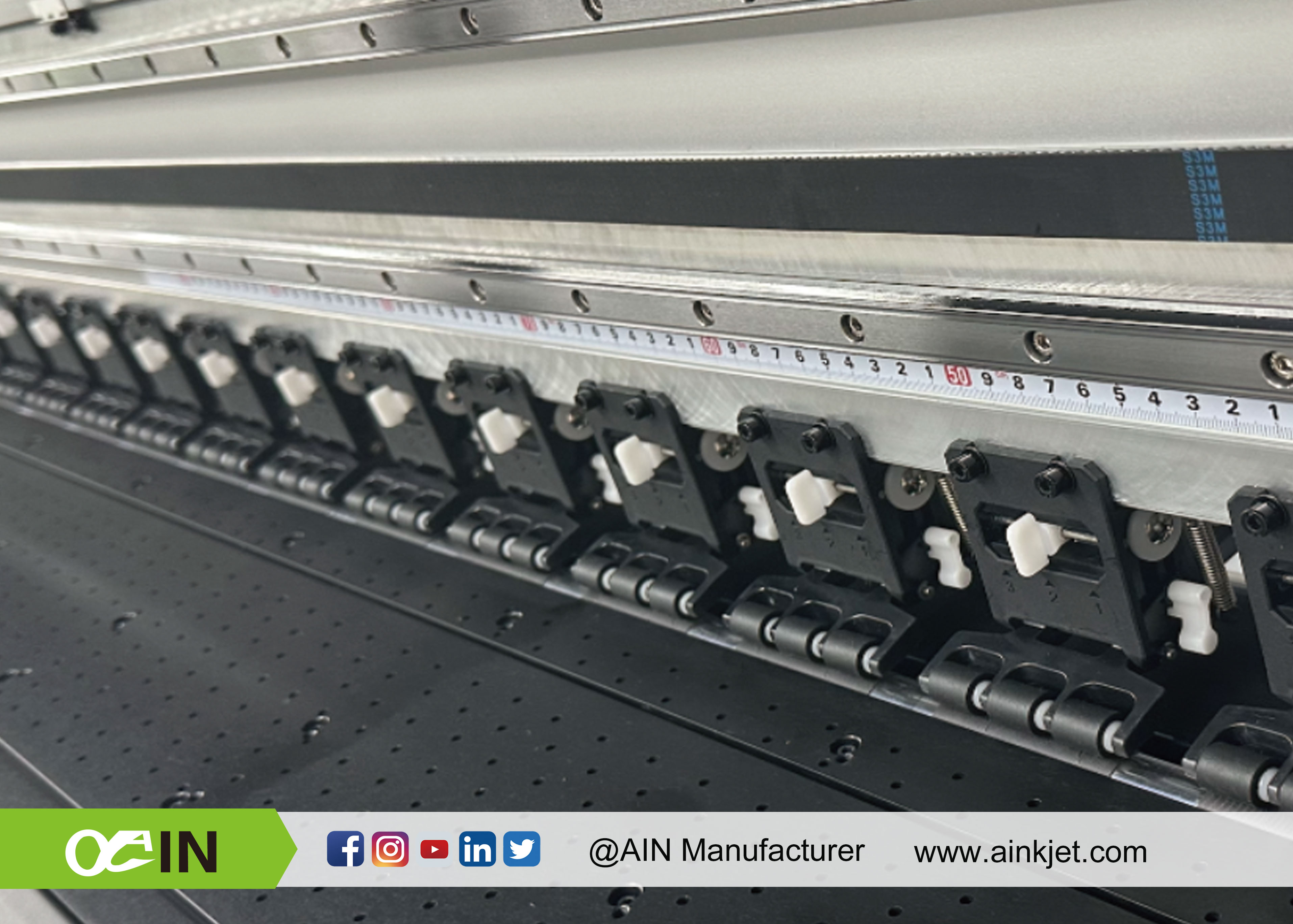

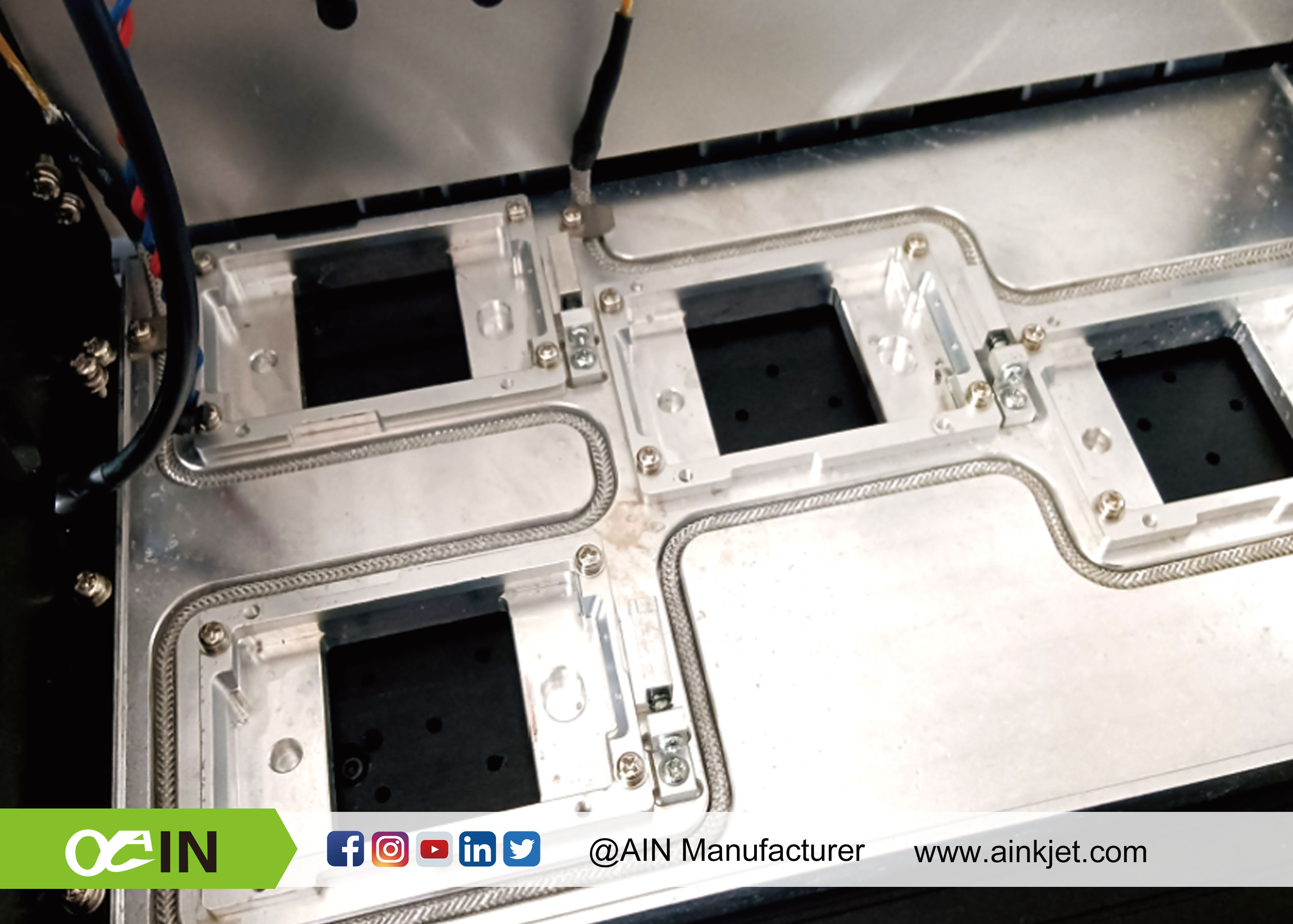

| Increase the bottom heating of the carriage which can improve printing stability. | | New independently adjustable three-stage pinch roller brings more stable feeding precision |
Application
Applications of Sublimation Printer
Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant，reliable and precise. With AIN series printer , you can maximize production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
