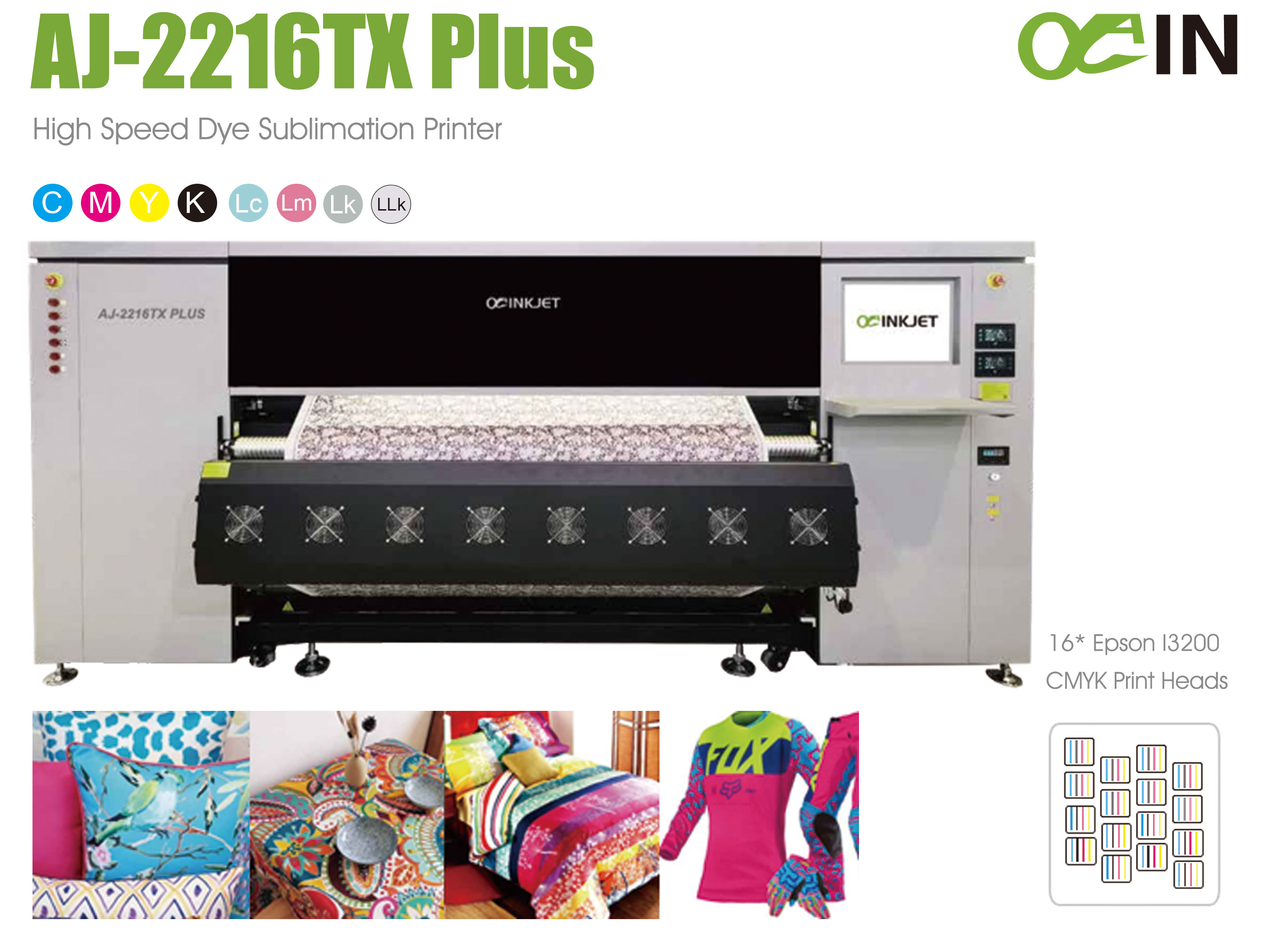

Product Description
High Speed
Dye Sublimation Printer
Powerful Hardware Configuration
Equipped with an advanced electrical board system and 16 Epson i3200-A1 print heads ,
the industrial designed structure extends the lifespan of the print heads.
Stable Printing

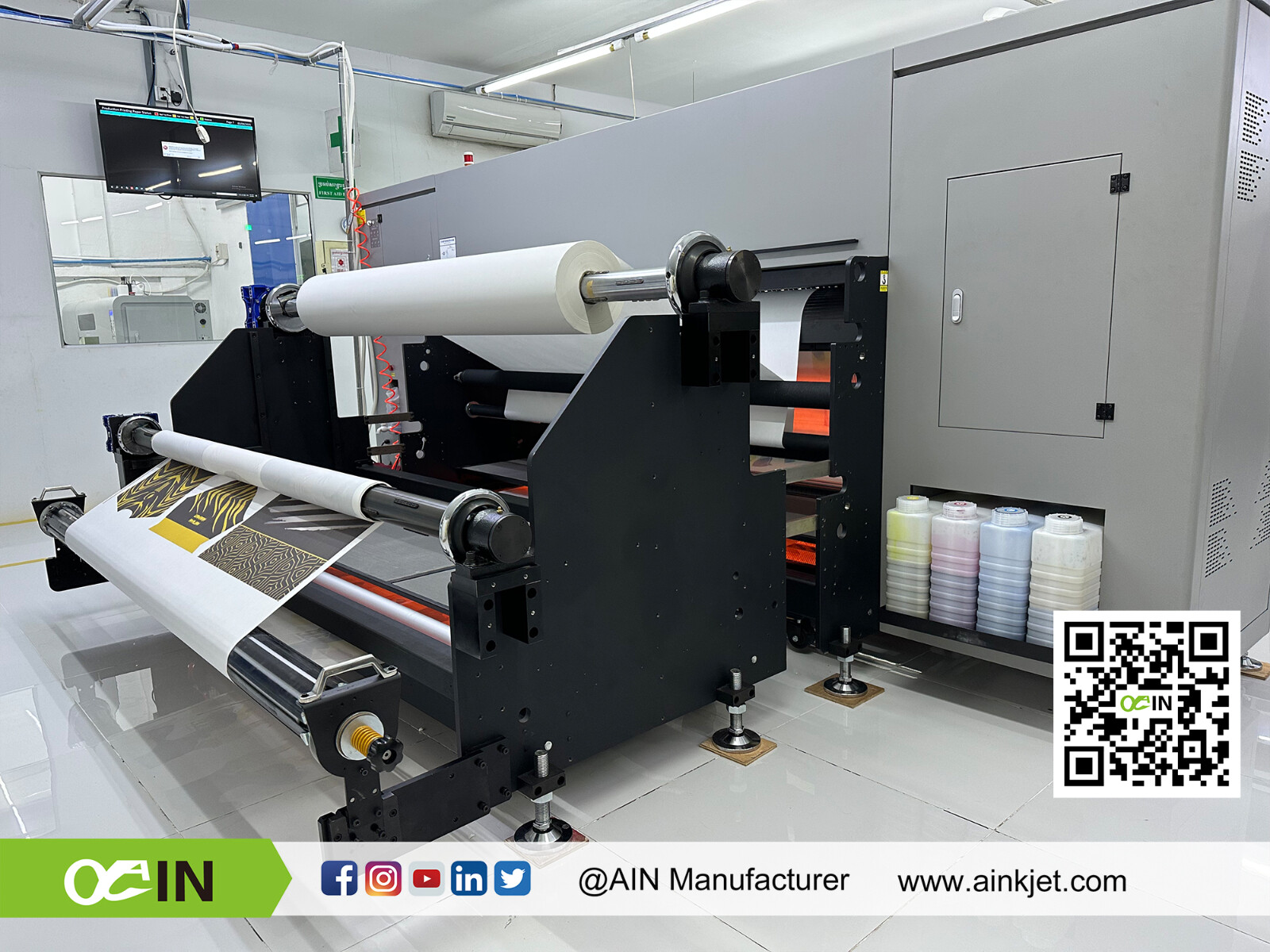

The 1000m optional media handling system, along with negative-pressure ink supply,
linear motor, magnetic encoder, high-strength rigid structure and rational winding system,
ensures stable printing.
Wide range of applications
Applicable to clothing, home furnishing fabrics, samples,
shirts, canvas bags and many other fields.
Technical Specifications

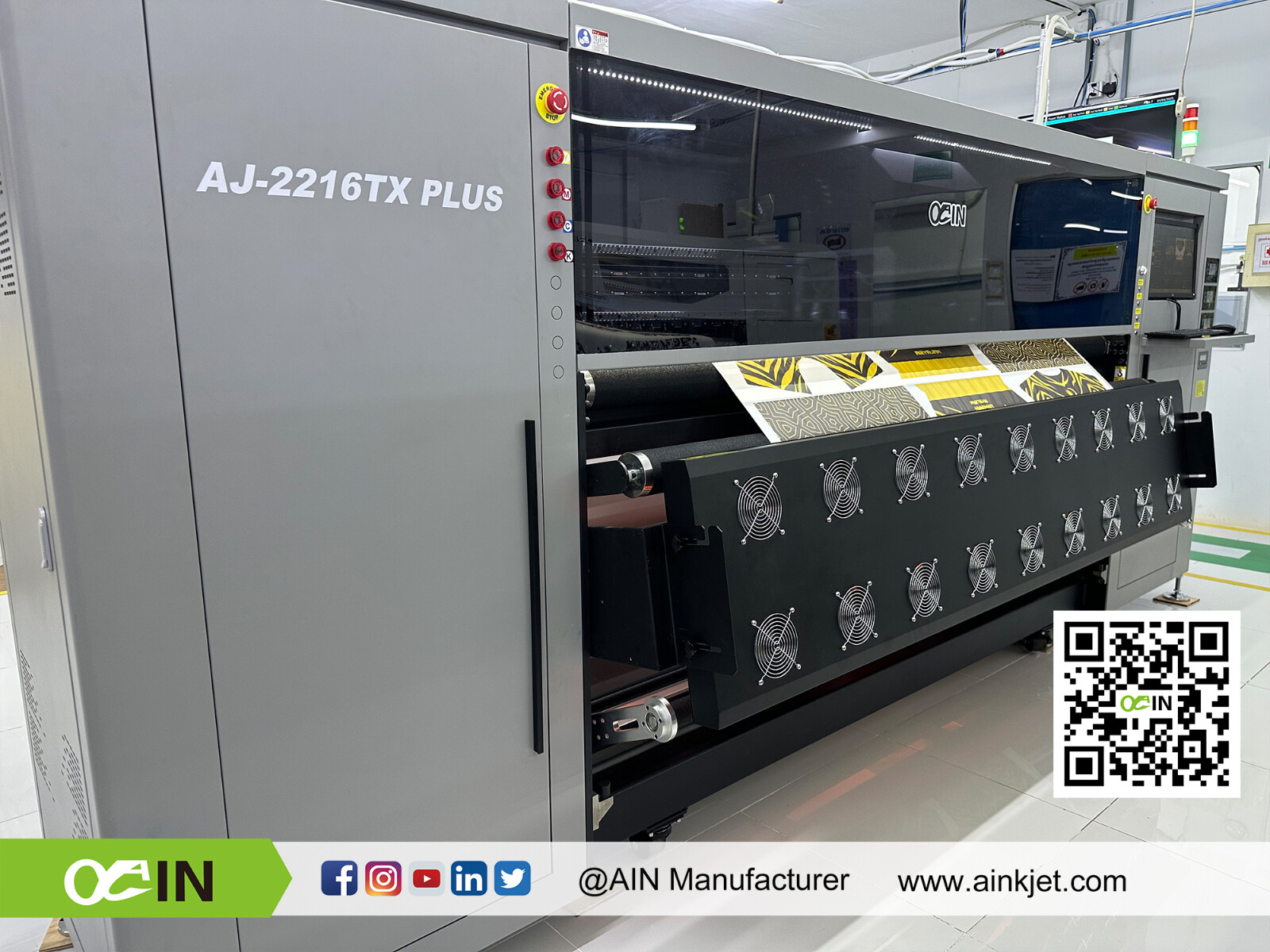

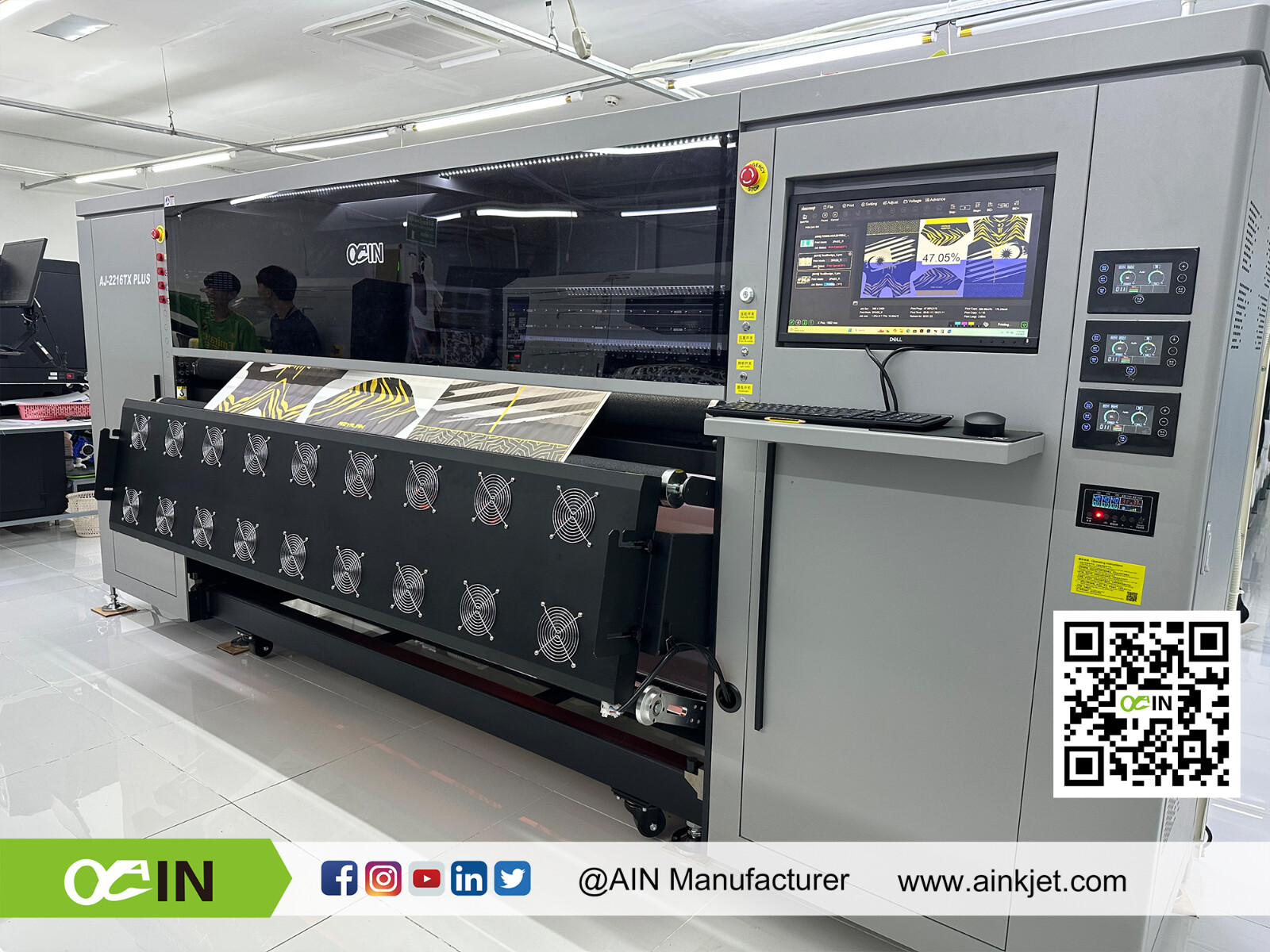

| AJ-2216TX Plus Industrial High Speed Dye Sublimation Printer | ||
| Model | AJ-2216TX Plus | |
| Print Head | 16pcs I3200-A1 Print Head | |
| Droplet Size | 3.5pl | |
| Printing Width | 86.6 in.(2200 mm) | |
Printing Speed | 1pass(600x600dpi): 7274 sqft (690 sqm/h) 2pass(600x1200dpi): 3875 sqft (360 sqm/h) | |
Ink Cartridges | Type | Dye Sublimation Ink |
| Supply | Negative pressure ink supply system | |
Color | CMYK / CMYKLCLMLKLLK | |
Print Media | Heat Transfer Paper | |
Print media control | Air expansion shaft Take-up System | |
Dryer | External Automatic Air Heat Integrated Dryer | |
Moisturizing unit | Automatic Cleaning and Moisturizing Integrated Captop | |
RIP Software | RIIN Beidou Textile Version,Maintop6.0、photoprint、ONYX、NeoStampa、PrintFactory etc. | |
File Format Supported | JPG / TIFF / PDF, etc | |
| Power requirement | Input Voltage | AC 220 V ± 5%, 16A, 50 HZ± 1 |
| Printer | 3500W | |
| Drying unit power | Maximum 15.5kw | |
| Dimensions(with stand) | 158(W)x109(D)x68.9(H) in. | |
| 4020(W)x2767(D)x1750(H) mm | ||
| Package Dimensions | 162(W)x112.8(D)x72.8(H) in. | |
| 4120(W)x2867(D)x1850(H) mm | ||
| Working Environment | Temperature 15-32 degrees C, Humidity: relative humidity: 40-70 (non condensing) | |
| Standard Components | External Automatic Air Heat Integrated Dryer, Low Ink Alarm System, Air Shaft Media Loading and Take-up, and Automatic Moisturizing and Cleaning Init | |
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features

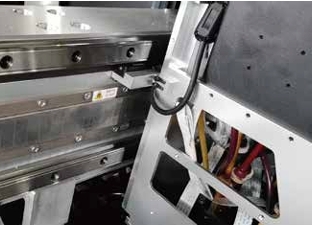

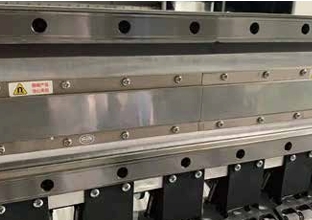

 | Mute Linear Motor System,no belt,no pvc encoder strip; Incresse the Carriage moving precision and Span life |  | Magnetic grid ,the Carriage drop point more precision |

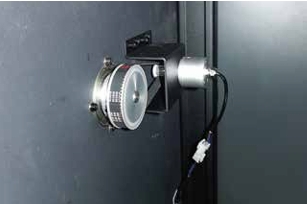

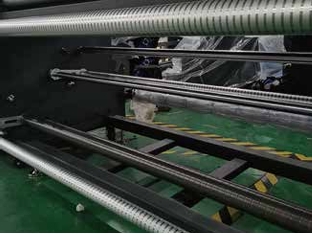

 | Air expansion shaft rubber strip rolls collection and release, to ensure that the collection of material more stable and flush |  | High precision angle sensor |

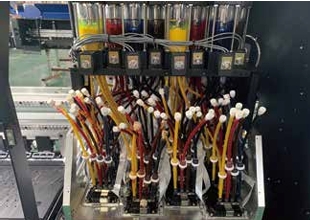

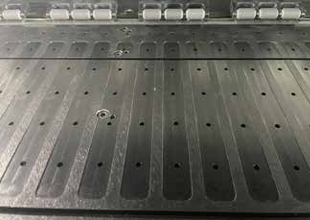

 | Negative pressure ink supply system: good for long time printing and cleaning |  | Vertical slotted air guide platform, making the paper surface more flat |

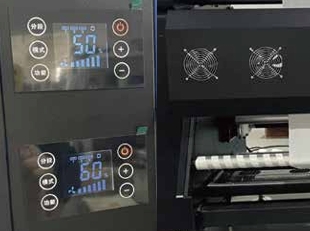

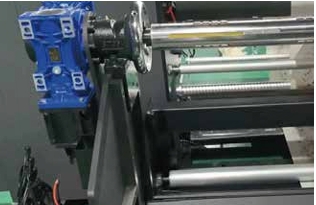

 | Pendulum rod tension structure |  | 2 external infrared drying units,Precise control of drying temperature, reduce energy consumption |
Application
Applications of Industrial Dye
Sublimation Printer
Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant，reliable and precise. With Ain series printer , you can maximize production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
