Printer Informations
|
Roll to Roll Printer Multi-layer Printing Featured printing technology Three layer "color+white+color" printing technology, with transparent color enhancement on the bottom layer, brightening on the middle layer, and eye-catching on the top layer. When illuminated, the backlight pattern has a special effect of light and shadow changes, resulting in exquisite output. Wide adaptability Supports continuous printing of leather, lightbox fabric and other rolls, covering industries such as advertising, decoration, packaging, etc., and is compatible with various printing methods such as gold and silver paper and labels..
Efficient value-added One machine multi-color mode is efficient and environmentally friendly, and can replace high-end environmentally friendly solvent machines; Three layer printing technology enables pattern switching between day and night/inside and outside, enhancing advertising effects and added value. Upgrade stability Brand new 1.9-meter frame, wide printing format, stable output, additional flash spray slots, balancing speed and accuracy. Newly added waste ink alarm and new air standard, suitable for intelligent printing of various types of rolls.
|
New Feature of UV Printer We have an excellent technical team, which can be designed according to customers requirements. |
3 lavers printing the output is more delicate - Optional computer bracket and host bracket. - New magnetic protection cover can prevent encoder strip. - Upgraded LCD control panel, more intelligent equipment operation. - Brand new 1.9 upgraded frame, wider printing format.
With the interior light on, this three layers printing technology‘Color + White + Color’， can achive the magically changing effect of the patterns from backlight. | |
The ability of switching the patterns through day and night, external and interior fully reflecting the performance techniques used in new advertising era, thus increasing the added value of your advertising. One machine for multiple printing solutions under different color modes,can meet requirements from different customers .It can also replace some high-end eco solvent printers which can be efficient and environmental friendly.
| |

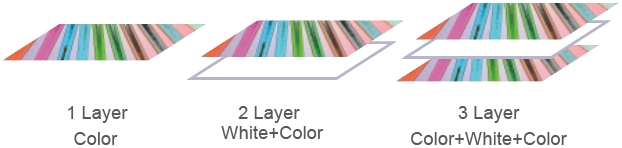

1-3 Layers printing mode optional
|

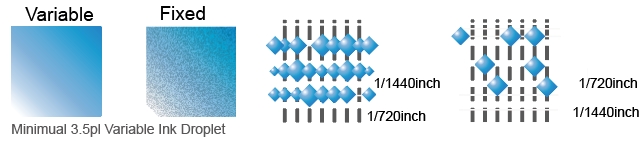

3pcs I3200 Print heads With I3200 heads , minimual 3.5pl variable ink droplet UV printer.
|
Printer Heads
Technical Specifications

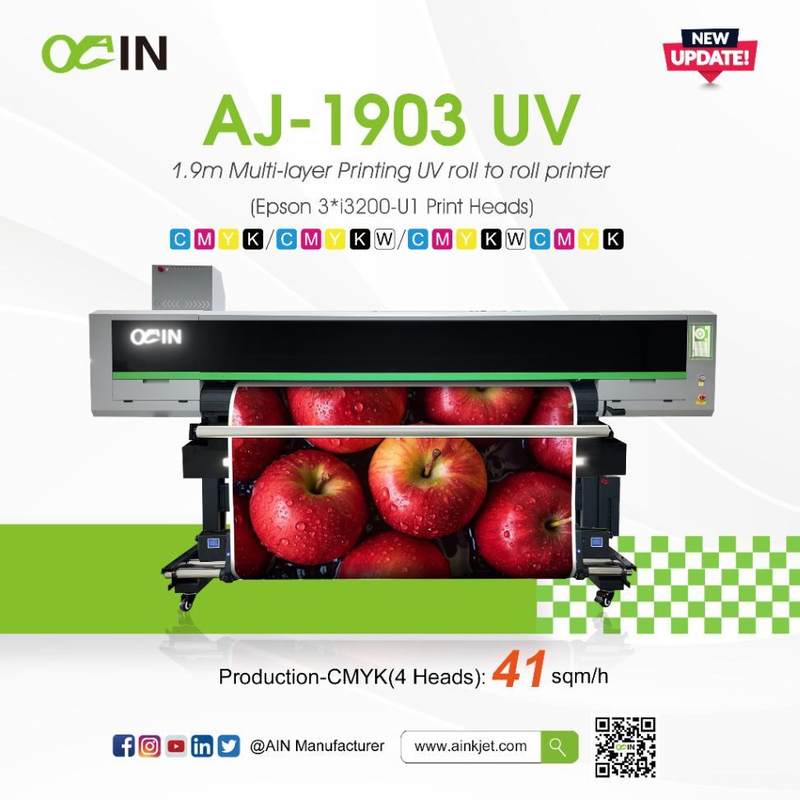

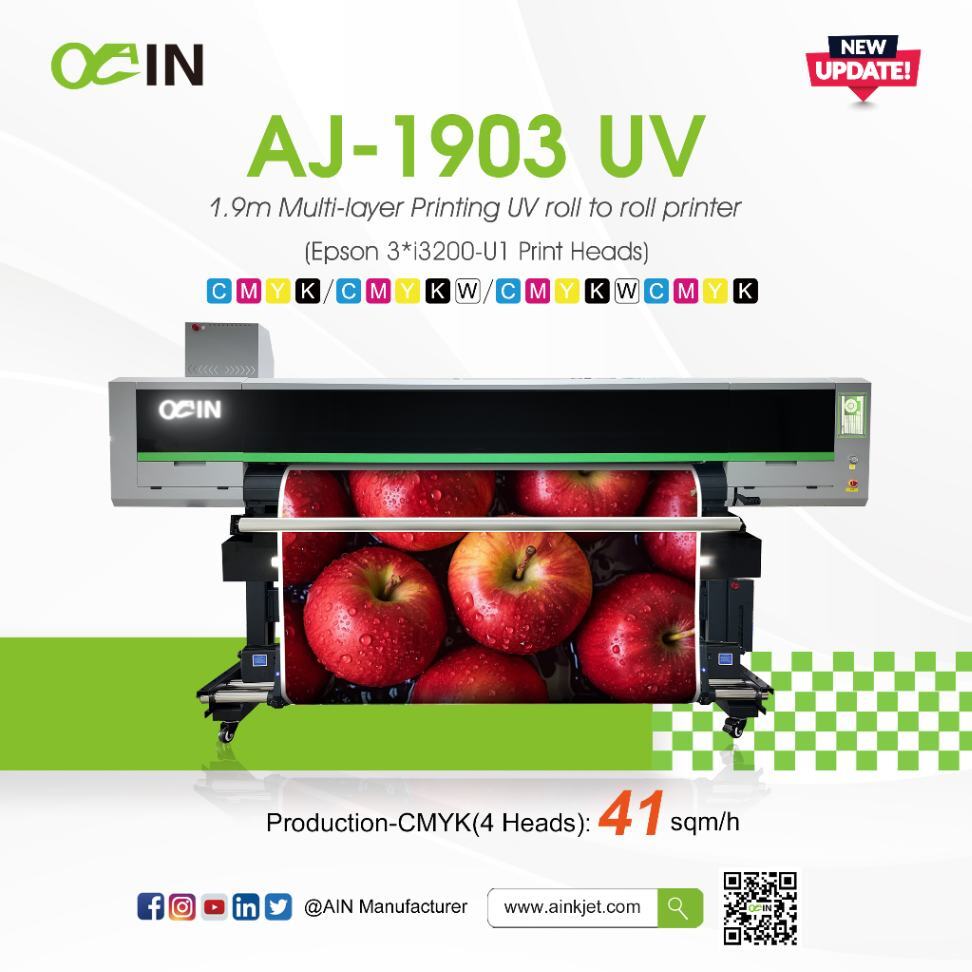

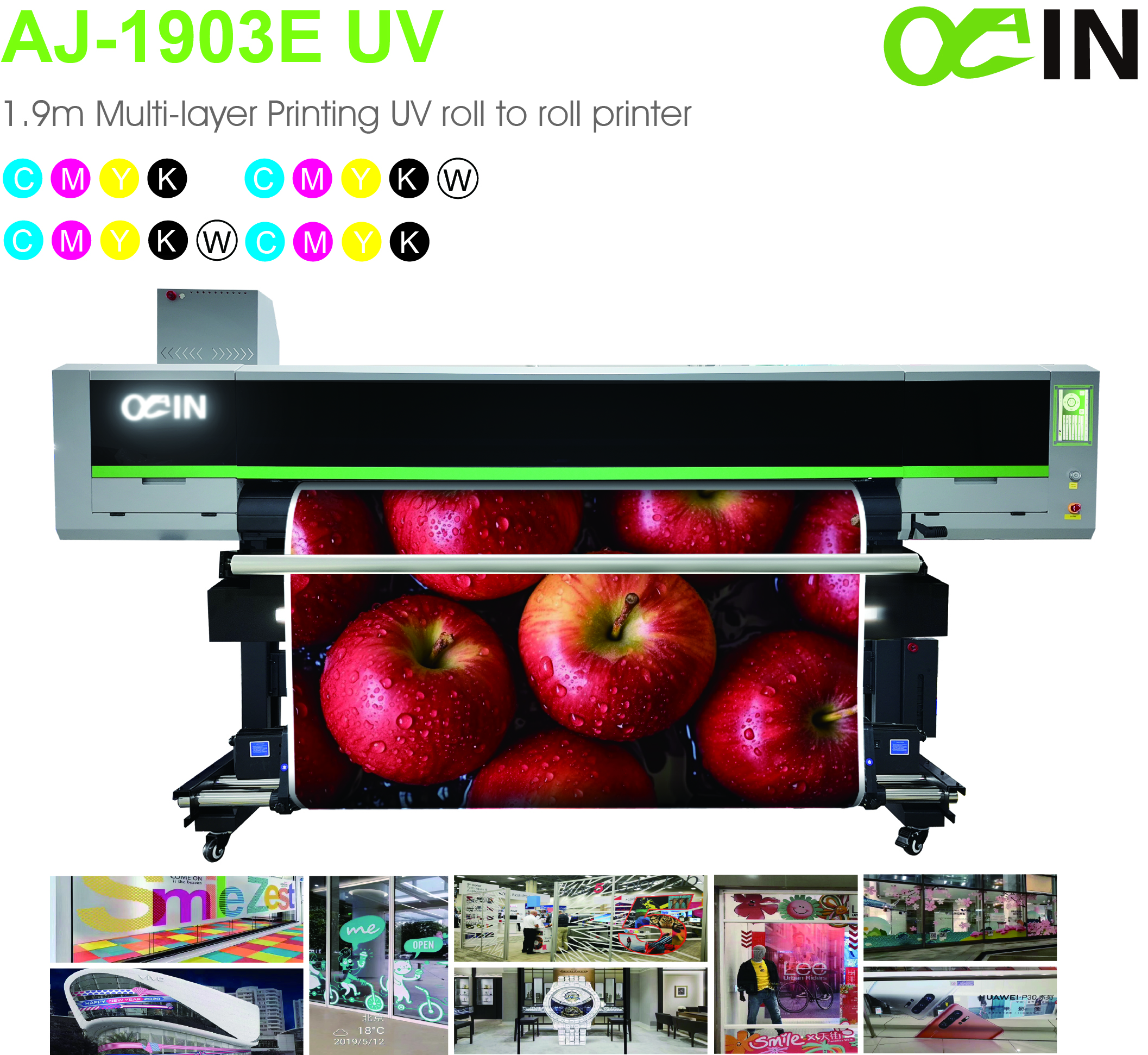

| AJ-1903E UV 1.9m Multi-layer Printing UV roll to roll printer | ||
| Model | AJ-1903E UV | |
| Print Head | Three l3200 Industrial Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 75.5 in.(1920 mm) |
| Thickness | Maximum 59 mil(1.5 mm) | |
| Weight | 176 lb.(80 kg) | |
| Printing Width | 74.8 in.(1900 mm) | |
| Ink Cartridges | Type | UV Ink |
| Capacity | Continual Ink Supply System ( 1.5L ink tank ) | |
| Color | CMYK/CMYK+W CMYK+W+CMYK | |
| Ink Curing Unit | Dual UV LED Lamps(Water Cooling) | |
| Printing Resolution | Maximum 2400 dpi | |
Interface | USB 2.0 | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| Dimensions(with stand) | 3130*1680*930(mm) | |
| Weight(with stand) | 750 Ib.(340 kg) | |
| Packing Size | 3950*850*1100(mm) | |
| Packing Weight | 969lb.(439.5 kg) | |
| Environment | Power on | Temperature: 59°F to 90°F [15℃ to 32 C]/ Humidity: 35 to 80% (no condensation) |
| Power off | Temperature: 41°F to 104 °F [5℃ to 40℃]/Humidity: 20 to 80% (no condensation) | |
Features

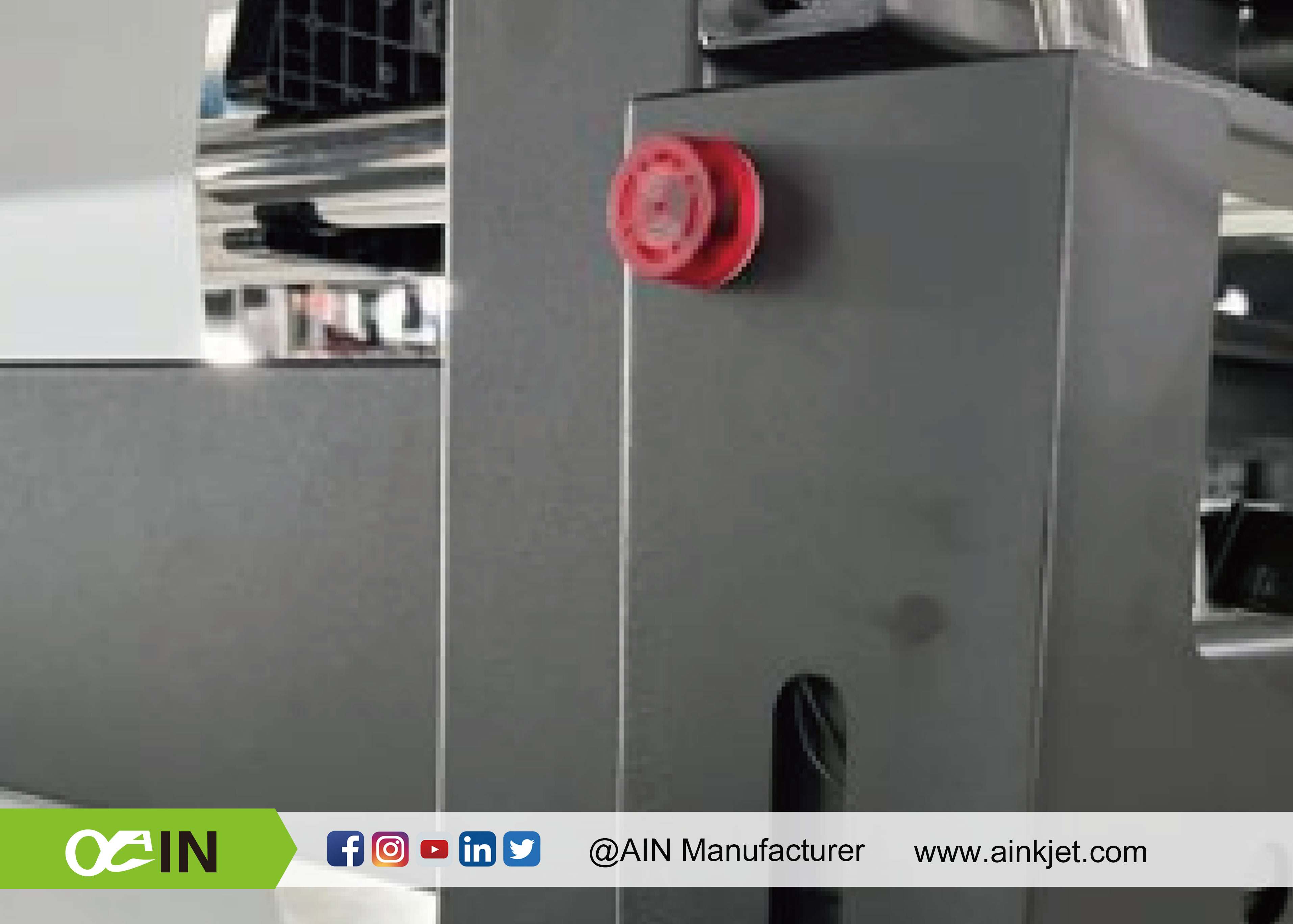

| The aluminum profile main beam is used to replace the original steel structure, providing better mechanical strength and mechanical precision. |  | Added a waste ink barrel alarm system for a more user-friendly experience. |

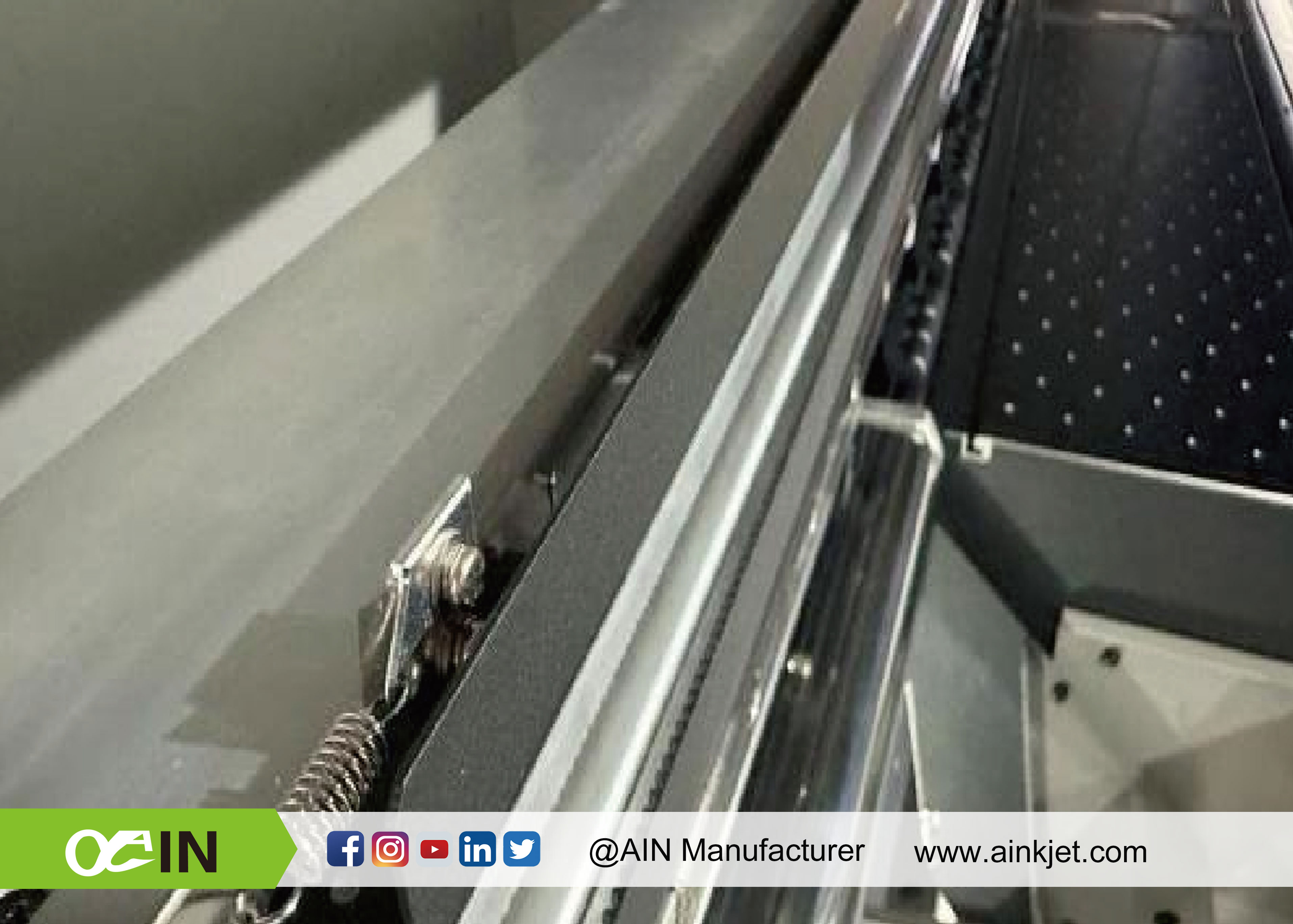

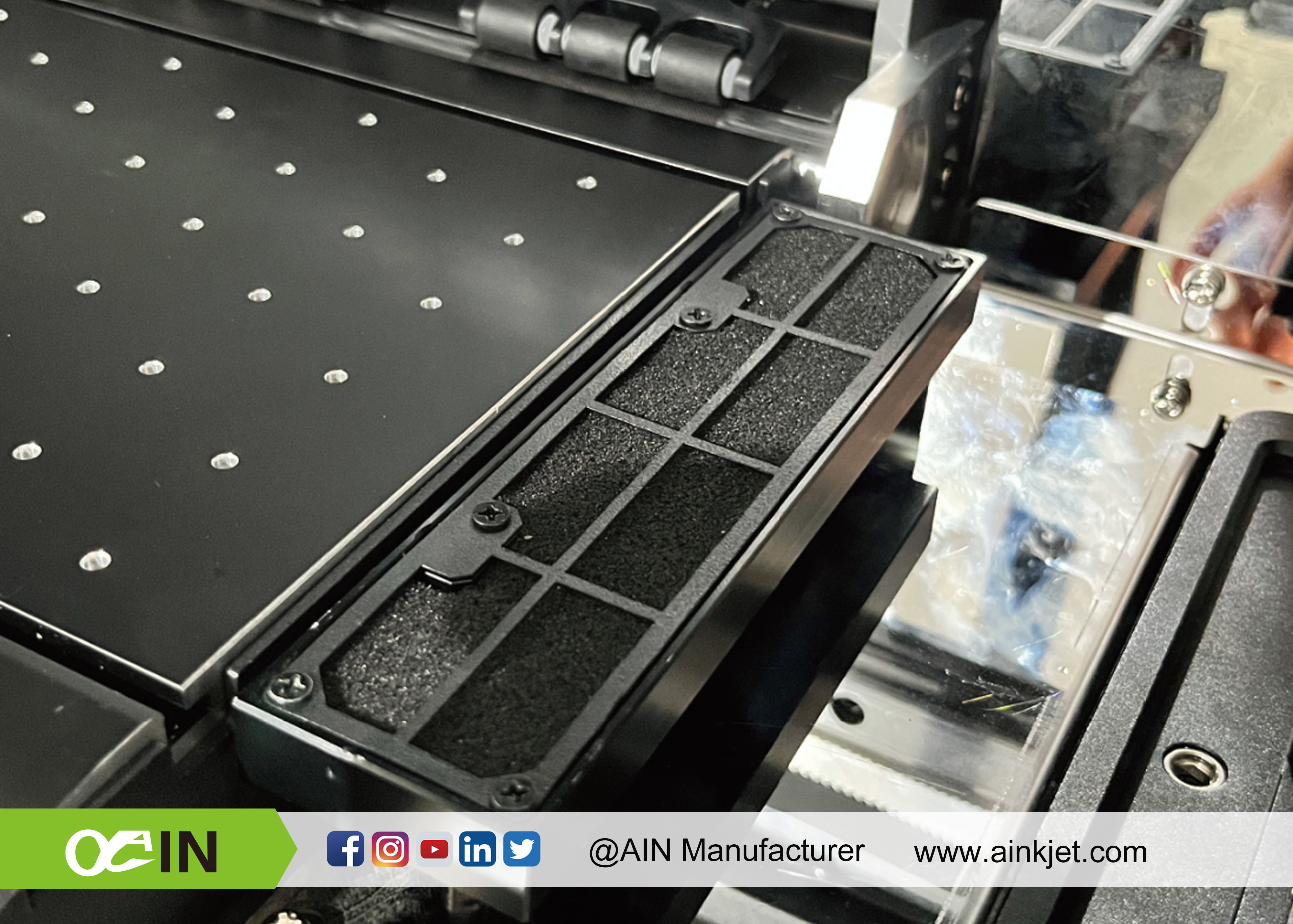

| New magnetic protection cover can prevent encoder strip and extend the service life of the encoder strip. |  | Added flash spray slot structure to better improve printing speed and accuracy. |

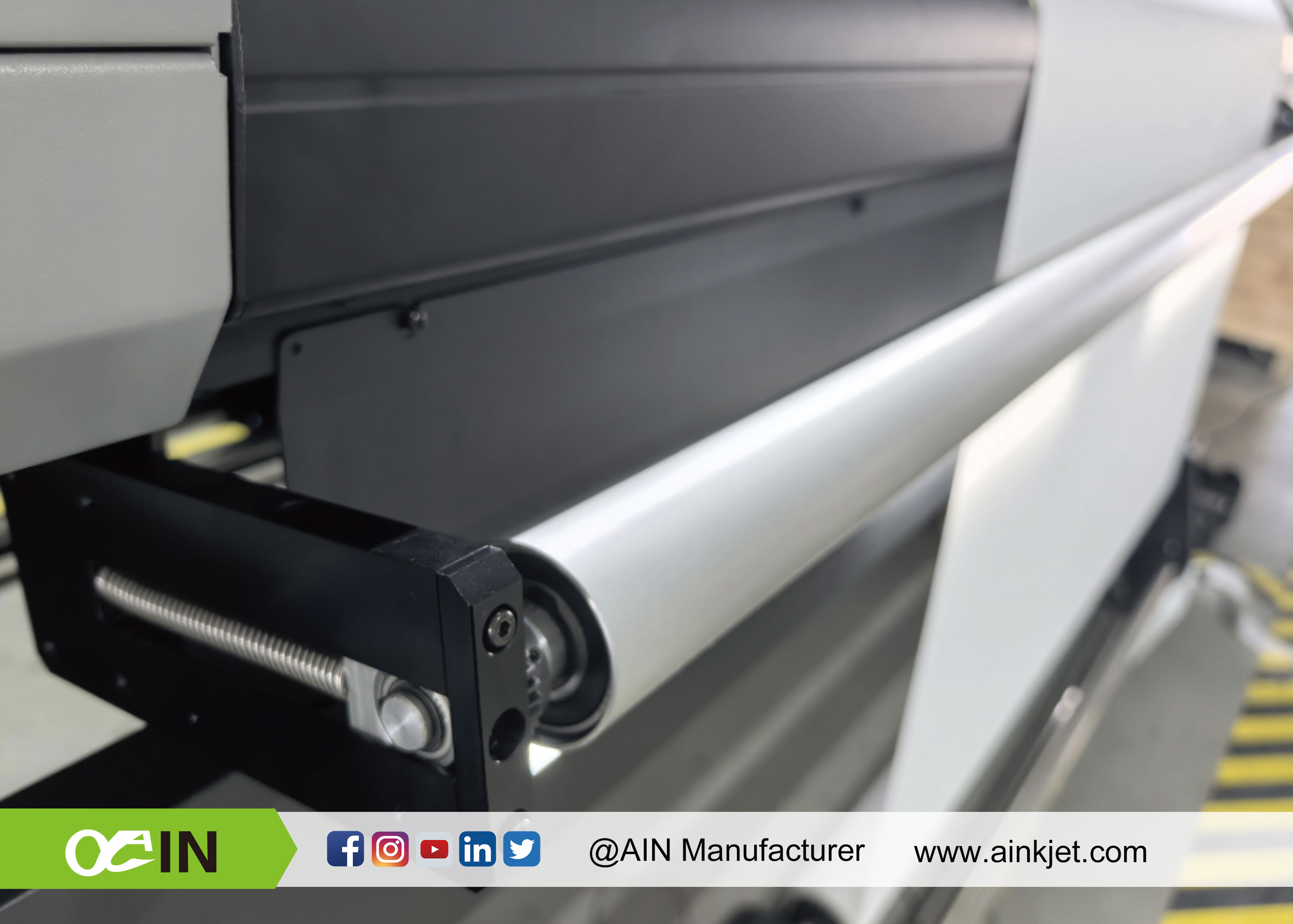

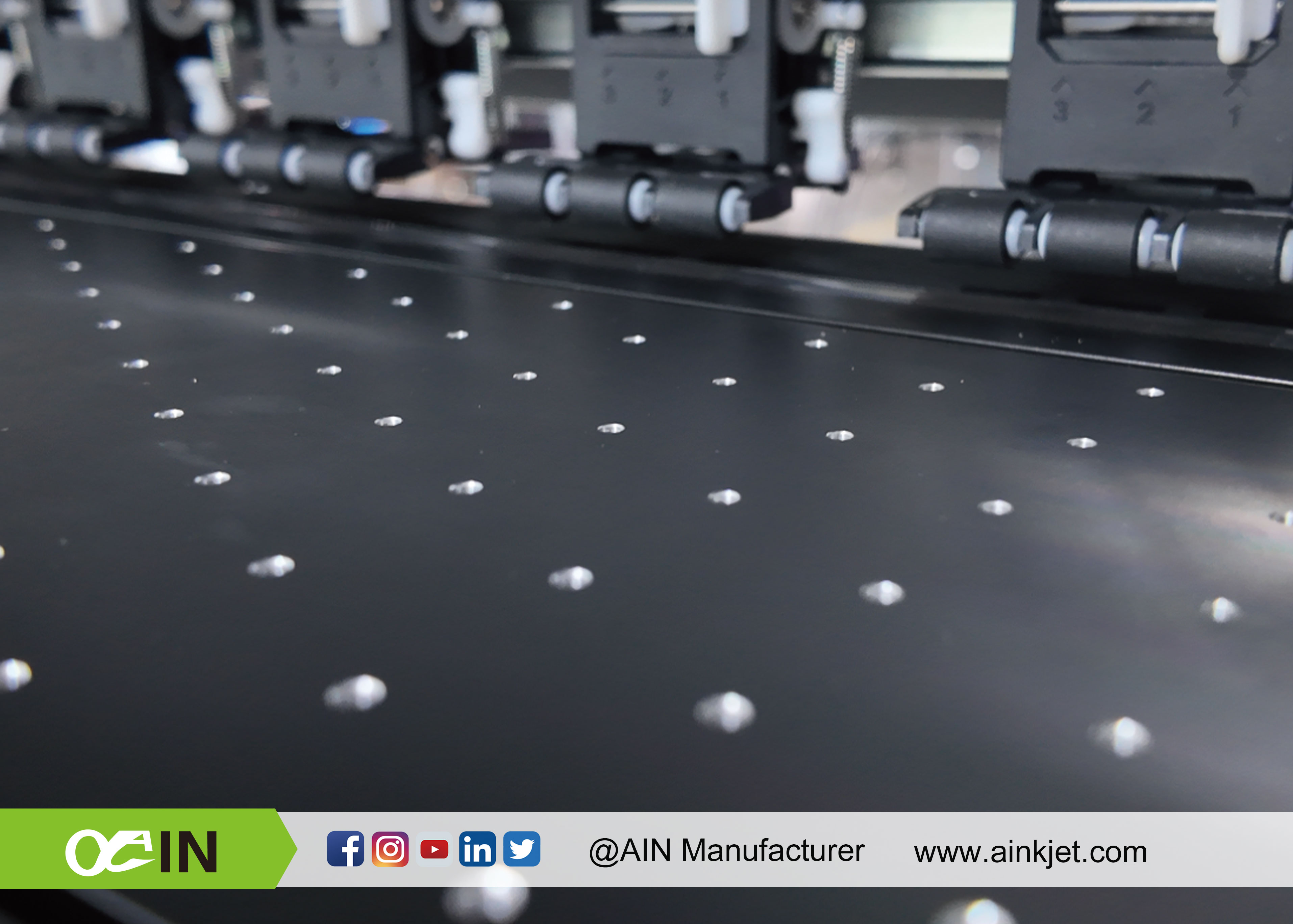

| standard front tension rollers, professional models have added standard front drive rollers to ensure smooth paper feeding. | | Upgraded suction platform, media feeding is smoother and less prone to bulging. |

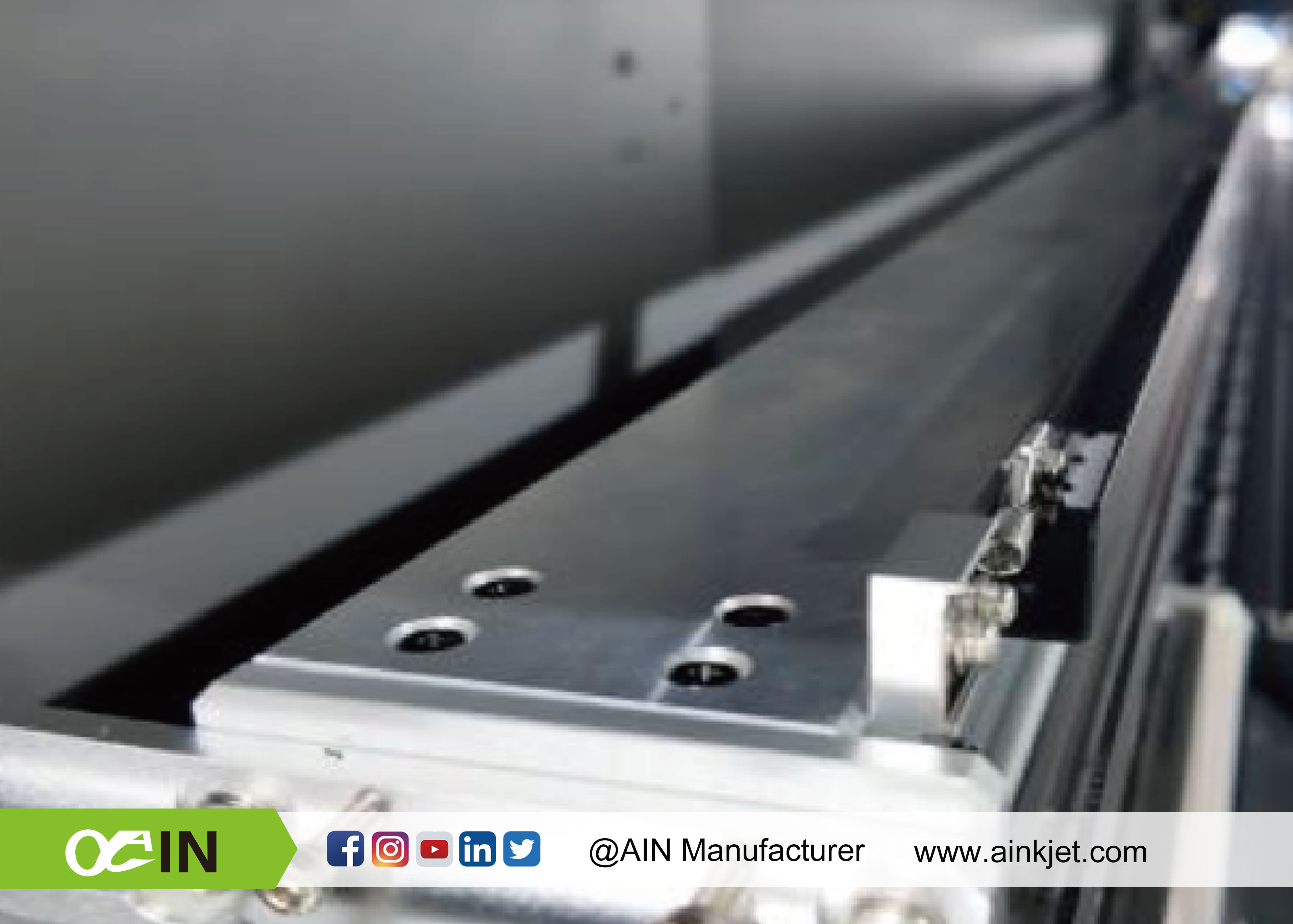

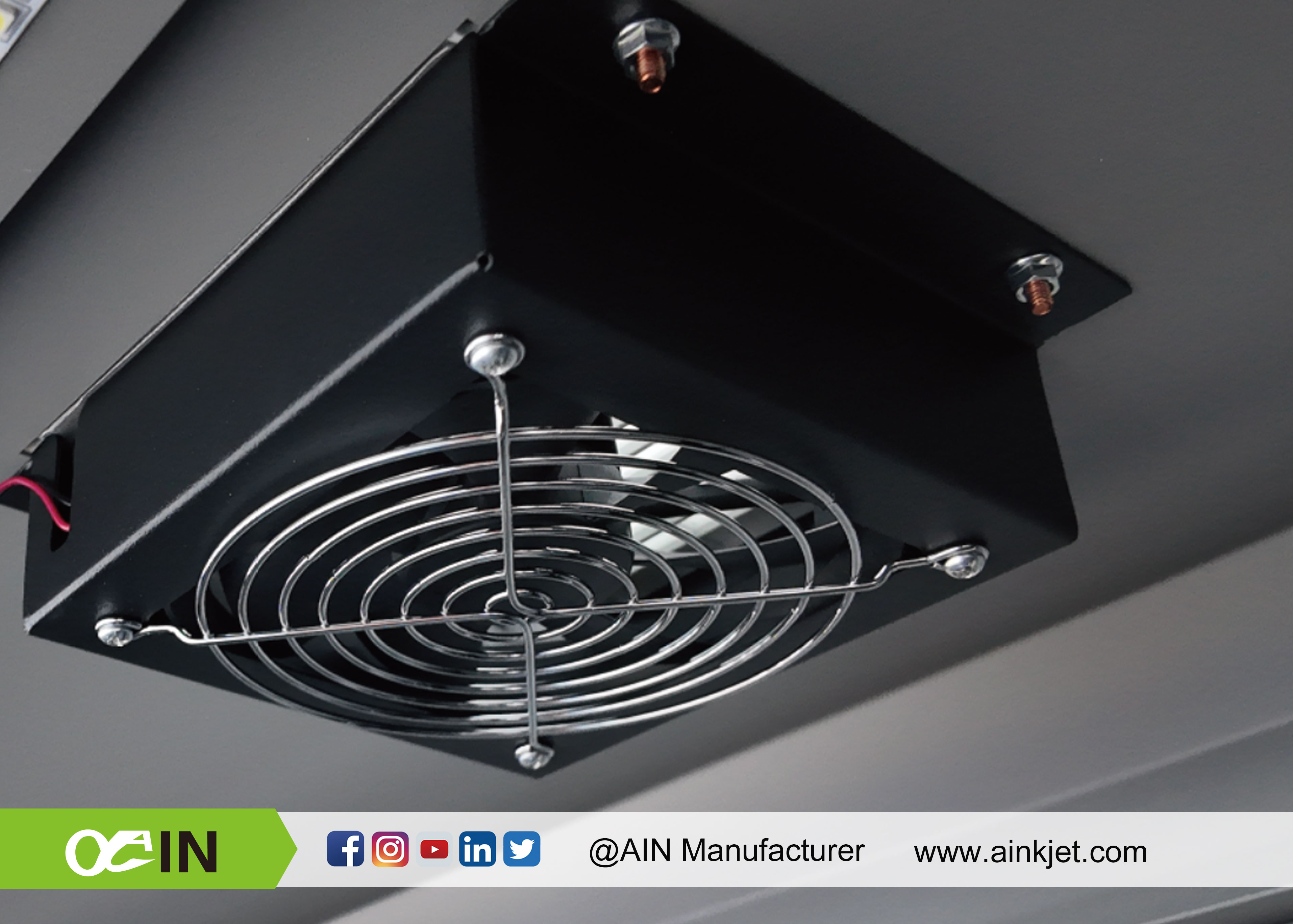

| The printheads base is embedded in the structure, so the heads does not protrude from the bottom plate of the trolley, which better protects the print heads. |  | Standard fresh air system to reduce dust in the printing chamber and ink mist caused by inkjet. |
Application
Applications of Multi-layer Printing UV roll to roll printer

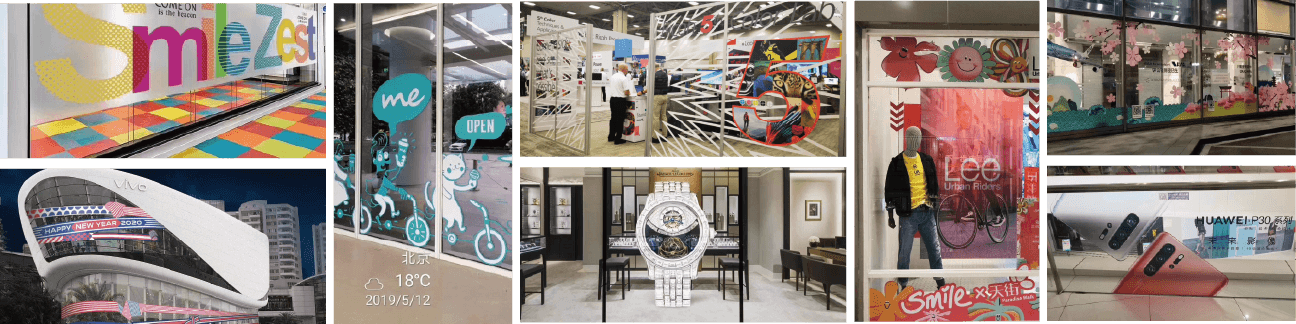

Wide applications in light box posters, customized car stickers, background wall cloth, gold paper and silver paper printing, leather printing, high-end gift box printing, food packaging printing,Label printing, operation panel & switch printing etc.
