Printer Informations
|

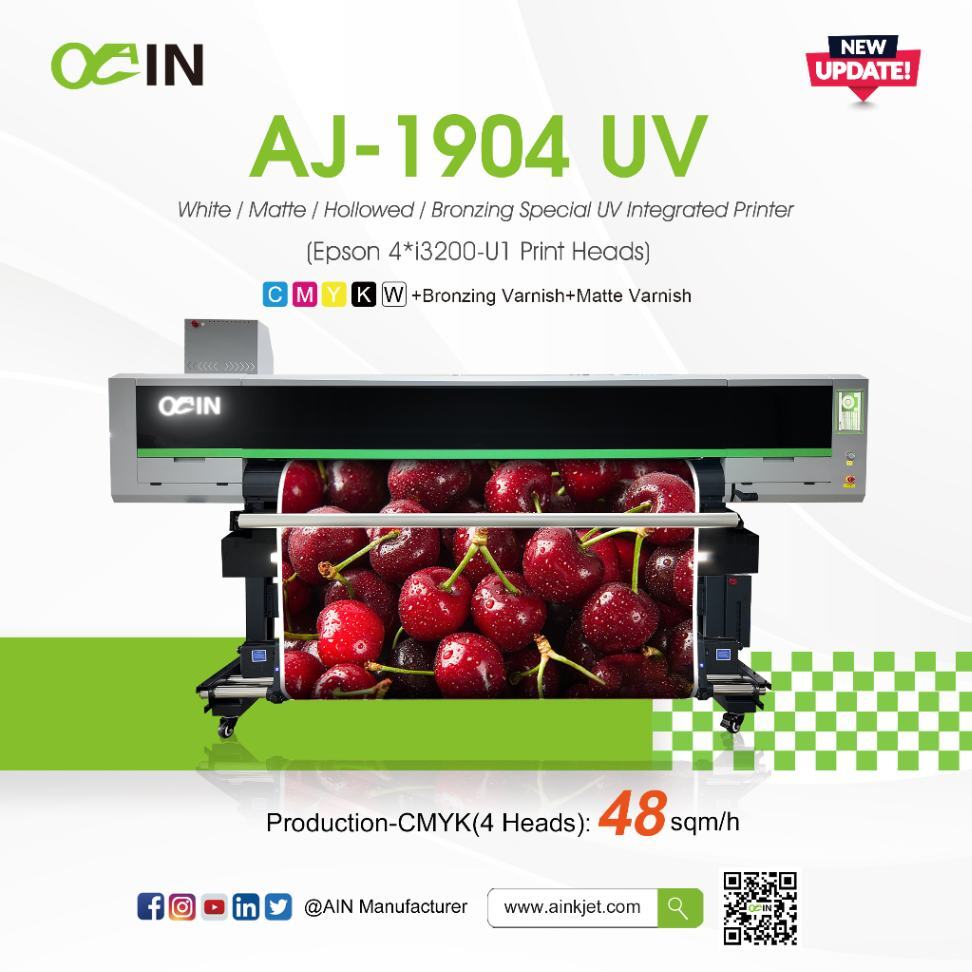

Roll to Roll Printer Multi-layer Printing White / Matte / Hollowed / Bronzing Special UV Integrated Printer Featured printing technology Support 3-5 multi layer printing combinations, including color+white+color+matte finish+hot stamping finish, efficient and convenient to meet diverse creative needs; Three layer printing uses backlight switching, with the bottom layer receiving light for color rendering, the middle layer brightening, and the top layer eye-catching, presenting a diverse and exquisite visual effect. Wide adaptability Supports continuous printing of leather, lightbox fabric and other rolls, covering industries such as advertising, decoration, packaging, etc., and is compatible with various printing methods such as gold and silver paper and labels..
Efficient value-added Multi functional, integrating special UV printing techniques such as white ink, matte, hollow out, and hot stamping to create a sense of layering; The diversified color scheme is environmentally friendly, and the multi-layered color lighting has a varied effect before and after, enhancing the added value of advertising. Upgrade stability Brand new 1.9-meter multi-layer UV printing upgrade framework has a wide printing format and stable output. New waste ink alarm and fresh air standards have been added, suitable for intelligent printing of various types of rolls. Balance speed and accuracy accurately.
|
New Feature of UV Printer We have an excellent technical team, which can be designed according to customers requirements. |

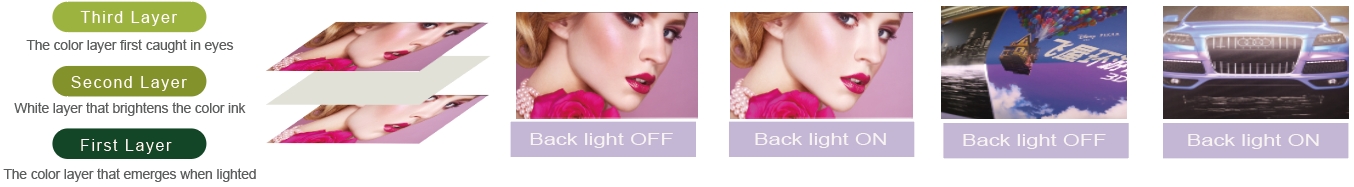

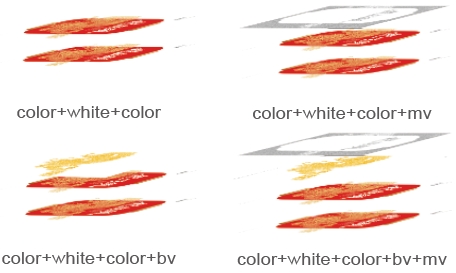

3 lavers printing the output is more delicate
| |
AJ-1904E UV different color pattern collocation application scheme, to meet the needs of diferent customers, color white color three layer super transparent glass paste using environmental protection materials, green environmental protection, The collocation ofmulti-layer colors presents different display effects before and after lighting, Color+ White+ Color + Matte Varnish + Hot Stamping Varnish, Perfect print output put, Applied to various types of glass decorative stickers and personalized packagingmaterial printing, one-time printing, convenient and efficient. |  |

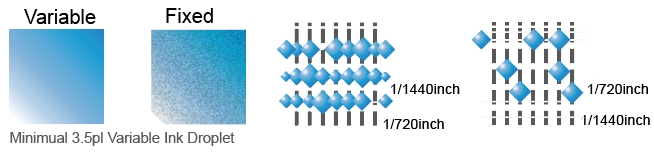

1-3 Layers printing mode optional With Epson Authorized 4*I3200-U1 heads , minimual 3.5pl variable ink droplet UV printer.
|
3pcs I3200 Print heads
|
Printer Heads
Technical Specifications

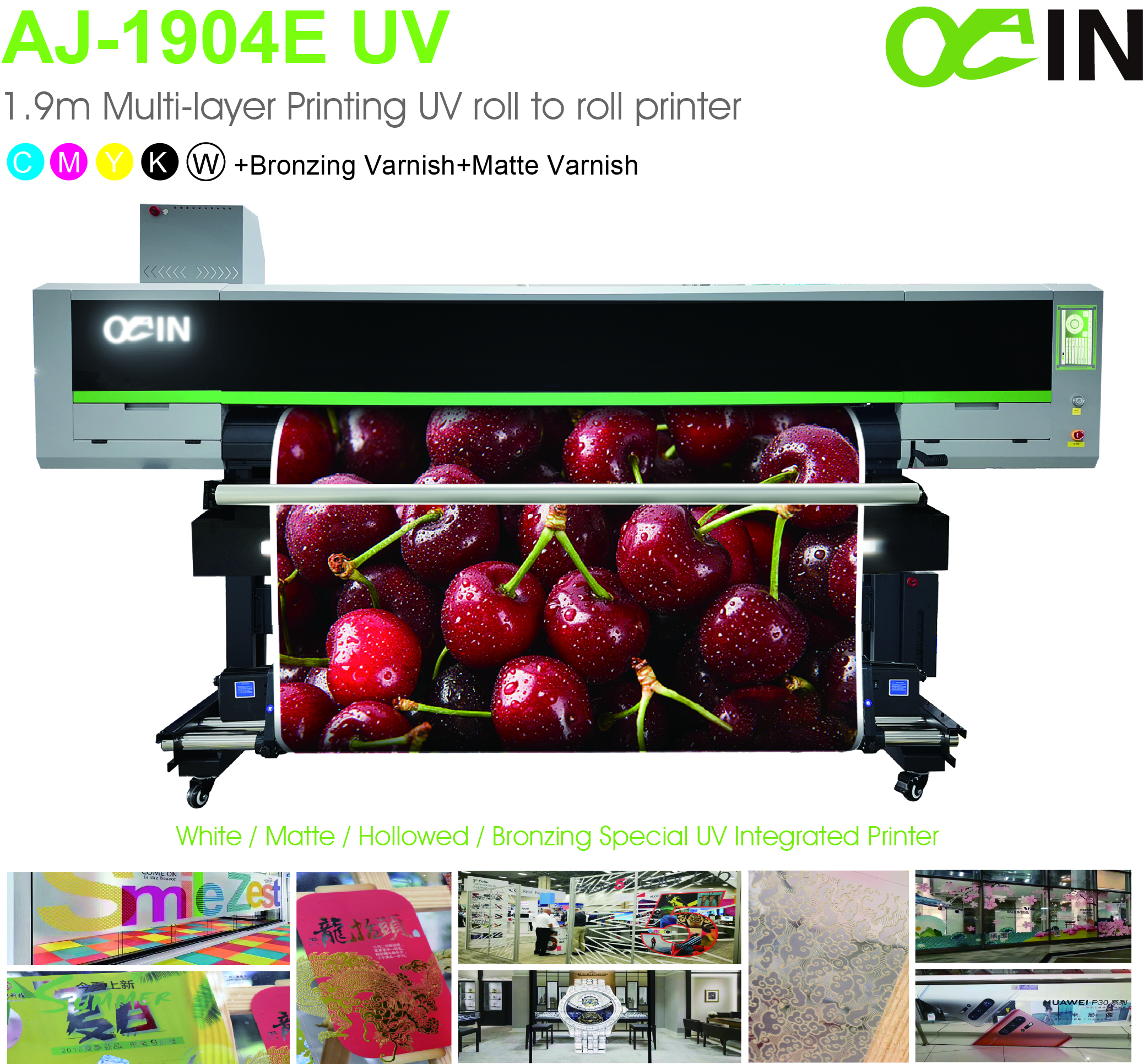

| AJ-1904E UV 1.9m Multi-layer Printing UV roll to roll printer | ||
| Model | AJ-1904E UV | |
| Print Head | Four Epson l3200-U1 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 75.5 in.(1920 mm) |
| Thickness | Maximum 59 mil(1.5 mm) | |
| Weight | 176 lb.(80 kg) | |
| Printing Width | 74.8 in.(1900 mm) | |
| Ink Cartridges | Type | UV Ink |
| Capacity | Continual Ink Supply System ( 1.5L ink tank ) | |
| Color | CMYK/CMYK+W CMYK+W+CMYK | |
| Ink Curing Unit | Dual UV LED Lamps(Water Cooling) | |
| Printing Resolution | Maximum 2400 dpi | |
Interface | USB 2.0 | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| Dimensions(with stand) | 3130*1680*930(mm) | |
| Weight(with stand) | 750 Ib.(340 kg) | |
| Packing Size | 3950*850*1100(mm) | |
| Packing Weight | 969lb.(439.5 kg) | |
| Environment | Power on | Temperature: 59°F to 90°F [15℃ to 32 C]/ Humidity: 35 to 80% (no condensation) |
| Power off | Temperature: 41°F to 104 °F [5℃ to 40℃]/Humidity: 20 to 80% (no condensation) | |
Features

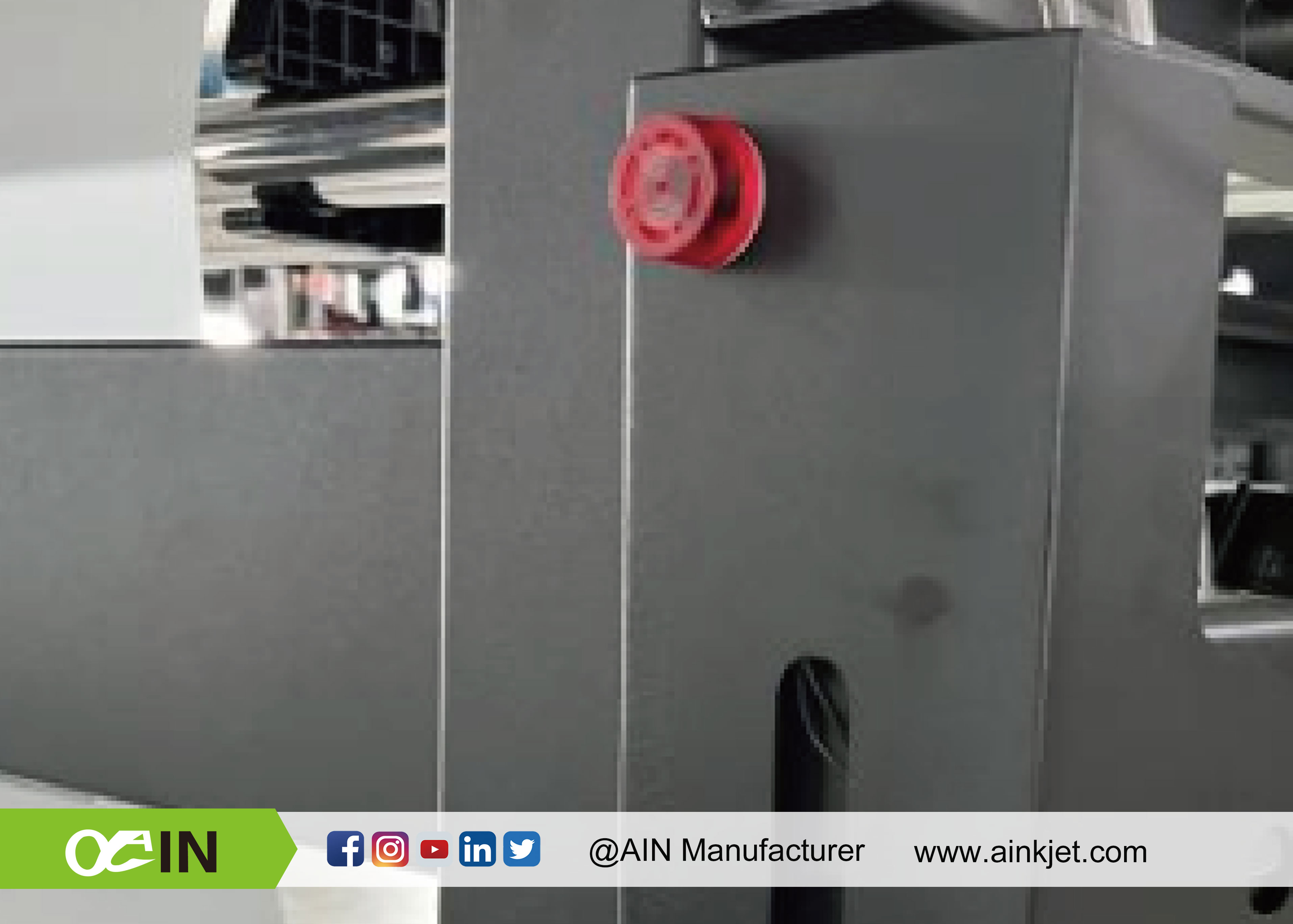

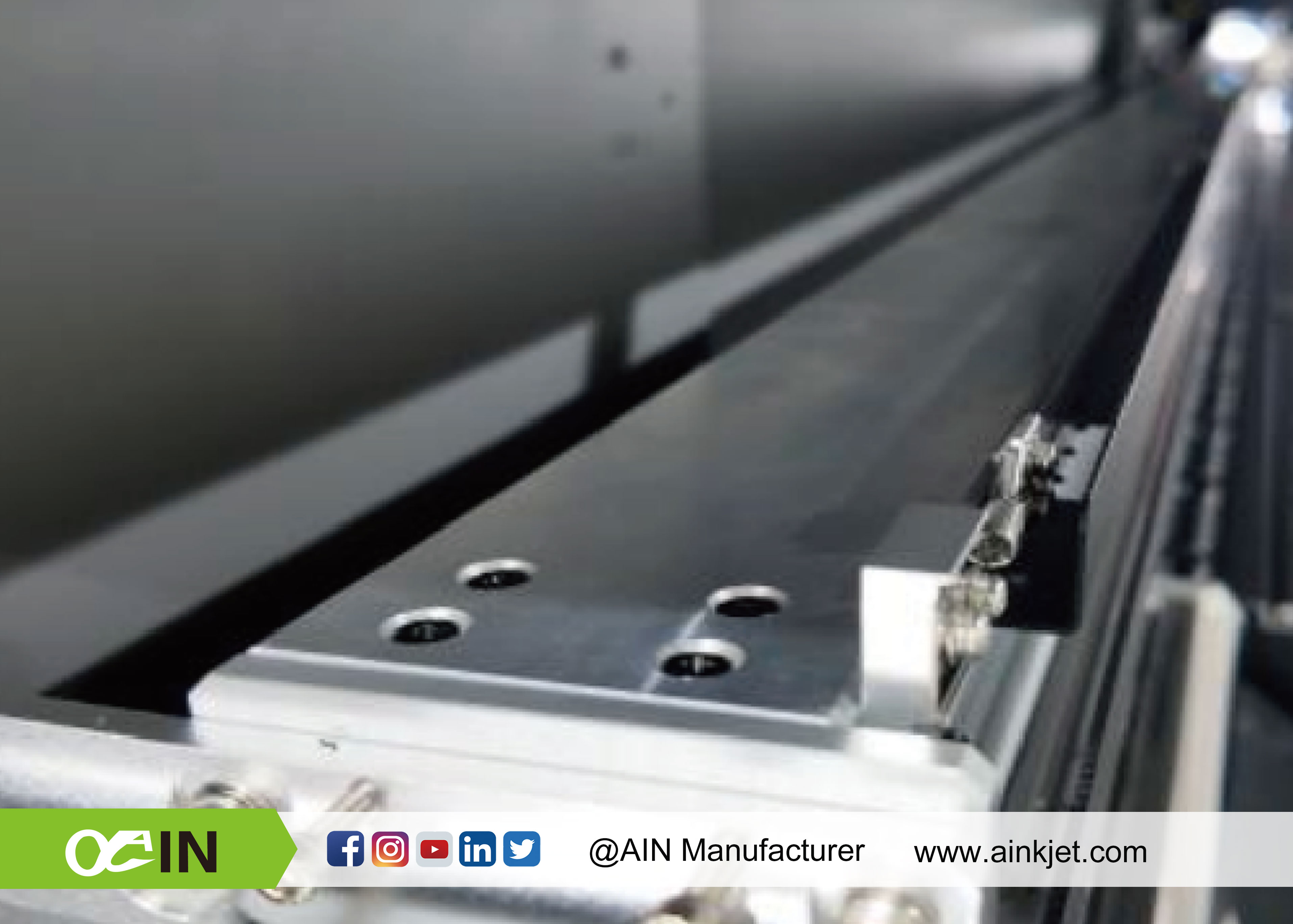

 | The aluminum profile main beam is used to replace the original steel structure, providing better mechanical strength and mechanical precision. |  | Added a waste ink barrel alarm system for a more user-friendly experience. |

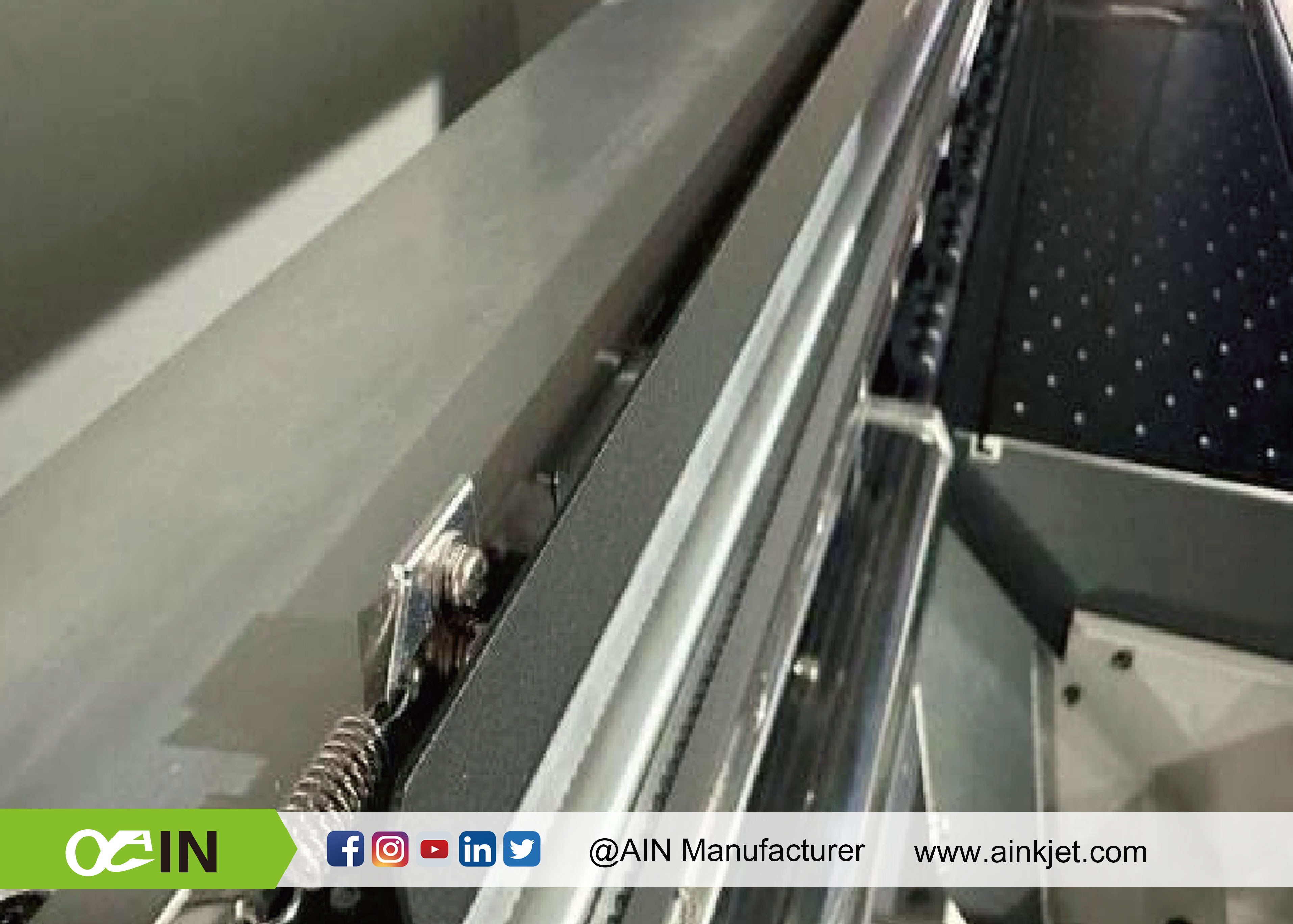

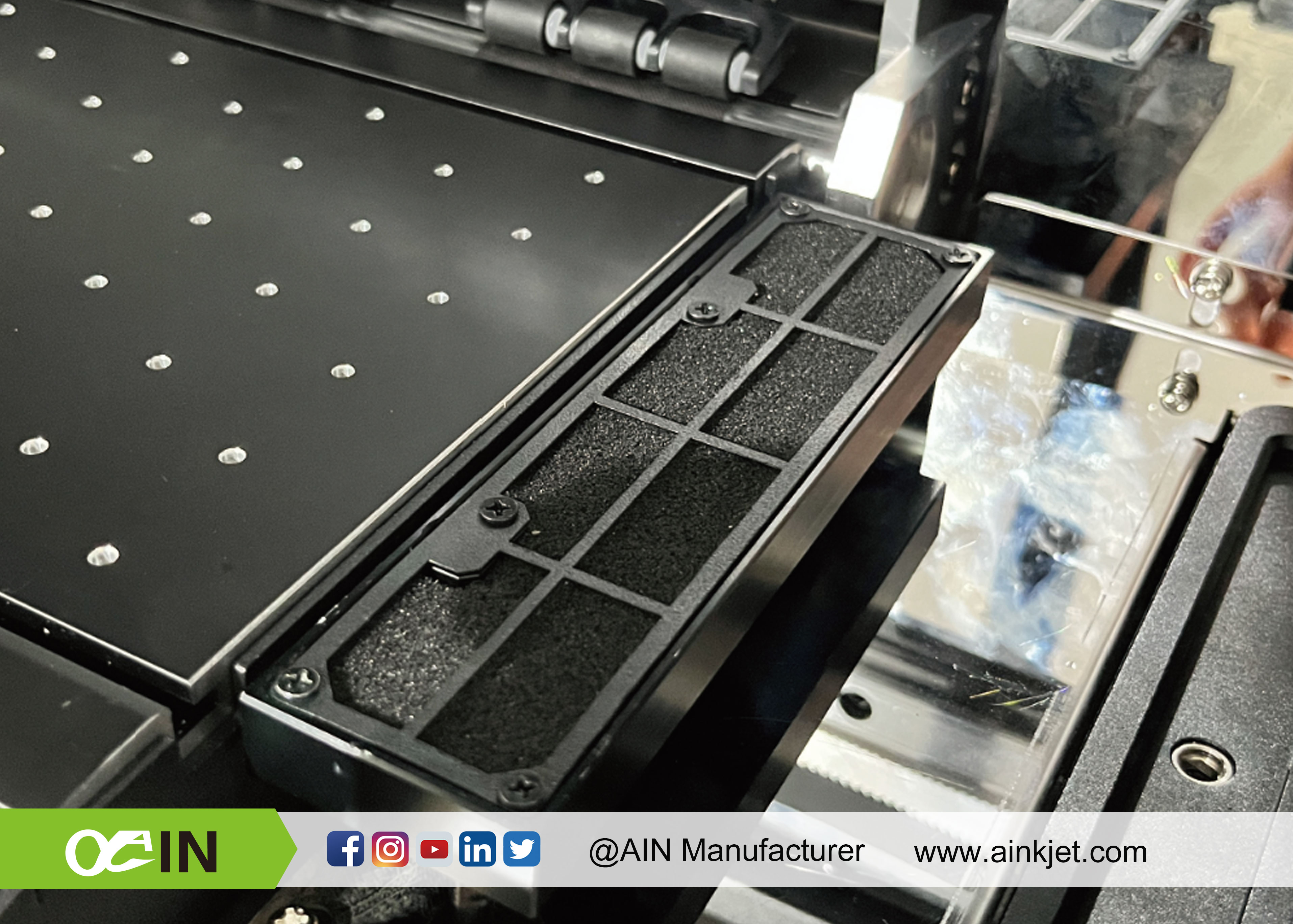

 | New magnetic protection cover can prevent encoder strip and extend the service life of the encoder strip. |  | Added flash spray slot structure to better improve printing speed and accuracy. |

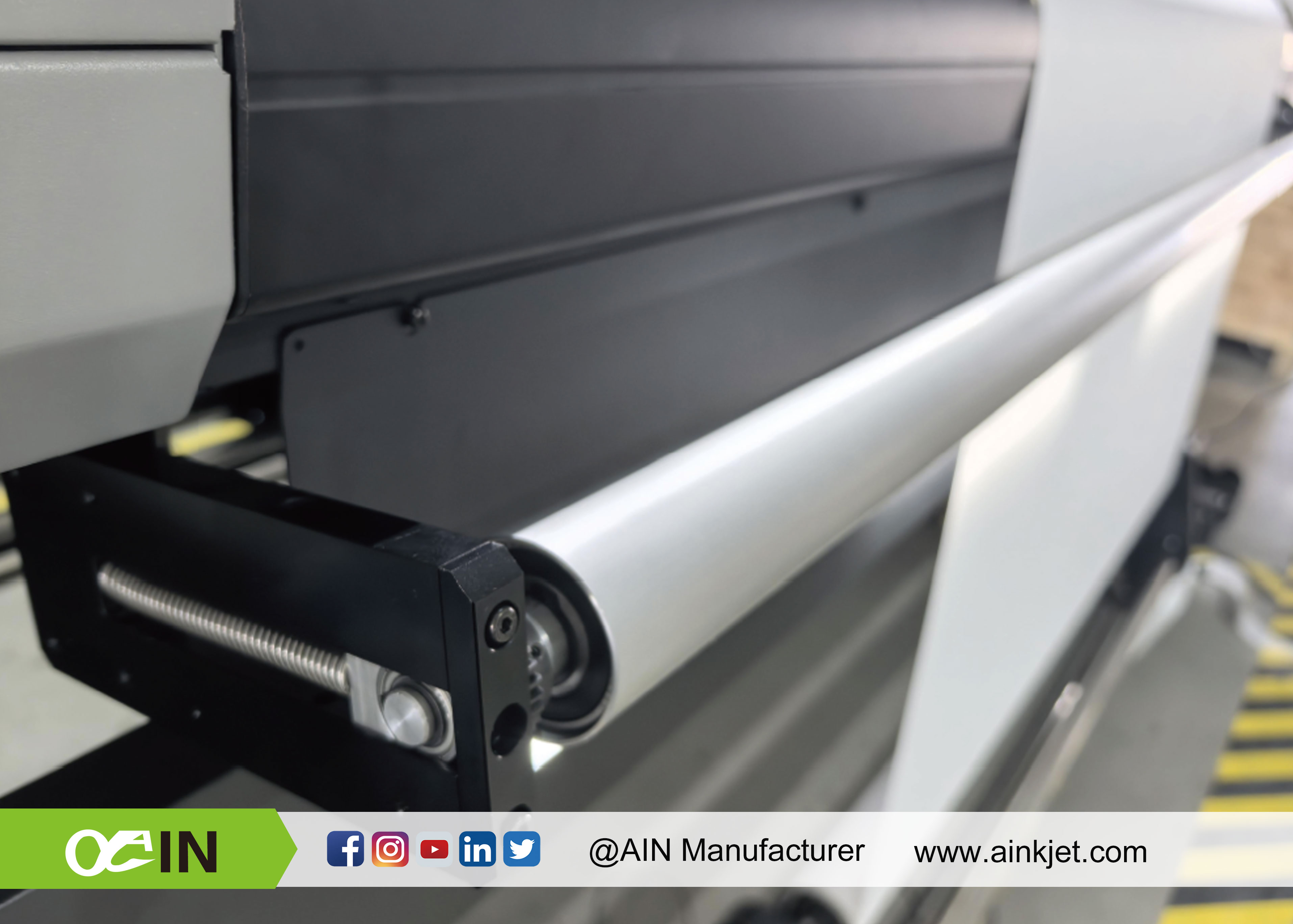

 | standard front tension rollers, professional models have added standard front drive rollers to ensure smooth paper feeding. |  | Upgraded suction platform, media feeding is smoother and less prone to bulging. |
 | The printheads base is embedded in the structure, so the heads does not protrude from the bottom plate of the trolley, which better protects the print heads. |  | Standard fresh air system to reduce dust in the printing chamber and ink mist caused by inkjet. |
Application
Applications of Multi-layer Printing UV roll to roll printer

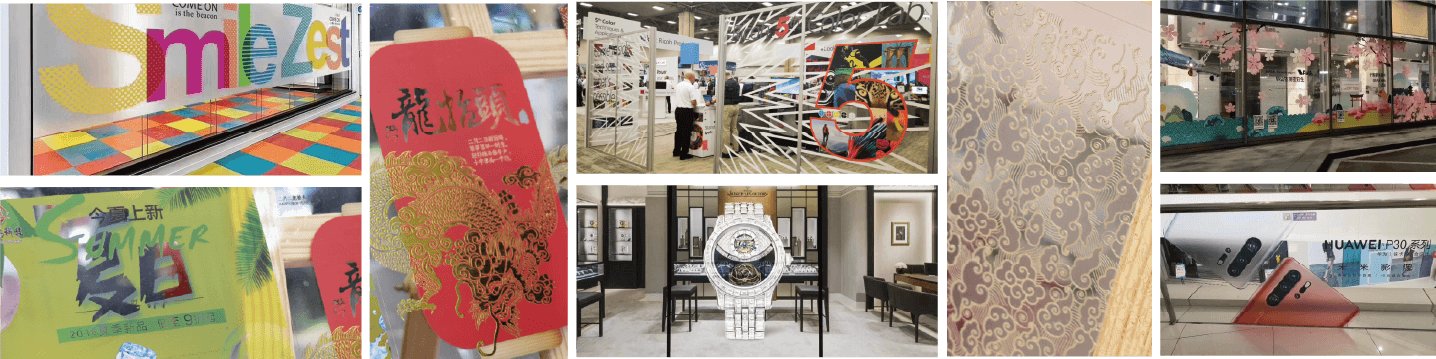

Wide applications in light box posters, customized car stickers, background wall cloth, gold paper and silver paper printing, leather printing, high-end gift box printing, food packaging printing,Label printing, operation panel & switch printing etc.
