Product Description
Industrial High Precision
Dye Sublimation Printer
The physical splicing of industrial print heads overcomes the issues of insufficient line sharpness and poor printing accuracy adjustment that occur with multiple I3200 A1 print heads due to differences and splicing. As a result, it significantly improves the sharpness and accuracy of line printing.
Technical Specifications

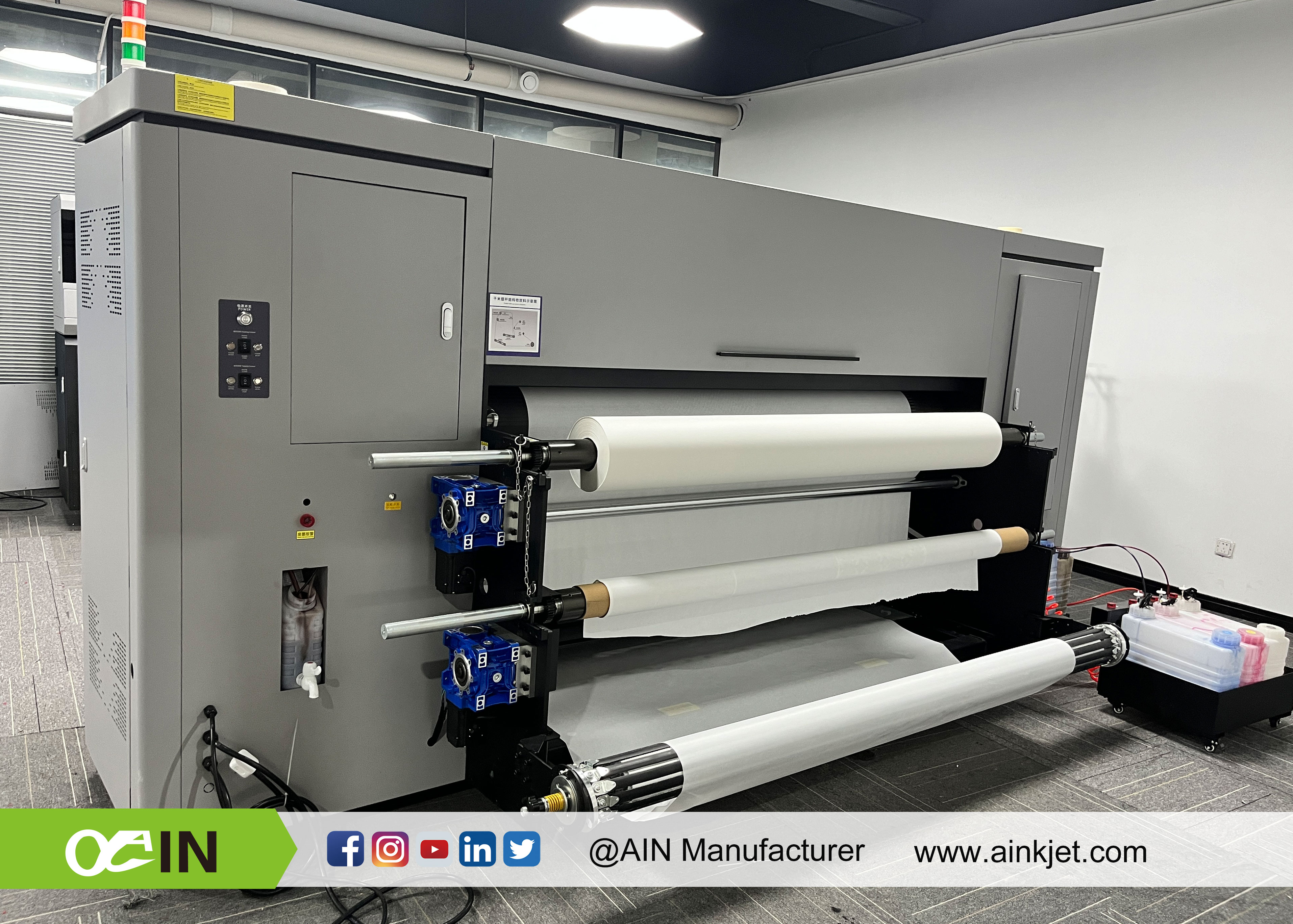

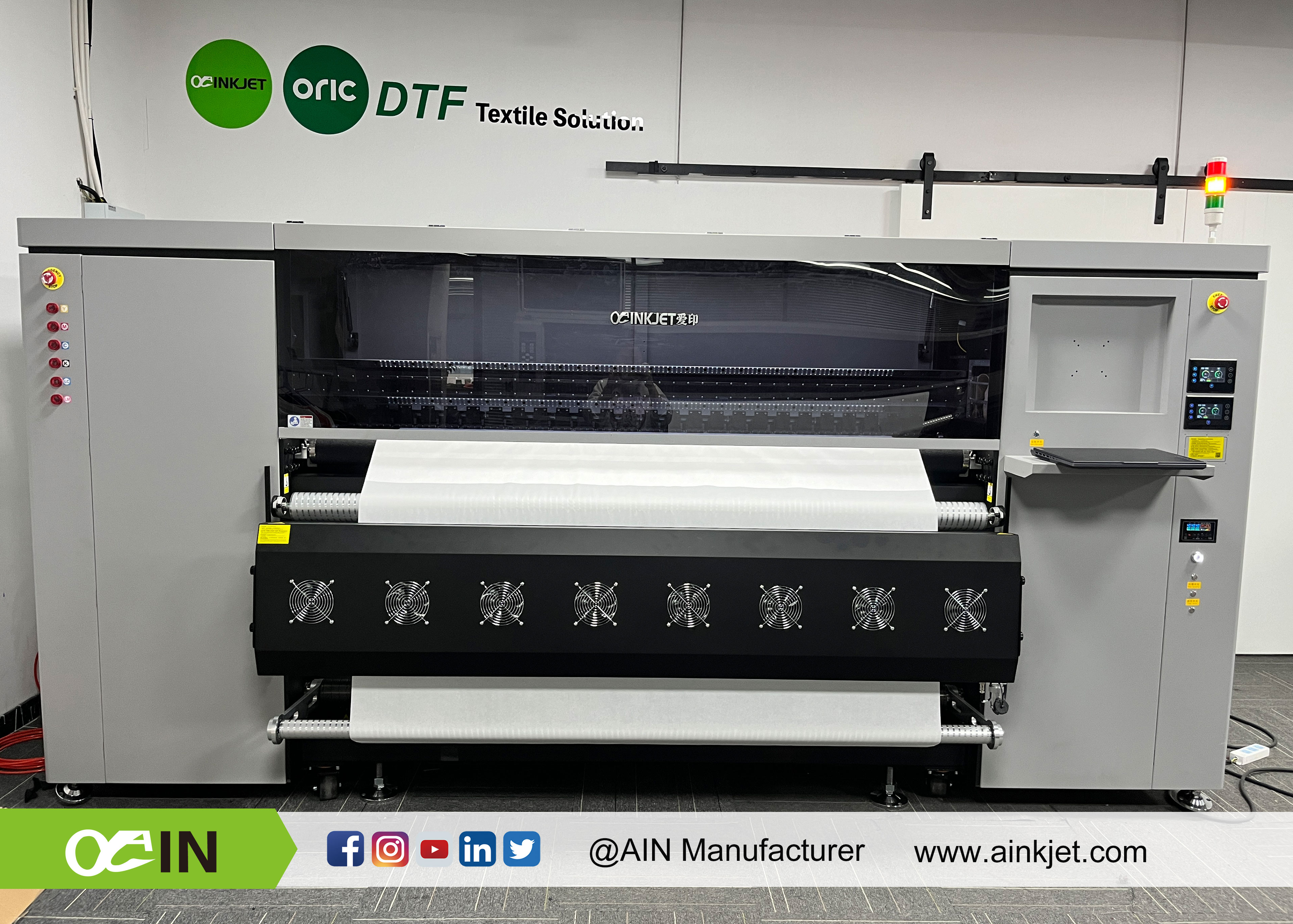

| AJ-1906S Pro 1.9m Industrial High Precision Dye Sublimation Printer | ||
| Model | AJ-1906S Pro | |
| Print Head | 6* S3200 Print Heads | |
Droplet Size | 3.5pl | |
Printing Width | 74.8 in.(1900 mm) | |
Printing Speed | 2pass(400x1200dpi):196 sqm/h 4pass(600x1200dpi):91 sqm/h | |
| 2pass(600x600dpi):240 sqm/h 6pass(1200x1200dpi):62 sqm/h | ||
| Ink Cartidges | Type | Dye Sublimation Ink |
| Supply | Negative pressure ink supply system | |
| Color | CMYK/CMYKLcLm/CMYKFpFy/CMYKLcLmFpFy | |
| Print Media | Heat Transter Paper | |
| Print media control | Air expansion shaft Take-up System | |
| Dryer | External Automatic Air Heat Integrated Dryer | |
| Moisturizing unit | Automatic Cleaning and Moisturizing Integrated Captop | |
| RIP Software | RllN Beidou Textile Version,Maintop6 0、photoprint、ONYX、NeoStampa | |
| File Format Supported | JPG /TIFF/PDF,etc | |
Computer Configuration | Operating System | win7 64 bit/win10 64 bit |
| Hardware Requirements | CPU: i7 Processor (9th generation or higher) Hard Disk 500g+ (solid state disk) Operating Memory 16g. Graphics Card: ATl display 4G memory, Motherboard: ASUS, Gigabyte | |
| Data transmission | USB3.0 | |
| Power requirement | Input Voltage | AC 220 V±5%.16A.50 HZ±1 |
| Printer | 2500W | |
| Drying unit power | Maximum 8kw | |
| Dimensions(with stand) | 140(W)x64(D)x70(H)in. 3550(W)x1629(D)x1783(H)mm | |
| Package Dimensions | 137.7(W)x29.5(D)x84.6(H)in. 3500(W)x750(D)x2150(H)mm | |
| Working Environment | Temperature 15-32 degrees C, Humidity: relative humidity: 40-70 (non condensing) | |
| Standard Components | Exteral Automatic Air Heat Integrated Dryer, Low lnk Alarm System, Air Shaft Media Loading and Take-up, andAutomatic Moisturizing and Cleaning Init | |
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features

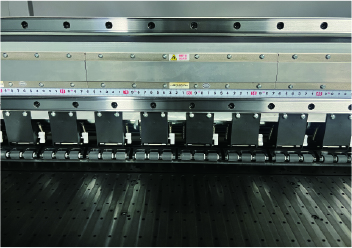

 | Equipped with linear motor + magnetic strip to provide stable X-axis motion; |  |

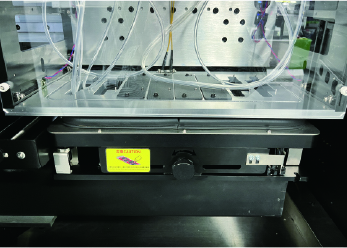

Automatic cleaning and moisturizing components to enhance customer experience; |

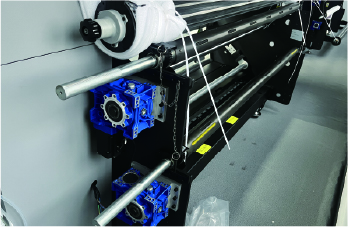

 | Inverter + AC servo material collection and release system, supporting 1,000-meter 100g transfer paper; |  | Upgraded high-strength frame and aluminum beam structure to provide stable and high-precision printing effects; |

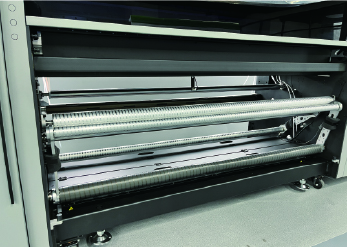

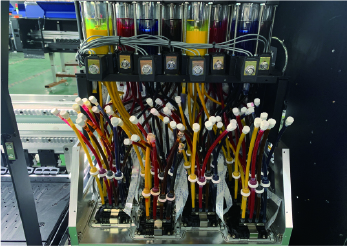

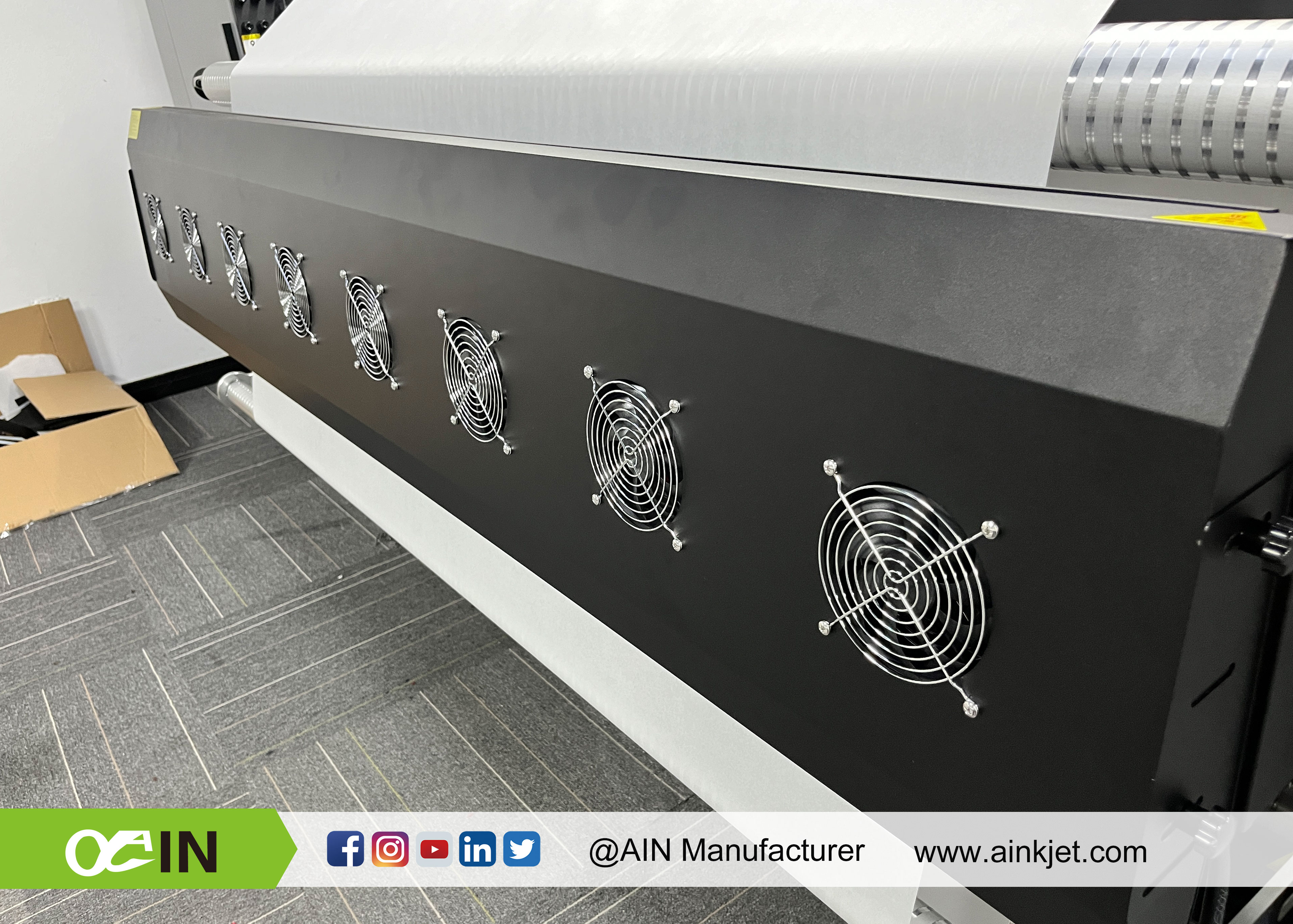

 | Equipped with positive and negative pressure ink supply system, supporting up to eight colors, and the main ink path is equipped with a degassing module control system; |  | External infrared integrated drying device to accurately control the drying temperature and reduce energy consumption； |

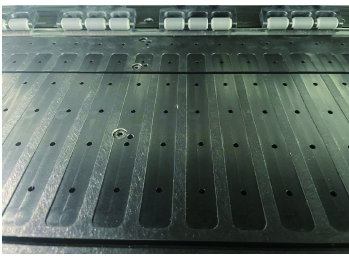

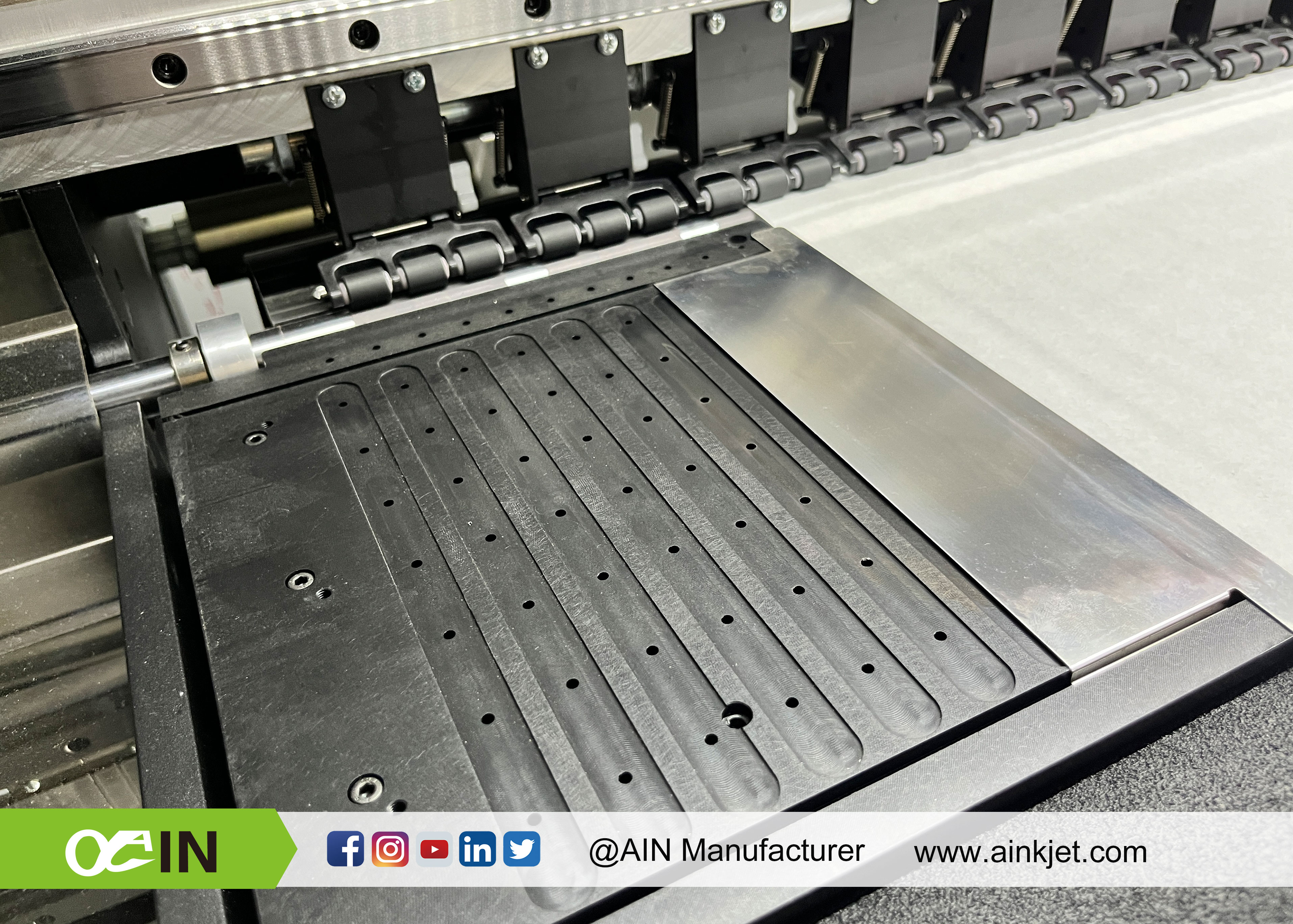

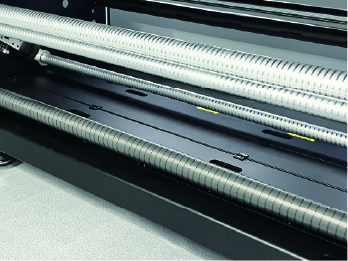

 | Air expansion shaft rubber strip rolls collection and release, to ensure that the collection of material more stable and flush； |  | Vertical slotted air guide platform, making the paper surface more flat |
Application
Applications of Industrial
Dye Sublimation Printer
Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant，reliable and precise. With Ainkjet series printer , you can maximize production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
